42691/A1 CONTROL UNIT
USER'S AND INSTALLATION MANUAL
CC-1035ENG-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42691/A1 and is the answer not in the manual?

Questions and answers

Related Manuals for EisSound 42691/A1

Summary of Contents for EisSound 42691/A1

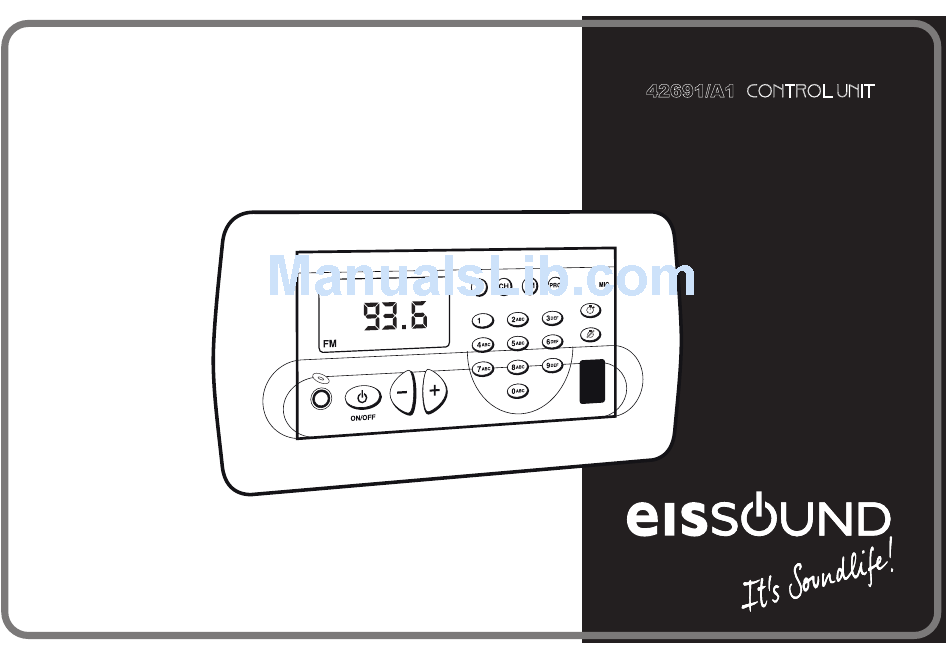

  • Page 1 42691/A1 CONTROL UNIT USER’S AND INSTALLATION MANUAL CC-1035ENG-09...

  • Page 2: Table Of Contents

    Important Safety Instructions Before installing the unit, please read and follow the instructions provided in the Installation Manual included . Before operating the unit, please read and follow the instuctions provided in the User´s Manual thoroughly and save it for future experience. WARNING - To reduce the risk of fire or electric shock: install in accordance with the manufacturer’s instructions Wiring Diagram...

  • Page 3: Wiring Diagram

    Wiring diagram 112 98 16 W 16 W Rojo Negro Rojo Negro CONTROL UNIT pqrs wxyz 426 91 426 A1 CONNECTING TERMINALS 230V Power supply Left loudspeaker output (red terminal/+) Right loudspeaker output (red terminal/+) Common loudspeaker ouput (black terminals/-) 15Vdc Sound regulator power supply Mass It is advisable that the direct current that provides power to the power supply (ref.11298) be connected to a specific Automatic Switch in order to isolate and...

  • Page 4: Introduction

    1. Introduction The new 42691/426A1 control unit is here. It provides the finest features offered by the EISSOUND 400 Series, available in the convenient form of a kit. Like the 400 Series, the 42691/426A1 control unit is user-friendly in design. Its clear and easily accessible menus allow the user to failor the settings according to the needs of each client.

  • Page 5: Getting Started

    2. Getting Started 2.1 The first time... Installers Users The control unit must be installed once power is fed for the first Once the control unit has been installed it is ready for normal time. By default, the control unit is set to stereo for 16 operation.

  • Page 6: Programming Menus

    2.2 Programming Menus Key Sequence Display Visual 2.2.1 Three Access Levels There are three menus to program different access levels. Installation Menu instal This menu stores information regarding the parameters that affect the installation's proper 2’’ operation. This programming should be done by a specialized technician. Configuration Menu config This menu stores information regarding the personalized operating mode for each user.
  • Page 7 Key Sequence Display Visual When the item to be programmed appears on the display it will be flashing, thus indicating it is ready to be modified. If there are several choices possible (for example, the days of the week, the digits of a date), the + and - keys can be used to scroll back and forth between the items.

  • Page 8: Installation

    3. Installation Wiring Diagram Installation involves three elements: a power supply, a control unit and loudspeakers. See on page 3. · If the room is monophonic, connect any of the speakers and set the control unit to MONO. (See 3.2.1. Mono/Stereo Installation) ·...
  • Page 9 Key Sequence Display Visual 3.2.2 Audio Output Defines the impedance connected to the control unit's audio output (terminals 04, 05, 06) audio output between the following options: 16 ohm passive loudspeaker 2’’ 8 ohm passive loudspeaker amplifier line To change the setting to 8 ohm Store 3.2.3 Deleting Control Unit Installation.

  • Page 10: Settings

    4. Settings Key Sequence Display Visual 4.1 Language idioma españl To select the language of all display text. 2’’ englsh To select a different language (for example, English). Store Greeting Allows you to personalize the message that appears on the display when the control unit greeting 2’’...
  • Page 11 Key Sequence Display Visual Selection of IR Remote Control ir remote 2’’ Allows remote control selection ir 14 To activate the remote control operation, use the + and keys to scroll to number 14. To block remote ir 15 control operation, select a value other than 14 Store Deleting Settings from the Control Unit 2’’...

  • Page 12: User Programming

    5. User Programming Alarm 1 and 2 Display Visual Display Visual Key Sequence Key Sequence Enter to program the days of the The Kit is equipped with two alarm 1 MO on week alarm will be set programmable alarms with two alrm1 operation modes, as described in section 6.11.
  • Page 13 Display Visual Display Visual Key Sequence Key Sequence Scroll to next program setting in volume 00-00 alarm mode 23:45 Enter to program the alarm vol 75 hh-mm volume Store days vol 86 Change mo on Store 5.2 Auto standby Display Visual Key Sequence tu on Option to program a time for...

  • Page 14: Time And Date

    5.3 Sleep Display Visual Display Visual Key Sequence Key Sequence Sleep time can be adjusted Key in the 10 10-aug-02 to the user's needs by using sleep minutes the following programming min 20 10-dec-02 Change until the month of option. December is reached min 35 (See 6.4.
  • Page 15 Deleting FM Tuning 5.6 and 5.7 options are only available if permission for this option is enabled in the settings menu. Display Visual Key Sequence Pre-Sets See 4.3. Permission to Save/Delete FM Tuner Pre-Sets delete fm The option to delete all the FM Saving “Ideal”...
  • Page 16 6. Operation Quick Reference to Display and Keypad NORMAL PROGRAMMING off/on exit programming menu audio adjustment mode (volume-bass-treble - loudness - balance) discman/MP3/iPod selection FM tuner selection access to program / settings / installation menus store acoustic timer enabled (flashing) start acoustic timer stop acoustic timer numeric keypad...
  • Page 17 Key Sequence Display Visual 6.2 Clock-Calendar What Is It? 10:56 The time, date and day of the week are alternately displayed by default 28 feb How Is It Programmed? time-date Access the program menu and select hour, minutes and date See 5.4.
  • Page 18 Key Sequence Display Visual How Is It Activated/Cleared? sleep 2’’ It is activated by pressing the ON/OFF key for 2”. The icon will appear static. Once the pre-set time has elapsed, the control unit will automatically power off If the control unit is powered off manually before the end of the pre-set time, the sleep function will be disabled 6.5 Auto standby What Is It?
  • Page 19 Key Sequence Display Visual Audio Level Adjustment The default function for the + - keys when the control unit is on is to adjust the volume vol 55 Pressing the key switches to bass adjustment mode bas +12 In this mode, the keys have the function of adjusting the bass bas +24 Pressing the key again switches to treble adjustment mode...
  • Page 20 Selecting the FM Tuner as the Audio Channel Key Sequence Display Visual How Do I Tune An FM Station? frequency selection mode station tuned By directly keying in the station frequency, for example, to select the wxyz station 89.10 Mhz frequency A minimum of three digits must be entered when keying in a stereo...
  • Page 21 Key Sequence Display Visual frequency selection mode station tuned automatic station seek sensitivity level (1...4) To enter the frequency selection mode, press FM again frequency stereo frequency selection mode automatic station seek When pressed with a short key press, the + and - keys tune sensitivity level (1...4) the frequency in intervals of 0.05 Mhz frequency...
  • Page 22 How Do I Store Station Pre-sets Into The FM Tuner Key Sequence Display Visual Select the station frequency to be stored using any of the methods described in the previous point. If the reception quality is not pre-set memory number (flashing) station tuned satisfactory in stereo, select the less demanding “forced mono”...
  • Page 23 6.9 Ideal Settings Mode What Is It? Each control unit has the feature to store “ideal” audio settings, which are pre-programmed settings that can be enabled quickly and immediately. These settings consist of an audio channel and pre-set levels of volume, balance, bass, treble and loudness Key Sequence Display Visual...
  • Page 24 6.11 Alarms The control unit is equipped with two alarms that can be individually programmed and can operate in two different modes: Beep Mode Alarm Operates whether the control unit is off or on. At the time and days programmed, the control unit powers on and a specific beep signal is sounded. The alarm 1 and alarm 2 beeps are different and have programmable volumes.

  • Page 25: Quick Reference Guide

    7. Quick Reference Guide 2’’ SETTING OPTIONS MENU OPTIONS To directly access a function, key in that function's numeric sequence, then To directly access a function, key in that function's numeric sequence, 2’’ press and make any desired changes. To validate the operation, then press and make any desired changes.

  • Page 26: Technical Specifications

    8. Technical Specifications CC-1035ENG-09...
  • Page 27 9. Accesories Infrared remote control device for remote operation (ref.: 42791) Exterior measurements in mm: 165 x 48 x 28 Front trim for control unit Available colors: white, ivory, graphite. New range coming soon. Face cover for control unit Available colors: white, ivory, graphite. New range coming soon. CC-1035ENG-09...
  • Page 28 Electrónica Integral de Sonido, S.A. is not responsible for any errors or omissions that may appear in this manual. CENTRAL Polígono Malpica Calle F Oeste Grupo Gregorio Quejido, 87-88 50016 Zaragoza (SPAIN) Tel.: 34 976 465 550 Fax: 34 976 465 559 comercial@eissound.com www.eissound.com AENOR Empresa Registrada ER-0634/1998 64460084 CC-1035ENG-09...
