Page 1: Operating Manual

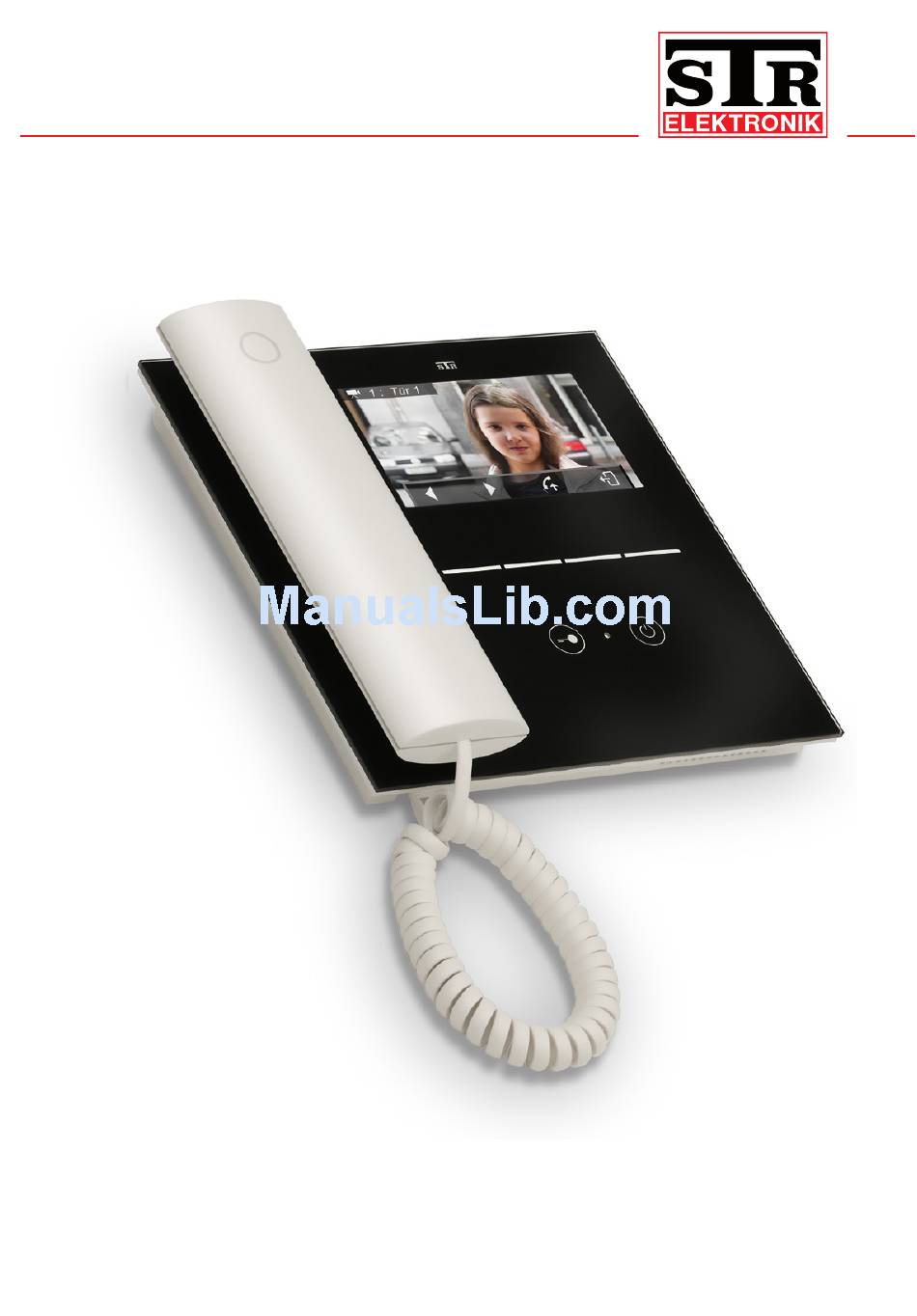

Indoor Video Stations Operating Manual with 2-wire QwikBUS Technology VH40/45 and VFS40/45 (English version) QwikBUS - intelligente Türkommunikation... -
Page 2: Legal Information
Legal information Document type: Operating Manual Product: Indoor Video Stations with 2-wire QwikBUS Technology, VH40/VH45 and VFS40/45 Target audience: Authorized technicians Language: English DocumentNumber_Version: #####_00 Creation date: 04.2013 Publisher/Manufacturer STR Elektronik Josef Schlechtinger GmbH Auf dem Ohl 9, D-57482 Wenden, Germany ©... -
Page 3: Table Of Contents
Table of Contents General information How to use the operating manual Symbols used Copyright Warranty Applied standards Security Proper use General hazards Electrical hazards Maintenance and repair work Structure and function Package contents Structure and function of the Indoor Video Stations Function Installation and wiring Safety instructions for installation and wiring... - Page 4 Removal and disposal Removal safety Removal Disposal Technical information VH40/45 and VFS40/45 Indoor Video Stations Appendix Accessories Indoor Video Station Operating Manual - 04/2013...
-
Page 5: General Information
General information General information 1.1 How to use the operating manual This operating manual describes the safe and efficient handling of your STR Indoor Video Station. It is part of the package contents and must be kept accessible to the user at all times. -
Page 6: Copyright
General information 1.3 Copyright This manual and all documentation supplied with this unit remain the copyrighted property of STR. Their use is permissible and desirable only for the purpose of operating the device. This documentation may not be reproduced or made available to third parties, especially our competitors, without the express permission of STR. -
Page 7: Security
Security Security 2.1 Proper use The Indoor Video Station with 2-wire QwikBUS Technology is an access control and internal building communication system for everything from single family homes to residential complex, commercial and public buildings. Any other use is considered improper. Its intended use includes observance of this manual. -
Page 8: Structure And Function

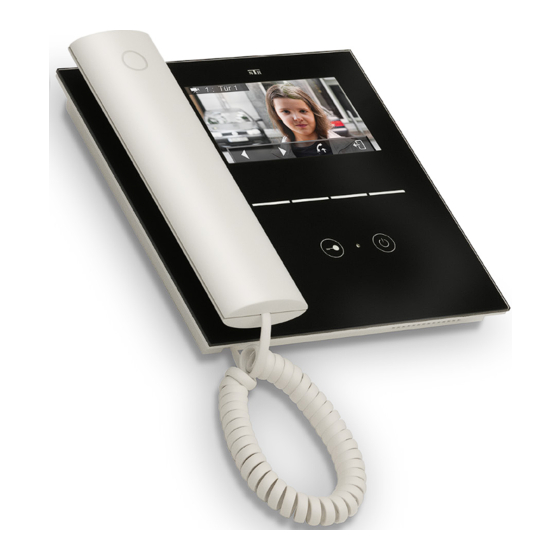

The Indoor Video Station consists of a 4.3-inch TFT screen inside a closed glass front, six touch buttons, a status LED and an additional handset (VH40/45). Fig. 1. Structure of the Indoor Video Station (VH40/45 shown) 4.3" TFT screen for displaying video images Touch buttons (multifunctional) Door opener touch button... -
Page 9: Function
– speakers manually Function The STR VH40/45 and VFS40/45 Indoor Video Stations can be custom- ized to meet the exact door communication needs of everything from single-family homes to residential complex, commercial and public buildings. They also provide increased safety for facilities such as daycare centers, schools or nursing homes, especially in combination with elec- tronic access control systems. -
Page 10: Installation And Wiring
Installation and wiring Installation and wiring 4.1 Safety instructions for installation and wiring The installation and wiring of the STR QwikBUS Indoor Video Station should only be performed by authorized, trained and instructed person- nel with the appropriate knowledge. The general safety requirements for telecommunications equipment (VDE800) must be observed. -
Page 11: Important Information
Installation and wiring IMPORTANT! Possible damage to property from improper cable routing! High and low voltage lines must be kept separate to avoid interfer- ence on the lines. Surface and concealed wires must be spaced at least 10 cm (4 inches) apart. - Page 12 Installation and wiring Activate the terminating resistor on the last monitor on the line. The bus line runs from one monitor to the next. KMBC-3 12V~ 12V~ Tö Tö KT1/2 TSMB3 Tö1 RTMB Tö The door opener can be AC voltage is required connected directly only for lighting and to the door station.
-
Page 13: Installation
Installation and wiring 4.4 Installation Apply light pressure to the release button Lift the top part of the housing Hook the device on at the top rst... Mounting on switch box Connect bus and ET ...then press down gently terminals according to the wiring diagram Terminating resistor Fig. - Page 14 Installation and wiring Apply light pressure to the release button Lift the top part of the housing Hook the device on at the top rst... Mounting on switch box Connect bus and ET terminals according ...then press down gently to the wiring diagram Terminating resistor Fig.
- Page 15 Installation and wiring Back side TSMB3-AM TSMB3 KT1/ RTMB (ST2) TSMB3 1 2 3 4 5 6 RTMB-AM Tö 12V~ RTMB P1: House phone volume P2: Door loudspeaker volume For service only! Speaker connection Camera connection TT33-2 Door loudspeaker volume Microphone sensitivity One-man programming 1 2 3 4 5 6...
-
Page 16: Activation And Programming
The VH45/VFS45 Indoor Video Station also allows the programming of internal communication between individual indoor stations. In addition, the VH40/45 and VFS 40/45 Indoor Video Stations offer a num- ber of menu customization options. 5.2 Activation (single programming) - Page 17 Activation and programming > Connect the other end of the cable to the door station: TT33-2: TSMB3: Connection board (TSMB3-AM) -> J1. The door station must be connected to a bus controller. > Switch the door station to programming mode by setting DIP Switch 1 (Fig.
- Page 18 Activation and programming > Press the On/Off button (5, Fig. 8) on the Indoor Video Station or lift the handset (VH40/45 only). You will hear a single confirmation tone at the door. A voice connection is now established. > Now press the doorbell button that you wish to assign to this Indoor Video Station.
-
Page 19: Parallel Programming
Activation and programming > Switch the door station to normal mode by setting DIP Switch 1 (Fig. 7) to OFF. Activation is completed. 5.3 Parallel programming Up to 4 Indoor Video Stations can be programmed to one doorbell but- ton. Before you can perform parallel programming, you must first assign a "master indoor station"... - Page 20 Activation and programming > Now press the next doorbell button that you wish to assign to this Indoor Video Station. The door station will beep 4 times as confirmation. > To program additional Indoor Video Stations: Press the On/Off button (5) on each additional Indoor Video Station. You will hear a single confirmation tone at the door.
-
Page 21: Programming Internal Communication (Vh/Vfs45)
Activation and programming 5.4 Programming internal communication (VH/VFS45) To be able to communicate internally with the other Indoor Video Stations in the system, all indoor stations must be linked to one another. To do this, follow these steps: > Go to Main menu ->... -
Page 22: Customizing Menu Functions
Activation and programming 5.5 Customizing menu functions You can customize the menu for the Indoor Video Station to your liking. Access the main menu by pressing the button. Here you'll find up to 7* menu levels: > Internal call > Switch 1 >... -
Page 23: Menu Level "Call Mute / Call Unmute
Activation and programming Menu level "Call mute / Call unmute" > From the main menu, use the arrow keys to navigate to Call mute / Call unmute and select this submenu > Use the button to confirm the Mute/Unmute function and automati- cally return to the main menu. - Page 24 Activation and programming When someone rings the door, the picture from the door that was rung will be shown. > select a ringtone and, > show or hide the camera at this door on the start screen (Door 2 to 7): When you turn on the monitor, you can use the to access the cameras in the system.
- Page 25 Activation and programming The memory locations are named LT1, LT2, and TÖ1 through 4. Switches that are in use can be customized. Unused switches can be hidden. > Use the arrow keys to select the desired memory location and con- firm via >...
-
Page 26: Menu Level "System Settings" (E.g. Language, Factory Settings And So On)
Activation and programming Picture > Go to Main menu -> Basic settings -> Picture and confirm via > Select brightness, contrast and color and confirm your selection via The selected setting appears as a bar at the top left of the screen. >... - Page 27 Activation and programming Customize menu On this menu level, you'll find 5* sub-levels: > Floor door opener > Portomat > Call forwarding (VH/VFS45 only) > Start conversation (VH/VFS45 only) > Switch 2 > From the menu, use the arrow keys to navigate to the desired option and select it >...
- Page 28 Activation and programming > Portomat The station has the option of activating a portomat function. This is used to automatically open the building or floor door whenever the bell is rung (such as in medical offices, office buildings, etc.). To activate this function, follow these steps: >...
- Page 29 Activation and programming If forwarding is enabled, the symbol will appear in the upper left corner of the screen. > To select the internal station where you wish to forward the call, use to select the Station menu option and confirm via >...
- Page 30 Activation and programming > Switch 2 > Go to Main menu -> System settings -> Customize menu -> Switch 2 and confirm via > "Switch 2 visible/hidden" appears on the screen. Confirm via You will automatically return to the "Customize menu" level. >...
-
Page 31: Programming Additional Modules
Activation and programming 5.6 Programming additional modules If a switch module (SM333) is connected to the indoor video stations, fol- low the programming instructions in the SM333 manual. This is necessary because the switch module "starts" the programming process. Indoor Video Station Operating Manual - 04/2013... -
Page 32: Errors
Errors Errors 6.1 Troubleshooting safety Only specially trained experts should work on and troubleshoot the QwikBUS system. The EMERGENCY STOP button must be switched off and secured against reactivation for the duration of the work. A diagnosis with the power on must have been carried out beforehand. Errors must be reported immediately upon detection. - Page 33 Errors Error Cause Solution Bad picture Terminating resistor is not Set terminating resistor set on the last monitor (on the line) Set terminating resistor Set terminating resistor on all monitors only on the last monitor, remove all others Video level is too low Adjust camera potenti- ometer Error...
-
Page 34: Removal And Disposal
Removal and disposal Removal and disposal 7.1 Removal safety DANGER! Risk of death from electrocution! Contact with live terminals may lead to serious injury. Turn off the power supply. Secure the power supply to prevent it from being turned back on. 7.2 Removal A QwikBUS system that is no longer functioning must be removed and disposed of in an environmentally friendly manner. -
Page 35: Technical Information
Technical information Technical information 8.1 VH40/45 and VFS40/45 Indoor Video Stations Indoor Video Stations Unit VH40 VH45 VFS40 VFS45 General Information Current consumption (with 24 V power supply) Standby (approx.) Operation (approx.) Weight (approx.) g (lbs) 600 (1.32) 420 (0.93) -
Page 36: Appendix
Appendix Appendix 9.1 Accessories Universal QwikBUS SP333 Intelligent Controller BUS | BUS | TÖ4 | TÖ3 | TÖ2 | TÖ1 | LT2 | LT1 TÜR SP333 Fig. 12. SP333 Intelligent Controller The Universal QwikBUS SP333 Intelligent Controller manages bus data and provides outputs for door openers and lighted buttons. - Page 37 Appendix SNT333 Switching Power Supply DC OK SNT333 S ELEKTRONIK ADJ + Fig. 13. SNT333 Switching Power Supply The SNT333 switching power supply provides DC power to the STR Qwik- BUS video system. It is mounted on a DIN EN 60715 rail in the sub-distribution. The installa- tion width is 77 mm/5 HP.
- Page 38 Appendix Fuse F1 (primary): T80 mA Fuse F2 (secondary): T630 mA EVB333 Floor Distribution Bus EVB333 is required when multiple monitors extend radially from the switch box. VFS-40 IN/OUT EVB333 Up to three monitors may be connected to the MON output either radially or in a row VFS-1000 12V~...
- Page 39 Indoor Video Station Operating Manual - 04/2013...
- Page 40 STR Elektronik Josef Schlechtinger GmbH Auf dem Ohl 9 D - 57482 Wenden Telefon : +49 (0)2762 -9316-0 Telefax : +49 (0)2762 -9316-18 E-mail : info@str-elektronik.de Internet : www.str-elektronik.de...
