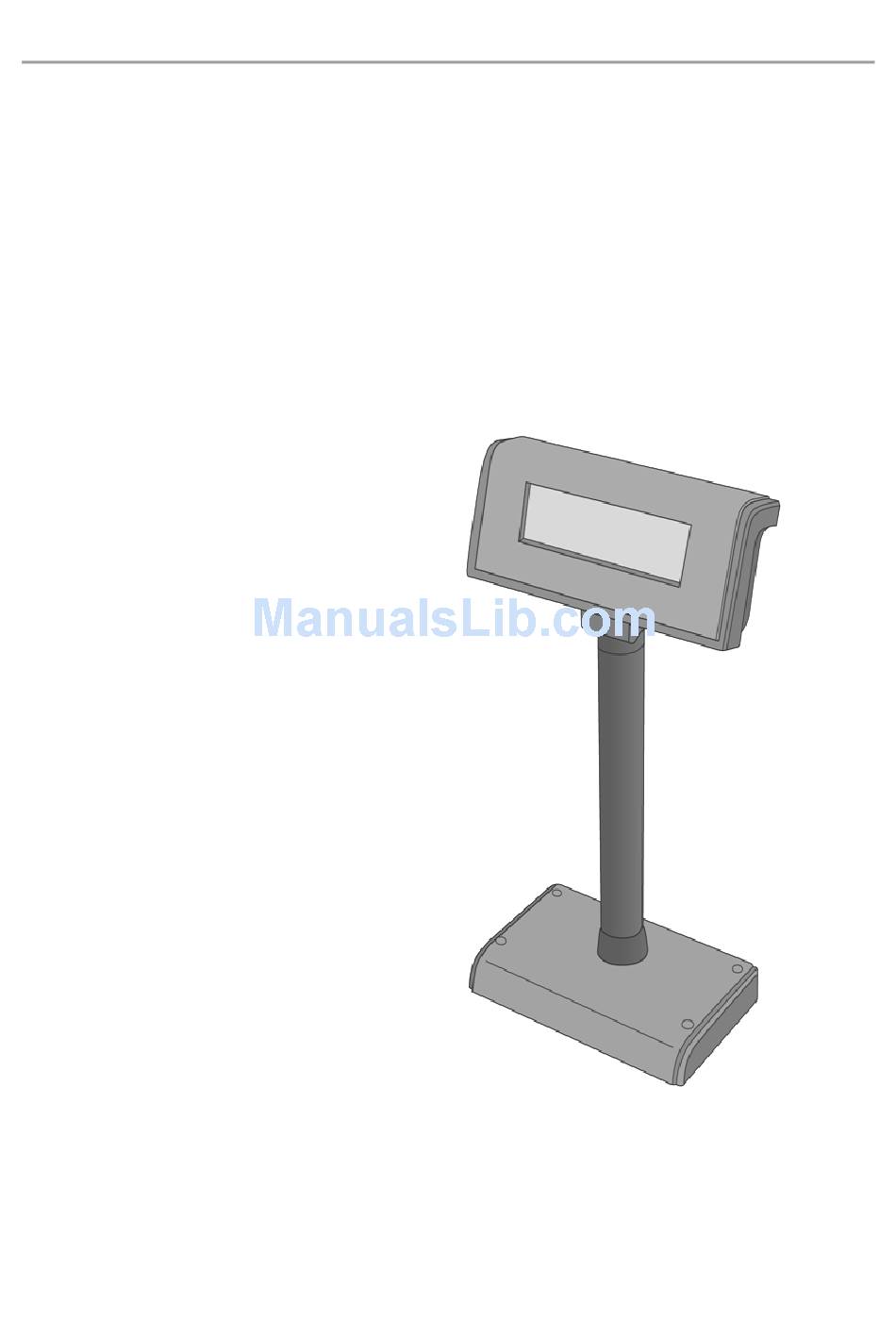

Page 1: Pole Display
CPD-3230 Pole Display User’s Manual Edition: JAN 2013 Version 1.00... -
Page 2: Declaration Of Conformity
For more information about where to send your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. CPD-3230 Customer Pole Display... - Page 3 The material in this document is for information purpose and is subject to change without prior notice. CPD-3230 has made every effort to ensure that this user’s manual is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred.
- Page 4 6. Do not place heavy objects on top of the product or lean them against the product. These items may fall down and cause injury. Do not block the air vent of the product as this can cause heat accumulation inside the box machine and may cause a fire. CPD-3230 Customer Pole Display...
-
Page 5: Table Of Contents
Table Of Contents CHAPTER 1 INTRODUCTION ..............1 ..................................1 NPACKING ................................... 2 EATURES ................................... 3 PECIFICATION CHAPTER 2 INTERFACE ................4 ............................. 4 OMMUNICATION PECIFICATION ..............................4 TANDARD NTERFACE USB 2.0 PC/H ........................... 5 CONNECTOR TO CHAPTER 3 INSTALLATION ..............6 ................................. -
Page 6: Chapter 1 Introduction
INTRODUCTION Welcome Thank you for choosing the CPD-3230 Customer Pole Display. The CPD-3230 is a 20 columns x 2 lines customer display with Vacuum Fluorescent Display panel. VFD emits a very bright light with high contrast. Based on VFD display method, the CPD-3230 gives a better view of message in bright blue- green display fonts. -
Page 7: Features
Full speed data transfer using the USB 2.0 protocol. RS-232C Interface with baud rates selectable from 9600 to 115200 bps. 11. Mechanical: Provides a wide range of rotation and tilt angles. Selectable pole length for best position installation. CPD-3230 Customer Pole Display... -
Page 8: Specification
Long: 250 x 34 mm; Short: 117 x 34 mm Base (W x D x H) 200 x 120 x 27 mm Weight N.W. 1.0 kg Environment Operation Temperature 5~45℃ Storage Temperature -20~70℃ Operation Humidity 15%~80% RH Storage Humidity 10%~90% RH CPD-3230 Customer Pole Display... -
Page 9: Chapter 2 Interface
8 bits Stop bits 1 bit USB Type The CPD-3230 series is compatible to the High-speed USB 2.0 protocol which has a raw data rate of 12 megabits per second (Mbps). 2.2 Standard Interface 2.2.1 Serial RS232 connector to PC/HOST... -
Page 10: Usb 2.0 Connector To Pc/Host
Data - Data + Ground 2.3 USB 2.0 connector to PC/Host Connector Type: USB 2.0 B Type Pin assignment Pin No. Signal Illustration Pin 1 Pin 2 Data – Pin 3 Data + Type A Pin 4 CPD-3230 Customer Pole Display... -
Page 11: Chapter 3 Installation
CHAPTER 3 INSTALLATION The CPD-3230 Customer Pole Display is easy to install by following the instructions in this chapter. No special training or tools are necessary. As this manual contains required information on the installation and programming of CPD-3230 Customer Pole Display, it is recommended that you read the entire manual carefully prior to initiating installations. - Page 12 How to Adjust (1) Locate the hinge section on the backside of Display Panel. (2) Pull the tab downward and tilt the panel up or down to the desired position. CPD-3230 Customer Pole Display...
-
Page 13: Configuration
3.2 Configuration 3.2.1 USB Connection Step 1 Turn OFF the system power Before you start the installation, ensure that the host computer and the CPD-3230 Customer Pole Display are powered off. Step 2 Connect the USB cable Step 3 Start the host PC and switch on the display. - Page 14 Plug the DB9 Female connector of RS232 cable and only the 5V USB cable to host PC. Now you are ready for power-up. Step 3 Start the host PC and switch on the display. ATTENTION With the dual interface cable, the CPD-3230 is able to be powered only by the USB 5V. CPD-3230 Customer Pole Display...
-
Page 15: Driver Installation
Pic 3 If your Application Software needs to install the printer mode driver: Click Printer Class as Pic 2 and select as shown in the Pic 3,4: -Serial/Virtual for COM Connection. -USB for USB Connection. Pic 4 CPD-3230 Customer Pole Display... -
Page 16: Chapter 4 Configure Your Device
CHAPTER 4 CONFIGURE YOUR DEVICE The system parameters of CPD-3230 can be set by using VFD Utility software tool. You can find the tool in the companion disk. In addition to setting system parameters, you can configure welcome message and user font with the software tool. The system parameters include the following items. - Page 17 Before continue, please select a proper model name that matches with your device’s model. The model name can be selected on the upper-right corner of the window. If the model name does not match with your device, the configuration may not take effect. CPD-3230 Customer Pole Display...
-
Page 18: Configure System Parameters
After all items are set to desired condition, press SET button to send all the settings to your device. These settings will be stored on the non-volatile memory. Every time when you start the device, these settings will be retrieved from non-volatile memory. CPD-3230 Customer Pole Display... -
Page 19: Baud Rate Selection
CONFIGURE YOUR DEVICE 4.2.1 Command Type The CPD-3230 supports up to 7 command sets. They are listed on the following table. Please select one from the pull-down list. Command Type Default EPSON ESC/POS DSP-800(option) ADM787/788 EMAX(AEDEX) UTC/S UTC/P CD5220 Reserved 4.2.2 Language Character Set Selection... -
Page 20: Define Welcome Message
Press Set button to send the messages to the machine. 4.4 Define Your Own Font You can create your own font and download it with the software tool. There are three ways to create the font: CPD-3230 Customer Pole Display... - Page 21 “Download to device”. If you want to quit current modification, you can press “Reload font” button to load the font again. All your modification will be lost after reloading font. Press “Reset” button also let you abandon current modification and restart the whole operation. CPD-3230 Customer Pole Display...
- Page 22 After finishing your edit, you can save font to a file or download the font to device. It is a difficult job to build font from zero. It is recommended to build your font from existing font. CPD-3230 Customer Pole Display...
-
Page 23: Chapter 5 Software Setting Command
STX 05 P n ETX STX 05 E N ETX ASCII Format [02][05][80] n [03] [02] [05] [69] [78] [03] n=48,49 Dec. Format [02h][05h][50h] n [03h][02h][05h][45h][4eh][03h] Hex. Format n=30h,31h Description Parity check None parity Even parity CPD-3230 Customer Pole Display... -
Page 24: Command Type Setting Command
Character Set Code Table (80H-FFH) (20h–7Fh) U.S.A. PC-437 (USA, Standard Europe) France Germany U.K. Denmark I PC-858 Sweden Italy Spain Reserved Norway PC-858 Denmark II U.S.A. Slavonic U.S.A. Russia U.S.A. PC-860 (Portuguese) U.K. Greek User Font CPD-3230 Customer Pole Display... -
Page 25: Chapter 6 Command Set
Set cursor on/off n=00h, 01h n=01 on, n=00 off US MD1 1F 01 Specify overwrite mode. US MD2 1F 02 Specify vertical scroll mode. US MD3 1F 03 Specify horizontal scroll mode. US @ 1F 40 Execute self-test. CPD-3230 Customer Pole Display... - Page 26 00h≦m≦FFh m=show string time US T h m 1F 54 h m Display time 00h≦h≦17h 00h≦m≦3bh US U 1F 55 Display time continuously US V n 1F 56 n Status confirmation by DTR signal 00h≦n≦01h CPD-3230 Customer Pole Display...
-
Page 27: Adm787/788 Mode Command Set
Set line blinking, n=31h, 32h n=31h upper line; n=32h bottom line 12 n Clear line blinking, n=31h, 32h n=31h upper line; n=32h bottom line Clear field 3 (upper-right line) and move cursor to the first position CPD-3230 Customer Pole Display... -
Page 28: Emax (Aedex) Mode Command Set
Back space Horizontal tab Line feed Carriage return 10 n Display cursor position 00h≦n≦27h Over write display mode Vertical scroll mode Cursor on Cursor off Clear display ESC d 1B 64 Change to UTC enhanced mode CPD-3230 Customer Pole Display... -
Page 29: Cd5220 Mode Command Set
(see Note 2) ESC [ D 1B 5B 44 Move cursor left Move cursor left ESC [ C 1B 5B 43 Move cursor right Move cursor right ESC [ A 1B 5B 41 Move cursor up CPD-3230 Customer Pole Display... - Page 30 1F 58 n Brightness adjustment 01h≦n≦04h (=brightest) ESC & s n m 1B 26 1 n m Define download characters [a(p1..pa)]x [a (p1..pa)] x (m-n+1) (m-n+1) 20h≦n≦m≦ FFh 1≦a≦5 p1...p5=row1...row5 ESC ? n 1B 3F Delete download characters CPD-3230 Customer Pole Display...
- Page 31 ‘N’ Norway ‘W’ Sweden ‘D’ Denmark I ‘E’ Denmark II ‘L’ Slavonic ‘R’ Russia 4. The parameters of the code table control command “ESC c n”. Parameter “n” International Font Set ‘A’ Compliance with ASCII code CPD-3230 Customer Pole Display...
-
Page 32: Dsp-800 Mode Command Set (Option)
+ display EOT SOH % ETB 04 01 25 17 Initialize display EOT SOH @ ETB 04 01 40 17 Execute self-test EOT SOH # n ETB 04 01 23 n 17 Command type select CPD-3230 Customer Pole Display... - Page 33 4=0 Layer 5 Denmark I Sweden Show mode Italy bit 0=1 Show mode 1 Spain bit 1=1 Show mode 2 Japan Table 5-D Layer table for saving data Norway Denmark II Table 5-C International Font Set CPD-3230 Customer Pole Display...
-
Page 34: Chapter 7 Character Set
ì Ñ Spain ¡ ¿ ¨ ñ Japan ¥ É Å Ü Norway ¤ Æ Ø é æ ø å ü É Å Ü Denmark II Æ Ø é æ ø å ü Slavonic Russia Portuguese CPD-3230 Customer Pole Display... -
Page 35: Character Code Page (80H-Ffh)
Í Î Ï ▐ ▀ ┘ ┌ █ ▄ ▌ Ó ß Ô Ò õ Õ μ þ Þ Ú Û Ù ý Ý ¯ ´ ¯ ± ¾ ¶ § ÷ ° ¨ ˙ ■ CPD-3230 Customer Pole Display... - Page 36 ▌ ▐ ▀ ┘ █ ▄ α ß Γ π Σ σ µ τ Φ Θ Ω δ ∞ ø ε ∩ ≡ ⌠ ⌡ ° • · ² ■ ± ≥ ≤ ÷ ≈ √ CPD-3230 Customer Pole Display...
- Page 37 € Í Î Ï ▀ ┘ ┌ █ ▄ Ó ß Ô Ò õ Õ μ þ Þ Ú Û Ù ý Ý ¯ ´ ° ¯ ´ ± ¾ ¶ ÷ ¨ ■ • ¯ CPD-3230 Customer Pole Display...
- Page 38 Ü Ý Þ ß à á â ã ä å æ ç è é ê ë ì í î ï ð ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ CPD-3230 Customer Pole Display...
