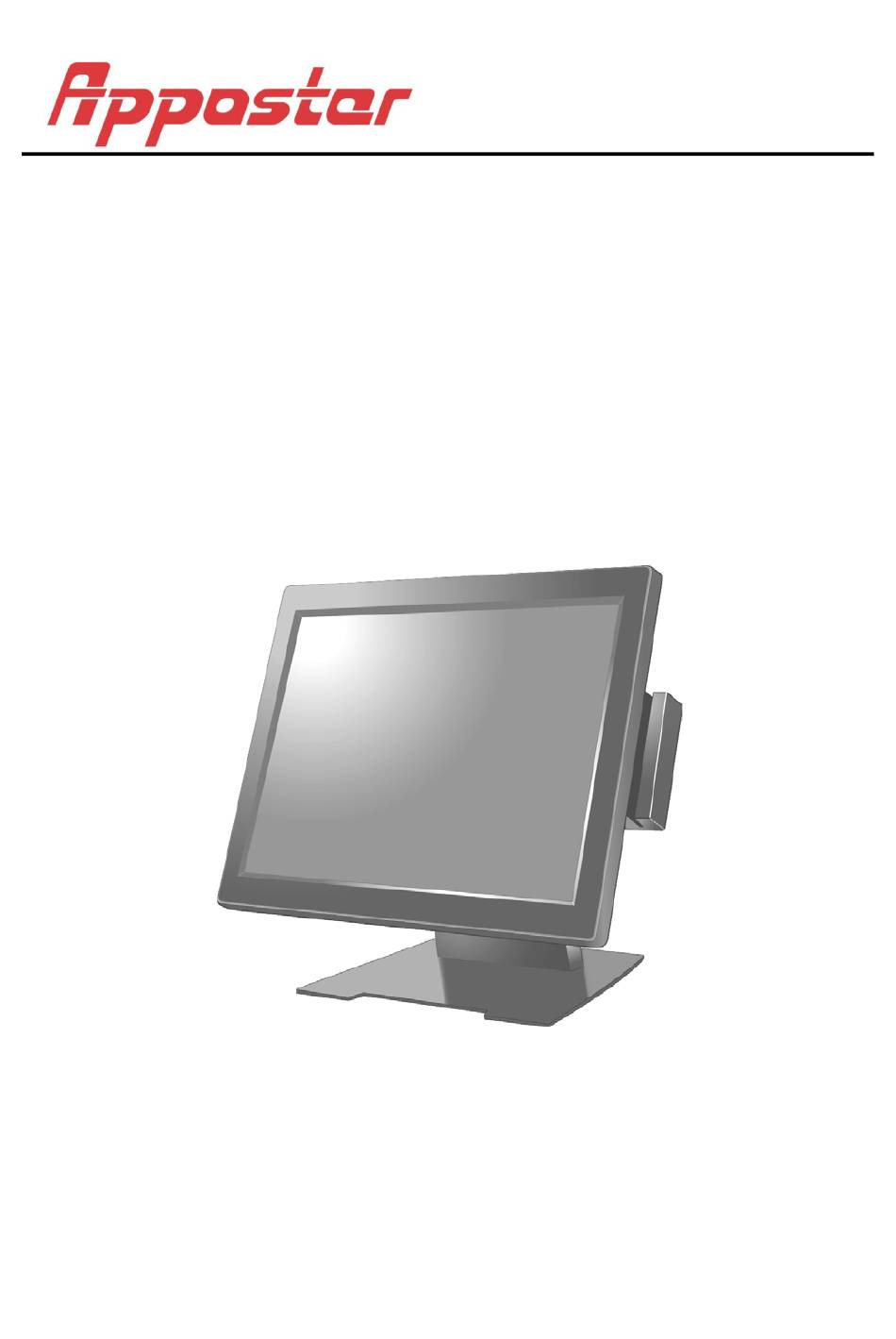

- Page 1 POS Monitor PCM-1015 / PCM-1215 User’s Manual Edition: JANUARY 2011 Version 1.00...
- Page 2 For more information about where to send your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. PCM-1015/PCM-1215 POS Monitor...
- Page 3 The material in this document is for information purpose and is subject to change without prior notice. APPOSTAR has made every effort to ensure that this user’s manual is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred.
- Page 4 6. Do not place heavy objects on top of the product or lean them against the product. These items may fall down and cause injury. 7. Do not block the air vent of the product as this can cause heat accumulation inside the box machine and may cause a fire. PCM-1015/PCM-1215 POS Monitor...
-
Page 5: Table Of Contents
OUCH MONITOR INSTALLATION Connecting your Monitor..................12 Magnetic Stripe Reader (MSR) Installation ..............13 -1015 ................15 SECOND DISPLAY INSTALLATION CHAPTER 3 TOUCH DRIVER INSTALLATION ......18 CHAPTER 4 OSD SETTING ............. 20 CHAPTER 5 TROUBLESHOOTING ........... 24 PCM-1015/PCM-1215 POS Monitor... -
Page 6: Chapter 1 Product Overview
Shipping Content Main unit Accessories PCM-1015 (Second Display) Quick Reference Guide VGA Cable 12V DC Power Cable Hinge Kit PCM-1215 (Touch Monitor) Driver CD Quick Reference Guide Power Adapter Power Cable USB Cable VGA Cable RS232 Cable PCM-1015/PCM-1215 POS Monitor... - Page 7 PRODUCT OVERVIEW PCM-1015/PCM-1215 POS Monitor...
-
Page 8: Appearance
PRODUCT OVERVIEW 1.2 Appearance Front View PCM-1015 (Second Display) 15” LCD Touch panel PCM-1215 MSR module (option) (Touch Monitor) / Attachable on both sides Front panel Base PCM-1015/PCM-1215 POS Monitor... -
Page 9: Rear View
PRODUCT OVERVIEW Rear View Hinge cover Power button I/O Cover Stand cover Side View Tilt angle 0 ~ 90 degrees 90° PCM-1015/PCM-1215 POS Monitor... -
Page 10: I/O Interface And Osd Buttons
Decrease setting value or scroll down the LEFT OSD main menu bar Increase setting value or scroll up the OSD RIGHT main menu bar AUTO Activate automatic setup and adjustment POWER LED To indicate monitor on/off status. PCM-1015/PCM-1215 POS Monitor... -
Page 11: Specification
Power Button 1 x power switch on the 1 x power switch on the bottom of monitor right side of stand. Optional Peripheral ISO 7811 option 1/2/3 track Magnetic Stripe Reader Powering 36W/12V power adapter Power Supply DC 12V/2.5A AC Rating: AC100V~240V DC 12V/3A PCM-1015/PCM-1215 POS Monitor... - Page 12 Construction ABS + SECC Dimension (W x D x H) 355 x 320 x 58 mm 355 x 320 x 215 mm Weight N.W. 3.4 kg N.W. 4.7 kg Wall Mounting 100 x 100 mm standard VESA PCM-1015/PCM-1215 POS Monitor...
-
Page 13: Chapter 2 Hardware Installation
2xUSB ports are available for USB device. 6. Turn on your monitor and Host PC. If you do not see any image, check whether all the input cables are connected correctly, or refer to CH.5 Page 24 for troubleshooting. PCM-1015/PCM-1215 POS Monitor... -
Page 14: Magnetic Stripe Reader (Msr) Installation
By default, the MSR is installed on the right side. Step 1 Remove the cover from the MSR extension slot. Step 2 Connect the MSR cable correctly. Step 3 Fix the MSR module in position with 2 screws. PCM-1015/PCM-1215 POS Monitor... -
Page 15: Pcm-1015 Second Display Installation
HARDWARE INSTALLATION 2.2 PCM-1015 Second Display Installation Step 1 Tilt the LCD of the KP series to its horizontal position. (Figure 2-a) Figure 2-a Step 2 Remove the cable management and the customer display covers on the main unit. (Figure 2-b) Unfasten the 2 thumb screws off both the front and rear cover of the KP POS Terminal. - Page 16 Step 5 Fit the top hinge cover and the upper hinge cover of the panel. (Figure 2-h) Figure 2-h Step 6 Fit the lower hinge cover to the PCM-1015 and fix with 1 thumb screw. (Figure 2-i, 2-j) Figure 2-i...
- Page 17 Step 5 Connect the VGA cable to both the VGA port (DB15) and the power cable to both the 12V DC power jack. (Figure 2-k) Figure 2-k Step 6 Reinstall the front, the rear, and the cable management covers. (Figure 2-l, 2-m) Figure 2-l Figure 2-m PCM-1015/PCM-1215 POS Monitor...
-
Page 18: Chapter 3 Touch Driver Installation
Windows XP and similar on all other Microsoft Windows platforms. Insert the driver CD into your CD-ROM drive. Windows will automatically detect it and the Appostar Driver Installer appears on the screen. If not, locate the Setup.exe file at CD:\ and double-click it to execute the installation. Follow the on-screen instructions to complete the installation. - Page 19 Select the Destination Folder or h. Type a Folder name or use the use the default one listed. default one listed. Click Next to continue. i. A progress window appears. j. Click Yes. The installation Please wait. completes in seconds. PCM-1015/PCM-1215 POS Monitor...
-
Page 20: Chapter 4 Osd Setting
Increase setting value or scroll up the OSD main menu bar AUTO Activate automatic setup and adjustment POWER LED To indicate monitor on/off status. OSD Main menu consists of source: Image setting 2. Color (RGB) 3. OSD Menu 4. Language 5. Exit Image setting Color PCM-1015/PCM-1215 POS Monitor... - Page 21 OSD SETTING Language EXIT PCM-1015/PCM-1215 POS Monitor...
- Page 22 To exit the current menu. 9300 Select the color temperature with three options on 9300k, 6500k and 5800k. 6500 5800 SRGB To obtain the default color settings. User User defined setting for three colors (R, G, B) from min.0~max.255. PCM-1015/PCM-1215 POS Monitor...
- Page 23 Reset the OSD menu options to the factory preset values. NOTE: The change only affects the OSD; it has no effect on any software running on the computer. Language Select to have the OSD display in one of five languages (English, Deutsch, Français, Español, Dutch) PCM-1015/PCM-1215 POS Monitor...
-
Page 24: Chapter 5 Troubleshooting
CHAPTER 5 TROUBLESHOOTING This chapter provides suggestions on how to locate and solve problems that may arise while using your PCM-1015/PCM-1215. If you cannot solve a problem with the following information, contact your dealer for further assistance. No image on screen / Abnormal display occurs 1. - Page 25 4. Wipe the MSR slot with a soft cloth then try again. NOTE: If the problem goes beyond the scope of this manual or remains unresolved, DO NOT repairs it by yourself, contact your dealer for assistance. PCM-1015/PCM-1215 POS Monitor...
