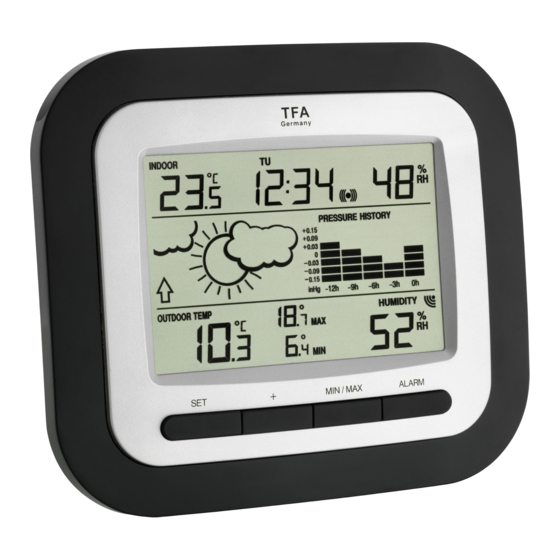

WEATHER STATION
Instruction Manual
Cat. No. 35.1113.IT
Thank you for choosing this wireless weather station from TFA.
BEFORE YOU USE IT
Please be sure to read the instruction manual carefully.
This information will help you to familiarise yourself with your new device, learn all of its
functions and parts, find out important details about its first use and how to operate it, and get
advice in the event of faults.
Following the instruction manual for use will prevent damage to the device and loss of your
statutory rights arising from defects due to incorrect use.
We shall not be liable for any damage occurring as a result of not following these
instructions.
Please take particular note of the safety advice!
Please look after this manual for future reference.
SCOPE OF SUPPLY:
Weather station (basic unit)
•
Outdoor transmitter
•
Instruction manual
•
30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 35.1113.IT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TFA 35.1113.IT

Summary of Contents for TFA 35.1113.IT

  • Page 1 WEATHER STATION Instruction Manual Cat. No. 35.1113.IT Thank you for choosing this wireless weather station from TFA. BEFORE YOU USE IT Please be sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, learn all of its functions and parts, find out important details about its first use and how to operate it, and get advice in the event of faults.

  • Page 2: For Your Safety

    FIELD OF OPERATION AND ALL OF THE BENEFITS OF YOUR NEW WEATHER STATION AT A GLANCE DCF Radio controlled time with manual setting option • Time reception ON/OFF setting • Weekday, date and month display (year only in setting mode) •...
  • Page 3 Caution! Risk of injury: Keep this instrument and the batteries out of reach of children. • Batteries must not be thrown into the fire, short-circuited, taken apart or recharged. • Risk of explosion! Batteries contain harmful acids. Low batteries should be changed as soon as possible •...
  • Page 4 ELEMENTS Hanging hole The Weather Station Battery compartment Display Function keys Stand Thermo-Hygro Transmitter Remote transmission of outdoor temperature and humidity to weather • station by 868MHz Alternately display the outdoor temperature and humidity readings on • Wall mounting case •...

  • Page 5: To Install And Replace Batteries In The Weather Station

    TO INSTALL AND REPLACE BATTERIES IN THE THERMO-HYGRO TRANSMITTER The outdoor thermo-hygro transmitter uses 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries, please follow the steps below: Remove the battery cover by pushing the battery cover upwards with your thumb.
  • Page 6 Battery replacement Replace the batteries when the battery symbol of the weather station appears near the • weather icon. When the batteries of the transmitter are used up, the low battery icon appears above • the outdoor humidity display. Note: In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures.

  • Page 7: Dcf Radio Controlled Time

    weather station and the transmitter should not be more than 100 meters (see notes on “Positioning” and “868 MHz Reception”). Note: In the event of changing batteries of the units, ensure the batteries do not spring free from the contacts. Always wait at least 1 minute after removing the batteries before reinserting, otherwise start up and transmission problems may occur.

  • Page 8: Function Keys

    If the tower icon flashes, but does not set the time or the DCF tower does not appear at all, then please take note of the following: Recommended distance to any interfering sources like computer monitors or TV sets is •...
  • Page 9 To stop the alarm sound • + key To increase/change values in setting modes • Toggle between time / date / humidity / seconds display • To stop the alarm sound • MIN/MAX key To toggle between the indoor and outdoor MIN/MAX temperature •...

  • Page 10: Lcd Screen

    LCD SCREEN The LCD screen is split into 3 sections displaying the information for time/calendar, indoor data, weather forecast and air pressure history, and outdoor data. Time Alarm icon Weekday Indoor Indoor humidity Temperature display in RH% in °C Weather Air pressure forecast icon history bar...

  • Page 11: Manual Settings

    * When the signal is successfully received by the weather station, the outdoor transmission icon will be switched on. (If not successful, the icon will not be shown on LCD). The user can then easily see whether the last reception was successful (icon on) or not (icon off). MANUAL SETTINGS The following settings can be changed when pressing and holding the SET key: LCD contrast setting...

  • Page 12: Time Zone Setting

    TIME ZONE SETTING: Flashing The time zone default of the weather station is “0”. To set a different time zone: The current time zone value starts flashing. Use the + or MIN/MAX key to set the time zone. The range runs from -2h to +5h hours in 1-hour intervals.

  • Page 13: Manual Time Setting

    Note: If the Time Reception function is turned OFF manually, the clock will not attempt any • reception of the DCF time as long as the Time Reception OFF function is activated. The time reception “ “ and the “DCF” icons will not be displayed on the LCD. •...

  • Page 14: Calendar Setting

    The hour digit will start flashing. Use the + or MIN/MAX key to set the hour. Keep holding the key allows the digit to advance faster. Press again the SET key to set the minutes. The minute digits start flashing. Use the + or MIN/MAX key to set the minutes.

  • Page 15: To Exit The Manual Setting Mode

    Use the + or MIN/MAX key to set the year. Keep holding the key allows the value to advance faster. Press the SET key to confirm and enter the month setting mode. The month digit will be flashing. Use the + or MIN/MAX key to set the month. Keep holding the key allows the value to advance faster.

  • Page 16: Weather Forecasting Icons

    The hour digit will be flashing. Use the + or MIN/MAX key to adjust the hour. Keep holding the key allows the value to advance faster. Use the ALARM key again, and the minute digits will be flashing. Press + or MIN/MAX key to set the minute.
  • Page 17 change of icon if the weather gets any better (with sunny icon) or worse (with rainy icon) since the icons are already at their extremes. The icons displayed forecasts the weather in terms of getting better or worse and not necessarily sunny or rainy as each icon indicates.

  • Page 18: Weather Tendency Indicator

    WEATHER TENDENCY INDICATOR The weather tendency indicators (located on the left side of the weather icons) are working together with the weather icons. When the indicator points upwards, it means that the air- pressure is increasing and the weather is expected to improve, but when indicator points downwards, the air-pressure is dropping and the weather is expected to become worse.
  • Page 19 The bar graph indicates the air pressure history trend over the last 12 hours in 7 intervals: 0h, -3h, -6h, -9h and -12h. The “0h” represents the current full hour air pressure recording. The columns represent the “hPa” (0, ±1, ±3, ±5) at specific time. The “0” in the middle of this scale is equal to the current pressure and each change (±1, ±3, ±5) represents how high or low in “hPa“...
  • Page 20 Outdoor reception Outdoor icon temperature Outdoor humidity in °C in RH% TOGGLING AND RESETTING THE TEMPERATURE MIN/MAX DATA TO VIEW THE MIN/MAX TEMPERATURE DATA Press the MIN/MAX key several times to view the MIN/MAX indoor and outdoor temperature sequentially. Note: the outdoor MIN/MAX temperature records will also display the recorded time and date.
  • Page 21 TO RESET TEMPERATURE MIN/MAX DATA Press and hold MIN/MAX key for 3 seconds to reset all the indoor and outdoor temperature to current temperatures. ABOUT THE THERMO-HYGRO TRANSMITTER The range of the thermo-hygro transmitter may be affected by the temperature. At cold temperatures the transmitting distance may be decreased.

  • Page 22: Positioning The Weather Station

    false reset. Should this happen accidentally then reset all units (see “Setting up” above) otherwise transmission problems may occur. The transmission range is around 100 meters from the thermo-hygro transmitter to the weather station (in open space). However, this depends on the surrounding environment and interference levels.

  • Page 23: Care And Maintenance

    POSITIONING THE THERMO-HYGRO TRANSMITTER Mounting at a sheltered place. Avoid direct rain and sunshine. The thermo-hygro transmitter can be placed onto any flat surface or wall mount using the bracket which doubles as a stand or wall mount base. To wall mount: Secure the bracket onto a desired wall using the screws and plastic anchors.

  • Page 24: Waste Disposal

    MALFUNCTION Problems Troubleshooting No indication on the Ensure batteries polarity are correct • weather station Change batteries • No transmitter reception Check batteries of external transmitter (do not use • Display "---" rechargeable batteries!) Restart the transmitter and weather station as per •...

  • Page 25: Specifications

    to protect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product with other household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

  • Page 26: Declaration Of Conformity

    TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D - 97877 Wertheim No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
