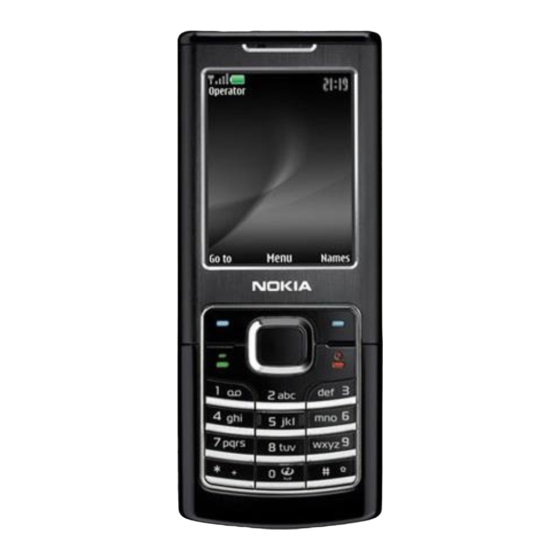

Nokia 6500 Classic Service Manual

Hide thumbs Also See for 6500 Classic:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Page

(23)
SERVICE MANUAL
Level &2
RM-265
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
Transceiver characteristics:
Band:
EGSM: Quad-band 850/900/1800/1900MHz
WCDMA: 850/2100MHz
Display:
LCD: 5.08cm QVGA (2.0") (320x240 pixel); 16M colors
Camera:
Camera: 2.0 Megapixel, 8x digital zoom
Operating System:
Series 40
Connections:
Wireless: Bluetooth
Connector: Micro USB Connector
Memory:
1 GB internal
Transceiver with BL-6P Li-Ion battery pack
Talk time
up to 5,5h
6500 classic RM-265
Service Manual Level &2
Standby
Note
Depends on network
up to 12,5days
parameters
ISSUE

Advertisement

Table of Contents
loading

Related Manuals for Nokia 6500 Classic

Summary of Contents for Nokia 6500 Classic

  • Page 1 Connector: Micro USB Connector Memory: 1 GB internal Transceiver with BL-6P Li-Ion battery pack Talk time Standby Note Depends on network up to 5,5h up to 12,5days parameters Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Page CHANGE HISTORY COPYRIGHT WARNINGS AND CAUTIONS ESD PROTECTION CARE AND MAINTENANCE BATTERY INFORMATION EXPLODED VIEW LEVEL 2 SOLDER COMPONENTS SERVICE TOOLS SW-UPDATE DISASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 3: Change History

    Approval The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential.

  • Page 4: Warnings And Cautions

    5. Ensure all cables and wires are repositioned correctly. ESD PROTECTION Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone. Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

  • Page 5: Care And Maintenance

    Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 6: Exploded View

    6500 classic RM-265 Service Manual Level &2 EXPLODED VIEW See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 7: Level 2 Solder Components

    6500 classic RM-265 Service Manual Level &2 LEVEL 2 SOLDER COMPONENTS Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 8: Service Tools

    Service Bulletin (SB-011) on NOKIA On- line. Supplier or manufacturer contacts for tool re-order can be found in “Recom- mended service equipment” docu- ment on NOKIA Online. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 9: Sw-Update

    To use FLS-5 Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on NOKIA Online. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 10: Disassembly Instruction

    Service Manual Level &2 DISASSEMBLY INSTRUCTION 1. Nokia 6500 Classic. Disassembly. 2. You will need the Nokia Standard Toolkit version 2. Also refer to the General Mechanical Guideline Video for additional hints about the tools and component handling. 3. Always cover all sensitive surfaces with a protective film.
  • Page 11 10. Remove the KEYMAT. 11. Release the LCD FRAME with the SS-42. 12. Place the SS-42 between the LCD FRAME and the C-COVER. Gently lever out the LCD FRAME. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 12 15. Place the LCD FRAME and the LCD MODULE on the UI 16. Undo the five screws in the order shown..interface. 17..and remove them. 18. Take special care to the electric components on the AV FLEX. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 13 22. Gently lift the USB BRACE. Take care to the surrounding components. 23. Open the AV FLEX connector and remove the AV FLEX 24. Remove the BT ANTENNA. ASSEMBLY. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 14 27. Lift the PWB on the shown side paying attention to the 28. Remove the LIGHT SWAP PWB. flex contacts of the VIBRA. 29. Unlock and remove the COAX CLAMP. 30. Unlock the clip of the ANTENNA ASSEMBLY. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 15 34. Discard the FLASH BOARD ASSEMBLY and also ensure that no adhesive. adhesive remains. 35. Carefully remove the IHF SPEAKER. 36. Remove the IHF SPEAKER ADHESIVE from the C-COVER. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 16 6500 classic RM-265 Service Manual Level &2 37. Remove the UI FLEX and discard it. 38. Unlock and remove the ANTENNA GROUNDING. The disassembly procedure is now finished. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 17: Assembly Instruction

    Service Manual Level &2 ASSEMBLY INSTRUCTION 1. Nokia 6500 Classic. Assembly hints. 2. You will need the Nokia Standard Toolkit version 2. Also refer to the General Mechanical Guideline Video for additional hints about the tools and component handling. 3. Fit the ANTENNA GROUNDING to the C-COVER.
  • Page 18 9. Pass the coax cable as shown. Ensure that the cable is not 10. Fit the COAX CLAMP. damaged. 11. Place the LIGHT SWAP PWB into the C-COVER. 12. Check the correct position of the PWB before going on. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 19 16. Gently close the AV FLEX connector. 17. Fit the USB BRACE into the C-COVER at the shown side first... 18..and then carefully push it into its position. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 20 22. Insert the screws and tighten them to the torque of 10Ncm in the order shown. 23. Do not bend the grounding hook of the DISPLAY BACK 24. Check also the other side. PLATE. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 21 30. Ensure that the tongue of the A-COVER is positioned exactly 29. Align the A-COVER with the C-COVER. Do not slide the parts together yet. in the rail of the C-COVER. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
  • Page 22 34. Always use a new TOP COVER ASSEMBLY. Pay attention to the correct position of the TOP COVER... 35. Close the other side. 36. Fit a new CAMERA WINDOW paying attention to its correct position. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.

  • Page 23: 23) Confidential

    6500 classic RM-265 Service Manual Level &2 37. Close the B-Cover. 38. Check that no gaps remain. Page (23) ISSUE  CONFIDENTIAL Copyright © 2007 NOKIA. All rights reserved.
