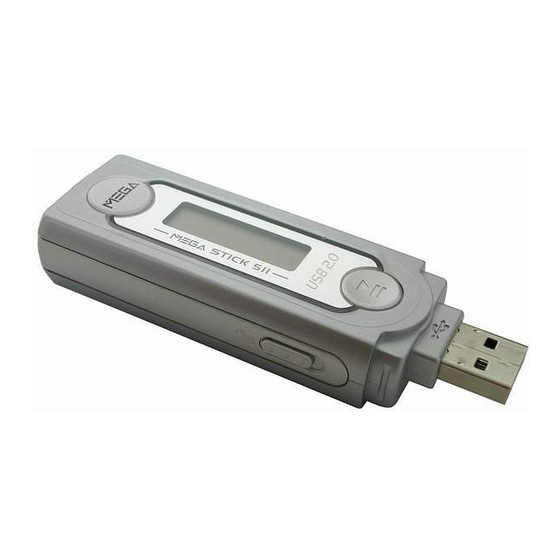

MSI MEGA STICK 511 User Manual
  1. Manuals
  2. Brands
  3. MSI Manuals
  4. MP3 Player
  5. MEGA STICK 511
  6. User manual

MSI MEGA STICK 511 User Manual

Multi-functional drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

MSI
MEGA STICK 511
Multi-Functional Drive
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEGA STICK 511 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSI MEGA STICK 511

Summary of Contents for MSI MEGA STICK 511

  • Page 1 MEGA STICK 511 Multi-Functional Drive User’s Guide...

  • Page 2: Table Of Contents

    Hold Switch ....................10 USB Flash Disk ..................10 Chapter 3. Driver & Utility Installation............11 Connect MEGA STICK 511 to Your Computer ......... 11 Hardware Installation for Windows 98SE......... 11 Install Utilities .................... 12 Use the Utility .................... 12 Safety Remove MEGA STICK 511 from Computer ........
  • Page 3 FM Radio Mode (*optional function)............22 Select FM Radio Mode ..............22 Select FM Station................22 Store a Favorite Station..............22 Select the Stored Favorite Station ............. 23 Record Radio Broadcast..............23 Play a Recorded FM Voice File............24 Delete a Recorded FM Voice File ............. 24 Delete All FM Voice Files..............

  • Page 4: Safety Instructions

    Do not change the default folders in the MEGA STICK 511, or the device might function abnormally. Unpack MEGA STICK 511 Earphone Driver Disk USB Extension Cable Quick Installation Guide AAA Battery The accessories that come with MEGA STICK 511 package may be different from those shown above.

  • Page 5: Chapter 1. Introduction

    USB Flash Disk – allows users to store personal data in MSI MEGA STICK 511’s memory. Thank you for choosing MSI MEGA STICK 511. We hope you will still turn to us for additional quality products as your personal needs and interests grow.

  • Page 6: How To Use This Guide

    STICK 511 and the special designed utility for your new MEGA STICK 511. Chapter 4, Basic Usage, describes how to use your new MEGA STICK 511 in a various way. It is recommended to read this chapter carefully before using MEGA STICK 511.

  • Page 7: Chapter 2. Getting Started

    Chapter 2. Getting Started Function Keys Battery Cover Slide open to insert an AAA size battery here. Hold Switch Switch to hold position to prevent the button from being pushed inadvertently while recording or playing. USB Connector Cap Remove the cap when connecting the MEGA STICK 511 to the computer.

  • Page 8: Lcd Display

    Press to enter FM function (optional function). During playing, press it to enable the section repeat function. Press to start or stop voice recording. Internal Microphone. Earphone Jack Plug the supplied earphone here. Line-in Jack Plug an audio cable here to connect MEGA STICK 511 and external audio device to record external audio signal.

  • Page 9: Insert A Battery

    Insert an AAA battery and make sure the battery is inserted into the correct alignment. Slide back the battery cover. Press the Play/Pause[ ]button to power on MEGA STICK 511, and then check the capacity of the battery. Battery Status Empty...

  • Page 10: Hold Switch

    Hold Switch MEGA STICK 511 provides a Hold Switch, you can switch it to hold position to prevent the button from being pushed inadvertently while recording or playing. Once the Hold Switch is slide to the lock position, all function keys on MEGA STICK 511 will be disabled instantly.

  • Page 11: Chapter 3. Driver & Utility Installation

    Plug one end of the supplied USB cable to your computer, and plug the other end to MEGA STICK 511. After MEGA STICK 511 is connected to the computer, press the Power button. Then MEGA STICK 511 should be detected by operating system.

  • Page 12: Install Utilities

    Install Utilities The supplied Driver CD includes a MEGA STICK 511 specialized driver. It is recommended to install even if your operating system is Windows 2000 or XP. Then, your system can recognize and fully support this device. The driver program includes a utility for upgrading the latest firmware provided by MSI website.
  • Page 13 If the connection is failed, you will not find [Player Recovery Device Class] appearing in [Device Manager]. At this time, repeat step 1 and 2 to try to connect MEGA STICK 511 to your computer. Now, release Play/Pause Button.
  • Page 14 MEGA STICK 511. Select Format Data Area to update the new firmware and format MEGA STICK 511 at the same time. Press Start button to start updating the new firmware. Note: If you format the MEGA STICK 511, the data and files stored inside will be erased! Format MEGA STICK 511 To format MEGA STICK 511, connect it to your computer with the supplied USB cable.

  • Page 15: Safety Remove Mega Stick 511 From Computer

    Safety Remove MEGA STICK 511 from Computer After managing the files or updating firmware, you have to follow the steps to safety remove the MEGA STICK 511, to prevent system or device corrupt: While an USB device is connecting to computer, there will be an icon on the task bar.

  • Page 16: Chapter 4. Basic Usage

    1. Press the Play/Pause [ ] button once to turn the power on. When powered on, a power on icon and MSI startup logo will be shown on the display. 2. To power off MEGA STICK 511, press and hold the Play/Pause [ button until the power is switched off.

  • Page 17: Edit Sound Tracks (Files)

    Note: Disconnecting MEGA STICK 511 while transferring might cause file corruption or system failure. 6. Under the MEGA STICK 511, you are allowed to add, delete, or edit a folder as what you will do under a disk as usual. In another word, this MEGA STICK 511 works as another portable hard disk.

  • Page 18: Music Playback

    Music Playback Normal Playback Press Play/Pause[ ]button to play the current selected file. Press Play/Pause[ ]button again to pause the playback. Select the Next or Previous Track (File) During playback, push Menu button to the right to skip to next track. Or, push Menu button to the left once to go back to the previous track.

  • Page 19: Volume Adjustment

    Volume Adjustment Press Volume Up or Down button to adjust playback volume. You may check LCD Display to see Volume status. Delete a Track (File) 1. Press down Menu button once, and push Menu button to the right until DELETE FILE appears on the display. 2.

  • Page 20: Eq Settings

    3. Press down Menu button, and select Y to delete all music files. Note that it may take several seconds to delete all files. Select N or EXIT if you do not want to delete all files. Then press down Menu button to confirm. EQ Settings You can choose a desired EQ mode to meet your personal need or habit.

  • Page 21: Repeat Settings

    Repeat Settings While you are playing music or voice files, you are allowed to select a desired playback setting from NORMAL, REPEAT ONE, REPEAT ALL, SHUFFLE, and SHUFFLE REP. 1. Press down Menu button once, and then push Menu button to the right until SETTINGS appears on the display.

  • Page 22: Fm Radio Mode (*Optional Function)

    Select FM Radio Mode Press Fn button located on the side of MEGA STICK 511 to select FM Mode. Then you will read radio frequency shown on the screen.

  • Page 23: Select The Stored Favorite Station

    4. Press Menu button to save selected frequency to selected station number. 5. To set another favorite station, repeat step 1 to 4. Select the Stored Favorite Station 1. To select stored favorite station, press the Play/Pause button repeatedly. Record Radio Broadcast 1.

  • Page 24: Play A Recorded Fm Voice File

    Play a Recorded FM Voice File 1. To play a recorded FM voice file, press down Menu button once, and push Menu button to the right until VOICE appears on the display. 2. Press down Menu button again, and use Menu button to select a desired recorded FM voice file by pushing Menu button to the right or to the left.

  • Page 25: Delete All Fm Voice Files

    Delete All FM Voice Files 1. Press Menu button, push Menu button until DELETE FILE appears. 2. Press down Menu button once and push Menu button to the right or to the left to select DEL ALL VOICE. 3. Once DEL ALL VOICE appears, press Menu button, and select Y to delete all voice files.

  • Page 26: Record Function

    Record Function MEGA STICK 511 can be used to record voice, an interview or a speech, and external audio signal by the Line-in Jack. Note: The maximum length of the recording depends on how much available memory space is left while recording.

  • Page 27: Activate Line-In Recording Function

    Menu button for 1 second. Plug one end of audio cable to the Audio-out jack of external audio device, and one end to the MEGA STICK 511. Play external audio device, press REC[ ] button to record audio signal.

  • Page 28: Play A Recorded File

    Play a Recorded File 1. To play a recorded file, press down Menu button once, and push Menu button to the right until VOICE appears on the display. 2. Press down Menu button again, and use Menu button to select a desired recorded voice file by pushing Menu button right or left.

  • Page 29: Delete All Voice Files

    Delete All Voice Files 1. Press down Menu button once, and then push Menu button to the right until DELETE FILE appears on the display. 2. Press down Menu button once and then push Menu button to the right twice to select DEL ALL VOICE. 3.

  • Page 30: Language Learning Function

    Language Learning Function MEGA STICK 511 enables users to listen to a particular sound track section playback repeatedly during music or voice playback. With this function, users will be able to pay more attention on the repeated section and to achieve the result of learning language.

  • Page 31: Operation Menus

    Operation Menus MEGA STICK 511 provides a Menu switching button that includes most function designed for MEGA STICK 511. Operation Menus MUSIC File names VOICE File names NORMAL/ ROCK/ JAZZ/ CLASSICAL/ POP NORMAL/ REPEAT ONE/ REPEAT ALL/ REPEAT SHUFFLE/ SHUFFLE REP...
  • Page 32 5. Select DELETE FILE by pressing Menu to delete music or voice files. 6. Select ABOUT to read the information of MEGA STICK 511, including the firmware version, total memory, and free memory.

  • Page 33: Other Settings

    Other Settings Backlight Under Backlight setting, you can set a time to turn off LCD Display backlight. 1. Press down Menu button once, and then push Menu button to the right until SETTINGS appears on the display. 2. Press down Menu button, and push Menu button to the right to select BACKLIGHT.

  • Page 34: Power Off

    CONTRAST. Power Off Under this Power Off setting, you can set a time to turn off MEGA STICK 511. 1. Press down Menu button once, and then push Menu button to the right until SETTINGS appears on the display.

  • Page 35: Record Rate

    Record Rate Under the Record Rate setting, you are able to set the record rate by need. Note that the better record rate is selected, the bigger size of recording file will be. 1. Press Menu button, and push it right or left to select SETTINGS. 2.

  • Page 36: Language

    MEGA STICK 511. Language You are able to select the language of the interface of MEGA STICK 511. 1. Press Menu button once, and push it to right or left to select SETTINGS. 2. Press down Menu button again, and push Menu button to the right or to the left to select LANGUAGE.

  • Page 37: Appendix A. Specifications

    Appendix A. Specifications MSI MEGA STICK 511 Multi-Functional Drive Dimension 95.7 (W) x 31(D) x 18.9(H) mm Weight 29 g without battery, 40g with battery Operating Temperature 0 °C ~ 45°C Storage Temperature -20°C ~ +70 °C Audio Spec Output: 60mW rms ( 30mW / channel) Frequency: 20 to 20K Hz SNR: >85dB...

  • Page 38: Appendix B. Driver And Utilities Cd

    Appendix C. for details and instructions. Install Adobe Acrobat Reader A free software for viewing and printing Portable Document Format (PDF) files. To read the MEGA STICK 511 User Manual, you also have to install the Adobe Acrobat Reader. Read MEGA STICK 511 User Manual This PDF document is packed in the CD, click on the button to read.

  • Page 39: Appendix C. Screen Editor

    Appendix C. Screen Editor The Start up logo of MEGA STICK 511 is changeable. With Screen Editor tool, you can design personalized startup logos. Click Install Screen Editor button on autorun screen of the Driver and Utilities CD to start installation. You will see a screen as below, follow the messages on the display.
  • Page 40 Note: after connecting the MEGA STICK 511 to your computer, browse the drive with Windows Explorer. You may find 10 default startup logo files (.mlg) under root directory. You can edit/ add more logos to the folder by Screen Editor. If you deleted all the startup logo files, the default MSI logo will be shown on the screen when you power on the MEGA STICK 511.
