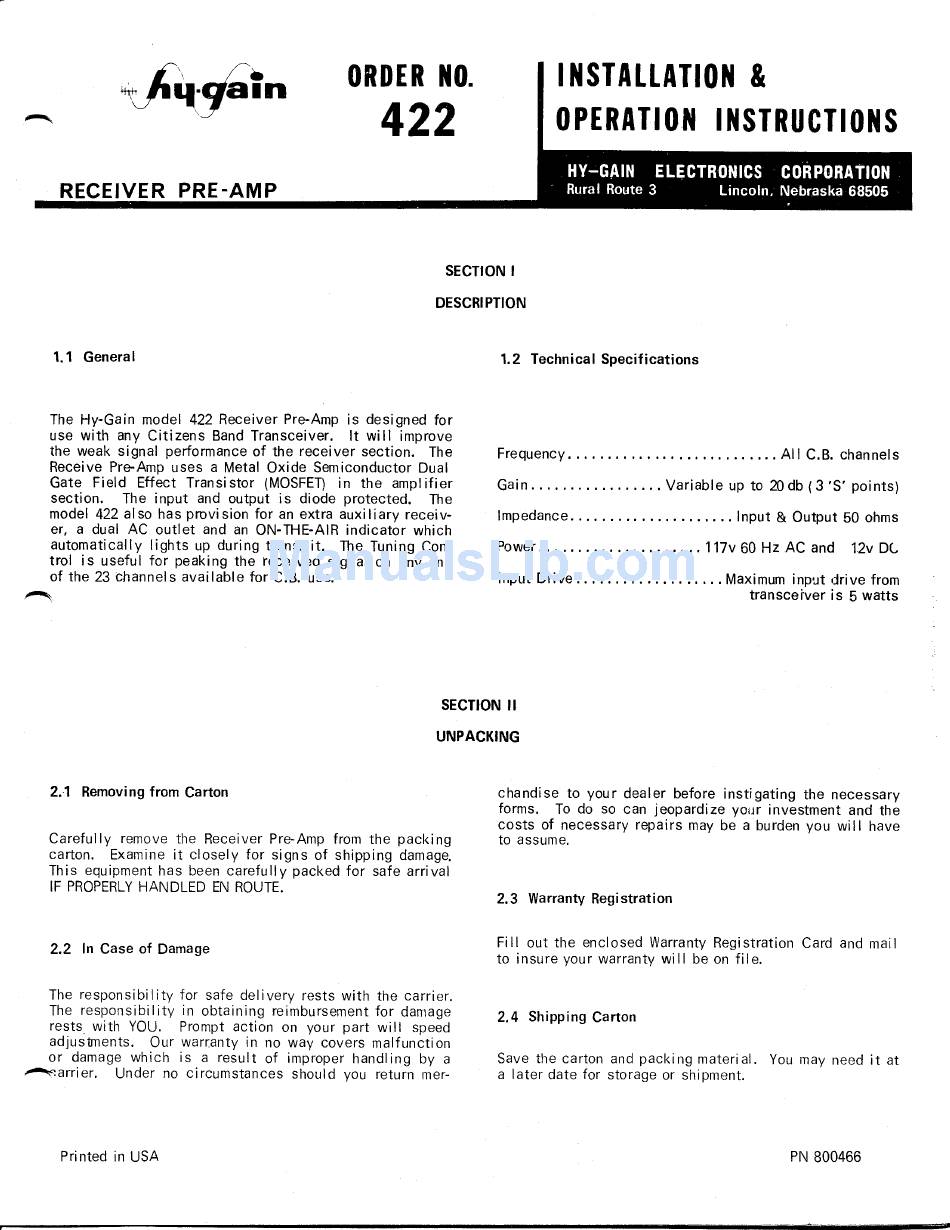

Hy-Gain 422 Installation & Operation Instructions

RECEIVER PRE -AMP
The Hy-Gain model 422 Receiver Pre-Amp is designed for
use with any Citizens
the weak signal performance of the receiver section.
Receive Pre-Amp uses a Metal Oxide Semiconductor Dual
Gate Field Effect Transi stor (MOSFET) in the ampl ifier
section. The input and output is diode protected.
model 422 also has provision for an extra auxiliary
er, a dual AC outlet and an ON-THE-AIR indicator which
automatically lights up during transmit.
trol is useful for peaking the received signal on anyone
. .-.,
of the 23 channels available for C.B. use.
.
Carefully remove the Receiver Pre-Amp from the packing
carton. Examine it closely for signs of shipping damage.
This equipment has been carefully packed for safe arrival
IF PROPERLY HANDLED EN ROUTE.
The responsibility for safe delivery rests with the carrier.
The responsibility in obtaining reimbursement for damage
rests with YOU. Prompt action on your part will
adjustments. Our warranty in no way covers malfunction
or damage which is a result of improper handl ing by a
~arrier. Under no circumstances
ORDER NO.
422
Band Transceiver. It will improve
The Tuning Con-
should you return mer-
INSTALLATION
OPERATION
HV-GAIN
Rural Route 3
SECTION I
DESCRI PTION
The
Frequency
Gain '"
The
receiv-
Input Drive
SECTION II
UNPACKING
chandise to your dealer before instigating
forms. To do so can jeopardize your investment and the
costs of necessary repairs may be a burden you will have
to assume.
Fi II out the enclosed Warranty Registration Card and mai I
to insure your warranty will be on file.
speed
Save the carton and packi ng materi al. You may need it at
a later date for storage or shipment.
&
INSTRUCTIONS
ELECTRONICS CORPORATION
Lincoln, Nebraska
All C. B. channel s
Variable up to 20 db (3 'S' points)
Maximum inp'Jt drive from
transcerver is 5 watts
the necessary
68505
