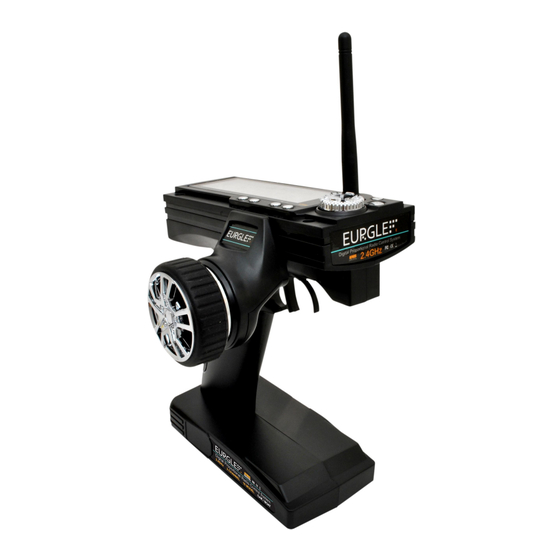

R2hobbies.com Eurgle Instruction Manual

2.4ghz 3 channel lcd wheel digital programmable radio gear (backlight screen)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Eurgle 2.4Ghz 3 Ch LCD Wheel
Digital Programmable Radio Gear
rcps2805004
EurglE
2.4ghz 3 ChannEl lCD WhEEl
Digital programmablE raDio gEar

(baCklight SCrEEn)

Instruction Manual
You should read this Manual carefully before you play.
It contains important information for using the model.
Join our FREE Membership and accept 10%off Offer!
R2hobbies.com

Advertisement

Table of Contents
loading

Summary of Contents for R2hobbies.com Eurgle

  • Page 1: Backlight Screen

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004 EurglE 2.4ghz 3 ChannEl lCD WhEEl Digital programmablE raDio gEar (baCklight SCrEEn) Instruction Manual You should read this Manual carefully before you play. It contains important information for using the model.
  • Page 2 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  INTRODUCTION  REMARKS  ITEM LIST  SAFTY GUIDES  2.4Ghz SYSTEM  BATTERY CHARGING NOTES - TRANSMITTER CHARGER - RECEIVER CHARGER  TANSMITTER PARAMETERS  RECEIVER PARAMETERS ...

  • Page 3: Part List

     Introduction Thank you for choosing EURGLE 2.4G 3 Channel LCD Wheel Digital Programmable Radio Gear, if you are the first time to use this type of Products, please read this statement carefully and strictly in accordance with the requirements of operation.

  • Page 4: Transmitter Charger

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  The system works in between 2.400GHz to 2.4835GHz frequencies that have been divided into 160 frequency points. Each system uses 16 frequencies points and 160 hopping frequency. By using various switching-on time, frequency hopping and different frequency points, the system can passively avoid frequency jamming.

  • Page 5: Receiver Parameters

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  Transmitter Parameter Channels : 3 Channels Model Type : Car/ Boat RF Power : No more than 10mW Modulation : GFSK System Type : AFHDS Sensitivity : 1024 Low Voltage Warning : Yes (Less than 9.5V)

  • Page 6: Receiver Connectivity

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  Receiver Connectivity  Installation when a motor controller is used. Remark : Place the antenna of the receiver vertically with the plane! And don’t let it close to the metal thing for assuring its sensitivity.(See Figure 1)

  • Page 7: Ghz Operation Notes

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  2.4Ghz Operation Notes  Matching (Code) Our products are well matched in the factory; you do not need to match by yourself. But if your are going to match the receiver with other transmitter or you needs to change a new receiver or transmitter, please follow the following steps: 1.
  • Page 8 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  Each Part of E3T Transmitter 1. 2.4Ghz Antenna 2. Steering Wheel 3. Channel 3 4. Battery Box 5. D/R 6. Channel 3 Trim 7. Power 8. DSC for Simulate 9.

  • Page 9: Lcd Function Explanation

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  LCD Function Explanation  LCD Display 1. Turn the ENTER button counterclockwise: decrease the rate 2. Turn the ENTER button: increase the rate 3. Press ENTER button: select the menu 4.
  • Page 10 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  NAME 1. Function explanation This function allows you to assign a number to each model memory and a user name ( three characters). 2. Parameter specification MODEL NO: Model number ACB: User name 3.
  • Page 11 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  REV 1. Function explanation This function reverses the direction of the operations of servos: steering, throttle, and channel 3. 2. Parameter specification Channel : 1 to 3 REV : Reverse NOR : Normal 3.
  • Page 12 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  E. POINT 1. Function explanation Use this function when performing left and right steering angle adjustments, throttle high Side/brake side amount adjustment, and channel 3 servos up side/down side operation amount adjustment during linkage setup.
  • Page 13 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  TRIM 1. Function explanation Use this function to adjust the neutral position of the steering, throttle and channel 3 servos. 2. Parameter specification CHANNEL: 1 to 3 R30: steering or 3rd channel right side, adjustment range: 0~30(initial value isN00)
  • Page 14 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  D/R 1. Function explanation By setting the dual rates function, you can limit the total travel of each individual Channel. 2. Parameter specification CHANNEL : 1 to 3 Dual Rate : 100%, When you want to increase the servo travel, turn the button to increase the rate.
  • Page 15 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  EXP 1. Function explanation This function is used to change the sensitivity of steering servo’s 3 channels around the neutral position. In order to “Soften” the response according to user’s demand.
  • Page 16 Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  ABS 1. Function explanation While applying the brakes, locking them up can be easily done, which can cause your vehicle to spin out of control, this can be eliminated by pulsing the brakes, so that full control of your vehicle can be achieve at all times.

  • Page 17: Transmitter Function Notes

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  Transmitter Function Notes  STEERING CONTROL 1. Function explanation This function is to control the direction, When the steering turn to right then the front wheel will turn to right ( see the picture), When the steering turn to left then the front wheel will turn to left.

  • Page 18: Fail Safe Function

    Eurgle 2.4Ghz 3 Ch LCD Wheel Digital Programmable Radio Gear rcps2805004  Fail Safe Function  Function Failsafe aims to prevent out-of-control driving of RC Car or RC Boat. If the Receiver is not able to receive any signal, from the control to Throttle, the parameter of Throttle on Receiver will turn back to its original setting.
