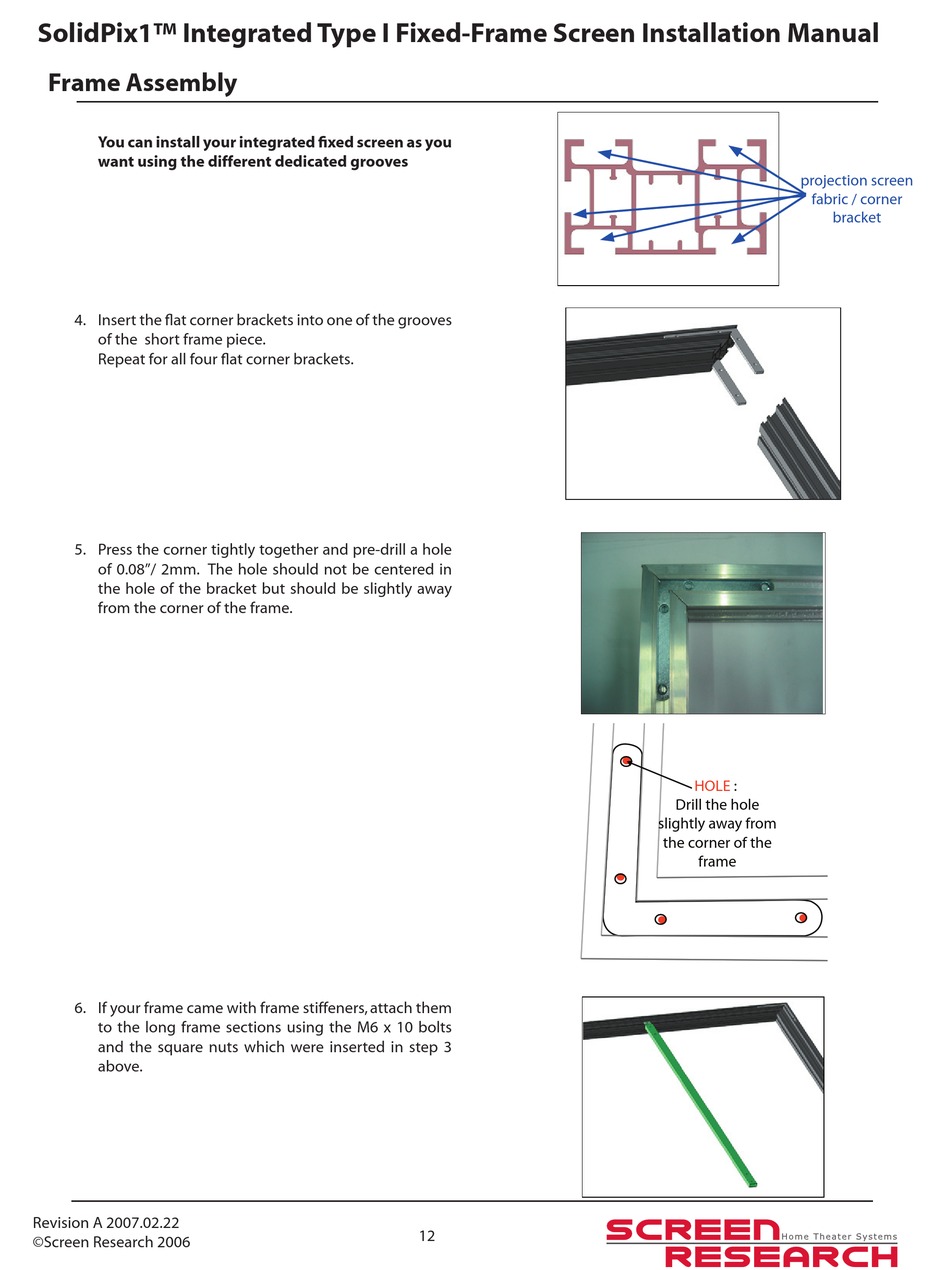

SolidPix1™ Integrated Type I Fixed-Frame Screen Installation Manual
Frame Assembly
You can install your integrated fixed screen as you
want using the different dedicated grooves
4. Insert the flat corner brackets into one of the grooves
of the short frame piece.
Repeat for all four flat corner brackets.
5. Press the corner tightly together and pre-drill a hole
of 0.08"/ 2mm. The hole should not be centered in
the hole of the bracket but should be slightly away
from the corner of the frame.
6. If your frame came with frame stiffeners, attach them
to the long frame sections using the M6 x 10 bolts
and the square nuts which were inserted in step 3
above.
