AUDIO SETTINGS
Settings
GAIN
Balanced Audio
• Connector:
Balanced or unbalanced mono/stereo inputs
(all pin MCO male connector).
8 audio stereo inputs + 1 auxiliary.
Input #1 to #6: Unbalanced.
Aux. & input #7: Balanced.
Adjustable Level per input.
Vi = +15dBV max.
Zi = 40Kohms (Balanced).

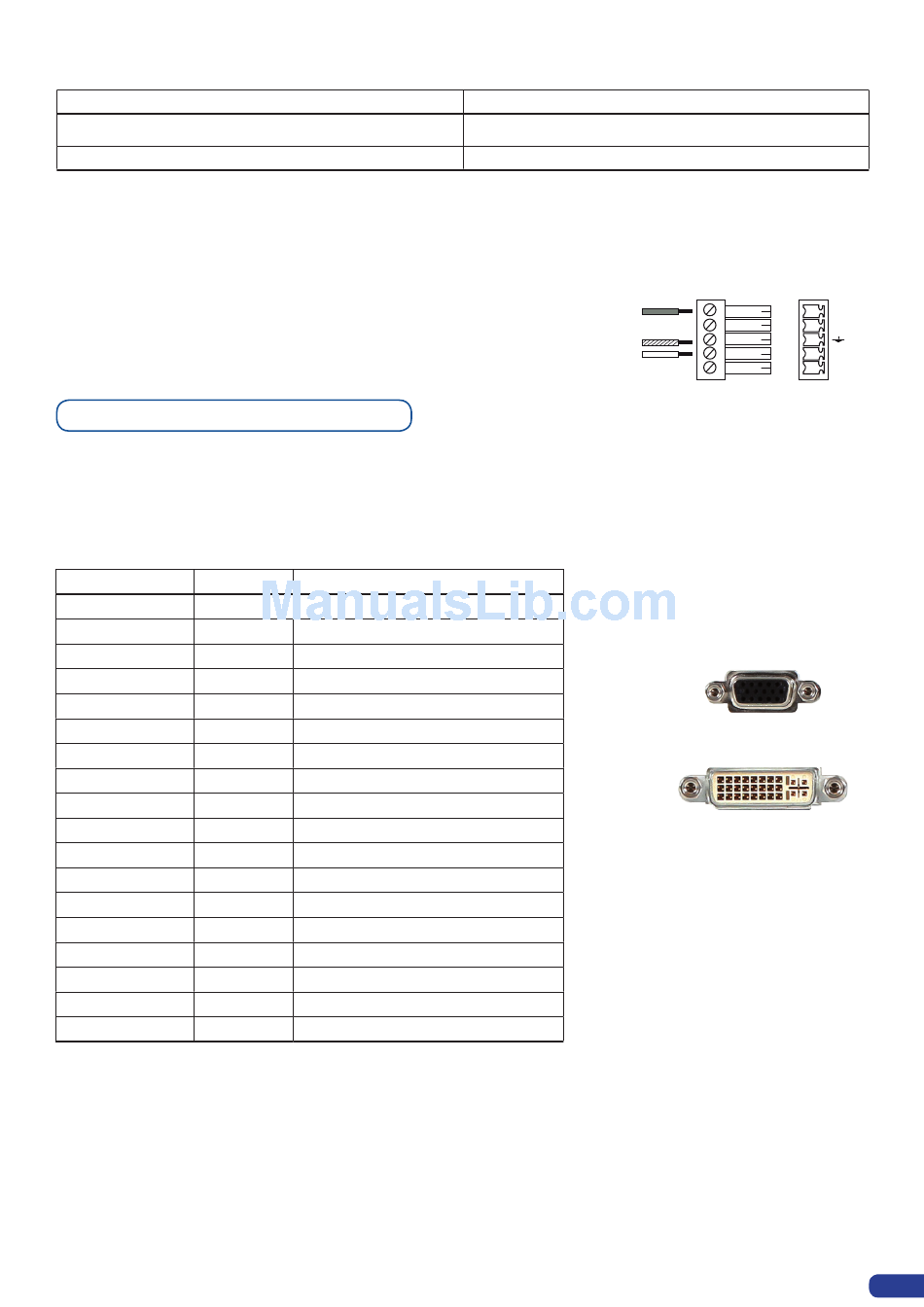

Output specifications

• ANALOG OUTPUTS
Connector: Outputs #1 & #2: female HD15, DVI-I (analog pins).
Resolutions:
FORMAT
640 x 480
800 x 600
848 x 480
1024 x 768
1280 x 720
1280 x 768
1280 x 800
1280 x 1024
1360 x 768
1366 x 800
1400 x 1050
1440 x 900
1600 x 1200
1680 x 1050
1920 x 1080
1920 x 1080 B
1920 x 1200
2048 x 1080
Signals: RGBHV, RGBS and RGsB.
Levels: R, G, B = 0.7 Vp/p.
Sync. : Separate H & V = TTL (negative).
Composite = TTL (negative).
SOG = 0.3 Vp/p (negative).
Impedance: R, G, B = 75 ohms.
RATIO AVAILABLE REFRESH RATES
4 : 3 50Hz 60Hz 72Hz 75Hz
4 : 3 50Hz 60Hz 72Hz 75Hz
16 : 9 50Hz 60Hz 72Hz 75Hz
4 : 3 50Hz 60Hz 72Hz 75Hz
16 : 9
15 : 9 50Hz 60Hz 72Hz 75Hz
16 : 10 50Hz 60Hz 72Hz 75Hz
5 : 4 50Hz 60Hz 72Hz 75Hz
16 : 9 50Hz 60Hz 72Hz 75Hz
15 : 9 50Hz 60Hz 72Hz 75Hz
4 : 3 50Hz 60Hz 72Hz 75Hz
16 : 10 50Hz 60Hz 72Hz 75Hz
4 : 3
16 : 10
16 : 9 50Hz 60Hz 72Hz 75Hz
16 : 9
16 : 10
19 : 10
Availability
∞
YES: from - to + 18dB
YES: Left and Right
MCO male connectors
Inputs #1 to #6: Balanced & unbalanced connection
Inputs DVI #1 to DVI #2: Balanced & unbalanced
connection
Input AUX: Balanced & unbalanced connection
LEFT
GROUND
RIGHT
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
50Hz 60Hz
4
L+
L-
R+
R-
UNBALANCED
or
15
