Model: HD41-ARC
Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD41-ARC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Octava HD41-ARC

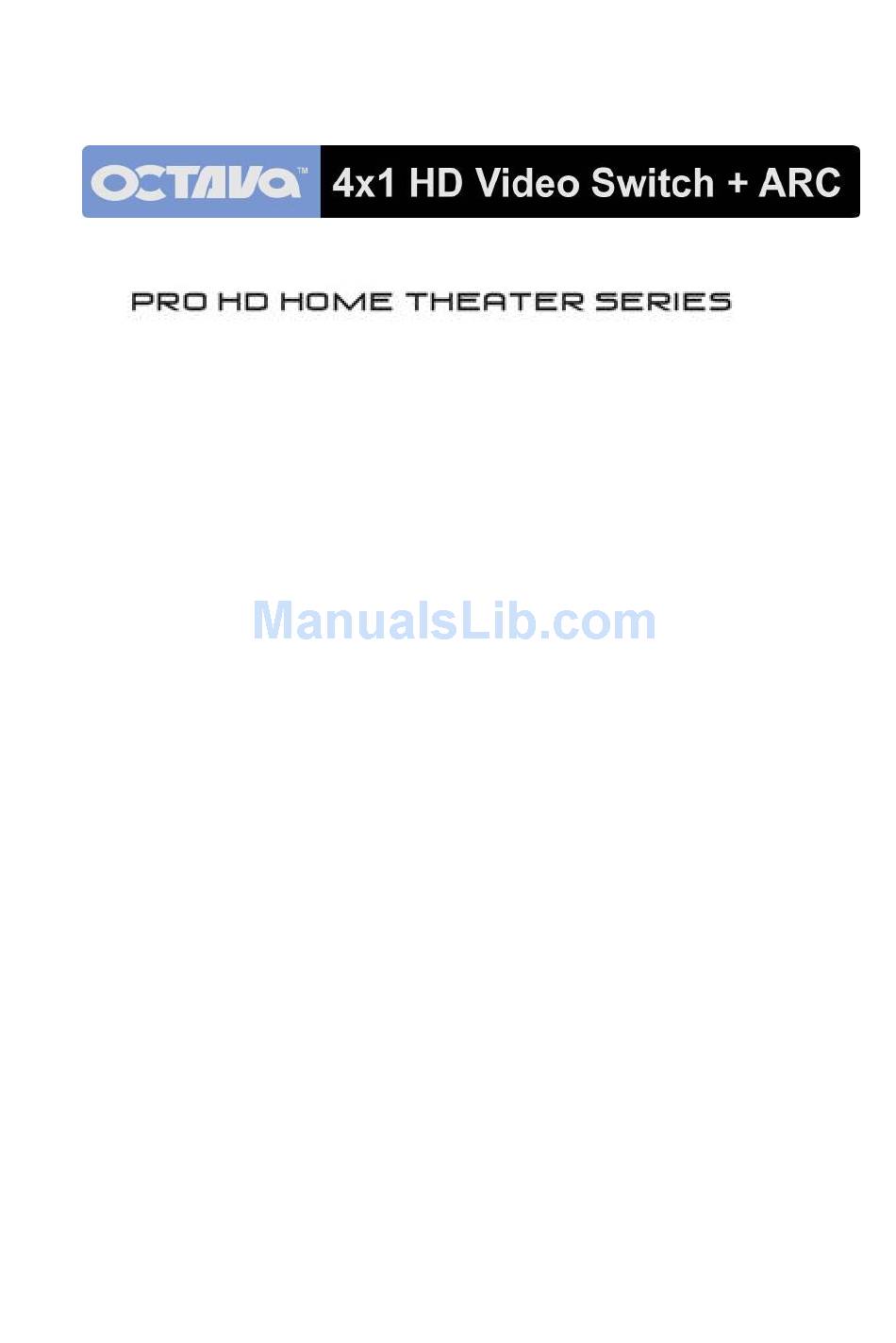

  • Page 1 Model: HD41-ARC Installation Guide...
  • Page 2: Table Of Contents

    Contents Application Diagram ............3 Description ..............3 Features ................4 Installation ............... 4 Remote Control Guide ............ 6 RS232 Control Commands ..........7 USB Service Port.............8 Smart Scan ..............9 1 RU Rackmount............10 Disabling / Enabling IR Remote Control Receiver..10 Warranty.................11 Disclaimers..............11 Specifications..............12...
  • Page 3: Application Diagram

    Application Diagram Description: The Octava 4x1 HDMI switch +ARC is a complete HD video and audio switch solution designed to work with HDTV's with ARC(audio return channel) and your existing audio receiver system with Optical Audio Inputs. The Octava 4x1 HDMI switch +ARC includes: 4 HDMI inputs, 4 Optical Audio inputs, 1 Optical Audio output, 1 HDMI output with ARC support.
  • Page 4: Features

    Features:  Switch 4 HDMI sources to 1 output  3D support , 1080P  4 Optical Audio Inputs  1 Optical Audio Output Optical audio mode 1: convert HDMI audio to optical output Optical audio mode 2: convert HDMI ARC from HDTV to Optical Audio Format Optical audio mode 3: Switch directly from the 4 Optical inputs to the Optical Output...
  • Page 5: Front View

    LED Indicators Front View Infrared Detector Manual Select DC Power Optical Audio Input Back View Output RS232 Optical Audio HDMI Infrared Sources Sources Jack HDMI Output (To TV) USB/RS232 Select Toslink Audio Select HDMI Select Change Digital Audio Change HDMI input Output Source Port Examples...
  • Page 6: Remote Control Guide

    Press 4 to switch optical input 4 to Optical Audio Toslink Optical Input Select Turns ON/OFF the LED light. Turns ON/OFF the HDMI switch Octava’s Remote control uses discrete code so can be easily integrated with most Universal Remote Controls such as Logitech’s Harmony.
  • Page 7: Rs232 Control Commands

    RS232 Control Commands: The Octava HD41-ARC can be easily integrated with 3 Party control systems via RS232 control. The following shows the control protocol: Set the switch to RS-232 side as shown. RS-232 protocol Baud Rate 9600 Data Bits Parity Check...
  • Page 8: Usb Service Port

    Video Switching Commands Note: The commands are in HEX. No spaces between HEX codes. Output A Switching Commands HEX CODE Select OUT A to Input port 1 0x02 0x32 0x31 0x03 Select OUT A to Input port 2 0x02 0x32 0x32 0x03 Select OUT A to Input port 3...
  • Page 9: Smart Scan Tm

    Smart Scan Smart Scan will automatically switch to the HDMI input source when the input source is turned on and detected. If no HDMI sources are detected, then the switch will go into standby mode. The Scan is ON as default. Turning Scan OFF: In the event that you wish to Turn OFF the Smart Scan feature please follow these steps:...
  • Page 10: Ru Rackmount

    1 RU Rackmount : The Octava HD41-ARC can be installed in a 1 RU rack by simply installing the rack mounts included. Disabling /Enabling Front Panel IR Remote Receiver: To disable the front panel IR remote receiver-insert the plastic plug into the IR jack as shown.
  • Page 11: Warranty

    If Octava's equipment fails because of defects (1) year from the date of receipt, Octava will at its option, A) repair or replace the equipment, or B) request return of equipment for refund of the price paid for the product provided that the equipment has not been subjected to mechanical, electrical or other abuse or modifications.
  • Page 12: Specifications

    For Questions and support: Email: info@octavainc.com URL: www.octavainc.com Copyright© 2011 Octava Inc. All rights reserved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LL.C All trademarks are the sole property of their respective companies...
