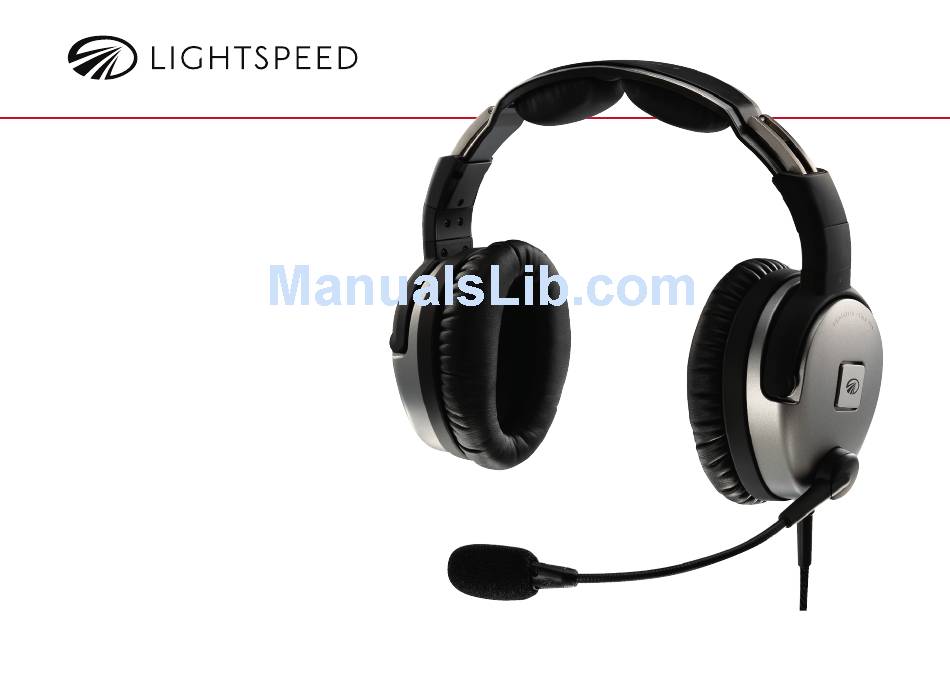

  • Page 1 Zulu PFX User Guide...
  • Page 2 If this is your first Lightspeed Aviation headset, welcome to the Lightspeed family. Together with our customers, we look forward to building a lasting community, founded on products and service that are the best in class.

  • Page 3: Table Of Contents

    Contents Contents of the Zulu PFX Package ......... 2 Pairing a Bluetooth Device with Zulu PFX ....13 Automatic Bluetooth Connection .........14 Getting Started ................4 Bluetooth Functions ...............14 Fitting Your Headset ..............4 Bluetooth Mode On and Off ..........15 Installing CPU clip ..............4 Battery Installation ..............

  • Page 4: Contents Of The Zulu Pfx Package

    Contents of the Zulu PFX Package The Zulu PFX (Personal Flying Experience) ANR headset package includes (clockwise from top left): • Carrying case • F our AA batteries (not included with panel- powered headsets) • Zulu PFX ANR headset with the Central Processing Unit (CPU) • Cord clip • User Guide with warranty information • CPU clip • Quick Start Guide • Auxiliary input cable: Audio device/iPhone...
  • Page 5 Contents of the Zulu PFX Package...

  • Page 6: Getting Started

    The steel CPU clip allows you to securely position the sliders slowly and evenly on each side until the Zulu PFX CPU on your visor or in a map pocket. the head pad rests softly on the top of your head.

  • Page 7: Battery Installation

    Bluetooth usage can reduce The power indicator LED will flash GREEN when the battery life. Zulu PFX will automatically shut off power is on and the batteries are strong. approximately five minutes after you remove the headset from your head.

  • Page 8: Understanding Controls For Zulu Pfx Cpu

    Zulu PFX and batteries are strong. • Flashes RED when batteries are weak. B. Power button: • To turn on Zulu PFX and Active Noise Reduction (ANR), press the button once. • To turn headset off, press and hold the button two seconds.
  • Page 9 Understanding Controls for Zulu PFX CPU D. Action button: G. Bluetooth indicator LED: • Flashes BLUE when Bluetooth mode is on • While in Favorites mode, press and hold to and flashes RED when Bluetooth is turning off. activate acoustic response mapping.
  • Page 10 Understanding Controls for Zulu PFX CPU J. MONO/STEREO switch: • Toggles between the mono ( ) and stereo ( ) signal. K. Mode switch: • FAVORITES ( ) mode provides access to advanced features including Streaming Quiet™ ANR, acoustic response mapping, and custom preferences via FlightLink. These are not available in HOME mode.

  • Page 11: Using Your Zulu Pfx Headset

    The MONO/STEREO switch is located on the side of the Zulu PFX CPU. Choose the setting that matches 1. Put on the Zulu PFX ANR headset and adjust for the signal from your audio panel. To experience the proper fit and seal (see page 4).

  • Page 12: Acoustic Response Mapping

    Press and hold the Action button until you hear the mapping tone. The auditory landscape within the To power Zulu PFX off, press and hold the power ear cup created by the unique size and shape of your button until the power indicator LED turns off. ears will be assessed and the information used to fine tune noise cancellation and audio responses.

  • Page 13: Compriority

    Using Your Zulu PFX Headset ComPriority™ Connecting to iPhone® or iPad® with the Auxiliary Input Cable ComPriority gives priority to important communications by lowering the volume of any If you connect an iPhone or iPad to the Zulu PFX CPU ®...

  • Page 14: Other Wired Auxiliary Devices

    Note: The Zulu PFX auxiliary input jack is on the top of the Zulu PFX CPU (for location, see page 7).

  • Page 15: Using Bluetooth Devices

    Before you use a Bluetooth device four digits of the Zulu PFX headset serial number) with the Zulu PFX for the first time, they must be from your phone’s list of found devices. paired (establishing an electronic connection).

  • Page 16: Automatic Bluetooth Connection

    Using Bluetooth Devices Automatic Bluetooth Connection • Answer a call: Press the Bluetooth power button once as the phone rings. When the Bluetooth feature is on, the Zulu PFX will automatically connect to the most recently paired • Disconnect a call: Press the Bluetooth power device. If no device is connected, Zulu PFX will remain button once while the call is connected.

  • Page 17: Bluetooth Mode On And Off

    Using Bluetooth Devices Bluetooth Mode On and Off To turn Bluetooth mode on, press and hold the Bluetooth power button until the Bluetooth indicator LED begins to flash. The LED will flash RED and BLUE until the CPU pairs with the device. Once paired, the indicator LED will flash BLUE.

  • Page 18: Flightlink

    ® ® pilots can customize key audio and other settings extend battery life. of their Zulu PFX headset, as well as record cockpit Using FlightLink to change the headset audio settings communications for instant playback or later retrieval. via your iPhone or iPad requires a Bluetooth connection. Activating FlightLink FlightLink Recorder Features • Download FlightLink from the App Store.

  • Page 19: Toggling Between Apps

    The enhanced FlightLink capabilities available with profile. Up to three profiles can be saved. Zulu PFX allow you to configure and save key audio preferences for your headset. Follow these steps to • Tap a preset button to recall a personal profile.
  • Page 20 FlightLink Available Settings • Independently adjust bass and treble controls for • Independently enable and disable ComPriority intercom and auxiliary channels. for Bluetooth and auxiliary channels. ComPriority lowers the volume of auxiliary devices when • Enable and disable Auto Shutoff™, which saves radio or intercom communications are detected. battery life by automatically turning off the (See page 11 for more information.) headset when not in use.

  • Page 21: Peak Performance Tips

    Peak Performance Tips For the best performance from your Zulu PFX headset, follow the tips below: • Ensure an excellent fit (see “Fitting Your Headset” • Replace the ear seals, head pad, and mic windscreen every 18 months to ensure peak ANR on page 4). performance and comfort. These items are available • Set Zulu PFX’s MONO/STEREO switch to match for purchase on our website (ear seals, head pads, the signal from your audio panel (see “Matching...

  • Page 22: Updating Firmware

    This will also ensure that you are notified when firmware updates are available. One of the most exciting features of Zulu PFX is (To locate your product serial number, see “Where is its ability to accept software updates, ensuring my product serial number?”...

  • Page 23: Faqs

    The head pad will snap out. To replace, • Tap Help and Support to access your product align the pins with the model and serial number. holes and snap into place. Zulu PFX Serial Number...
  • Page 24 FAQs Why do I hear radio communications in only one ear? Zulu PFX’s MONO/STEREO switch may be set to baseline level of ANR and audio performance. Please STEREO, while your audio panel is transmitting a mono note, however, that Streaming Quiet ANR, acoustic signal. To fix this, change Zulu PFX’s MONO/STEREO response mapping, and custom settings are not switch to MONO.

  • Page 25: Specifications

    Headphone Operating voltage: 8V–16V DC Transducer: 40mm moving coil Frequency response: 20 Hz–20 kHz Nominal impedance @ 1 kHz: OFF—Mono: 200 ohms, ON—Mono: 280 ohms OFF—Stereo: 400 ohms, ON—Stereo: 560 ohms Zulu PFX Configurations Model Power Source Cord Connector Zulu PFX Four AA batteries Straight Dual general aviation connectors with 0.25-inch commercial stereo...

  • Page 26: Warranty Information

    Purchaser. Without paying any amount to Purchaser, LSA may keep, sell, or otherwise Lightspeed Aviation, Inc. (“LSA”) warrants that the new aviation headset sold by LSA discard all replaced New Headsets and parts thereof and all New Headsets where (“New Headset”) is free from all material defects in workmanship and materials.

  • Page 27: Registration

    ©2014 Lightspeed Aviation, Inc. All rights reserved. Lightspeed Aviation is a trademark OF SUCH FAILURE WITHIN 10 DAYS AFTER THE REPAIR, THE WARRANTY PERIOD WILL and Zulu PFX is a registered trademark of Lightspeed Aviation, Inc. Bluetooth is a BE EXTENDED FOR A PERIOD EQUAL TO THE DURATION OF THE DELAY. IF, AFTER A registered trademark of the Bluetooth SIG.
  • Page 28 Lightspeed Aviation 6135 Jean Road Lake Oswego, Oregon 97035 sales@LightspeedAviation.com service@LightspeedAviation.com 800.332.2421 Toll Free 503.968.3113 Tel 503.968.7664 Fax LightspeedAviation.com...
