Wisi OS Getting Started Manual

Dvb-ip-gateway
Hide thumbs

Advertisement

Table of Contents

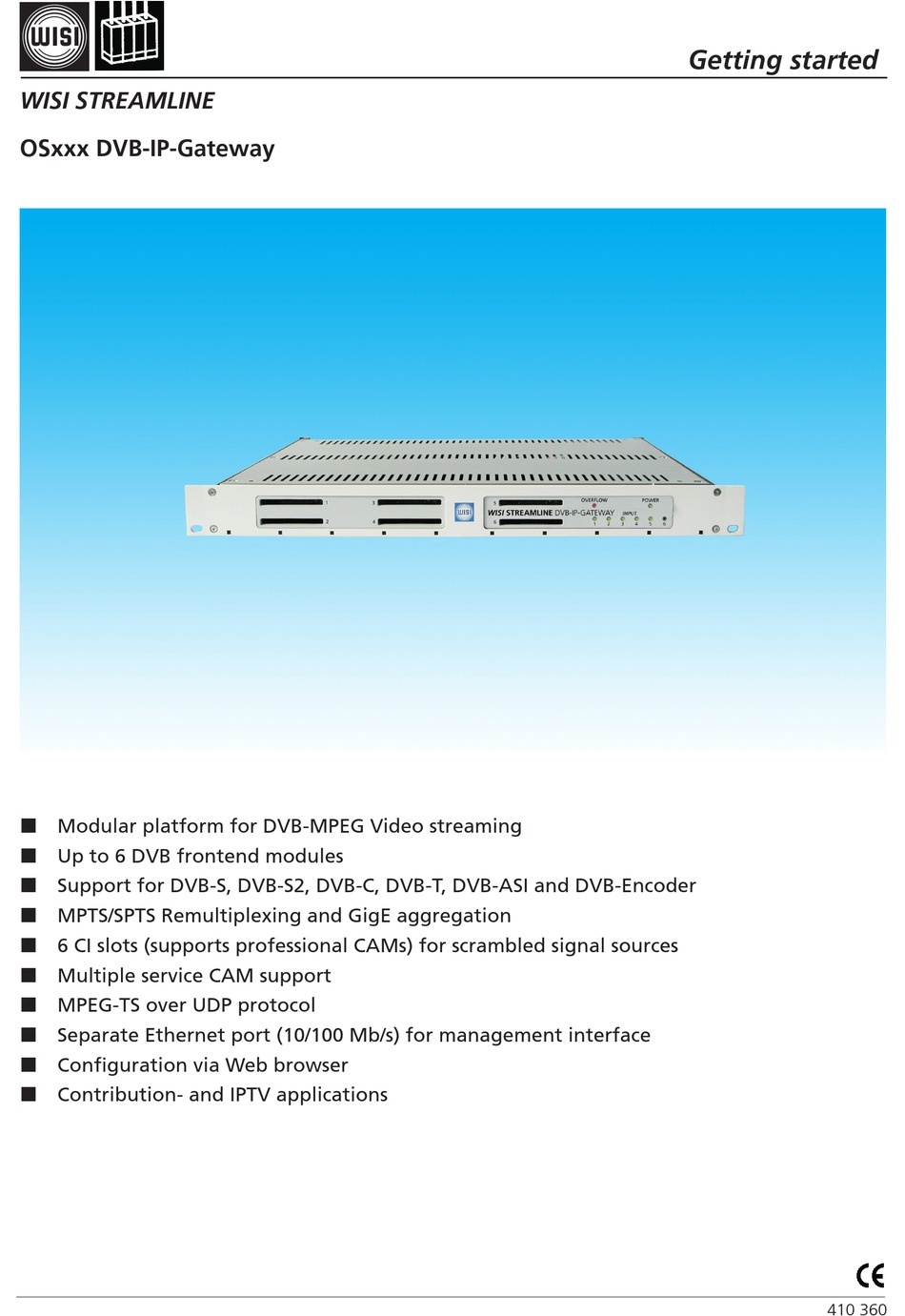

Getting started

WISI STREAMLINE
OSxxx DVB-IP-Gateway
 Modular platform for DVB-MPEG Video streaming
 Up to 6 DVB frontend modules
 Support for DVB-S, DVB-S2, DVB-C, DVB-T, DVB-ASI and DVB-Encoder
 MPTS/SPTS Remultiplexing and GigE aggregation
 6 CI slots (supports professional CAMs) for scrambled signal sources
 Multiple service CAM support
 MPEG-TS over UDP protocol
 Separate Ethernet port (10/100 Mb/s) for management interface
 Configuration via Web browser
 Contribution- and IPTV applications
- 1 -
410 360

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisi OS

Summary of Contents for Wisi OS

  • Page 1: Getting Started

    Getting started WISI STREAMLINE OSxxx DVB-IP-Gateway  Modular platform for DVB-MPEG Video streaming  Up to 6 DVB frontend modules  Support for DVB-S, DVB-S2, DVB-C, DVB-T, DVB-ASI and DVB-Encoder  MPTS/SPTS Remultiplexing and GigE aggregation  6 CI slots (supports professional CAMs) for scrambled signal sources ...
  • Page 2 Safety and installation notes – please observe! Caution The mains voltage must match the rated input voltage of the unit (180-265 VAC; 50/60 Hz). Connecting cable — Lay the cable so that no-one can trip over it. — Lay the cable with a downward loop so that any water condensing on it can drip on the floor instead of running into the unit.

  • Page 3: Front And Rear Panel

    Front and rear panel POWER OVERFLOW WISI STREAMLINE DVB-IP-GATEWAY INPUT FUSE T2A/250 VAC Control Option: Eingangsmodule 10/100 Input modules 1000 230 VAC Customer device DVB S / S2 / T / C IP Modul Modul Ethernet SDI MPEG2/ DVB-Dual S,...

  • Page 4: Cable Connections

    Connection Cable connections - Connect HF-or appropriate (ASI. Ethernet, AV signal) to the corresponding input module (front end). - Connect „GbE 1000“ to distribution system as e.g. switch. - For local settings connect PC to CONTROL 10/100. Set IP address - Open Internet browser.
  • Page 5 Status Fig. 1 Status Shows the status of output streamer bitrate. Input TS: green signal: transport stream signal OK.  Input TS: red signal: transport stream signal error.  Streamer Bitrate: Output Streamer Bitrate (only displaed) Streamer overflow:  red signal: streamer overflow: >...
  • Page 6 Configuration Fig. 1 IP-Address Configuration CONTROL: Set IP address „CONTROL 10/100“ for PC connection. Streamer 1...6.: Set IP address (refer to Fig 1). Set Netmask (subnet address) and Gateway (access to another network, Broadcast* etc). * refer to wikipedia. org and Search „Multicast“ or refer to Iana.org for usable Multicast address range.
  • Page 7 DVB-S Module Front end Fig. 1 Input LNB LO Frequency (MHz): Set IF frequency or transponder frequency For transponder frequency set 9750 or 10600 MHz button. Input frequency (MHz): Set IF frequency 1354 or transponder frequency as e.g.11954* Symbol rate (kS/s): 27500 Display Bit Error Rate:...

  • Page 8: Common Interface

    Common Interface Fig. 1 Conditional Access Module CAM name: shows the CAM name Input Transportstream: green signal: transport stream signal OK.  Transportstream: red signal: transport stream signal error.  Decode The Decode field displays the services contained in the transport stream.
  • Page 9 Streamer 1 Fig. 1 Stream Analyzer green 100 % ready, red = busy Input Transportstream: green signal: transport stream signal OK.  Transportstream: red signal: transport stream signal error.  Output Stream: summary of selected streams 1...32 max. or ALL refer to chapter Streamer 1 - ALL IP Address: Target IP address (Multicast/Unicast).
  • Page 10 Streamer 1 - Output Streamer 1 - ALL Fig. 2 Output Stream ALL Displaying Stream 1...32 incl. IP-Address, Port and Disable Output status. (Not available in Transmodu- lator mode). Scroll down with the bar tool at the right side. - 10 -...
  • Page 11 Streamer 1 - Transmodulator mode Fig. 3 NOTE transmodulator mode If you change to transmodulator mode all previous selected programs or components of this streamer will be erased. Are you really sure? Fig. 4 - 11 -...

  • Page 12: Specifications

    Specifications DVB-S 75 Ω Input impedance Input frequency range 950 - 2150 MHz Input frequency steps 1 MHz Input return loss > 8 dB IF-frequency/-bandwidth none (Zero-IF) Input level range 47 - 70 dBµV ± 5 MHz Type of modulation QPSK Symbol rate 2 - 45 MS/s...
  • Page 13 Standard compliance ISO 639 Code for the Representation of Names of Lan- guages ISO/IEC 13818-1 Information technology – Generic coding of mov ing pictures and associated audio informations - Systems IETF RFC 791 IP v4 IETF RFC 768 User Datagram Protocol (UDP) IETF RFC 793 Transmission Control Protocol (TCP) IETF RFC 1065 Structure and identification of management infor-...

  • Page 14: Block Diagram

    General OS xx Basic unit Power supply 180-265 VAC; 50/60 Hz Operating temperature 0°C...+55°C Storage temperature -25°C...+75°C Max. humidity non condensing Dimensions 1 HE / 19” Weight 3,5 kg Power consumption < 55 W Block diagram Power Supply Aggregation Switch...

  • Page 15: Ordering Information

    Ordering information Legend A – SDI-MPEG2-Encoder (single) OSDS= OS-DualStreamer OSCI= OS-CI modules Output 6 = 3 x OSDS + 0 x OSCI 7 = 3 x OSDS + 2 x OSCI 8 = 3 x OSDS + 4 x OSCI...
  • Page 16 Empfangs- und Verteiltechnik Wilhelm-Sihn-Straße 5-7, Technische Änderungen und Druckfehler vorbehalten! 75223 Niefern-Öschelbronn Technical Modifications reserved. WISI cannot be held liable for any printing error. Tel . 07233 / 66-0, Fax. 66-320, http://www.wisi.de ... a link to the future - 16 -...
