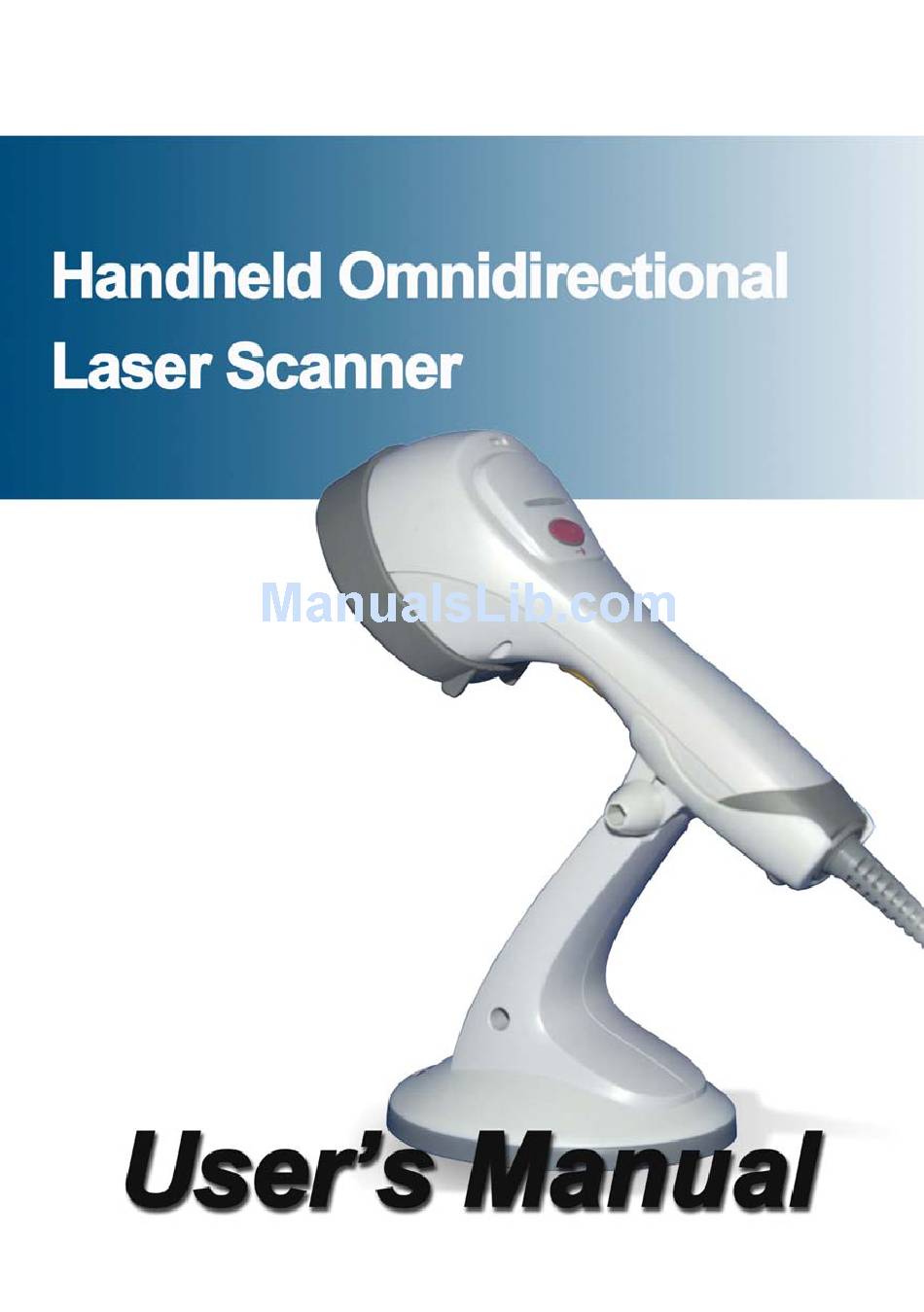

ZBA Z-3060 User Manual

Handheld omnidirectional laser scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-3060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZBA Z-3060

Summary of Contents for ZBA Z-3060

  • Page 3 No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for a particular purpose. We are not liable for any errors contained herein or incidental or consequential damages in connection with furnishing, performance or use of this material.
  • Page 4 Laser Safety The laser scanner complies with safety standard IEC 60825 -1for a Class I laser produce. It also complies with CDRH as applicable to a Class IIa laser product. Avoid long term staring into direct laser light. Radiant Energy: The laser scanner uses one low-power visible laser diodes operating at 650nm in an opto-mechanical scanner resulting in less than 3.9μW radiated power as observed through a 7mm aperture and averaged over 10 seconds.

  • Page 5: Table Of Contents

    Table of Contents Introduction................... 1 Unpacking..................... 2 Outline ....................3 Scanner Outline ................4 Stand Outline ................4 Connecting ................... 5 Power................... 5 Verifying Scanner Operation............5 Connecting to the Host ..............6 Setting Up the Scanner ................ 7 Scan Test ..................7 Set up...................
  • Page 6 Code 39 Parameter Setting........34 Code 93 Parameter Setting........36 Code 128 ..............37 Chinese Post Code ..........38 MSI/Plessy..............39 ITF 2 of 5 ..............40 UPC/EAN/JAN............41 Addendum Seek Timeout ......... 45 Data Editing................ 46 Identifier Code ............46 Header and Trailer............

  • Page 7: Introduction

    1. Instruction The scanner, combining with omnidirectional scanning performance and handheld convenience, it is ergonomically facilitates scanning of large items that is unable to be presented to any counter-top scanner. It is also equipped with single line scanning capability and in stand operation with exclusively designed adjustable stand to benefit for any kind of applications required.

  • Page 8: Unpacking

    2. Unpacking The handheld omnidirectional scanner package contains: 1 ea. Handheld omnidirectional scanner 1 ea. Scanner stand 1 ea. Communication cable 1 ea. Power adapter (only for specific RS-232 cables) 1 ea. User’s manual If any contents are damaged or missing, please contact your dealer immediately.

  • Page 9: Outline

    3. Outline 3-1. Scanner Outline Buzzer Exit Window LED Indicator Object Detector Function button Buzzer Scan Trigger Pin Hole Cable Connection Description Function Exit Window Reads barcodes Object Detector Trigger and wake up scanner when presenting barcode in its range Beeper For beep tone indication Scan Trigger...

  • Page 10: Stand Outline

    3-2. Stand Outline Set device into stand in this direction Device Holder Logo Gently set the device into the stand in the direction shown by arrow. The stand supports the device as hands-free mode and it tilts in 36° angle range shown as below.

  • Page 11: Connecting

    4. Connecting 4-1. Power The scanner requires a minimum of 250mA at 5 VDC power. The interface cable that comes with the scanner supports both direct power (where the scanner takes power from the host machine) and external power (that’s what the supplied power adapter is for).

  • Page 12: Connecting To The Host

    4-3. Connecting to the Host The interface cable comes with different host-end connectors, depending on the host. Follow the steps below to connect the interface cable to the host. 1. Make sure that the power of the host system is off. 2.

  • Page 13: Setting Up The Scanner

    5. Setting up the Scanner In certain cases no setup is required. The scanner is either pre-programmed to suit the situation, or it automatically detects and is ready to go. In other cases the scanner must be informed about what kind of system it is connected to.
  • Page 14 When done, again present the <End of configuration> barcode. The scanner beeps twice, once long and once short, and the LED returns to blue. The scanner has been programmed. Test again with known-good barcodes. If results are good, you are done setting up.

  • Page 15: Operating The Scanner

    6. Operating the Scanner The scanner can read barcodes in either omnidirectional or single-line mode to accommodate different requirements. This scanner is truly omnidirectional while single-line mode is usually used for better aiming on the specific barcode on the same sheet of more than one barcode printed closely.

  • Page 16: Multi-Line Scan Mode

    2) Multi-Line Scan Mode: As if the scanner is not on the stand as well as the Function Button is not pushed down (which Function Button LED is off), the scanner is in Multi-Line Scan Mode by pressing the trigger button to decode. The below illustrates the operation on large bulky items without aiming on the barcodes.

  • Page 17: Led Indications

    6-2. LED Indications A dual color red-blue LED indicates operating status as follows: LED status Indication No power supplied to the scanner Steady blue light The scanner is on and ready to scan One red flash A barcode has been successfully decoded. Steady red light A barcode has been successfully decoded, but the object is not removed from the scan window.

  • Page 18: Sleep Mode

    6-4. Sleep Mode After the scanner has been inactive for a period of time, the laser automatically turns off; then the motor will turn off and the scanner will enter into “Sleep Mode”, the blue status LED blinks once as indication. To wake up the scanner, simply present an object close to the exit window, or press the trigger button.

  • Page 19: Maintaining The Scanner

    7. Maintaining the Scanner The scanner is designed for long-term trouble-free operation and rarely requires any maintenance. Only an occasional cleaning of the scanner window is necessary in order to remove dirt and fingerprints. 7-1. Cleaning the Scan Window Wipe the scan window with a soft lint-free cloth and a non-abrasive cleaner to avoid scratching and damaging the scan window.

  • Page 20: Troubleshooting

    8. Troubleshooting Problem Diagnostic Tips The scanner is on but cannot The scanner window is dirty. Clean the scanner read barcodes. The LED window as described in the “7. Maintaining the stays blue. Scanner” section. The presented barcode type is not enabled. Use the Programming section to tell the scanner to accept that type of barcode.

  • Page 21: Programming Guide

    9. Programming Guide Scanning a series of programming bar code labels can configure the scanner. This allows decoding options and interface protocols to be tailored to a specific application. The configuration is stored in non-volatile memory and will not be lost by removing power from the scanner.

  • Page 22: Factory Default Setting

    9-3. Factory Default Setting Scanner Timing Default Same code delay 500msec RS-232 communication Default Baud rate 9600 Parity none Data Bits Stop Bit RTS/CTS Terminator <CR><LF> Keyboard Wedge Communication Default Terminal Type PC/AT Keyboard US keyboard Terminator Enter(Alpha numeric) USB Communication Default Terminator type Enter...

  • Page 23: Default Data Transmit Format

    9-4. Default data transmit format Code Message format EAN-13 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 EAN-8 D1 D2 D3 D4 D5 D6 D7 D8 UPCA D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 UPCE D1 D2 D3 D4 D5 D6 D7 D8 CODE128...

  • Page 24: Parameter Setting

    9-6. Parameter setting The parameter can only be set in single-line scan mode. Refer to section 6-1 to switch to single line scan mode. Note: Default values are highlighted in grey background. Start Of Configuration System Function Setting Barcode Value Description Reset (return to factory default) Display firmware version...

  • Page 25: Scan Function Setting

    Start Of Configuration Scan Function Setting Handheld Operation Normal Trigger mode The scanner becomes inactive as soon as the data is transmitted. It must be triggered to become active again. Handheld scan operation and function button is on Auto Trigger mode The mode is auto object detect to active laser.
  • Page 26 Start Of Configuration Same Code Delay 50msec 200msec 400msec 600msec 800msec 100msec 300msec 500msec 700msec 1000msec Infinite End Of Configuration...

  • Page 27: Double Field Support

    Start Of Configuration Double Field Support The scanner allows user the freedom to decode two EAN-13 barcode to one scan. Select at least 1 leading character for each barcode .The maximum is 4 characters for each barcode. Double code not allowed Double code free character setting Double code seek timeout x 1 Double code seek timeout x 2...

  • Page 28: Japanese Double Field Support

    Start Of Configuration Example To select 471 as the first three character in the first code pair1 And select 121 as the first three characters in the second code pair2. The setting as following: Scan “start of configuration” label to enter programming mode Scan “Double code free character setting”...

  • Page 29: Operation Function Setting

    Start Of Configuration Operation Function Setting Good Read Beeper Tone Selection Medium beeper tone High beeper tone Low beeper tone Speaker disable Beeper Sound Selection Long Medium Short Ultra Short Ultra Long Loud Volume Medium Volume Slight Volume End Of Configuration...
  • Page 30 Start Of Configuration Beeper Sound Selection (Cont’d) Power-on tone enable Power-on tone disable LED/Beep after transmission. Use this bar code to indicate a "good read" after a bar code has been successfully decoded. LED/Beep before transmission Use this bar code to indicate a good read" after successfully transmitting the bar code data to the host.

  • Page 31: Interface Settings

    Start Of Configuration Interface Settings RS-232C Interface Setting Baud Rate 115200 19200 9600 4800 2400 1200 Parity Bit Even parity Odd parity Mark parity Space parity None parity Stop Bit 1 stop bit 2 stop bit Data Bit 7 data bit 8 data bit End Of Configuration...
  • Page 32 Start Of Configuration Handshaking Protocol None handshaking ACK/NAK Xon/Xoff RTS/CTS Enable BEEPER ON<BEL> CHARACTER Ignore Beep on<BEL> character Disable ACK/NAK timeout beeper Enable ACK/NAK timeout beeper(three sound beeper sound) ACK/NAK response time 300ms ACK/NAK response time 2s ACK/NAK response time 500ms ACK/NAK response time 3s ACK/NAK response time 1s ACK/NAK response time 5s...
  • Page 33 Start Of Configuration Message Terminator RS-232 message terminator—none RS-232 message terminator—CR/LF RS-232 message terminator—C RS-232 message terminator—LF RS-232 message terminator—H tab RS-232 message terminator—STX/ETX RS-232 message terminator—EOT End Of Configuration...

  • Page 34: Keyboard Wedge Setting

    Start Of Configuration Keyboard Wedge Setting Keyboard Wedge Setting IBM PC/AT/PS/2 Keyboard emulation International Keyboard mode.( ALT method). Keyboard language support---USA Keyboard language support---UK send scan code Keyboard language support---GERMANY Keyboard language support---FRENCH send scan code Keyboard language support---SPANISH send scan code Keyboard language support---ITALIAN send scan code...
  • Page 35 Start Of Configuration Message Terminator Keyboard terminator---none Keyboard terminator---Enter Keyboard terminator---H-TAB End Of Configuration...

  • Page 36: Usb Interface Setting

    Start Of Configuration USB Interface Setting USB interface International Keyboard mode.( ALT method). Keyboard language support---USA Keyboard language support---GERMANY Keyboard language support---FRENCH send scan code Keyboard language support---SPANISH send scan code Keyboard language support---Japanese Message Terminator Keyboard terminator---none Keyboard terminator---Enter Keyboard terminator---H-TAB End Of Configuration...

  • Page 37: Wand Emulation Setting

    Start Of Configuration Wand Emulation Setting Wand emulation is not supported as standard, if needed, please contact your distributor. Wand Emulation All barcode will be decoded and transmitted in that symbology Enable Wand output data format as CODE39 Wand emulation data output black=high Scan this bar code to set quiet zones and spaces low and bars =high.
  • Page 38 Start Of Configuration Wand Emulation (Cont’d) Wand emulation speed-----Low This option allows the transmission of wand emulation at 1ms narrow element width Wand emulation speed-----medium This option allows the transmission of wand emulation at 600us narrow element width Wand emulation speed-----normal Wand emulation speed-----high This option allows the transmission of wand emulation at 300us narrow element width...

  • Page 39: The Symbologies

    Start Of Configuration The Symbologies CODABAR Parameter Setting Codabar enable Codabar start/stop character transmission-----DC1~DC4 CODABAR disable Codabar start/stop character transmission-----a/t,b/n,c/*,d/e Codabar start/stop character transmission-----none Codabar maximum length setting Codabar start/stop character transmission-----A,B,C,D Codabar minimum length setting Save setting to confirm (for length setting) Codabar concatenation disable Validate modulo 16 and transmit Codabar concatenation enable...

  • Page 40: Code 39 Parameter Setting

    Start Of Configuration Code 39 Parameter Setting Code 39 enable FULL ASCII code 39 Code 39 disable Code 39 start/stop character transmission Code 39 start/stop character without transmission Code 32 enable Code 32 disable Code 39 check digit calculate and transmit No check character Code 39 check digit calculate but without transmit Code 39 data redundant check=off...
  • Page 41 Start Of Configuration Code 39 Parameter Setting (Cont’d) Code 39 maximum length setting Code 39 minimum length setting Save setting to confirm (for length setting) Code 39 concatenation enable Code 39 concatenation disable Code 32 (Italian pharmacy) transmit “A” character Code 32 (Italian pharmacy) without transmit ”A”...

  • Page 42: Code 93 Parameter Setting

    Start Of Configuration Code 93 Parameter Setting Code 93 enable Code 93 disable Code 93 data redundant check=off Code 93 data redundant check=1 Code 93 data redundant check=2 Code 93 maximum length setting Code 93 minimum length setting Save setting to confirm (for length setting) Code 93 check digit calculate but without transmit Code 93 check digit not calculate and without transmit...

  • Page 43: Code 128

    Start Of Configuration Code 128 Code 128 enable Code 128 disable EAN 128 enable EAN 128 disable Code128 FNC2 concatenation enable Code128 FNC2 concatenation disable Code 128 data redundant check=off Code 128 data redundant check=1 Code 128 data redundant check=2 Code 128 maximum length setting Code 128 minimum length setting Save setting to confirm (for length setting)

  • Page 44: Chinese Post Code

    Start Of Configuration Chinese Post Code Chinese post code enable Chinese post code disable Chinese post codedata redundant check=off Chinese post code data redundant check=1 Chinese post codedata redundant check=2 Chinese post code maximum length setting Chines post code code minimum length setting Save setting to confirm (for length setting) End Of Configuration...

  • Page 45: Msi/Plessy

    Start Of Configuration MSI/Plessy MSI enable MSI disable MSI data redundant check= off MSI data redundant check=1 MSI data redundant check=2 MSI/PLESSY maximum length setting MSI/PLESSY minimum length setting Save setting to confirm (for length setting) MSI/Plessy double check digit calculate but not transmit MSI/Plessy double check digit calculate and both transmit...

  • Page 46: Itf 2 Of 5

    Start Of Configuration ITF 2 of 5 ITF 2 of 5 enable ITF 2 of 5 disable IATA code enable IATA disable ITF 2 of 5 check digit calculate and transmit ITF 2 of 5 check digit calculate but without transmit ITF 2 of 5 no check character ITF 2 of 5 one Fixed length setting ITF 2 of 5 two Fixed length setting...

  • Page 47: Upc/Ean/Jan

    Start Of Configuration UPC/EAN/JAN EAN convert toISSN/ISBN enable EAN convert to ISSN.ISBN disable UPC/EAN/JAN ALL ENABLE EAN-8 ENABEL UPC-A AND EAN-13 ENABLE EAN-8 OR EAN-13 ENABLE UPC-A AND UPC-E ENABLE UPC-E ENABLE EAN-13 ENABLE UPC-A ENABEL UPC/EAN Addendum Disable Add on 5 only Add on 2 only Add on 2 or 5 Force UPC-E to UPC-A format enable...
  • Page 48 Start Of Configuration UPC/EAN/JAN (Cont’d) Force UPC-A to EAN-13 format enable Force UPC-A to EAN-13 format disable Transmit UPC-A check digit enable Transmit UPC-A check digit disable Transmit UPC-E check digit enable Transmit UPC-E check digit disable Transmit UPC-E leading character enable Transmit UPC-E leading character disable Transmit UPC-A leading character enable Transmit UPC-A leading character disable...
  • Page 49 Start Of Configuration UPC/EAN/JAN (continued) force EAN-8 to EAN-13 format enable force EAN-8 to EAN-13 format disable EAN-13 country code first “0” can transmitted EAN-13 country code first:”0” can’t transmitted Add-on format with separator Add-on format without separator EAN/UPC +add-on (none mandatory) EAN/UPC +add-on ( mandatory) EAN/UPC +add-on mandatory for 378/379 French Supplement requirement, not sent for other...
  • Page 50 Start Of Configuration UPC/EAN/JAN (continued) EAN/UPC +addon mandatory for 419/414 Euro amounts Supplement requirement, not sent for other EAN/UPC +addon mandatory for 414/419 Euro Supplement requirement, optionally for other EAN/UPC +addon mandatory 491 Japanese (bookland) Supplement requirement, optionally for other Disable all EAN/OPC + Add-on mandatory for specific country code EAN/UPC +add-on mandatory for...

  • Page 51: Addendum Seek Timeout

    Start Of Configuration Addendum Seek Timeout Note: A higher timeout value setting offer more assurance that an addendum has been read correctly while a lower setting allows faster scanning performance. Addendum seek timeout value=4 Addendum seek timeout value=5 Addendum seek timeout value=6 Addendum seek timeout value=7 Addendum seek timeout value=8 Addendum seek timeout value=9...

  • Page 52: Data Editing

    Start Of Configuration Data Editing Identifier Code Disable identifier code Enable identifier code table as ZEBEX standard Enable identifier code table as AIM standard. UPC-A identifier code setting EAN-13 identifier code setting EAN-8 identifier code setting CODE 39 identifier code setting CODABAR identifier code setting ITF 2 of 5 identifier code setting CODE 128 identifier code setting...

  • Page 53: Header And Trailer

    Start Of Configuration Header And Trailer Header (Preamble) Trailer (Postamble) Truncate header character Truncate trailer character End Of Configuration...

  • Page 54: Full Ascii Code 39 Table

    Start Of Configuration Full ASCII Code 39 Table Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---NUL Full ASCII ---SI Function key-----“Shift” Full ASCII ---SOH Full ASCII ---DLE Function key-----“Ins” Function key-----“5(num)” Full ASCII ---STX Full ASCII ---DC1 Function key-----“Del”...
  • Page 55 Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---RS Full ASCII ---- Function key-----“CTL(L)” Full ASCII ---US Full ASCII ---. Function key-----“ALT(L)” Full ASCII ---SP Full ASCII ---/ Full ASCII ---! Full ASCII ---0 Full ASCII ---“...
  • Page 56 Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---< Full ASCII ---K Full ASCII ---= Full ASCII ---L Full ASCII ---> Full ASCII ---M Full ASCII ---? Full ASCII ---N Full ASCII ---@ Full ASCII ---O...
  • Page 57 Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---Z Full ASCII ---i Full ASCII ---[ Full ASCII ---j Full ASCII ---\ Full ASCII ---k Full ASCII ---] Full ASCII ---l Full ASCII ---^ Full ASCII ---m...
  • Page 58 Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---x Full ASCII ---| Full ASCII ---y Full ASCII ---} Full ASCII ---z Full ASCII ---~ Full ASCII ---{ Full ASCII ---DEL End Of Configuration...
