xit404 TOKINA FISHEYE10-17mm 3.5-4.5:2.8 (CANON)MANTA FOCUS RING Assembly Instructions

TOKINA 10-17 LENS TOKINA 10-17 LENS
SLIDE FOCUS RING
ONTO LENS FROM
BACK UNTIL IT STOPS
HOOK THIS EDGE HOOK THIS EDGE
OVER THE SWITCH OVER THE SWITCH
AND ROTATE RING AND ROTATE RING
ONTO LENS ONTO LENS
FOCUS RING PROPERLY
LOCATED ON LENS
NOTE: NOTE:
ONCE SLIP RING
DOT AND SWITCH
IS OVER SWITCH
ARE NOT LINED UP
PUSH UNTIL IT
STOPS
Revsion 2.0 - APR2013
TOKINA FISHEYE10-17mm 3.5-4.5:2.8 (CANON)
MANTA FOCUS RING ASSEMBLY INSTRUCTIONS
GRAY/RED GRAY/RED GRAY/RED
FOCUS
RING
UNLOCKED
POSITION
SLIP RING SLIP RING
ROTATE SLIP RING UNTIL ROTATE SLIP RING UNTIL
DOT & SWITCH ARE LINED UP
Thank you for purchasing Xit 404's Tokina 10-17mm Focus Ring to use
with our Manta Gears. On the back is our warranty information to help you
prolong the life of this product.
RED LATCH
This product is in our Manta Line. The advantage of the Manta Line of
Rings and Gears is that the parts are interchangeable. For example the
Manta Gear fits on all Manta Focus/Zoom Rings as well as our
Manta Teleconverter Extension Rings. This allows you to purchase one
gear that mates with a variety of lenses.

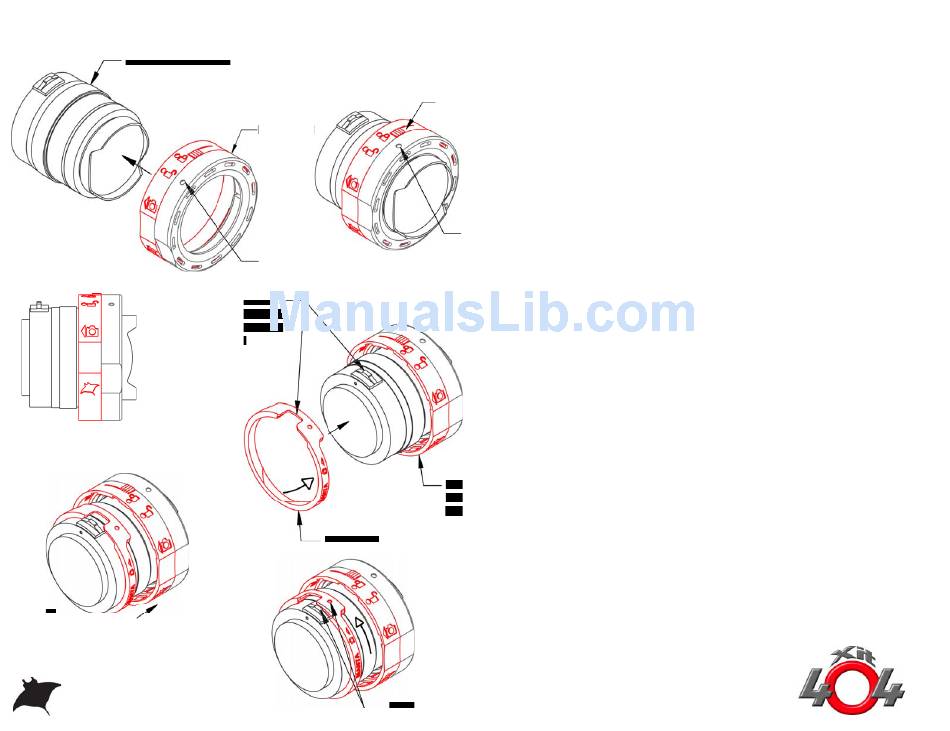

Assembling the Focus Ring to your Manta Gear

Look at the drawing to the left and note which end of the lens the Focus
Ring slides onto. Then follow the instructions below.
ROTATE
FOCUS
1. Make sure your Focus Ring is in the unlocked position. Slide the Focus
RING INTO
Ring onto your lens from the front. Push until it won't go any further.
LOCKED
2. Once on the lens, grasp the Focus Ring, then press and hold the red
POSITION
latch on the Focus Ring while twisting the gray and red rings in opposite
directions until the white dots line up. (Note: the locked icon). The Focus
Ring is now locked onto the lens.
3. Set your lens to 'manual' focus. Then orient the Slip Ring as you see in
the drawing to your left, the white dot and switch do not line up. Push the
Slip Ring on until it stops. Next twist the Slip Ring counter clockwise until
the white dot is in the center of the switch.
4. Slide the Manta Gear on from the back of the lens. Align the white
dot on the Manta Gear with the unpainted red dot on the Focus Ring.
Then press the two parts together. Once the the two parts are fully
mated, while holding the Focus Ring with one hand, and pressing
the red Manta Gear latch with thumb, twist the Gear until the white
dots line up (note: the locked icon). The Manta Gear is now locked
LENS WITH LENS WITH
onto the Focus Ring.
FOCUS RING FOCUS RING

Disassembling the Focus Ring

ATTACHED ATTACHED
1. Remove the Manta Gear by pressing and holding the latch on the
Manta Gear. Then twist it until the white dot on the Manta Gear is
lined up with unpainted red dot on the Focus Ring (note: the
unlocked icon).
2. Pull the Manta Gear off the lens.
3. Remove the Focus Ring by reversing the steps 1 and 2. above The
white dot and the unpainted red dot will not be lined up after step 2,
allowing you to slide the Focus Ring off your lens.
PRODUCT CODE: GM2201TK
www.xit404.com
