Summary of Contents for Maxent ML-3251HLT

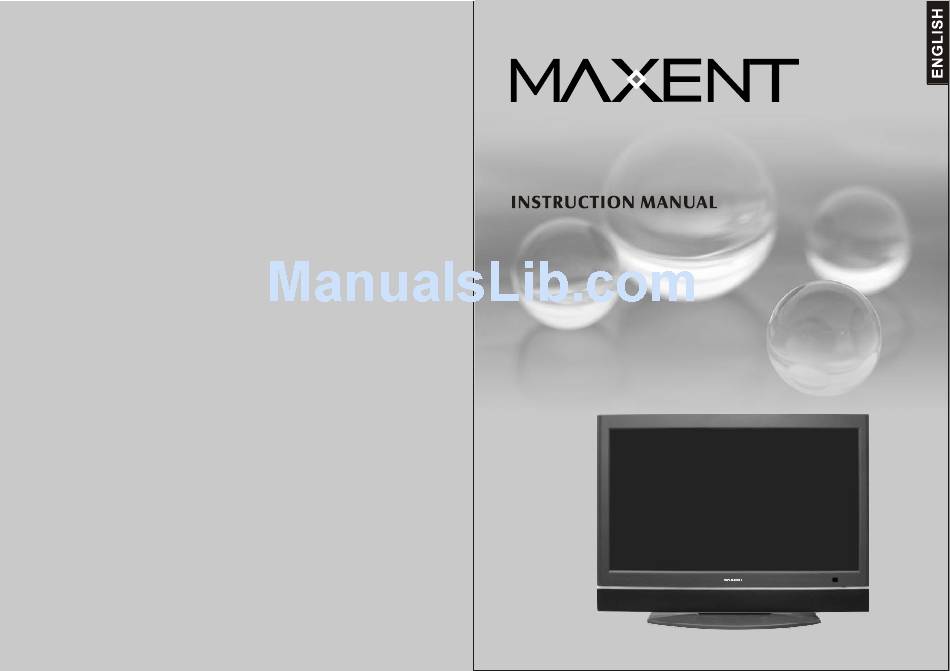

  • Page 1 ML-3251HLT...

  • Page 2: Important Information

    ML-3251HLT LCD TV OWNER' S MANUAL MPORTANT: Model No: ML-3251HLT The serial number of this product may be found on the back of the unit. You should record the number and other vital information here Serial No: and retain this manual as a permanent record to aid identification in case of theft.

  • Page 3: Important Safety Precautions

    IMPORTANT INFORMATION WARNING: FCC Regulations state that any unauthorized changes or modifications to this equip- ment not approved by the manufacturer could void the user's authority to operate this equipment. CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
  • Page 4 IMPORTANT SAFETY PRECAUTIONS (Continued) If an outside antenna is connected to the television Cleaning - Unplug the power equipment, be sure the antenna system is grounded so cord from the AC outlet be- as to provide some protection against voltage surges and fore cleaning the product.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions thoroughly. Keep these instructions for future reference. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heart.

  • Page 6: Table Of Contents

    SPECIFICATIONS ..........................26-28 INTRODUCTION Congratulations on purchasing the Maxent ML-3251HLT 32" LCD-TV with built-in DVD player. The ML- 3251HLT is an advanced home entertainment product that provides convenient viewing of DVDs and other media. It can also be used with VCRs, games consoles and can even function as a PC monitor.

  • Page 7: Supplied Accessories

    SUPPLIED ACCESSORIES Make sure the following accessories are included in the product packaging. 1. Remote Control x 1 2. “AAA” Size Battery x 2 Quick Start Guide WARRANTY 3. Instruction Manual x 1 4. Quick Start Guide x 1 5. Warranty Card x 1 User Manua Instruction Warranty...

  • Page 8: Lcd Control Overview

    PREPARATION (Continued) Antenna Connection NTSC & ATSC (DTV) input connection DTV (ATSC) and traditional NTSC broadcasts are distinctly different and requires two separate connections. There are two types of connectors: one for DTV (ATSC) and one for traditional TV (Analog NTSC). If you are currently subscribing to regular TV from your local cable TV provider or via an antenna, use the Analog (NTSC) connector to receive regular TV broadcasts.

  • Page 9: Connectors Overview

    HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-Digital/Video interface between this TV set and any HDMI-equipped AUDIO/VIDEO equipment.Such as a DVD player, A/V receiver and a set-top box. ML-3251HLT incorporates HDMI technology HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trade-...

  • Page 10: Remote Control Overview

    REMOTE CONTROL OVERVIEW Button Descriptions 8. MENU Press to display the menu screen. 9. SLEEP Press repeatedly to call up the Sleep Timer menu for setting the sleep timer. / / / / OK / FAV Press to move the cursor on screen to select an item and press the "OK/FAV "...
  • Page 11 REMOTE CONTROL OVERVIEW (Continued) Button Descriptions 29. A-B Repeats playback between A and B. Press once In disc play mode,hold repeatedly to skip back to insert A point and press again to insert point B. at 2x, 4x, 8x, 20x speed. To cancel the function, press this button again Press once quickly during playback to skip to 30.

  • Page 12: Connecting External Devices

    CONNECTING EXTERNAL DEVICES Connecting a DVD or Digital Set-Top Box Connecting a VCR You can use the S-Video terminal when connect- For best result , use this connection if your DVD ing a VCR and other audio visual equipment (if player or digital set-top box has component video there is an S-VIDEO output on the VCR.
  • Page 13 CONNECTING EXTERNAL DEVICES (Continued) Connecting a Personal Computer <Method 1> <Method 2> 1. Use a VGA cable to connect the jack to the VGA 1. Use a HDMI-DVI cable to connect the jack to jack on your PC. the DVI jack on your PC. 2.

  • Page 14: Selecting Menu Items

    SELECTING MENU ITEMS When Input Source is TV, AV This LCD TV set allows you to adjust the various settings using the menu screen. Select the desired menu item by following the steps and then refer to the indicated page for details. Press MENU to display the MENU screen .

  • Page 15: Basic Operation

    SELECTING MENU ITEMS (Continued) When Input Source is PC This LCD TV set allows you to adjust the various settings using the menu screen. Select the desired menu item by following the steps and then refer to the indicated page for details. Press MENU to display the MENU screen .

  • Page 16: First-Time Setup

    BASIC OPERATION (Continued) Changing the Volume on the remote control 1 Press VOL ( + ) to increase the volume. The bar indicator shifts to the right. 2 Press VOL ( - ) to decrease to volume. The bar indicator shifts to the left. To mute the sound 1 Press MUTE to temporarily turn off the sound.

  • Page 17: Disc Playback

    DISC PLAYBACK Inserting Media 1. Insert the disc, with the label facing the same direction as the front of the LCD display, into the disc slot. 2. Make sure the media type is set to disc. Playing Media To start playback press ..
  • Page 18 DISC PLAYBACK (Continued) Program Play You can play the contents of the disc in the order you want by programming the order of the tracks to be played. 1. While playback is stopped, press PROGRAM to enter program mode. 2. Use the number buttons (0~9) to input the track number in the order you want.
  • Page 19 DISC PLAYBACK (Continued) Angle Selection Some DVD discs contain scenes which have been shot simultaneously from a number of different angles. For these discs, the same scenes can viewed from each of the different angles. To Change Angles Press the ANGLE button to change the scenes from one angle to other angles. Picture Zooming This function allows you to enlarge the picture on the TV screen and enlarge the image.
  • Page 20 DISC PLAYBACK (Continued) SPDIF Out If your format of disc is Dolby Digital, select the PCM or SYSTEM RAW (Bitstream) output. SCREEN SAVER 1. PCM: Select when connecting to a 2-channel digital AUDIO LANGUAGE ENGLISH stereo amplifier. The unit’s digital audio output will SUBTITLE LANGUAGE ENGLISH MENU LANGUAGE...

  • Page 21: Adjustments

    ADJUSTMENT Adjusting Picture settings Directly adjust Picture setting using the remote control 1 Press the PICTURE button to display the Picture screen. PICTURE 2 Press to move the cursor to Picture menu, then press 3 Press to move the cursor to the desired item. 4 Press to change the setting.
  • Page 22 ADJUSTMENT (Continued) Sleep Timer Function You can set the Sleep Timer to automatically turn off the TV. Directly setting the Sleep Timer using the remote control 1 Press the SLEEP button to display the Timer TIMER screen. SLEEP SLEEP TIMER 2 Press button to set the sleep timer (in TIMER ZONE...
  • Page 23 ADJUSTMENT (Continued) Setting of V-Chip TV Ratings Content based D(Sexually RATING S (Sexual (Fantasy (Adult Suggestive (Violence) Situation) Violence) Language) Dialog) TV-Y (All children) TV-Y7 (Direct to Older Children) TV-G (General Audience) based TV-PG (Parental Guidance Suggested) TV-14 (Parents Strongly Cautioned) TV-MA (Mature Audience Only) * : The content rating can be set, but this rating is not normally broadcasted by TV stations.
  • Page 24 ADJUSTMENT (Continued) Adjusting CLOSED CAPTION Settings SETTING CLOSED CAPTION "Closed Caption" is a system which allows conversations, narration, and sound effects in TV programs and home videos to be viewed as captions on the TV screen. Not all programs and videos will offer closed captioning. Please look for the "CC" symbol to ensure that captions are available.
  • Page 25 ADJUSTMENT (Continued) Returning Settings Back to Factory Defaults To let you set TV system back to the factory default FACTORY RESET settings ALL TUNING DATA WILL BE ERASED 1. Press MENU to display the MENU screen . 2. Press the buttons to select the System, then press BACK...

  • Page 26: Troubleshooting

    TROUBLESHOOTING Remote Control Problem Possible Remedies Remote control does not operate The batteries could be weak. Replace the batteries. Check the orientation of the batteries. Make sure this unit’s power cord is connected securely to the wall outlet. Locate the unit at least 3-4 feet away from fluorescent lights.

  • Page 27: Specifications

    TROUBLESHOOTING (Continued) Audio Problem Possible Remedies Good picture, no sound Turn up the volume by pressing the VOL + button on the remote or on the side of the TV set Audio noise Move away the infrared transceiver from the TV until the noise is eliminated.
  • Page 28 SPECIFICATIONS (Continued) LCD TV Section ITEM DESCRIPTION REMARK Screen size 32” diagonal Aspect Ration 16:9 Contrast Ratio 1200:1 Brightness 500nits High Color Saturation NTSC 75% Resolution 1366 x R.G.B x 768 Pixel Pitch 0.173 (H) X 0.519 (V) mm Display Colors 16.7M Response Time gray to gray 6.5 ms...
  • Page 29 SPECIFICATIONS (Continues) PC Compatiblity Chart Supported Resolutions for RGB Mode This monitor supports the following resolutions Dot x Line Horizontal Freq.(KHZ) Vertical Freq.(HZ) 640 × 480 @ 60Hz 31.47 59.94 800 × 600 @ 60Hz 37.88 60.32 1024 × 768 @ 60Hz 48.36 60.00 1366 ×...
