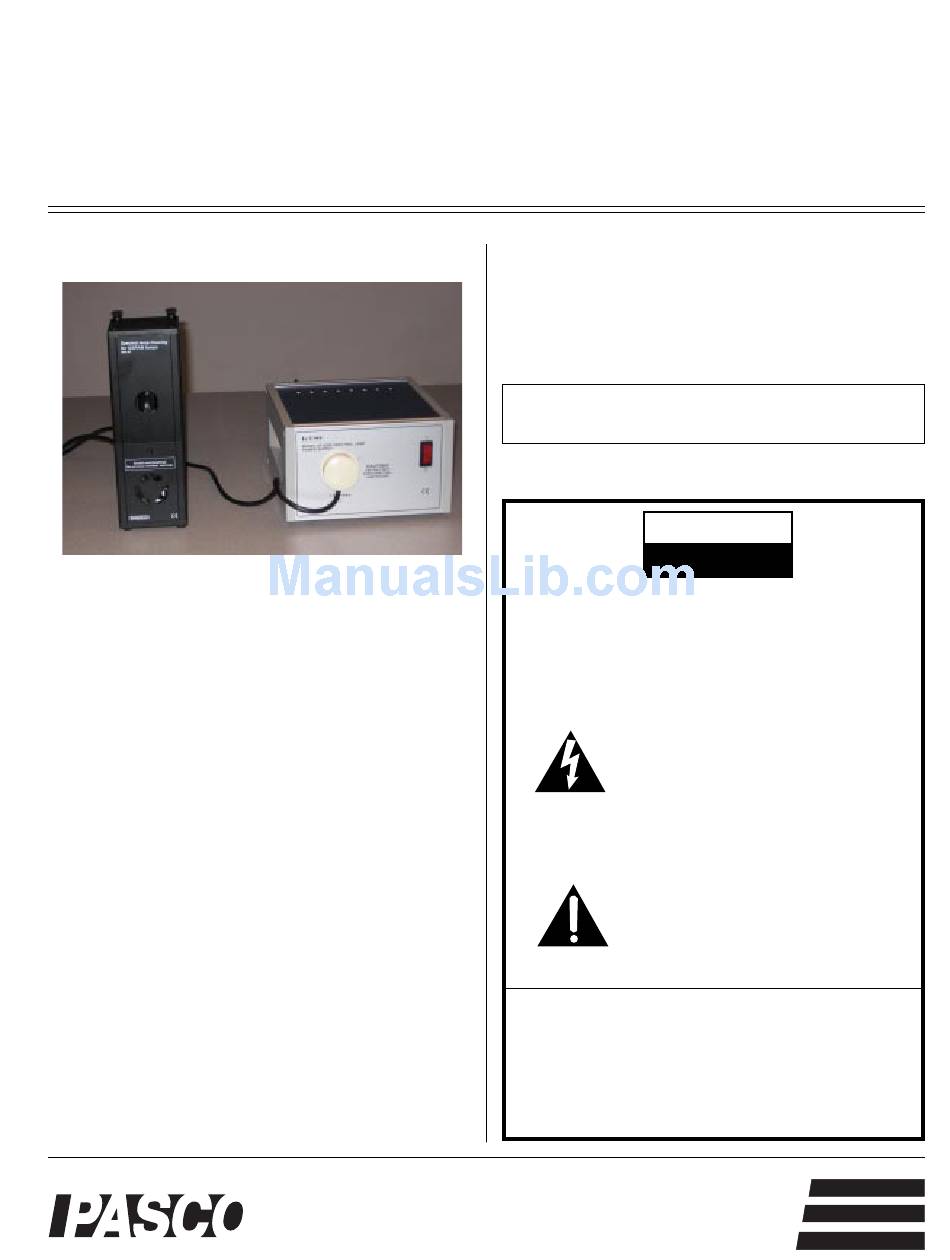

PASCO SF-9288 Instruction Sheet

Instruction Sheet
for the PASCO
Model SF-9288
Spectral Lamp Power Supply and Mount
Introduction:
Loosen
thumbscrew
to adjust
lamp height.
The PASCO Model SF-9288 Spectral Lamp Power Sup-
ply and Mount is designed for use with Osram 9 pin DIN
base, 21 mm diameter spectral lamps. The Mercury lamp
(SF-9282) is available from PASCO scientific.
Mercury Spectral Lamp
Sodium Spectral Lamp
Cadmium Spectral Lamp
Helium Spectral Lamp
Neon Spectral Lamp
Changing spectral lamps is easy, so a single power supply
can be used to power any one of the Osram lamps.
To use the Spectral Lamp Power Supply and Lamp:
➀ ➀ ➀ ➀ ➀ Insert a spectral lamp as shown on the back of this
page.
➁ ➁ ➁ ➁ ➁ Plug the round, three-pronged plug from the lamp
mount into the socket on the front of the power supply.
➂ ➂ ➂ ➂ ➂ Plug the power supply power cord into a grounded
107-128 VAC, 60 Hz or 206-242 VAC, 50 Hz outlet.
(See label on rear of unit).
➃ ➃ ➃ ➃ ➃ Flip the ON/OFF Switch on the front of the power
supply to ON.
Always unplug before
removing cover of lamp.
SF-9282
SF-9289
SF-9290
SF-9291
SF-9292
®
10101 Foothills Blvd. • Roseville, CA 95678-9011 USA
Phone (916) 786-3800 • FAX (916) 786-8905 • web: www.pasco.com
➄ ➄ ➄ ➄ ➄ Allow about five minutes warm up time.
If, at any time, the lamp fails to come on, check the fuse
on the rear panel of the power supply. If the fuse is
blown, replace only with a similarly rated fuse:
Fuse: 2 Amp
➤ ➤ ➤ ➤ ➤ NOTE: To insert or change the spectral lamp,
follow the procedure shown on the back of this page.
CAUTION
RISK OF ELECTRIC SHOCK
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER ON UNIT. NO USER SER-
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead, within
an equilateral triangle, is intended to alert
the user of the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.
The exclamation point within an equilat-
eral triangle is intended to alert the user
of the presence of important operating
and maintenance (servicing) instruc-
tions in the literature accompanying the
appliance.
Hg Lamp Contains Mercury
Manage in accordance with
disposal laws.
See https://www.lamprecycle.org/ or 1-866-666-6850
012-03048D
DO NOT OPEN
