Summary of Contents for Majestic TMOO7

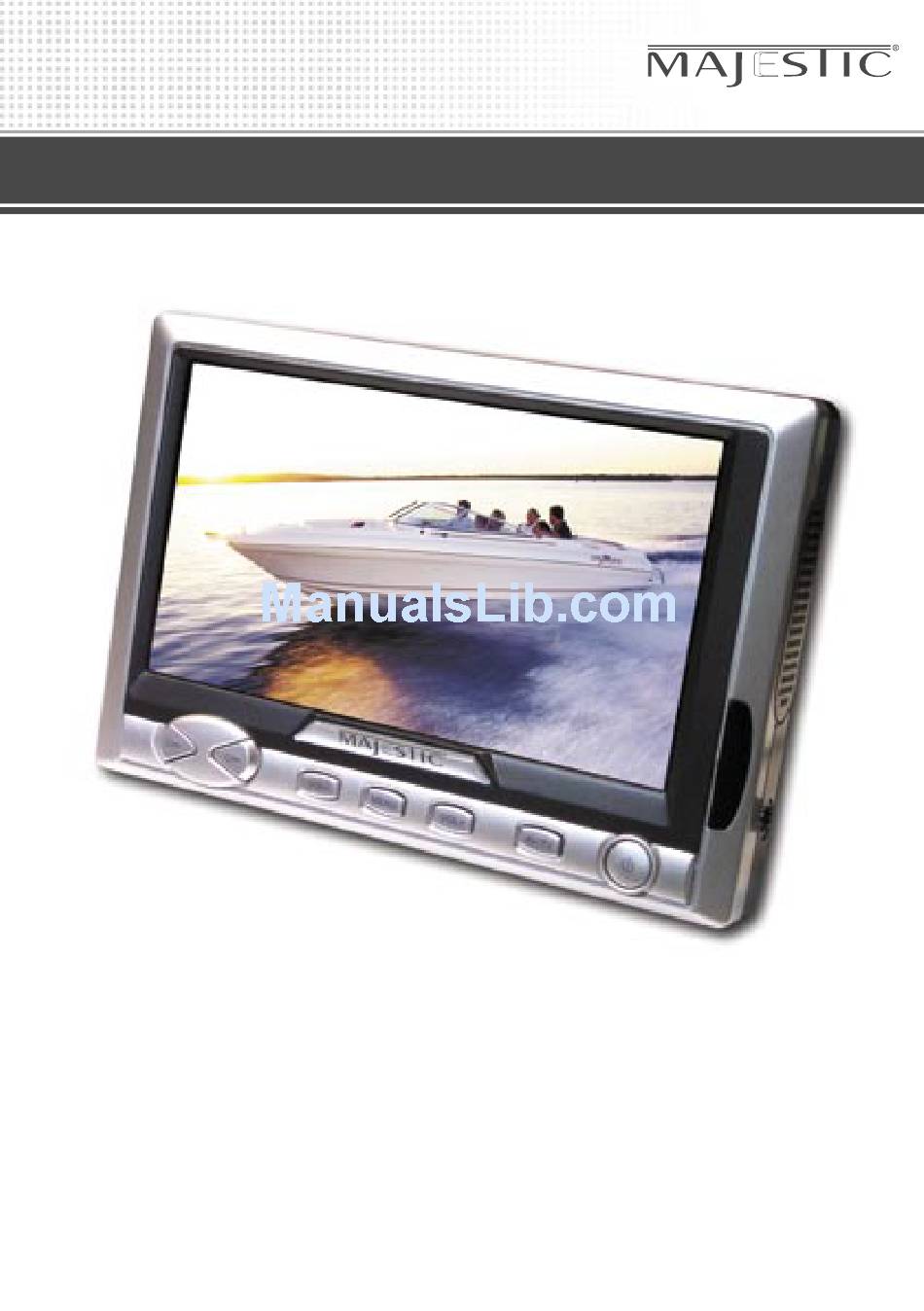

- Page 1 U S E R M A N U A L TMO O 7 7” Widescreen LCD Television www . m a je s t ic - g lob a l.c o m...
- Page 2 1. Never attempt your own maintenance, If something is not functioning correctly, please turn the TM007 off and contact your Local Authorised Majestic Dealer. The TM007 contains highly sensitive componentry that can easily be damaged or broken if you open the unit yourself.
- Page 3 TMOO7 - User Manual TMOO7 Parts Description - Main Unit Channel selecting buttons Volume adjusting buttons Menu button TV / AV selecting button Power button Remote sensor LCD panel External antenna socket Earphone socket (10) Audio 2 / Video 2 Input socket...
- Page 4 TMOO7 - User Manual TMOO7 Parts Description - Remote Control TV Sound System Select button Mute button Flash-back button - (Returns to previous channel) Sleep timer button Channel select button Channel digit selecting button TV/AV select button Picture mirror button...
-
Page 5: Power Supply
TMOO7 - User Manual POWER SUPPLY Car Battery (DC I 2V): The optional car adaptor allows the TV to be powered by a car battery through the vehicles’ cigarette lighter. Battery Pack (DC 12V): The optional battery pack allows the TV to be powered when no other available power source is present. -
Page 6: Menu Operation
TMOO7 - User Manual MENU OPERATION 1) Picture adjust menu function Press the button the following screen will appear: [MENU] PICT U RE BR IGH TNE SS CO L OU R CO NT RAS T S HARPNESS Press button to select each item. - Page 7 TMOO7 - User Manual 2) Adjusting the audio Press again to adjust the volume. [MENU] Hold on button to adjust the volume. [V+] [V-] The screen display: AUD I O VOL U ME Furthermore , you could press button to adjust the volume...
- Page 8 TMOO7 - User Manual LANGUAGE: Press button to select the language. Press [CH+] [CH-] [V+] [V-] button to change the language. Options available are English and Chinese. CALENDAR: Press button to select the calendar. Press [CH+] [CH-] [V+] [V-] button to adjust the month and date.
-
Page 9: Weak Signal
TMOO7 - User Manual C.SYS: Press to change the colour system. [V+] [V-] The colour system options are: AUTO, PAL, P3.58, N3.58, N4.43, SECAM, SECAM-L, PALM, PALN. The default original colour system is “AUTO” S.SYS: Press to change the TV sound system. - Page 10 TMOO7 - User Manual 5) Preset Function: Press the button five times continuously, you will access the [MENU] pre-set function menu. Press to choose the item which [CH+] [CH-] you want to access, then press to make your selection. The...
- Page 11 TMOO7 - User Manual 6) Clock Set Function Press the button six times continuously, you would find the [MENU] clock set function menu. Press to choose item which you [CH+] [CH-] request, then press to change the item. [V+] [V-] The default setting is “sleep”.
- Page 12 TMOO7 - User Manual NOTE: This setting will reset to the factory default when the TM007 is disconnected from a power source. ON TIME: Press to find the default setting for this item, then press [CH-] [V+] [V-] to make it to zero, press to increase the minutes (59 Mins Max).
- Page 13 TMOO7 - User Manual 7) AV Operation When you change TV system to AV system, Pre-set function and S.SYS, SWAP, COPY, WEAK SIGNAL, PRESET will not display on the screen. 8) Listening with earphones. Plug the earphones into the earphone socket. The Speakers will MUTE and the sound will be directed through the earphones.
-
Page 14: Troubleshooting
TMOO7 - User Manual E. TROUBLESHOOTING The following conditions do not necessary mean that the TV is broken. Please check the causes as indicated below requesting that the TV be serviced. Condition Cause No sound and Dead batteries or batteries inserted incorrectly,... -
Page 15: Specifications
TMOO7 - User Manual F. SPECIFICATIONS TFT LCD colour Television Type: 45.25MHZ 863.25MHZ Reception Frequencies: PAL / SECAM System: Colour TFT LCD Display Element: 7 inches Screen Size: 1440 x 234 Resolution: 500mW(Max) Audio Output: 20mm x 40mm square speaker (one) - Page 16 Majestic Global Unit 1 / 20 Export Drive MOLENDINAR QLD 4214 AUSTRALIA Ph: +61 500 840 011 Fax: +61 500 840 022 info@majestic-global.com www.majestic-global.com...
