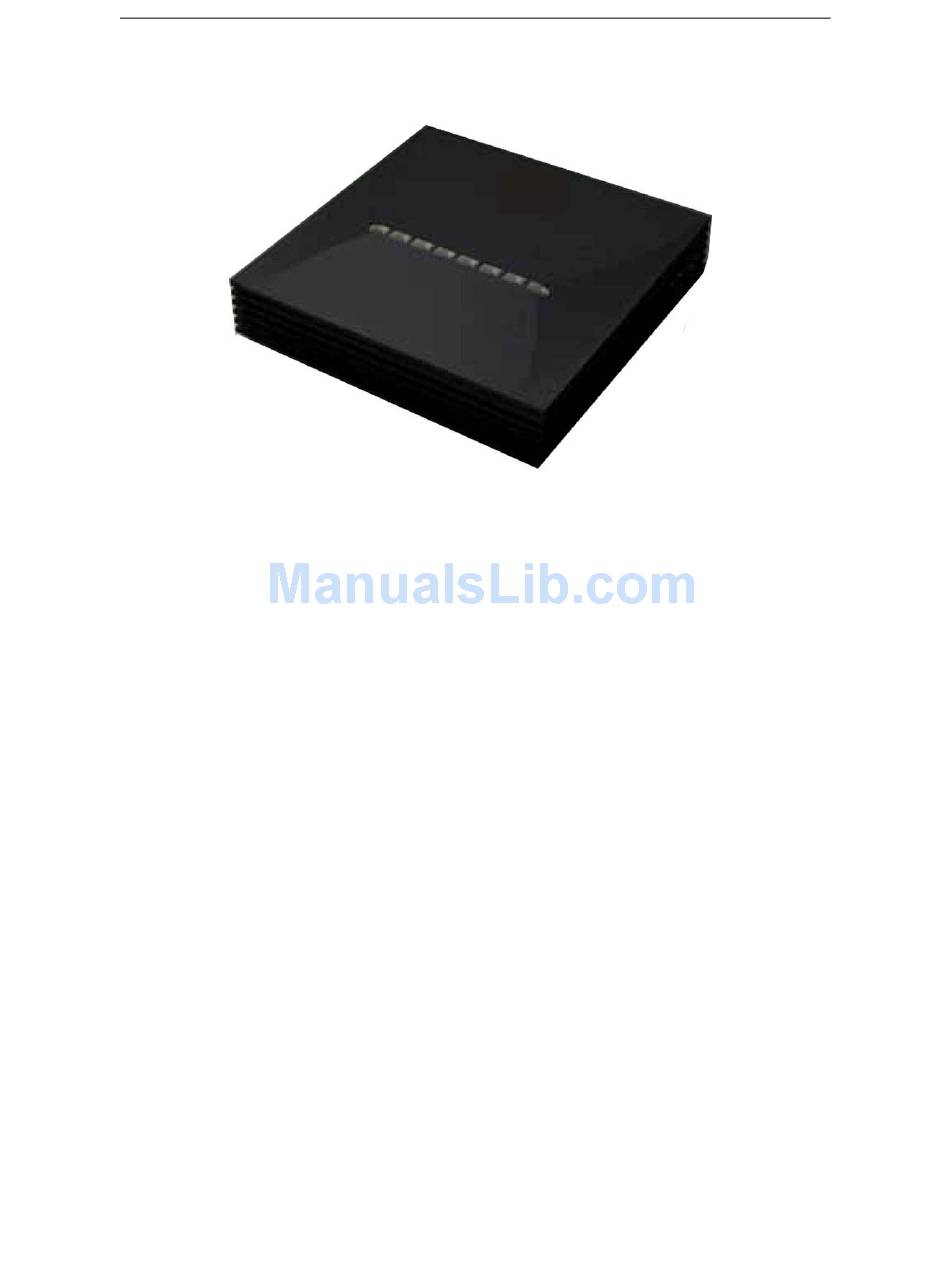

Page 1: User Manual
Netphonic Systems NG-48 User Manual User Manual NG-48 Series Gateway Version 1.02... -
Page 2: Table Of Contents
Netphonic Systems NG-48 User Manual Production NG-48 Series Gateway Version 1.02 Modified by Xiang Xingrong Description CONTENT 1 WELCOME............................3 2 INSTALLATION ..........................3 2.1 Package List ........................3 2.2 Safety Compliances......................4 3. PRODUCT OVERVIEW......................... 4 4 CONFIGURATION WITH WEB......................6 4.1 User verification........................7 4.2 Current state ........................7... -
Page 3: Welcome
4.9 System management……………………………………………………………………..34 4.9.1 Account management……………………………………………………………..34 1 Welcome NG-48 series of gateways are innovative gateway that offer a rich set of functionality and superb sound quality. They are fully compatible with SIP and H.323 industry standard and can interoperate with many other SIP or H.323 compliant devices and software on the market. -
Page 4: Safety Compliances
Netphonic Systems NG-48 User Manual 2.2 Safety Compliances The gateway should only be operated with the universal power adapter provided with the package. Damages to the gateway caused by using other unsupported power adapters would not be covered by the manufacturer’s warranty. -
Page 5: Hardware Specification
Netphonic Systems NG-48 User Manual Voice Codecs: G.711(A-law/U-law), G.723.1, G.729A/B, G.726 Redundancy SIP server (or Gate Keeper): Can auto swap address between two servers address. NAT penetration: Support STUN client, AVS and Citron etc. Can modify SIP register port, HTTP server port, Telnet server port and RTP port. -
Page 6: Configuration With Web
Netphonic Systems NG-48 User Manual Item Specification Power Adapter Input 110-220V AC Output 12V DC 1A Port 1 10/100Base T RJ-45 1 10/100Base T RJ-45 4 RJ11 for phone Power Consumption 4.8W/2.8W Operating Temperature 0～60℃ Relative Humidity 5～95% Volume 280mm*180mm*80mm... -
Page 7: User Verification
Netphonic Systems NG-48 User Manual 4.1 User verification Users should login before configuring dialogue machine. Guest account: the default username and password are both “guest”, user can have a browse of system. Administrator account: the default username and password are both “admin”, this user can configure the system. -
Page 8: Network Configuration
Netphonic Systems NG-48 User Manual including gaining way of WAN IP and IP( static state, DHCP, PPPoE), MAC address, WAN IP address of the gateway, LAN IP address of the gateway, opening state of LAN DHCP server. The VoIP section shows the current default signaling protocol in use, and server parameter in use of each protocol: including GateKeeper IP of H323, H323ID, whether enables register, whether has registered on GK;... - Page 9 Netphonic Systems NG-48 User Manual service, IP address will be gained dynamically. If the system selects PPPOE service in the network which is using the PPPOE service, then the IP address will be gained by the set PPPOE ISP internet and password of the account.
-
Page 10: Local Area Network (Lan)
Netphonic Systems NG-48 User Manual Static Parameter Configuration: IP Address Configure static IP address: Netmask Configure subnet mask; Gateway Configure IP address of the the gateway; DNS Domain Configure “dns domain” suffix; if user input “domain” and it can’t be resolved, the gateway will add and resolve the “domain”... -
Page 11: Voip Configuration
Netphonic Systems NG-48 User Manual Configuration explanation: Bridge Mode Use bridge mode（transparent mode: bridge mode will make the gateway no longer set IP address for LAN physical port, LAN and WAN will join in the same network. Configure LAN static IP. - Page 12 Netphonic Systems NG-48 User Manual Configuration explanation: H323[Unregistered] Show H323 register state; if register successfully, it Configuration will show Registered in the square bracket, otherwise show Unregistered. Default GK Addr Configure default GateKeeper IP address. Default GK Port Configure default GateKeeper port.
- Page 13 Netphonic Systems NG-48 User Manual number)as the call signaling passage of the called party. DTMF Mode Configure DTMF mode: RELAY mode, RFC2833 mode, H245-string mode and H245-signal mode. Permit Call if not Configure permission for no-registered call, allow registered to initiate call without net gate register.
-
Page 14: Sip Configuration
Netphonic Systems NG-48 User Manual Alter GK ID Configure ID for GateKeeper backup. Detect GateKeeper detection interval time configuration, the Interval unit is second. GK Auto Swap Enable the gateway’s auto-swap to GK. Auto Detect GK Configure the gateway to detect GK automatically. - Page 15 Netphonic Systems NG-48 User Manual Port Register Configure SIP register account（usually it is the same Username with the port number that configured, some special SIP servers will have different port configurations, then the port configuration needs to be configured to be numbers, here the configuration account can be arbitrary character string）.
- Page 16 Netphonic Systems NG-48 User Manual Detect Interval Configure detection interval time of the server, if the Time gateway enables SIP detection server function, the gateway will detect once for whether the server has response every other detection interval time. Domain Realm Configure SIP domain, which is provided by SIP Server.
- Page 17 Netphonic Systems NG-48 User Manual configuration has been disabled, the gateway can still be registered to the server, but can’t make SIP call; configuration of registered call by the gateway will not have impacts on SIP point-to-point call; SIP(Default Configure SIP of the gateway as default protocol;...
-
Page 18: Advance Configuration
Netphonic Systems NG-48 User Manual 4.5 Advance configuration 4.5.1 Net Service configuration User can set up Telnet, HTTP, RTP port on this page and view DHCP table. - Page 19 Netphonic Systems NG-48 User Manual Configuration explanation: HTTP Port Configure web browse port, the default is 80 port, if you want to enhance system safety, you’d better change it into non-80 standard port. Telnet Port Configure telnet port, the default is 23 port.
-
Page 20: Sip Advanced Configuratio
Netphonic Systems NG-48 User Manual ports. 3) Set the HTTP port as 0, then the http service will be disabled. 4.4.2 SIP advanced configuration Set SIP STUN, private and backup server, user password and so on. SIP STUN is a kind of server that used to realize the SIP’s enablement of... - Page 21 Netphonic Systems NG-48 User Manual Configuration explanation: 1) Configure of private server: Public To show the gateway whether has been registered on [unregistered] public server or private server; Private [Unregistered] STUN Server Configure IP address of SIP STUN server; Addr...
- Page 22 Netphonic Systems NG-48 User Manual STUN can support SIP terminal’s penetration to NAT in the inner-net. In this way, as long as there is conventional SIP proxy and a STUN server placed in the public net, it will do; but STUN only supports three NAT modes: FULL CONE, restricted, port restricted.
-
Page 23: Value-Added Service Configuration
Netphonic Systems NG-48 User Manual Agent is common. Enable SIP Stun Configure enable/disable SIP STUN; Enable Private Configure permit/deny private server register; Server Register Enable Private Configure enable/disable private outbound proxy. Outbound Proxy 4.4.3 Value-added service configuration On this page, user can set value-added services such as hot-line, call forwarding, call transfer (CT), call-waiting service, three way call, blacklist, out-limit list and so on. - Page 24 Netphonic Systems NG-48 User Manual Configuration explanation: Phone Line Choose the phone port Hotline Configure hot-line number of the port. With this number of the port, this hot-line number will be dialed automatically as soon as off-hook and user can’t dial any other number.
- Page 25 Netphonic Systems NG-48 User Manual recover the talk with the second part, then the three way call concurrently. After the aforesaid configuration has been done, click “apply” to make them go into effect. Black List Configure add/delete blacklist. If user doesn’t want...
- Page 26 Netphonic Systems NG-48 User Manual Phone Line Configure according to different ports Coding Rule Configure DSP Speech coding, choose the method to process. G729 Payload Configure G729 Payload Length according to the Length requirement. Fax TCF Mode Configure Fax Training Check Frame mode...
-
Page 27: Number Binding Configuration
Netphonic Systems NG-48 User Manual 4.6 Number binding configuration Number IP table configuration: Function of number IP table is one way to implement the gateway’s calling online, and the calling of the gateway will be more flexible by configuring the number IP table. For example, user know the other party’s number and IP and want to make direct call to the party by... - Page 28 Netphonic Systems NG-48 User Manual Phone Number It is to add outgoing call number, there are two kinds of outgoing call number setup: One is exactitude matching, after this configuration has been done, when the number is totally the same with the user’s calling number, the gateway will make the call with this number’s IP address image or configuration;...
- Page 29 Netphonic Systems NG-48 User Manual alias can be divided into four types, it should be combined with replacing length to make the setup: Add: xxx, add xxx before number. in this way it can help user save the dialing length;...
- Page 30 Netphonic Systems NG-48 User Manual optional configuration item. 3) Click “Delete”: Delete selective number IP image; 4) Click “Modify”: Choose a corresponding phone number image in the drop-down menu and then click “modify” to make modification. Then the page changes to the following chart. After modification, click “Submit” to go into effect.
-
Page 31: Save And Clear Configuration
Netphonic Systems NG-48 User Manual under the default condition, user can only make calls by the default protocol. Configure the number IP table to select the call protocol, then user don’t need to select default protocol before making calls every time. -
Page 32: Upgrade On-Line
Netphonic Systems NG-48 User Manual 4.8 Upgrade on-line 4.8.1 Upload WEB page On this page, user can select the upgrade documents (firmware or config file) on hard disk of the computer directly to run the system upgrade. After the upgrade has been completed, restart the gateway and it will be usable at once. - Page 33 Netphonic Systems NG-48 User Manual Configuration explanation: Server Configure upload or download FTP/ TFTP server IP address; Username Configure username of the upload or download FTP server. If user select TFTP mode, username and password are not required to be configured;...
-
Page 34: 3Configuration Files Web Download
Netphonic Systems NG-48 User Manual noted that system file take .dlf as suffix, configuration files take .cfg as suffix; Type Configure the operation type. There are 3 types: “application update”: update the system through ftp or tftp; “config file export”: Upload the gateway configuration file to the remote server through ftp or tftp protocols;... - Page 35 Netphonic Systems NG-48 User Manual Configuration explanation: 1) The table in the page displays the gateway user account list; 2) Click “Add” to add gateway account; it will be shown at lower part of page as the following figure, of which: As account level;...
- Page 36 Netphonic Systems NG-48 User Manual menu. 4) Click “Modify” to modify the chosen account, need to select account first, click load again and then click modify, it will be shown at lower part of page as the following figure, of which: User name The modified username;...
