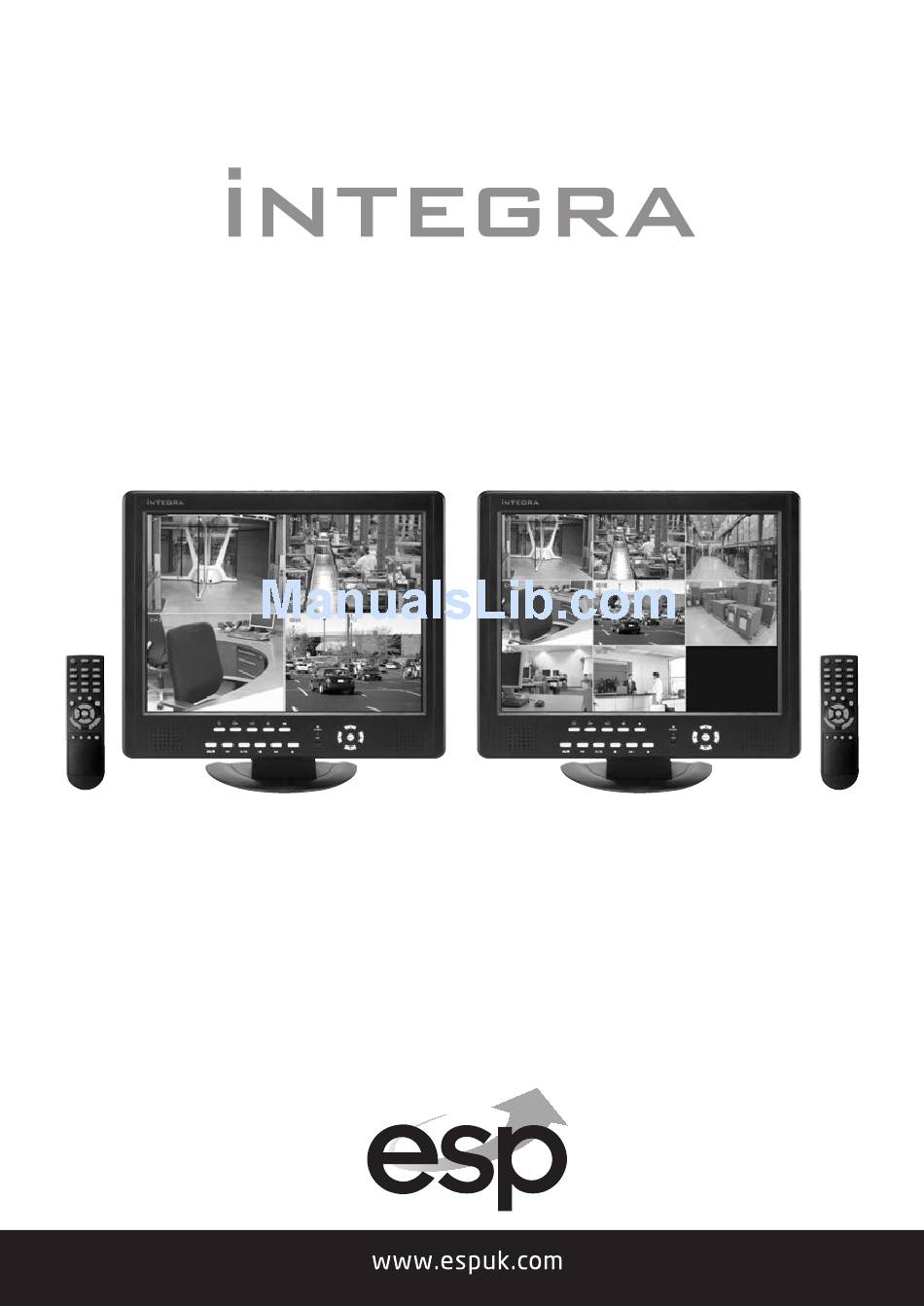

- Page 1 C C T V M o n i t o r w i t h i n t e g r a t e d D V R USE R MAN UAL FOR I NTE GRA 4 / I NTEGRA 8...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK, PLease DO NOT REMOVE COVER WHEN POWER CONNECTED. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a Class “A”...
-
Page 3: Table Of Contents
Please get acquainted with the parts and accessories as well as the ways to use the appliance as described in this instruction manuals. If you have any questions that cannot be answered by either the quick start or full user guide, please contact your distributor or ESP directly. Technical support +44 (0) 1527 515150... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Read these instructions and keep them in a safe place for future reference. • Please refer all work related to the installation of this product to qualified service personnel or system installers. • Do not operate the appliance beyond its specified temperature, humidity or power source ratings. -
Page 5: Controls
Controls LCD MONITOR CONTROLS Function Description POWER Independent power switch for the monitor. Press the button for over 3 seconds to turn off. DVR power not effected MENU/ENTER Press the button to enter monitor menu settings RIGHT/+ Move the prompt of the parameters on the screen or increase value. LEFT/- Move the prompt of the parameters on the screen or reduce value. - Page 6 REMOTE CONTROL In device operation, the enter key on the remote control or the front panel has the same function as a mouse left click. The IR Range of the remote control is up to 10 meters. The buttons on the remote control correspond 1-1 with the buttons on the front panel. 1 REC Start or Stop manual recording.
- Page 7 BACK PANEL 1/2 Video Input/output Connectors 4 channel video input BNC (1Vp-p, 75Ω) plus single video output for integra 4, 8 channel video input BNC (1Vp-p, 75Ω) plus single video output for integra 8. All inputs/outputs via supplied multi channel converter Audio Input / Output Connectors 4 channel audio input / 1 channel output, RCA (2Vp-p, 600Ω) for integra 4,...
- Page 8 Language Add User INTEGRA MENU TREE Video System Change Password Time Delete User User Local Permission System Remote Permission Volume Record Channel Maintenance Record Information Record Bitrate Record Record Resolution Video Channel Record Framerate Name Record Audio Position Record Packtime Live Record Mode Video...
-
Page 9: Getting Started And The Main Screen
From the main screen you can access menu options and switch among channel views, displaying either all channel feeds simultaneously or a full-screen view of a selected channel. Integra 4 integra 8 DISPLAYING A SINGLE CHANNEL In the multiple screen view, you can make a particular window active by left-clicking on it once with a mouse, or navigating to it using directional buttons. - Page 10 STATUS BAR To display the Status Bar single right-click on the screen. The status bar displays useful information such as time and date settings plus available hard disk space. System time Approximate Remaining Hours of HDD recording Right click again to move on to the main menu bar or right click twice to return to main live view. LOGIN SCREEN ( WHEN PASSWORD ACCESS IS ENABLED ) In live view, press the button “...
-
Page 11: System Settings
System configuration Search, playback and backup of recorded files MANUAL REC/STOP MANUAL REC: Click the [MANUAL REC] button to start manual recording. Click [STOP MANUAL REC] menu or press [n] button to stop manual recording. KEYLOCK: If the password is enabled, click “KEYLCK” to logout the system. PTZ: Enters PTZ control. -
Page 12: Recording
Recording There are three ways of recording live video .Manual recording, scheduled recording and motion recording. Manual recording Simply select manual record from the main menu bar ? or the remote control or front panel. If the recording schedule is in conflict with manual recording, the manual recording will be processed first until stopped. -
Page 13: Playback
Playback To play back recordings select play from the main menu or press the play button on the front panel or remote control to access the record search playback screen. There are various methods of searching for recordings. Playback by specific date Input the time and date of the desired viewing period checking date and time, and click the “play”... -
Page 14: Video Backup
PLAYBACK CONTROL In the playback mode you can see the playback control panel as well as the date and time of the played file. Fast rewind, the available speeds are 2x, 4x, 8x, 16x, 32x and 64x. Slow forward, the available speeds are 1/2x, 1/4x and 1/8x. Play Pause/Frame-by-frame view Fast forward, the available speeds are 2x, 4x, 8x, 16x, 32x and 64x. - Page 15 PLAYING BACKED UP VIDEO ON A PC To play back stored recorded files from a USB stick to a PC you will need to firstly install the HSplayer program from the enclosed CD. Place the CD in your PCs CD drive. Within the drive directory locate the folder marked “Player”.
-
Page 16: Remote Viewing
Remote viewing Remote viewing and control of integra is possible via local network , remote PC or most 3G mobile phones .Before attempting any remote connections the integra must first be set up on a local connection to the internet. NETWORK SETUP Select network from the system setting menu and then select network again from the sub menu. - Page 17 DDNS SETUP From the main network menu select DDNS Select DDNS on Select the DDNS server from three options 3322 DYNDNS Perfecteyes HOST NAME: Input the name of the host server. USER NAME: Input the name of the user. PASSWORD: Input the password.
-
Page 18: Web Browser Operation
Web Browser Operation FEATURE Install the software through the IE browser of OS to operate the network remotely and conveniently. DVR supports C/S, B/S, and access in LAN and WAN. It also supports IP and domain name visiting. RESTRICTION CONDITION To ensure a stable connection we recommend Windows XP or Windows Vista operation system, and IE 6.0 or IE 7.0 browsers. - Page 19 CONNECTION SETTING The remote access for integra should be carried out through the network. In the local area network connection, the IP address of the client computer must be in the same network section with that of the integra. When using a wide area network connection, ensure that both client and host can visit the public network, and connect through the IP address or the dynamic domain name.
- Page 20 CONTROL DOWNLOAD AND INSTALLATION After finishing the aforementioned settings, open the IE browser, input http the setting IP address of the integra and confirm. If the http port of DVR setting has been changed (not 80), you must add a colon and port number . “If your browser does not support the ActiveX to download, please click here”, the network will download and install the control automatically.
- Page 21 LIVE Click [Live] to enter into the interface as follows. CONTROL Move cursor to the icons, which will become highlighted when selected. Connect all windows or disconnect all windows. Capture a single image .Default save path is “c:\DVR\BACKUP\”. Quick start recording all channels. REPLAY Click “REPLAY”...
- Page 22 The highlighted date indicates that video was recorded on that day. Click on a date to search the recording file list of that day. For example, the above fig shows that June, 12th, 13th have recorded video when it shows on bold, and current search date is June 12th. Select channel and type at the bottom of the calendar.
- Page 23 Encode Setting Click [Encode Setting] – [Video Para] to enter into setup interface. User can adjust recording parameters (resolution, quality and frame rate) for each channel remotely via net-viewer. Record Setting Click [Record Setting] to enter into the menu interface, user can select “on/off” for each channel, and adjust recording parameters (audio, pack time, REC mode and REC schedule) remotely via net-...
- Page 24 Network Setting Click [Network Setting] - [Network] to enter setup interface. The menu allows user to set a lower bandwidth for Internet video transmission. Click [Network Setting] - [Mobile] to enter setup interface. Click [Network Setting] - [Email] to enter setup interface.
- Page 25 System Setting Click [Advanced Setting] - [System Setting] to enter setup interface. The menu allows user to set daylight saving time. System INFO Click [System INFO] - [Version INFO] to enter setup interface. Here user can check the device’s ID and software version.
- Page 26 Click [User Manager] - [MODIFY PASSWORD OR PRI] to enter setup interface. This interface could only be seen by administrator when password is available. Administrator can change password, local authority and remote authority. LOCAL SETTING Click [Local Setting] to enter setup interface.
-
Page 27: Mobile Phone Support
Mobile Phone Support A state-of-the-art feature of this DVR device is transmitting live feed from the CCTV cameras to your mobile phone, so that you can have ‘on the go’ access to your surveillance system from virtually anywhere in the world. Currently, there are a limited number of phones that can support this feature: Windows CE Mobile, Symbian S60 3rd Edition OS, Apple IPhone, Andriod and Blackberry. -
Page 28: Technical Specification
Technical specification INTEGRA 4 Video Format Video Format H.264 Baseline Compression Video Input BNC 4 Input / 1 Output Audio Format G.726 8Kx16bit ADPCM Mono Audio Input RCA 4 Input / 1 Output Alarm Type Motion detection, Sensor Input, Relay Output,... - Page 29 Technical specification INTEGRA 8 Video Format Video Format H.264 Baseline Compression Video Input BNC 8 Input / 1 Output Audio Format G.726 8Kx16bit ADPCM Mono Audio Input RCA 8 Input / 1 Output Alarm Type Motion detection, Sensor Input, Relay Output, Video Loss Sensor In/Out 4CH Input / 1CH Output...
-
Page 30: Limitation Of Liability
LIMITATION OF LIABILITY This users’ manual is supplied ‘as is’, with no warranties, be it expressed or implied, including, but not limited to, the implied warranties of merchantability, suitability for any exact purpose, or non-infringement of any third party’s rights. This publication may include technical inaccuracies or typos. - Page 32 Elite Security Products Unit 7, Target Park, Shawbank Rd Telephone: 01527 515150 Lakeside, Redditch B98 8YN email: info@espuk.com...
