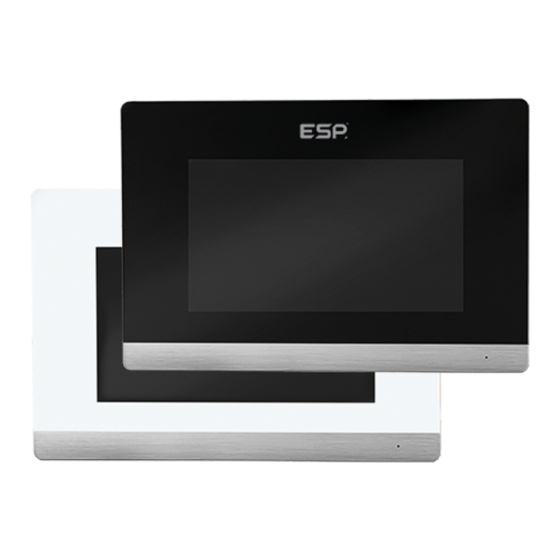

- Page 1 A1IPMW & A1IPMB Full Manual Aperta IP PoE Monitor with App...
-
Page 2: Table Of Contents
Contents System Installation Diagram Apartment Wiring Diagram Villa Wiring Diagram Indoor Monitor Diagram Monitor Operations Main GUI Recording Center 2.2.1 Photo Record 2.2.2 Call Record 2.2.3 Message Record 2.2.4 Motion Detection Record Monitoring Center Video Intercom 2.4.1 Call Room (Apartment Only) 2.4.2 Intercom Call (Between Monitor Extensions) 2.4.3... -
Page 3: System Installation Diagram
System Installation Diagram 2.1 Apartment Wiring Diagram 2.2 Villa Wiring Diagram Multiple Devices Point to Point 2.3 Indoor Monitor Diagram Alternative power connections Connect to a normally open switch to trigger BELL the monitor’s doorbell facility Monitor Lock Connections RS485 Connect to a door chime IP/PoE connection... -
Page 4: Monitor Operations
Monitor Operations 3.1 Main GUI Apartment System Main GUI There are Menu Tiles, Shortcut Tiles & Status Indicators Menu Tiles Including: Recording Center, Monitoring Center, Video Intercom, User Settings, System Settings Shortcut Icons: Shortcut Icon Shortcut Name Function Toggle button for turning the button ring tone and/or call Ringtone On/Off ringtone On/Off Door 1 Monitoring... -
Page 5: Recording Center
3.2 Recording Center 3.2.1 Photo Record Store calls & motion detection events with snaphot images. Click View to review the saved images. 3.2.2 Call Record The monitor(s) will save call records by type; Missed call(s), Dialled call(s), Answered Call(s), and the record details; Date, Time & Read staus(es). Choose the corresponding file, and click on “View”... -
Page 6: Motion Detection Record
3.2.4 Motion Detection Record Motion Detection Records inlcude the Entension Monitor Info, Time & Status. Once a record has been selected, click “View” to review the records details. 3.3 Monitoring Center Available to monitor all Outdoor Stations, Villa Outdoor Stations & IP Cameras. The monitoring time is limited to 1 Minute. 3.4 Video Intercom 3.4.1 Call Room (Apartment Only) -
Page 7: Intercom Call (Between Monitor Extensions)
Once the indoor monitor has once again fully rebooted, go onto your mobile phones Settings > Wi-Fi, and connect to the hotspot discussed in point 1. Open the ClickSmart+ app, go to add a new device, click on ESP, and finally click on “Smart Aperta IP Monitor” to start the adding sequence. - Page 8 Firstly enter in the network SSID & Password for the network you want the Monitor to be connected to, and click next. Next ensure that point 1 has been followed before clicking next Finally connect your mobile phone to the before discussed hotspot network, by pressing “Go To Connect”, once you return to the ClickSmart+ app it will add the device.
- Page 9 App Introduction Hang Up/Back: Exit the interface when pressed whilst talking and/or monitoring Speaker: When ON you can hear the audio coming from the Outdoor Station, and no audio when OFF. Picture Snapshot: Can snapshot images whilst talking and/or monitoring. Microphone: When ON you can hear the audio coming from the phone on the Outdoor Station, and no audio when OFF.
-
Page 10: Telephone Book (Only For Apartment System)
3.4.4 Telephone Book (only for apartment system) You can add the other Apartments as contacts, and call them. Fill in the Contact name, building, room number when adding. You can then connect an intercom call aftewards. Note: The contacts that are added here need to be on the same LAN, and the monitors need to be configured to their Room ID firstly. 3.5 User Settings Click to enter the User Settings Page. -
Page 11: Ringtone Setting
3.5.2 RIngtone Setting The monitors calling ringtone can be changed using this menu. You can set custom ringtones by saving the desired MP3 in the “ring” folder on the MicroSD Card. You can preview the selected ringtone, by clicking on listen when the ring tone is selected. 3.5.3 Time &... -
Page 12: Volume Setting
3.5.5 Volume Setting Use the below buttons to adjust the volume of “Ringtone / Touch Key or Talk”, and there would be a preview of the sound of the adjusted volume setting, and you need only press “OK” to set the volume. Increase the volume (+) Decrease the volume (-) Note: Default volume is 6, and the range is 0 - 15. -
Page 13: Wallpaper
3.5.8 Wallpaper User can change the wallpaper, all a user needs to is select the wallpaper file, and click “set as wallpaper”. Custom wallpapers can be set, all they need do is save a 1024 * 600 as a .JPG into the “Wallpaper” folder on the MicroSD Card. 3.5.9 Screen Saver Setting The system has the capability for a screensaver. -
Page 14: Delay Setting
3.5.10 Delay Setting There are 4 delay settings, which are as follows; Ring: This is the ringing time when the monitor is called. Can be set between 5 - 90 seconds, the default is 30 seconds Call: This is the time that when the monitor is called, specifically the time from the end of the monitor ringing being called until hung up. Can be set from 0 - 60 seconds, the default is 30 seconds. -
Page 15: Monitor Extension Setting - "Extension
3.6.1 Monitor Extension Setting - “Extension” Note: Dont set the monitor extension before setting the “Door” successfully. Apartment System (build mode) After completing the A1IPDSM1’s Setup, click on “Extension”, and set the number for this monitor. The extension must be Building, Room, Extension. The Building must match the Outdoor Station for that building. Ex. -
Page 16: Outdoor Station Setting - "Door
3.6.2 Outdoor Station Setting - “Door” If any of the Villa Outdoor Station(s) and/or monitor(s) are in a default state then, you can set the parameters using this menu. Note: All parameters will be restored to default if a factory reset is executed. Reset Monitor: All parameters will be reset back to default after reset;... -
Page 17: System Reset
3.6.4 System Reset Click “System Reset” to restore the monitor back to factory settings, the monitor will display a final dialogue to ensure you are sure that you want to default the monitor back to default settings. This will restore both parameters and records that are stored on the monitor. 3.6.5 IP Camera Setting Supports H/264 IP Camera Protocol;... -
Page 18: Software Upgrade
3.6.7 Software Upgrade Caution: Don’t shut off the power during any software upgrades or it mat cause the monitor to cease working. Copy relevant upgrade files “image.dd” & “NetCfg.dat” onto the MicroSD Card. Shutdown the monitor and install the MicroSD Card, and then enter the “Upgrade” menu. Select “NetCfg”... -
Page 19: Technical Parameters
Technical Parameters • Display: 7” (TFT LCD) • Resolution: 1024 * 600 • Power: DC15V, DC 48V (PoE, 802.3af/at) • Current <600mA (DC15V) • Operating Temperature: -10°C to +50°C • Dimensions: 151mm x 226mm x 20.5mm • Mounting: Surface For more information, please see the datasheets published on www.espuk.com Installing the Indoor monitor •...
