Summary of Contents for Contour Camera

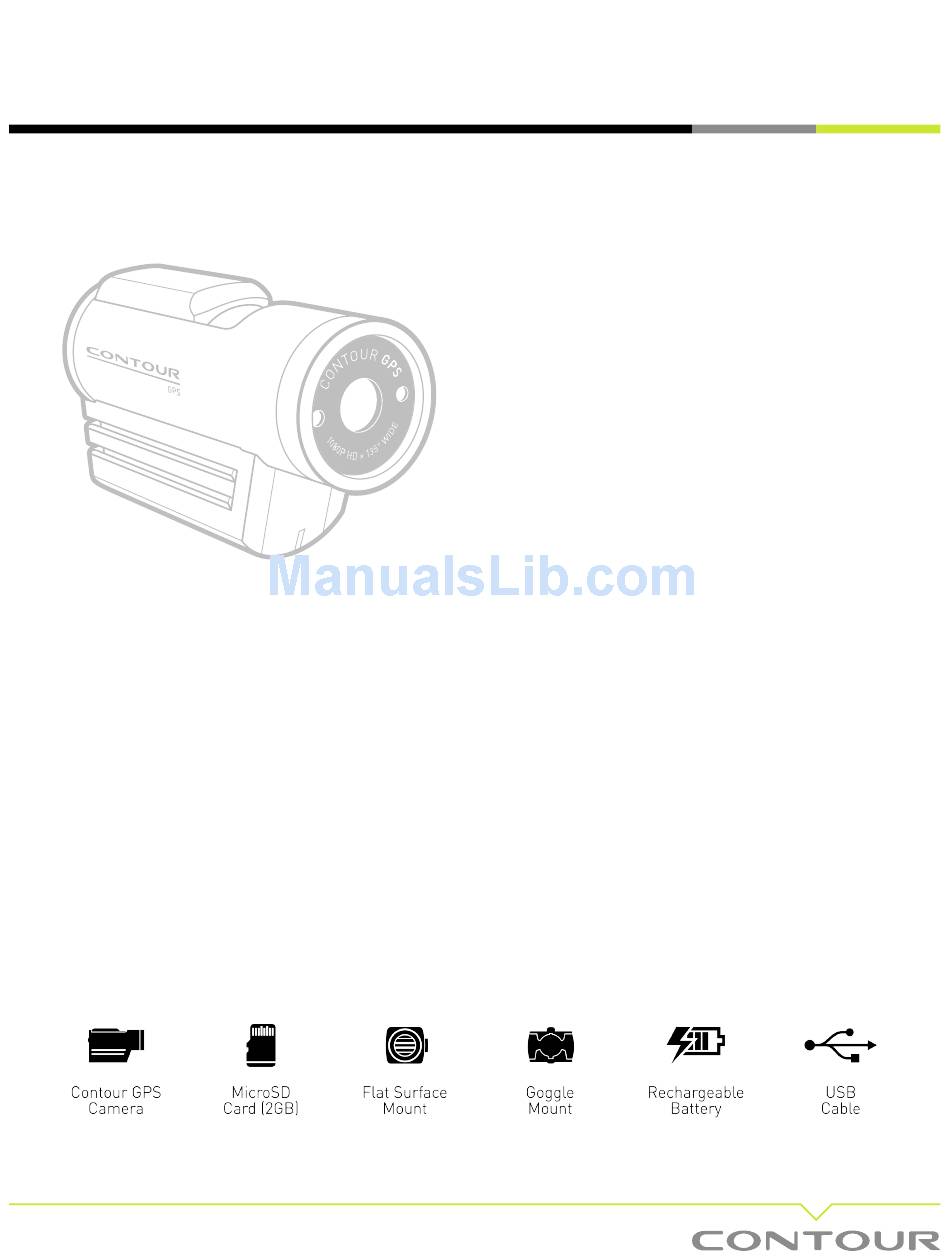

- Page 1 CONTOURGPS QUICKSTART GUIDE Getting to know your Camera What’s In The Box? The ContourGPS camera comes with: Camera 2GB microSD Card 2 Rotating Surface Mount 1 Goggle Mount 1 Li-ion Battery 1 USB Cable 1 Lens Cap...
-
Page 2: About The Camera
About The Camera A Record/GPS Status B Record Switch C Rotating Lens D Battery Slot E Battery Latch F Card Format Button G USB port H Format Switch I microSD card slot J Memory Status K Door Lock L Battery Status... -
Page 3: Set Up The Camera
Getting your camera ready to record takes just a few simple steps. 1) Open the back door of the camera by sliding the lock switch to the left and then sliding the whole door up. When the white dot is exposed on the lock switch [K], the door is locked. - Page 4 2. Power up the camera with the microSD card removed. The camera will TRIPLE beep and the SD card LED on the lower rear of the camera will flash red. The front record LED will flash red/yellow. This indicates that the SD card is missing.
- Page 5 2. Camera mount position. The antenna of the camera is located in the record slider. If the camera is mounted on its side, the antenna will have a limited view of the horizon. For best results, mount the camera upright with the GPS antenna level and facing upwards.
- Page 6 4. Make certain the camera is not placed in close proximity to other electronic equipment which may interfere with the GPS signal. 5. If the camera does not obtain a position lock within 5 minutes, reset the GPS module by doing the following: 1.
-
Page 7: Using The Bluetooth Feature
StoryTeller for 2-3 minutes. You can verify the ID file was copied to you camera by looking for a file entitled “bt.adr” in the root directory of the camera’s SD card. -
Page 8: Prepare Your Device
The camera will triple beep if the card is inserted too far when pairing is attempted. Prepare Your Device Next you will need to install the Contour Camera app on your iOS device. The app is a free download from the iTunes Music Store. You can search for “Contour Camera” or if you are in the US, you can go directly to this link: http://itunes.apple.com/us/app/contour-camera/... -
Page 9: Battery Life
Bluetooth module does not have have a valid Bluetooth ID. You will have to reseat the Connect View card so it is flush with the back of the camera and/or obtain a Bluetooth ID for your camera via StoryTeller via the instructions outlined above under “Configure the Camera”. - Page 10 After the software is installed, plug the camera in to your computer using the USB cable. The USB port [G] on the camera is located right next to the microSD card slot. It may take a few moments for your computer to recognize the camera. Once it does, the camera will be listed in the My Computer window (or the Finder window on a Mac) and also in the upper left corner of StoryTeller in the Devices section.
