Page 1: High Performance

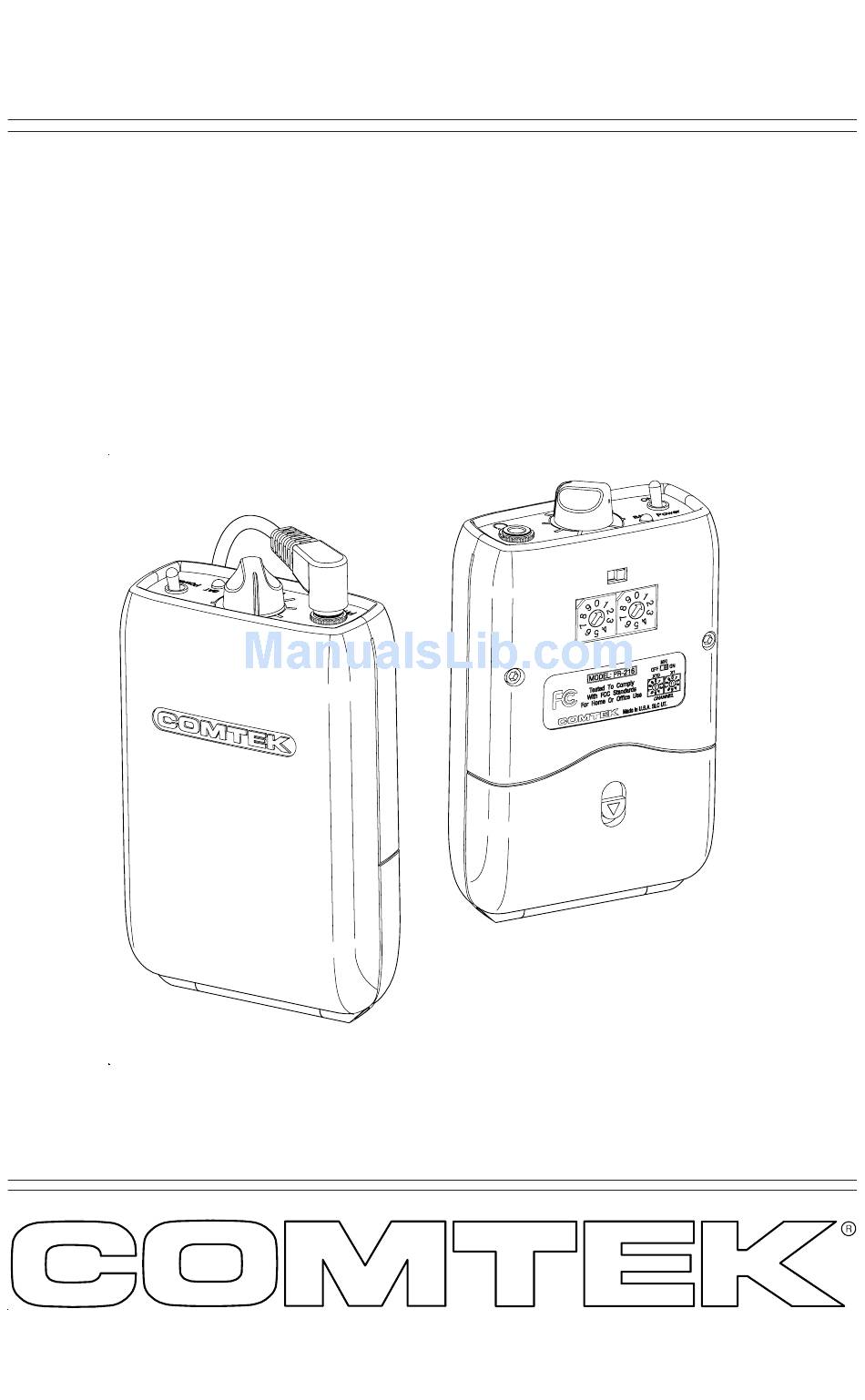

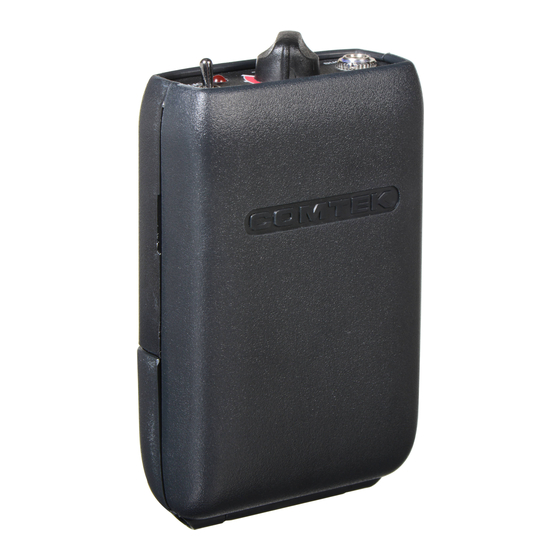

PR-216 OPERATOR’S MANUAL PR-216 High Performance Personal Receiver 357 West 2700 South • Salt Lake City, Utah 84115 • Phone: (800) 496-3463 • Fax: (801) 484-6906 • www.comtek.com... -
Page 2: Table Of Contents
Monitoring Capabilities ........Low Battery Indicator ........Battery Removal and Replacement ....Battery Charging ..........Belt Clip Installation and Removal ....Optional Accessories ........Specifications ............ Warranty and Service ........® © 2010 COMTEK All rights reserved. Print Release Date 05-27-2010... -
Page 3: Introduction
INTRODUCTION PR-216 High Performance Personal Receiver he PR-216 is a professional quality, personal monitor receiver designed to operate with transmitters in the 216-217 MHz band under Part 95 of the FCC regulations. This versatile receiver can tune both standard and... -
Page 4: Controls
PR-216 CONTROLS AUDIO OUTPUT JACK: This stereo 3.5 mm audio output jack accommodates any low impedance headphone — either stereo or mono; also, charging input for rechargeable battery, and auxiliary power input. VOLUME CONTROL: This control has 50 dB of range to adjust the audio output for a comfortable listening level (clockwise for maximum level). -
Page 5: Setup
PR-216 OPERATING INSTRUCTIONS Setup a. Check to ensure that the PR-216 receiver’s radio frequency channel is the same as the associated COMTEK transmitter’s channel. (Channels are indicated by the rotary switches on the back of the receiver. See page 4.) b. -
Page 6: Frequency Selection
PR-216 OPERATING INSTRUCTIONS Frequency Selection (216-217 MHz) The PR-216 personal receiver can operate on one of 76 available channels between 216 MHz and 217 MHz. COMTEK’s channel designations indicate both standard non-companded channels and high-fidelity, companded channels. Channels 1-40 are non-companded channels offering compatibility with other manufacturers. -
Page 7: Frequency Groups
PR-216 PR-216 216 MHz 216 MHz COMPANDED NON-COMPANDED FREQUENCY GROUPS FREQUENCY GROUPS Compatible with COMTEK For COMTEK and other manufacturers equipment only GROUP 1 GROUP A CHANNEL FREQUENCY CHANNEL FREQUENCY 216.0250 MHz 216.0125 MHz 216.1750 MHz 216.2125 MHz 216.5250 MHz 216.3625 MHz... -
Page 8: Frequency Chart
PR-216 FREQUENCY CHART (216-217 MHz band) Non-Companded Channels Companded Channels For use with COMTEK and other manufacturers For use with COMTEK equipment only (Educational Standard) FREQUENCY CHANNEL FREQUENCY CHANNEL (SWITCH POSITION) (SWITCH POSITION) 216.0125 MHz 216.0250 MHz 216.0375 MHz 216.0750 MHz 216.0625 MHz... -
Page 9: Monitoring Capabilities
A hearing-aid type button receiver may be used with impedances as high as 2 k ohm and still produce a strong audio signal. The PR-216 is ideal for use with the COMTEK NTC-102 neckloop transductor and wireless IR-230 miniature universal-fit ear canal inductor receiver or hearing aids having a “T”... -
Page 10: Low Battery Indicator
PR-216 OPERATING INSTRUCTIONS Low Battery Indicator The LED on the receiver is a multi-function indicator which includes low battery detection. When the receiver is first turned on, the indicator will illuminate continuously indicating that the unit is “ON” and NO signal is being received. -
Page 11: Battery Charging
(Alkaline batteries must not be charged.) 2. Make sure the PR-216 is turned OFF. 3. Note that the red charging indicator on the charger is ON when the PR-216 is plugged into the charger through the audio output jack. 4. When using the NBC 9-2C charger allow the battery to charge for 14 hours for a full charge. -
Page 12: Belt Clip Installation And Removal
PR-216 SNAP-ON BELT CLIP STEP 2: Belt clip installation Rotate belt clip down onto case. Apply pressure on both sides of clip, snapping clip retainers into slots. Clip retainer STEP 1: Hook belt clip retaining lip over Retainer slot front case ridge. -
Page 13: Optional Accessories
PR-216 OPTIONAL ACCESSORIES Optional Accessories 1. NBC 9-2C Dual 14-hour 9V only battery charger 2. NH 9-200 Rechargeable Ni-MH battery 3. P-1 Universal pouch 4. BC-216 Snap-on belt clip (supplied with PR-216) 5. ET-4 SM-N Button receiver with acoustic ear tube 6. -
Page 14: Specifications
PR-216 SPECIFICATIONS Audio Output: Sensitivity:RF Sensitivity: Headset output +16 dBu 0.3 µV for 12 dB SINAD (low impedance) Adjacent Channel Rejection: Connector: 65 dB 50 kHz off channel 3.5 mm stereo/mono input used for: Headphone cord antenna to receiver •... -
Page 15: Warranty And Service
COMTEK is not liable for any consequential or punitive damages arising out of any failure of the equipment to perform as intended. COMTEK shall bear no responsibility or obligation with respect to the manner of use of any equipment sold by it.
