Summary of Contents for Thinklogical OriginKVM 8250

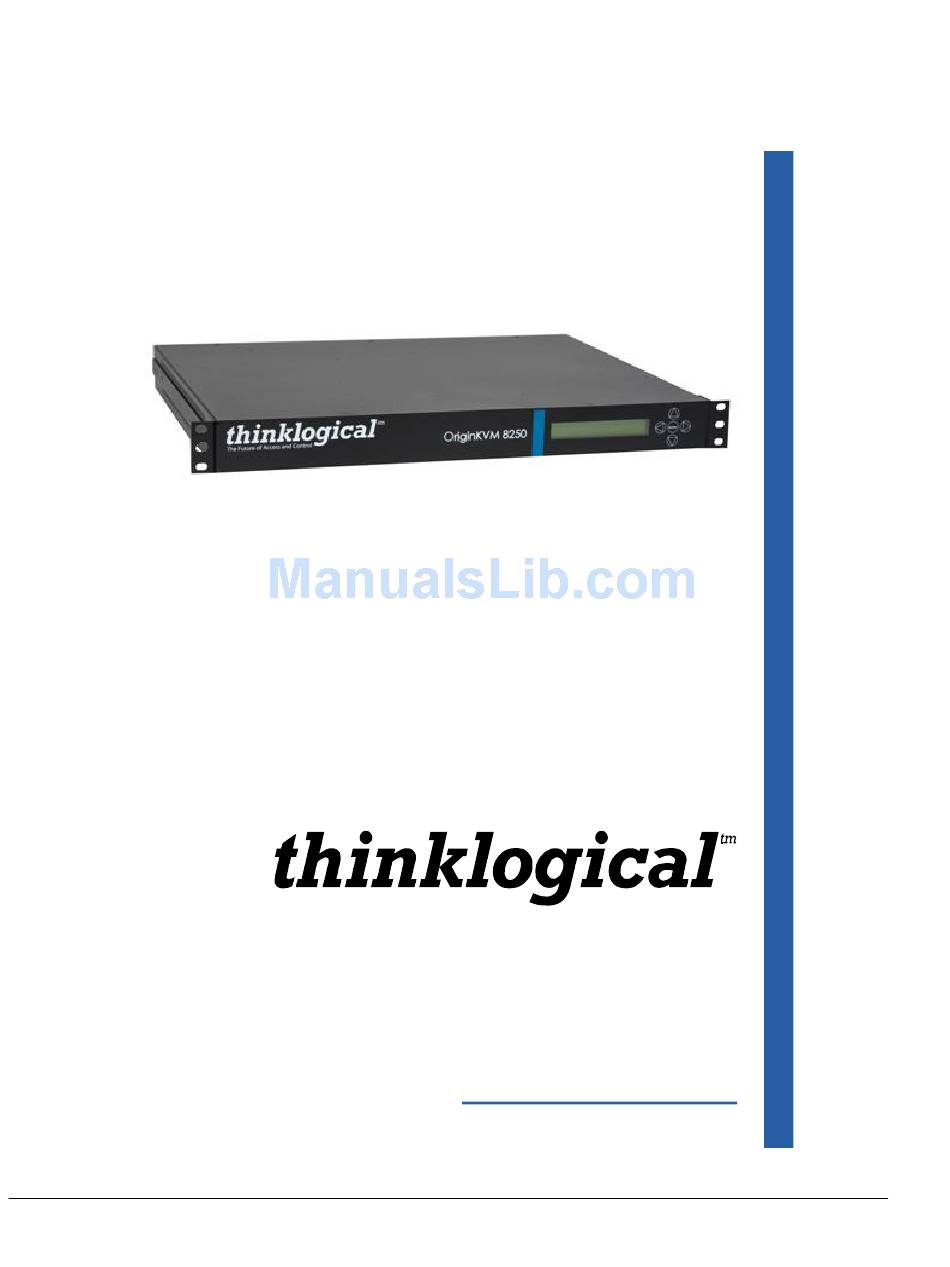

- Page 1 OriginKVM 8250 Product Manual High Performance KVM Switch Thinklogical™ Inc. 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 Fax: 1-203-783-9949 www.thinklogical.com Revision C, February 2010...
-
Page 3: Copyright Notice
The Future of Access and Control Copyright Notice Copyright © 2010. All rights reserved. Printed in the U.S.A. Thinklogical, a subsidiary of Logical Solutions, Incorporated™ 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone 1-203-647-8700 All trademarks and service marks are property of their respective owners. -
Page 4: Table Of Contents
Telephone ........................14 6.1.4 Fax ..........................14 Product Support........................14 6.2.1 Warranty ......................... 14 6.2.2 Our Address ........................15 Appendix A: OriginKVM 8250 Quick Start Guide…………………………………….………..….……….…..16 Appendix B: *Out of Band Control for Apple Keyboard Users……………………….…….………..……….17 February 2010 REVISION C... -
Page 5: Introduction
The Future of Access and Control 1. Introduction 1.1. Contents When you receive your Thinklogical OriginKVM 8250™, you should find the following items: OriginKVM 8250 Switch – KVM-008250 AC Power Cord – PWR-000006-R (International connections may differ) OriginKVM 8250 Cable Kit – KIT-000063-R OriginKVM 8250 Product Manual CD 1.2. -
Page 6: System Features
2.1. General System Features The Thinklogical OriginKVM 8250™ is a 2 user, 8 CPU switch. CPU connection ports 1 and 2 provide either PS2 or USB interface to the PC. Ports 3 through 8 provide USB connections to the PC. -
Page 7: Technical Specifications
Copper Cables KIT-000063-R (CABLE KIT) contains the following: (8) Audio Cables, 3.5mm Male to Male, 6FT Thinklogical Part Number: CBL-000016-006-FR (4) PS/2 Male to PS/2 Male, 6FT Thinklogical Part Number: CBL000006-006FR (8) USB Type A to USB Type B Cable, 6 Feet... -
Page 8: Product Overview
2.3.1.1. Rack Mount or Desktop The OriginKVM 8250 may be installed in an EIA-standard 19 inch rack (1U tall), or placed on a shelf or desktop. For shelf use, attachable rubber feet are provided and the rack mounted brackets can be easily removed. -
Page 9: Connecting The Originkvm 8250
All physical connections to the product use industry-standard connectors. All connections are found on the rear of the unit. The Front Panel FIGURE 3: OriginKVM 8250 Front Panel 3.1.1 The Front Panel Menu The Front Panel Menu is arranged as follows:... - Page 10 The Future of Access and Control Display Modifiable Description *USB-1 Country Code USB-1 Country For CPU 1 the country code of the USB KB that the device reports itself as being. This is the last USB KB country applied to the remote host.
- Page 11 Revision of device connected to CPU 7 Device 8 Rev Revision of device connected to CPU 8 Debug Values Factory Debug facility Loads USER1 monitor’s DDC Table into all CPU Acquire DDC from USER1 Get Default DDC Loads Thinklogical default DDC Table February 2010 REVISION C...
-
Page 12: Out Of Band Control
The Future of Access and Control 3.1.2 Out of Band Control The Out Of Band Control is presented as follows: The integrated *Out Of Band Control is accessed by users by pressing Scroll Lock twice within 2 seconds. (For Apple keyboard users, see Appendix B on page 17.) This feature gives users the ability to select ports, configure servers in the rack, assign names to servers and easily select and monitor them via on-screen menus. -
Page 13: The Rear Panel
The Future of Access and Control The Rear Panel Audio OUT (1-2) Firmware USB-B and Upgrade Ports Audio IN (1-8) CAUTION! Replace with same type and rating fuse CONTROL CONTROL HOST 1 HOST 2 USB 2.0 PS/2 1 PS/2 2 100- 240 V ~, 0.5 A , 50/ 60 Hz T 2A , 250 VAC HDMI 1... -
Page 14: Installation
Regulatory Compliance Thinklogical Inc. products are designed and made in the USA. Our products have been tested by a nationally certified testing laboratory and found to be compliant with the following standards (both domestic USA and many international locations). -
Page 15: European Union
The Future of Access and Control 5.2.3 European Union 5.2.3.1 Declaration of Conformity Manufacturers name and address: Thinklogical, a subsidiary of Logical Solutions™, Inc. 100 Washington Street Milford, CT 06460 USA Telephone (203)647-8700 Product name Model: OriginKVM 8250 This product complies with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. -
Page 16: Supplementary Information
NOTE: The user may notice degraded audio performance in the presence of electromagnetic fields. 5.2.5 Product Serial Number Thinklogical products have a unique serial number, imprinted on a small silver label that is placed on the bottom of the chassis. The serial number includes a date-code. The format for the date-code is two digits for the month;... -
Page 17: How To Contact Us
Thank you for choosing Thinklogical™ products for your application. We appreciate your business and are dedicated to helping you use our products. Let Thinklogical help you with any issues you may have. Thinklogical is an engineering company and we believe that the first line of support is the design engineer that developed your product. -
Page 18: Telephone
(ii) modifications to or repairs of the product that are made by any party other than Thinklogical or a party acting on Thinklogical’s behalf, or (iii) combination of the product with third party products that is not consented to by Thinklogical. -
Page 19: Our Address
Repairs may be made with refurbished parts. If repair or replacement is not possible, Thinklogical may keep the defective product and refund the amount that you paid for the defective product. These are Thinklogical’s sole obligations, and your exclusive remedies, for a breach of the limited warranty set forth above. -
Page 20: Appendix A: Originkvm 8250 Quick Start Guide
The Future of Access and Control Appendix A: Origin 8250 Quick Start Guide February 2010 REVISION C... -
Page 21: Appendix B: *Out Of Band Control For Apple Keyboard Users
LCD System Information and Programming If using an Apple Keyboard, once the firmware has been installed into the OriginKVM 8250, for User 1 use the UP arrow on the Navigation Pad to reach *Out of Band CTRL from the main menu. Then use the RIGHT arrow to reach User 1 Alt.
