Summary of Contents for Thinklogical TLX24

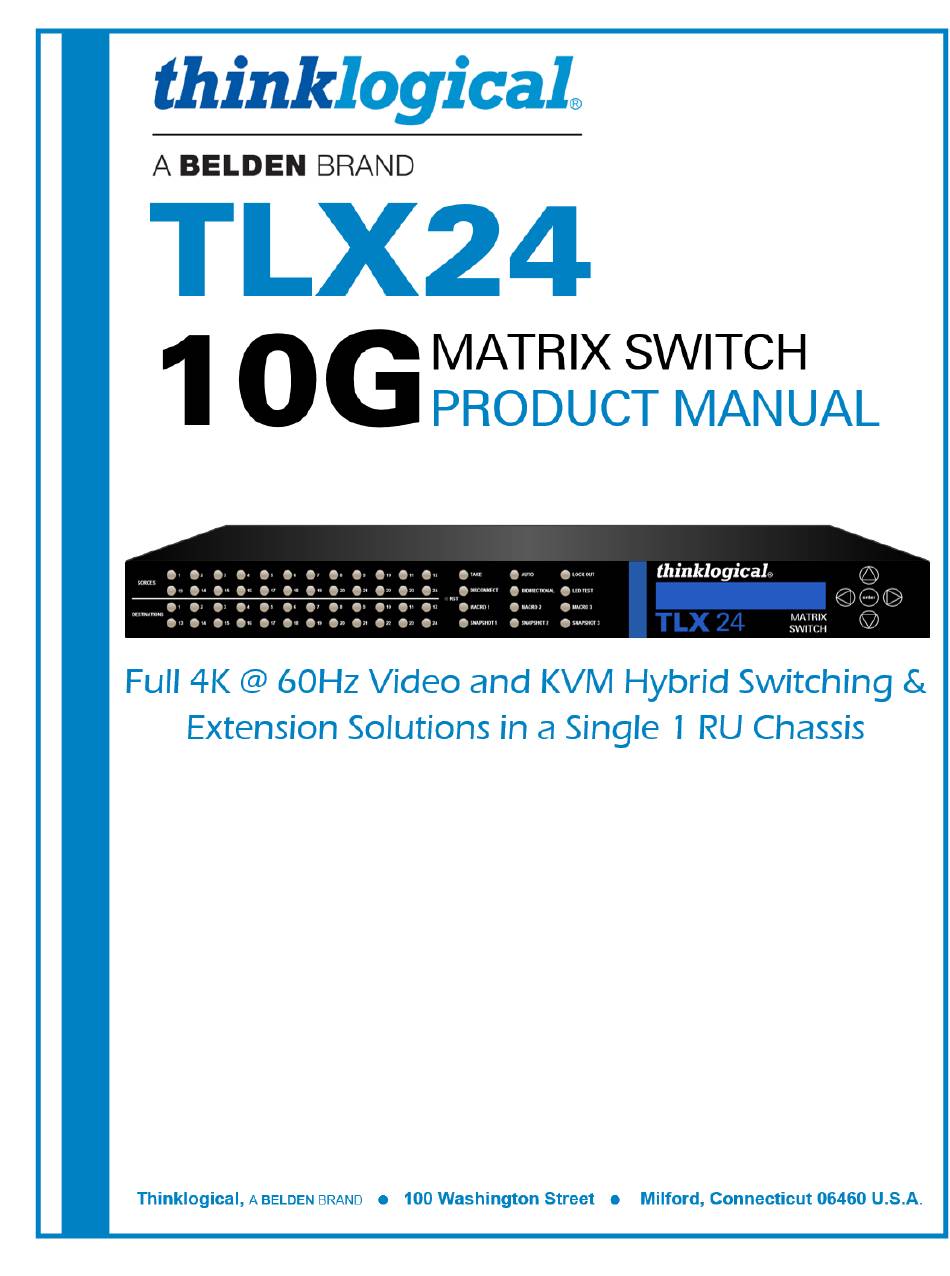

  • Page 1 Rev. H, Oct. 2019...
  • Page 2 Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: TLX24 10G Matrix Switch Product Manual Revision: H, October 2019 ® Website: https://www.thinklogical.com Facebook: www.facebook.com/ThinklogicalUSA LinkedIn: www.linkedin.com/company/thinklogical...
  • Page 3: Table Of Contents

    System Log Files Support ....................7 Serial/RS-232 Interfaces ....................8 Port Numbering ......................8 The Digital Crosspoint Switch ..................8 The TLX24 Matrix Switch Part Numbering ..............9 Product Serial Number ....................9 Connection to the Product ....................9 THE TLX24 TECHNICAL SPECIFICATIONS ..............10 SECTION 2: SET-UP AND INSTALLATION ..................
  • Page 4 Product Support ......................... 23 Warranty ........................23 Return Authorization ....................23 Our Addresses ......................23 Appendix A: TLX24 QUICK START GUIDE ..................24 Appendix B: FPGA PROGRAM UPDATE PROCEDURE ..............25 Appendix C: SECURE APPLICATIONS ....................26 MADE IN USA...
  • Page 5: Preface

    Thinklogical products are designed and manufactured in the USA and are certified to the ISO 9001:2015 standard. Thinklogical is headquartered in Milford, Connecticut and is owned by Belden, Inc., St. Louis, MO (http://www.belden.com). For more information about Thinklogical products and...
  • Page 6: About This Product Manual

    This product manual is divided into four sections: TLX System Features, Set-Up & Installation, Regulatory & Safety Requirements and Thinklogical Support. These are sub-divided to help you find the topics and procedures you are looking for. This manual also contains Appendices.
  • Page 7: Section 1: Tlx System Features

    Creating physical separation between potential threats (users) and the target (secure data) is essential to a secure system design. Thinklogical’s system permits users to access sources up to 80 kilometers away, with no performance degradation. System administrators can safeguard sources in a...
  • Page 8: The Tlx24 Matrix Switch Design

    THE TLX24 MATRIX SWITCH DESIGN The ultra-compact design of the TLX24 10G Matrix Switch (sometimes referred to as a Switch or Router) supports up to 24 ports of full, uncompressed 4K video with full color depth at 60Hz frame rate in a single 1 RU chassis for complete, end-to-end routing of video and peripheral signals over multi-mode or single- mode fiber-optic cable or CATx cable, thus minimizing critical rack space.
  • Page 9: Desktop Or Rack Mount

    Page 3 Desktop or Rack Mount You may choose to place your TLX24 Chassis on or under a shelf or desktop (rubber feet included, under-desk mounting brackets, Kit ENCA000797, available), or rack mount it using the supplied EIA 19” mounting brackets. In any mounting configuration, the front panel should be visible and unobstructed so that the navigation buttons and LCD display are accessible.
  • Page 10: Alarms Displayed On The Lcd

    The Button Panel is used to select sources and destinations, make new switch connections and to review existing switch connections. The Button Panel, located on the front of the TLX24, provides Matrix Switch control via the RS232 port’s API interface. The following pages provide a functional description of each of the 60 buttons.
  • Page 11 The reset button is recessed behind the front panel and can be pressed with a fine tipped tool. This will reset the entire unit and is used only in extreme cases. Preferred ways of resetting the unit use the front panel menus. thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 12: The Power Supply Module

    Internal 100 Megabit Ethernet Interface for processor to processor communications THE NETWORK INTERFACES The default subnet used by the TLX24 is 192.168.13.xxx. Users may change to their own subnet by reconfiguring the switch’s network startup. This is detailed in the document: Manual_How_To_Change_A_TLX_Matrix_Switch’s_IP_Address.
  • Page 13: Snmp Support

    6. Service Request (LOS) Signaling (UDP port 17560) The TLX24 10G Matrix Switch can broadcast a message over the network when a remote receiver requests attention. When enabled, the receiver will toggle its TX pin, causing a LOS (loss of signal) event to occur at the switch.
  • Page 14: Serial/Rs-232 Interfaces

    Page 8 SERIAL/RS-232 INTERFACES The TLX24 has two RS-232 serial ports. One is for the Linux command line interface (labeled CONSOLE), and the other is for the switch's ASCII command interface (labeled RS232. Linux Command Console (Console) • Baud Rate: 115200 •...
  • Page 15: The Tlx24 Matrix Switch Part Numbering

    (Custom versions are designated with A, B, C… in the part numbering system.) Product Serial Number Thinklogical products have a unique serial number, which includes a date-code, printed on an adhesive label that is affixed to the unit. The format for the date-code is 2 digits for the month, dash, 2 digits for the year, plus at least four digits for a unique unit number.
  • Page 16: The Tlx24 Technical Specifications

    Temperature Storage: -20°C to 70°C (-4°F to 158°F) Operating: 5% to 95%, non-condensing Humidity Storage: Unlimited Operating: Thinklogical components are rated to 1000m max. elevation. Altitude Max. operating temp. de-rates by 3% for every 330m > 1000m Storage: Unlimited ELECTRICAL Input Rating 100-240VAC, 1.5A, 50-60Hz (current to nearest 0.1A)
  • Page 17: Section 2: Set-Up And Installation

    Non-supplied cables that may be needed are commercially available. All connections are found on the rear of the unit. • Carefully remove the TLX24 from its shipping package and inspect it to make certain that it is in good condition. •...
  • Page 18: External Control Cpu Minimum Requirements

    Each fiber-optic TLX24 has either 12 or 24 SFP+ Modules, each mounted within a grounded metal enclosure. Each SFP is locked into its enclosure with a built-in latch handle that can be opened for removal or locked for installation (right).
  • Page 19: Lc-Type Fiber-Optic Cables

    Requirements: Thinklogical recommends LC-type SX+ Laser Enhanced (50µm) fiber with LC-type connectors for your TLX24 KVM Matrix Switch and Velocity Extension System. Multi-mode fiber can extend up to a maximum of 400m and Single-mode fiber can extend up to 80km.
  • Page 20: Tlx Extender Fiber-Optic Cable Configurations

    TLX Extender Fiber-Optic Cable Configurations SINGLE VIDEO MODULES DUAL VIDEO MODULES Note: On Dual Video models, SFPs 1 & 2 are Video 1 and SFPs 3 & 4 are Video 2. thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 21: Tlx Catx Extender Cable Configurations

    There are currently several versions of CATx (category 5/5a/6/6a/etc.) cables on the market. Thinklogical recommends using a minimum of CAT6 for your TLX KVM Matrix Switch and Extension System (CAT6a 23 AWG recommended). All cables CAT6 or higher can extend up to a maximum of 100m.
  • Page 22: Routing Thinklogical Extenders Through The Tlx24

    Receiver first, using standard cables. Power can then be applied to the unit. The Receiver then connects to the TLX24 using fiber-optic cable (Multi-mode fiber for distances up to 400m; Single-mode fiber for distances beyond 400m).
  • Page 23: Connecting To A Control Cpu

    ® Connecting to a Control CPU The TLX24 is controlled via a dedicated external Control CPU. This allows for customization as well as ease of control and administration. Access is provided via a network connection or serial RS-232 port. Note: The Control CPU (Computer) is supplied separately.
  • Page 24: Firmware

    Order of Installation Events Please refer to the Quick Start Guide included with your products for detailed instructions. The TLX24 Quick Start Guide is also available in Appendix A (pg. 24). Updates See APPENDIX B: FPGA Program Code Update Procedure, pg. 25.
  • Page 25: System Reboot Or Power Off At The Chassis

    Matrix Switch’s AC power cord. Note: Chassis power on the TLX24 cannot be turned off via the LCD, Console Port, or an SSH connection. To clear the switch connections, the AC power cord must be removed, as described above.
  • Page 26: How To Install And Replace A Power Supply

    Install the AC cord. Warning! If the module does not slide easily into the connector, do not force it! Damage may occur. Remove the module and start over. thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 27: Section 3: Regulatory & Safety Requirements

    Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 USA Thinklogical’s products comply with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU, the WEEE Directive 2012/19/EU and carry the marking accordingly.
  • Page 28: Supplementary Information

    CLASS A), measured to CISPR 22:1993 limits and methods of measurement of Radio Disturbance Characteristics of Information Technology Equipment. • The user may notice degraded audio performance in the presence of electro-magnetic fields. thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 29: Section 4: Thinklogical

    Customer Support will ask you to describe the problem and will issue you a Return Merchandise Authorization number (RMA#). Pack the device in its original box, if possible, and return it with the RMA# printed on the outside of the box. DO NOT return a product to Thinklogical without a Return Merchandise Authorization.
  • Page 30: Appendix A: Tlx24 Quick Start Guide

    Page 24 Appendix A: TLX24 ALL FIBER QUICK START GUIDE thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 31: Appendix B: Fpga Program Update Procedure

    Page 25 Appendix B: FPGA Program Code Update Procedure thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 32: Appendix C: Secure Applications

    Thinklogical’s TLX, VX and MX Matrix Switches use two methods for secure routing. One is known as Restricted Switching and the other is known as Partitioning. These methods can be deployed singularly or jointly, depending on security requirements.
  • Page 33 For access to the daemon.log file via SSH, refer to THE NETWORK INTERFACES section of this document (pg. 6). To verify the system’s Restricted Switching policy, Thinklogical recommends the following: 1) Review the daemon.log file and correct any errors in the Restricted Switching Table before implementing multiple levels of security classification domains on the same Matrix Switch.
  • Page 34 The following example shows a priority scheme for four levels of security managed by one TLX Matrix Switch: Restricted switching is configured via firmware loaded into the Matrix Switch. The configuration file for this scenario will appear like the table at right.  thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
  • Page 35 A TLX80 with four partitions: Ports 5-10 are accessible to both partitions 2 and 3. The following example shows a TLX80 Switch with an overlapping partition: The TLX24 Partition Table files are stored on the iMX6 at: /var/local/router/partition/upstream.csv thinklogical TLX24 Matrix Switch Product Manual Rev.
  • Page 36 For access to the daemon.log file via SSH, refer to THE NETWORK INTERFACES section of this manual (pg. 6) for correct IP addresses. To verify the system’s Partitioning policy, Thinklogical recommends the following: 1) Review the daemon.log file and correct any errors in the Partition Table before implementing multiple levels of security classification domains on the same Matrix Switch.
  • Page 37 Page 31 Secure Application Examples The Diagram on pg. 32 shows the TLX24 Matrix Switch in a secure application. The highly secure components are described as the Red Network and the other, lower security components are described as the Black Network. The Red Network, containing the computers (sources), is shown in a physically secure environment along with the TLX Matrix Switch, the computer server used to manage the Switch, and the Network Hub.
  • Page 38 Page 32 TLX24 Matrix Switch Secure Application thinklogical TLX24 Matrix Switch Product Manual Rev. H, Oct., 2019...
