Check physical support of the unit. Check that it is sound
without any sagging, cracks, or gaps, around the base.
Check for obvious signs of deterioration of the unit.

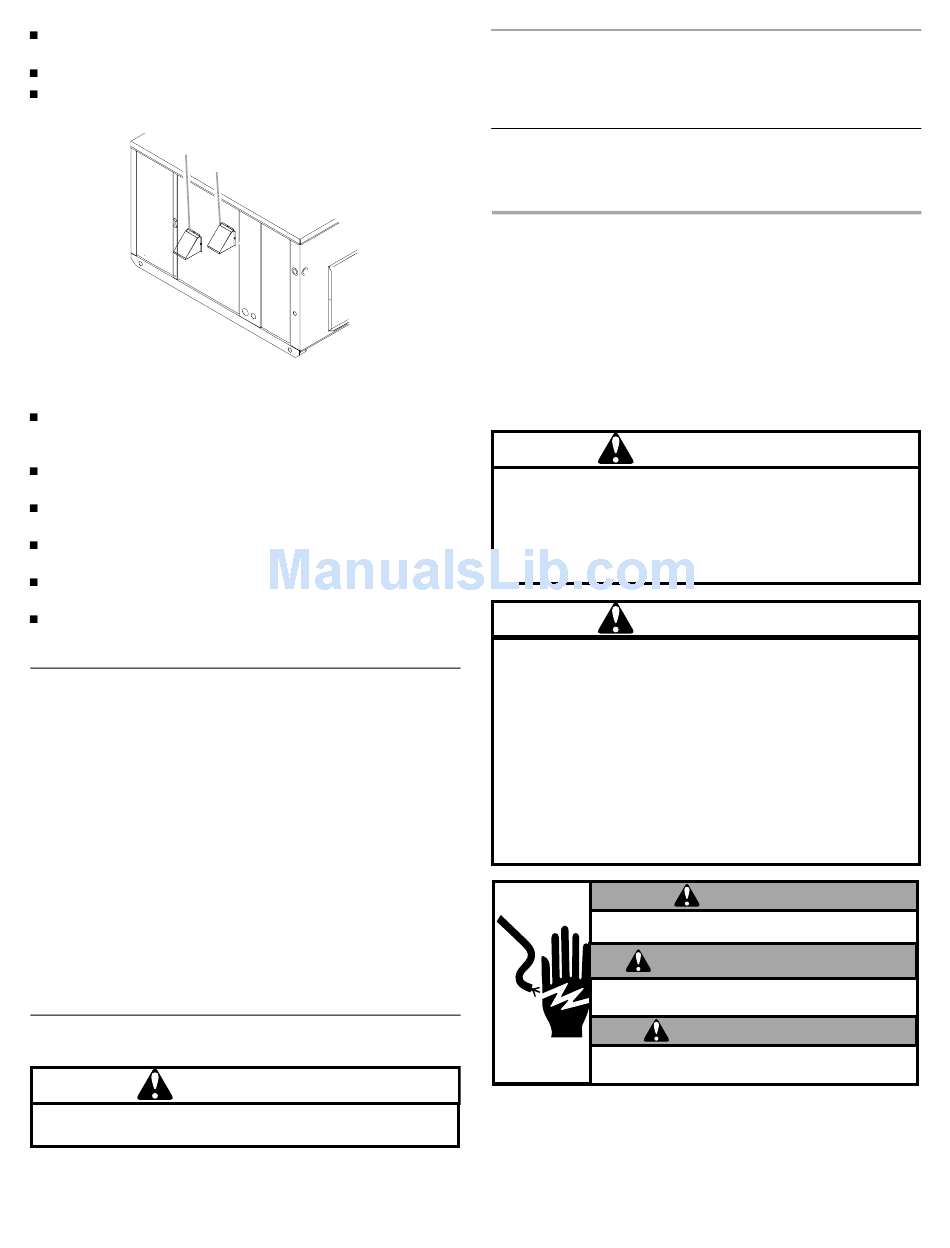

Flue hood and combustion air inlet. Check for blockage
(wasp nest, etc.) and corrosion.
A
A. Combustion air inlet
B. Flue hood
Return air connection. Check for physical soundness and
ensure that the connection is firmly sealed to the package
unit casing.
Heat exchanger. Check for corrosion and/or obstructions
within the heat exchanger passageways.
Burners. Check for proper ignition, burner flame, and flame
sense.
Wiring. Check electrical connections for tightness and/or
corrosion. Check wires for damage.
Filters. Check that filters are clean and in the proper
placement in the unit or duct system.
Louvers. Inspect air inlet louvers inside the heat exchanger
compartments. Ensure the area is clean and free of dirt and
debris.

Replacing or Cleaning the Filter

IMPORTANT NOTE: Never operate unit without a filter installed
as dust and lint will build up on internal parts resulting in loss of
efficiency, equipment damage and possible fire.
A return air filter is not supplied with this unit; however, there
must be a means of filtering the return air. The filter(s) may be
located in the return air duct(s). Consult with your installing dealer
for the actual location of the return air filter(s) in your unit.
A dirty filter is the most common cause of inadequate heating or cooling
performance. Filter inspection should be made at least every 2 months;
more often if necessary because of local conditions and usage.
Dirty throwaway filters should be discarded and replaced with a new,
clean filter. Dirty permanent filters should be washed with water,
thoroughly dried and sprayed with a filter adhesive before being
reinstalled. Filter adhesives may be found at many hardware stores.
Permanent filters should last several years. However, should one
become worn or uncleanable, it should be replaced.
When installing a new filter or reinstalling an old one, always make
certain the airflow arrows on the filter point in the proper direction.
Clean Outside Coil—Qualified Servicer Only
WARNING
To avoid personal injury or death due to electrical shock,
disconnect the electrical switch before cleaning the coil(s).
The coil, with the outside air flowing over it, should be inspected
annually and cleaned as frequently as necessary to keep the
finned areas free of leaves, grass, seeds and debris.
B

Condenser, Evaporator and Induced Draft Motors

Bearings on the air circulating blower motor, condenser motor
and the combustion fan motor are permanently lubricated. No
additional oiling is required.

Compressor

The compressor motor is hermetically sealed and does not
require additional oiling.

SAFETY LABELS

NOTE: If safety labels are missing or illegible, contact the
installing dealer.
To obtain the proper safety labels, the model and serial number of
the unit must be supplied. These numbers are recorded on the
nameplate of the unit. For your convenience, record this
information here:
Model Number: _________________________________________________
Serial Number:__________________________________________________
WARNING
If not installed, operated and maintained in accordance
with manufacturer's instructions, this product could expose
you to substances in fuel or from fuel combustion which
can cause death or serious illness and which are known
to the State of California to cause cancer, birth defects
or other reproductive harm.
WARNING
Heating units should not be utilized without reasonable,
routine inspection, maintenance and supervision. If the
building in which any device is located will be vacant,
care should be taken that such device is routinely
inspected, maintained and monitored in the event that the
building may be exposed to freezing temperatures and
will be vacant. All water-bearing pipes should be drained.
The building should be properly winterized, and the water
source closed. In the even that the building may be
exposed to freezing temperatures and will be vacant, any
hydronic coil units should be drained as well and, in such
case, alternative heat sources should be utilized.
HAZARD OF ELECTRIC SHOCK
DISCONNECT THE ELECTRIC POWER BEFORE SERVICING.
AVERTISSEMENT
DANGER DE CHOC ÉLETRIQUE
DECONNECTER LE CIRCUIT D'ALIMENTATION ÉLECTRIQUE
AVANT L'ENTRETIEN.
PELIGRO DE CHOQUE ELÉCTRICO
DESCONECTE LA ENERGÍA ELÉCTRICA ANTES DEL
MANTENIMIENTO.
WARNING
ADVERTENCIA
7
