Summary of Contents for Feltest DigiMicro

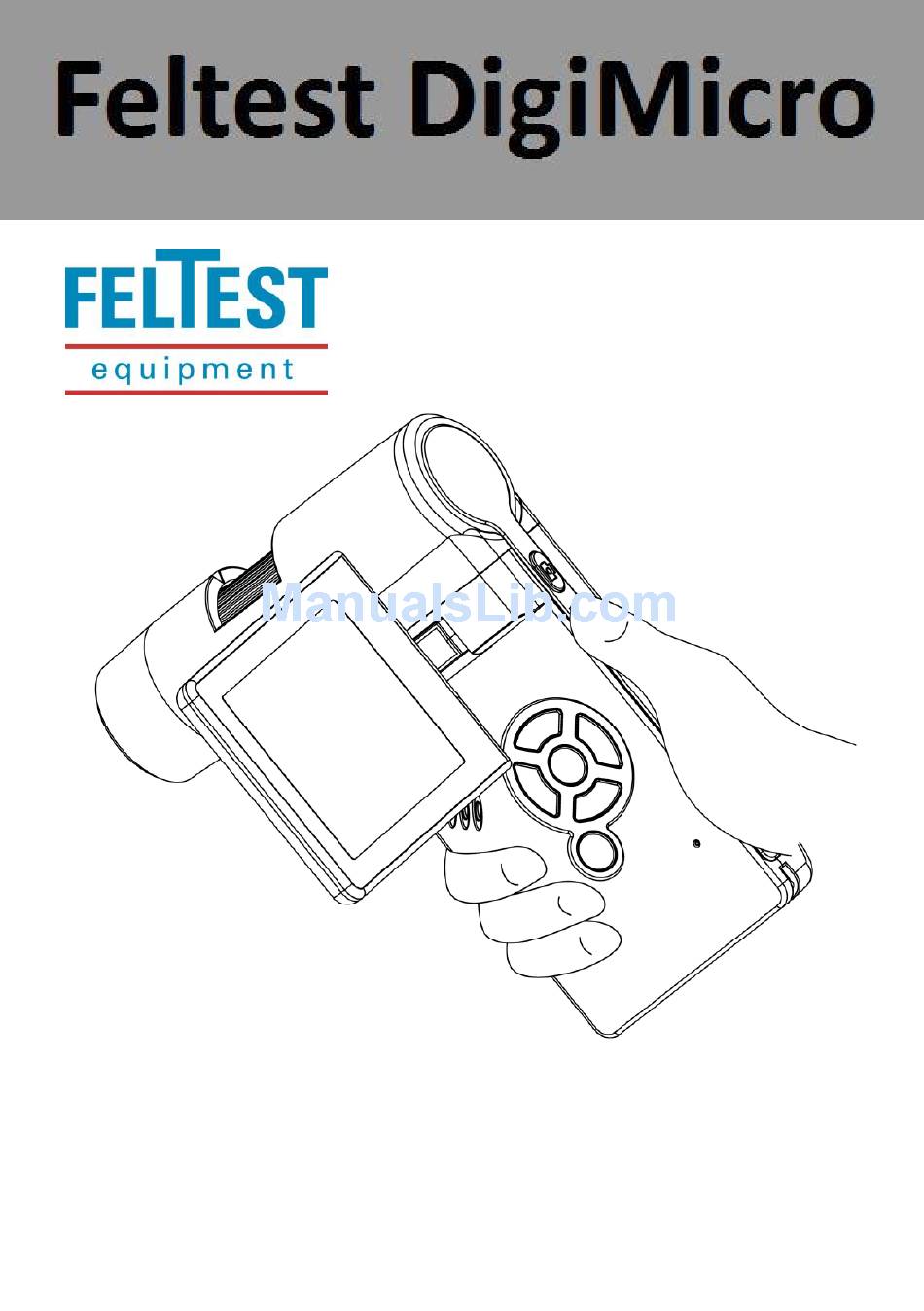

- Page 1 User Manual...
-
Page 2: Table Of Contents
5.1 Main Menu - Image ....................12 5.2 Main Menu - Settings ....................14 6. Specifications ......................... 16 7. Computer System Minimum Requirement ..............16 8. Troubleshooting ......................17 PortableCapture Software Introduction ................18 1. Install Software ......................18 2. Start Microscope ......................18 www.feltest.com... - Page 3 3.2 Rotate Image ......................19 3.3 Date/Time ........................ 19 3.4 Language ........................20 3.5 Full screen ........................ 20 3.6 Capture........................20 3.7 Edit Photos ....................... 21 3.8 Edit videos ........................ 22 Quit MicroCapture ......................22 4. Measurement in a picture....................23 http://www.feltest.com/...
-
Page 4: Welcome
Never operate the Feltest DigiMicro where operation of such devices is restricted. Improper use creates the risk of serious accidents. Do not try to open the case of the Feltest DigiMicro or attempt to modify it in any way. Maintenance and repairs should be performed only by authorized service providers. -
Page 5: Preparation
2. Preparation Standard accessories Feltest Tripod AC adaptor DigiMicro Carry bag AV-cable USB cable Manual Parts, names & functions http://www.feltest.com/... -
Page 6: Key Features
Measurement (with the supplied software on a computer) Support MicroSD card up to 16GB Driver free to download for Windows XP SP2/Vista/Win7 and Mac OS 10.4 or above (direct plug-in, driver installation not required) Lithium battery (rechargeable & changeable) www.feltest.com... -
Page 7: Use The Microscope
Note: do not force the card into the slot; forcing may damage microscope and the MicroSD memory card. Align MicroSD card position (as marked) and try again. The MicroSD memory card must be formatted before starting to capture images. See the following instruction: http://www.feltest.com/... -
Page 8: Icons On The Display & Their Meaning
Note: the display of icons can be switched on/off by pressing the zoom wheel (2) down. 4.4 Turn on the Microscope Unfold the display panel, and then the microscope will power on directly. If need to power on when panel unfolded, press POWER ON/OFF button. www.feltest.com... -
Page 9: Turn Off The Microscope
To get a proper brightness, adjust the lighting level by rotating the LED dial. Hold the microscope main body with your right hand; put the viewing end closely to the object; adjust the focus wheel (11) with the left hand. When a clear image is displayed press the Capture button one time. http://www.feltest.com/... -
Page 10: Record Video
Press UP/DOWN to select among the captured pictures and video clips. Delete: At play back mode, press to enter the sub-menu, then confirm delete. Protect At play back mode, press to enter the sub-menu, then confirm protect pictures from being deleted as shown underneath: www.feltest.com... -
Page 11: Download Data To A Computer
Zoom Wheel downward to digitally zoom out again. Note: the digital zoom ranges from 1x – 2.5x 4.9 Download data to a computer 1) Connect the microscope to computer by USB cable. 2) Choose Mass Storage and then you can view stored photos & videos. http://www.feltest.com/... -
Page 12: Preview On A Computer
1. Plug the small end of the power adaptor into the DC-in port, located on the bottom side of the DigiMicro. Then plug the other end of the power adaptor into a standard AC outlet. The battery indicator at the DigiMicro will light-up red to show that the battery is charging. -
Page 13: Mount Tripod
Press to enter the main menu. Here you can setup: Resolution Timer Quality Sharpness. 5.1.1 Set Resolution From the main menu, choose Resolution and then select a resolution between 3M/5M/8M/12M. Press OK to confirm selection. http://www.feltest.com/... - Page 14 From the Main Menu - Image, choose Quality and then select among Super Fine/Fine/Normal. The three selections will result in different image compress ion ratios. 5.1.4 Sharpness From the Main Menu - Image, choose Sharpness and then select among Super Fine/Fine/Normal. www.feltest.com...
-
Page 15: Main Menu - Settings
OK to select. 5.2.2 Power Save From the Main Menu - Settings, choose Power Save to select the time in minutes that the DigiMicro waits to switch off after the last key was pressed. The option”Off” means that the instrument does not switch off automatically, but that it needs to be switched off manually. - Page 16 5.2.4 Date/time From the Main Menu - Settings, choose Date/Time to setup date and time of the DigiMicro. 1. Setup date and time by LEFT/RIGHT/UP/DOWN 2. Choose a date format; YY/MM/DD or DD/MM/YY or MM/DD/YY. 5.2.5 Format SD (memory card) From the Main Menu –...
-
Page 17: Specifications
OSD languages: Portugese/Japanese/Chinese Software languages: English/Germany/French/Spanish Measurement: By the software Size: 130x103x29mm Weight: 195 gram (with battery) 7. Computer System Minimum Requirement Operating system Windows XP SP2/Vista/Win7, Mac 10.5 or above Pentium 11 or above 256MB Interface USB port2.0 http://www.feltest.com/... -
Page 18: Troubleshooting
Ensure that the outlet has power and is not -or- malfunctioning. If the outlet is connected to a wall switch, make sure that the switch is on. The battery is not charging. www.feltest.com... -
Page 19: Portablecapture Software Introduction
When the Microscope is disconnected from your PC USB port, the screen will display “No Device detected, please connect your Microscope directly to your PC USB port.” http://www.feltest.com/... -
Page 20: Software Introduction
Note: the size of the photo taken is equivalent to the preview size selected in the Options menu/Preview Size. 3.2 Rotate Image You can rotate the output image clockwise and counter-clockwise. 3.3 Date/Time You can display or turn off Date/Time by the following operation: www.feltest.com... -
Page 21: Language
Choose Capture and then click Photo By pressing F11 Captured photos are saved automatically and image thumbnails will be available on the right hand side of the MicroCapture screen for further editing. For editing photos, please refer to later operations. http://www.feltest.com/... -
Page 22: Edit Photos
You can double click the image thumbnail and an independent preview box will pop up as shown here: b. Save Photos You can save photo by right clicking on the thumbnail and then choose Save. www.feltest.com... -
Page 23: Edit Videos
Right click on the thumbnail and then choose Copy. 3.8 Edit videos You can right click the video small icon listed on the right column and then choose Play, Copy, and Delete etc. To save video clips directly: Quit MicroCapture http://www.feltest.com/... -
Page 24: Measurement In A Picture
Continuing without the used magnification ratio is meaningless! Now you can measure the size of the whole or part of the object you have taken using the available options. Click on the icons on top of the window. Following are the options: www.feltest.com... - Page 25 Units available include: pixels / inches / km / m / cm / mm / micrometer 7) Other operations you can carry out on the photo taken include: : make notes on the photo taken : select font, font style, font size etc http://www.feltest.com/...
- Page 26 The magnification ratio you are allowed to input is from 20 to 200. Do not input any value beyond that. The measurement value worked out by the software is only for reference; it may not be 100% correct. The measurement function is only available on computers with the Windows Operating System. www.feltest.com...
- Page 27 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. http://www.feltest.com/...
