Summary of Contents for Feltest DigiMicro

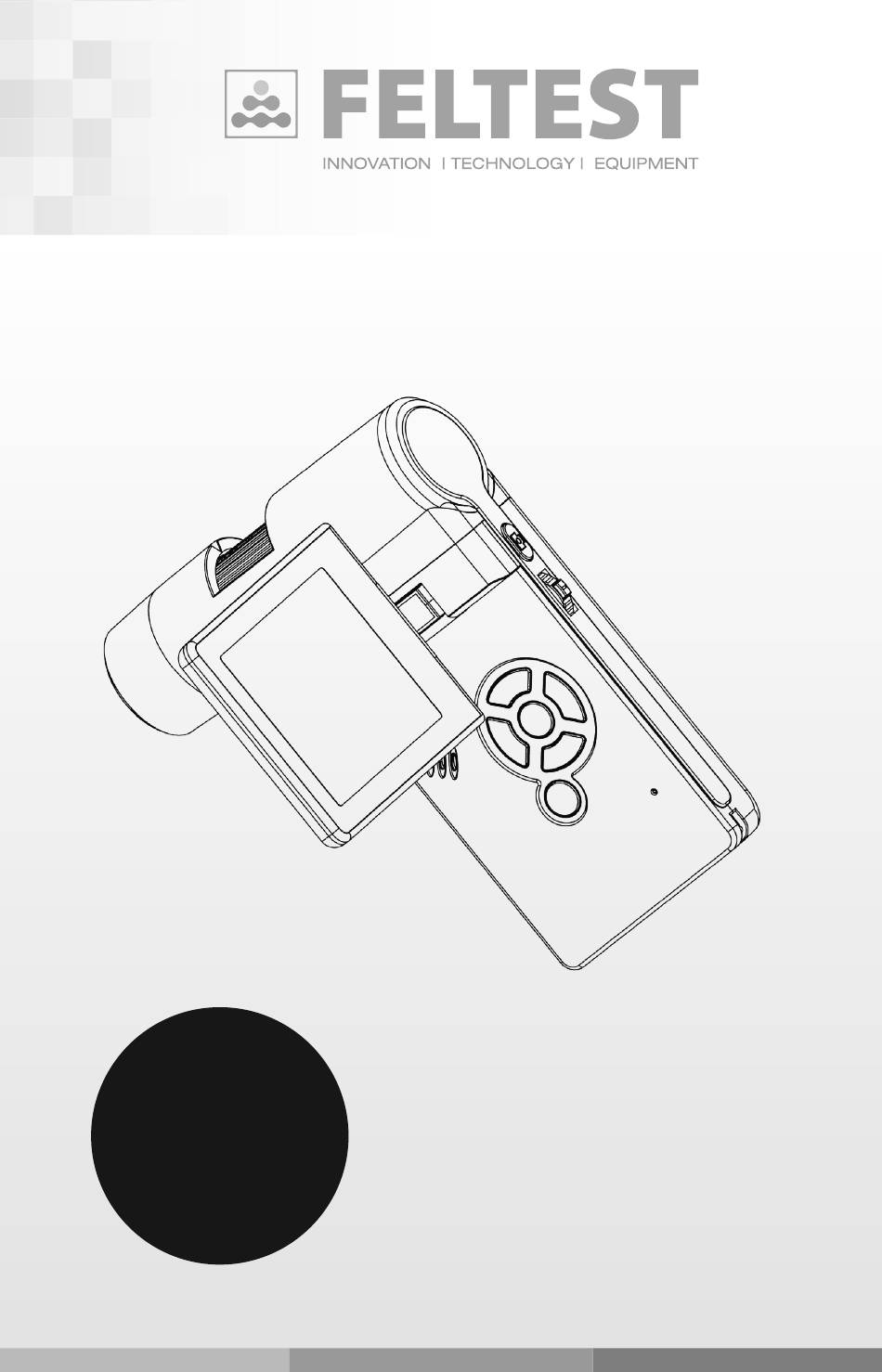

- Page 1 User DigiMicro Manual...
-
Page 2: Table Of Contents
Turning on the microscope Turning off the microscope How to capture Recording a video or taking a picture Play back Zoom in Zoom out Downloading to a computer Previewing on a computer Charging the battery Connecting to a TV Mounting the stand www.feltest.com... - Page 3 5. Menu camera settings Resolution Time lapse Quality Sharpness 6. Menu general settings Language Power save Frequency Date stamp TV-out (or AV-out) Date/time Format MicroSD System reset Version 7. Specifications 8. Computer system minimum requirement 9. Troubleshooting www.feltest.com...
- Page 4 1. Installing the software 2. Starting the microscope 3. Software introductions Resolution Date/time Language Full screen Capture Edit photos Edit videos Quit portable capture 4. Measurements Change calibration Draw and text 5. Main menu items File Options Measurement interface instructions www.feltest.com...
- Page 5 6. Portable Capture for Mac Part I: Install Portable Capture Part II: Use Portable Capture Preview Preview size Date/time Photo capture Video capture Edit photo/video Help info Quit Portable Capture www.feltest.com...
-
Page 6: Precaution
Improper use creates the risk of a serious accident. Do not try to open the case of the Feltest DigiMicro or attempt to modify it in any way. Maintenance and repairs should only be performed by authorized service personal. - Page 7 The Feltest DigiMicro may become slightly warm during use. This does not necessarily mean a malfunction. If the exterior of the Feltest DigiMicro needs cleaning, wipe it off with a soft dry cloth. FCC Notice This equipment has been tested and complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 8: Preparation
2. Preparation Standard accessories Feltest DigiMicro Lithium Battery AC adaptor USB cable TV cable Cleaning fabric Carry bag Stand Strap www.feltest.com... -
Page 9: Parts Names & Functions
AV-out (or TV-out) Color mode switch USB port Menu setup DC-in Aux LEDs Down Lens Left / back Stand mounting hold Power on/off MicroSD card slot Speaker Wrist grip hook Microphone Focus wheel Battery charging indicator LEDs brightness dial www.feltest.com... - Page 10 www.feltest.com...
-
Page 11: Key Features
10.9 - 10.13 (direct plug-in, driver installation not required) Lithium battery (rechargeable & changeable) 4. Use the microscope Installing the battery Open the battery compartment by sliding it outwards. Insert the lithium battery into the battery compartment according to the polarities shown in the compartment. www.feltest.com... -
Page 12: Inserting The Microsd Card
Note: Do not force the card into the slot; forcing may damage the microscope and the MicroSD card. Align the MicroSD card position (as marked) and try again. The MicroSD card must be formatted before capture. See the following instruction. www.feltest.com... -
Page 13: Displaying Icons & Their Meanings
Still image capture Timer capture Captured image qty/total qty that could be captured (based on the current resolution) MicroSD inserted Current resolution Battery capacity indicator Note: The icons in the display can be switched on/off by pushing the zoom wheel. www.feltest.com... -
Page 14: Turning On The Microscope
If you need to power on or off when the display panel has unfolded, press the power on/off button. Turning off the microscope Fold the display panel and the microscope will turn off automatically. Press the power on/off button. www.feltest.com... -
Page 15: How To Capture
Turn on the microscope by simply unfolding the display panel to a proper position, normally at an angle of aprox. 90 degrees with the viewing end as follows: Adjust the LED brightness dial to get a proper brightness for the LEDs at the viewing end. www.feltest.com... - Page 16 Put the viewing end closely to the target object Adjust the focus wheel with your left hand to get a clear image. When a clear image is established, hold the microscope steady and press the capture button one time. www.feltest.com...
-
Page 17: Recording A Video Or Taking A Picture
If taking a picture, press the capture button multiple times to take several pictures. Play back Press the left/back button to enter play back mode. A review icon is shown in the left upper corner of the display. www.feltest.com... - Page 18 To protect a video or picture in play back mode: Press to enter the submenu Confirm protecting a video or picture from deleting. The symbol of a key will show in the display for all protected videos and pictures. www.feltest.com...
- Page 19 To create a slide show in play back mode: Press to enter the submenu Select the requested interval time and confirm by pushing the OK button. To change the color mode in the preview status: Press to switch between Color / Positive / Negative. www.feltest.com...
-
Page 20: Zoom In
Zoom in Push the digital zoom button upwards. Zoom out Push the digital zoom button downwards. Note: The digital zoom ranges from 1.0x to 4.0x and is shown in the display on the left side. www.feltest.com... -
Page 21: Downloading To A Computer
Connect the microscope to a computer by using the USB cable. Choose the preview on computer mode. Start the Portable Capture software. Please check page 39 of this User’s Manual on how to use the microscope in combination with the software. www.feltest.com... -
Page 22: Charging The Battery
Then plug the other end of the power adaptor into a standard AC outlet. The battery indicator LED on the bottom of the microscope will be in red to show that the battery is charging. www.feltest.com... - Page 23 When the battery has low power, there will be a low power indicator on the right down corner of the display panel. The front LED light will become weak and image quality becomes poor. You now have to recharge the battery. www.feltest.com...
-
Page 24: Connecting To A Tv
Check your television’s manual for more information on locating these connectors. Turn on the television. If necessary, switch your television to the appropriate input channel. Items that you magnify appear on the television screen. www.feltest.com... -
Page 25: Mounting The Stand
Put the stand with the screw towards the mount hole on the microscope properly and rotate the end into the hold carefully. Adjust the height of the stand to the proper position. Note: Do not force the end into the hole. Forcing may damage the microscope. www.feltest.com... -
Page 26: Menu Camera Settings
Here you can set up the resolution / time lapse / quality / sharpness. Resolution Select resolution and then select one of the following resolutions: VGA / 1.3M / 3M / 5M / 9M / 12M. Press OK to confirm selection. www.feltest.com... -
Page 27: Time Lapse
Press OK to confirm the selection. Example: the setup above means 32 frames For interval: select the interval time between frame capture by using the up/down and left/right buttons. Press OK to confirm the selection. www.feltest.com... -
Page 28: Quality
The microscope will return to the normal preview mode and the settings of the auto capture mode will return to default. Quality From the main menu, select picture quality by selecting super fine / fine / normal. www.feltest.com... -
Page 29: Sharpness
The three selections will result in different image compress ratios. Sharpness From the main menu, select sharpness by selecting hard / normal / soft. www.feltest.com... -
Page 30: Menu General Settings
Here you can setup language / power save / frequency / date stamp / TV out / date and time / format MicroSD / system reset / version. Language Select language. Select a target language by using the up/down button. Press the OK button to set the choosen language. www.feltest.com... -
Page 31: Power Save
Press the OK button to set the time for automatically switching off your microscope to save the battery. Frequency Select frequency. Choose between 50 or 60 Hz. Press the OK button to set the frequency you want tot use. www.feltest.com... -
Page 32: Date Stamp
Date: only dates will be marked on images taken. Off: Neither date or time will be marked on images taken. TV-out (or AV-out) Select the correct mode for connecting with your TV set by choosing NTSC of PAL. Press the OK button to set the correct mode. www.feltest.com... -
Page 33: Date/Time
You can change the presentation of date and time. You can choose from YY/MM/DD, DD/MM/YY and MM/DD/YY. Once date and time are set, use the OK button to store date and time. www.feltest.com... -
Page 34: Format Microsd
Press the OK button. Warning: Formatting the MicroSD card is irreversible. System reset Select system reset to go back to the default settings of the microscope. Select system reset. Press the OK button. Choose between cancel or execute. Press the OK button. www.feltest.com... -
Page 35: Version
Warning: Resetting the microscope to default settings is irreversible. Version Select version to see the actual version ID. www.feltest.com... -
Page 36: Specifications
Input: 100 - 240V, 50/60 Hz Output: 5V, 1A OSD languages: English / Germany / French / Spanish / Italian / Portugese / Japanese / Chinese Software languages: English /Germany /French / Spanish Dimensions: 130 x 103 x 29 mm Measurement: By software www.feltest.com... -
Page 37: Computer System Minimum Requirement
8. Computer system minimum requirement Operating system: Windows Vista / Win7 / 8 / 10 and Mac OS 10.9 - 10.13 CPU: Pentium II or above RAM: 256 MB Interface: USB port 2.0 www.feltest.com... -
Page 38: Troubleshooting
The battery is not charging. Ensure that the power adaptor has power and is not malfunctioning. If the power adaptor is connected to a wall switch, make sure that the switch is on. www.feltest.com... -
Page 39: Portable Capture Software Introduction
Portable Capture software introduction Computer system requirements Windows Vista / Win7 / 8 / 10 and Mac OS 10.9 - 10.13 RAM: 256MB Video Memory: 32MB USB port: 2.0 CD-ROM Drive www.feltest.com... -
Page 40: Installing The Software
Insert de CD into the CD-ROM drive. If you don’t have a CD_ROM drive, you can also download the software from www.feltest.com/downloads/. After double clicking setup.exe the startup interface as shown at the bottom of this page will be displayed. -
Page 41: Starting The Microscope
You will see the following screen pop up. When the microscope is disconnected from your computer USB port, the screen will show the following message: No Device detected, please connect your Microscope directly to your PC USB port. www.feltest.com... -
Page 42: Software Introductions
3. Software introductions Resolution You can change the resolution as shown below. Date/time You can activate date/time as shown below. www.feltest.com... -
Page 43: Language
Double clicking the preview area on your computer. Clicking the full screen icon in the menu. Choose full screen mode under options in the menu. When in full screen mode, click on the full screen icon to turn off and restore toolbars and menus. www.feltest.com... -
Page 44: Capture
Capture software screen for further editing. For editing a photo, please check the later explanations. Video capture You can record video in one of the following ways: Click the video camera button Choose capture from the menu and then click Video www.feltest.com... -
Page 45: Edit Photos
Clicking on an image thumbnail will display the image selected in the preview area, with its size displayed on the left bottom corner. You can double click the image thumbnail and an independent preview box will pop up as shown below: www.feltest.com... - Page 46 The file can be saved in either jpeg or bmp. The jpeg size in which the photo is saved, is the maximum allowed for jpeg. You can choose to decrease the size by adjusting the quality. Click the advanced button to view and select jpeg save options. www.feltest.com...
-
Page 47: Edit Videos
Copy photos Right click on the thumbnail and then choose Copy. Edit videos You can right click the video thumbnail, listed in the right column and then choose the options open, save as, delete etc. www.feltest.com... -
Page 48: Quit Portable Capture
Quit portable capture Quit the software as shown below. www.feltest.com... -
Page 49: Measurements
Simply click and extend out to the desired diameter, the diameter, circumference and area of the circle will show up accordingly. Three points angle measurement Simply define any three points angle and click, the angle value will then display. www.feltest.com... -
Page 50: Change Calibration
Change the magnification rate and capture several pictures. Click on the picture to enter into the measurement interface. Then click set magnification and set picture magnification. Now a dialog will show up as shown below. Enter the magnification rate into the dialog box and click OK. www.feltest.com... -
Page 51: Draw And Text
Draw and text You can draw or add a text on the picture and save for later analysis. Click the icon to choose any kind of drawing in the pull down menu as shown on page 52. www.feltest.com... - Page 52 Click the icon and set the font for the text in the popup dialogue as shown below. www.feltest.com...
-
Page 53: Main Menu Items
Full screen mode. Press ESC or double click to exit. File Photos folder: set the directory to store photos taken. Videos folder: set the directory to store video taken. www.feltest.com... -
Page 54: Options
Date/time: set to display system date/time on preview window Language: choose different language XY guide: display cross on preview window Full screen mode: enter into full screen. Click ESC or double click to exit Photo: take a photo Video: record a video www.feltest.com... -
Page 55: Measurement Interface Instructions
Measurement interface instructions Save as Redo Copy to clipboard Draw Copy file Text note Previous Measurement Next Calibration Undo www.feltest.com... -
Page 56: Portable Capture For Mac
Open the MAC folder from the disc and copy Portable Capture onto your desktop for daily use. Part II: Use Portable Capture Plug the microscope into the computer USB port. Double click the Portable Capture icon to open the Portable Capture window. The microscope is now ready to use. www.feltest.com... -
Page 57: Preview
Preview In the central window, you can preview the magnified subject. Preview size With options, you can choose the preview resolution. The current resolution will be displayed at the left bottom corner of the preview window. www.feltest.com... -
Page 58: Date/Time
Please note that the preview window size always remains at 640x480 but the current resolution will show at the left bottom corner. Date/time With options, you can turn on/off the date/time. Photo capture You can capture a photo by: choosing the option capture and then photo. www.feltest.com... -
Page 59: Video Capture
You can capture a video by: clicking the video capture icon as shown below Note: After clicking on the icon, the video capture icon will turn red to indicate your video clip is recording. Click the red icon again, to stop recording. www.feltest.com... -
Page 60: Edit Photo/Video
The captured videos will appear as thumbnails on the right side of the preview window under the video tab. Edit photo/video Captured photos and videos appear as thumbnails on the right side of the preview window. Photo Double click a photo thumbnail to open in the main preview window www.feltest.com... -
Page 61: Help Info
Click a video clip thumbnail and the video will play automatically. Help info By choosing About Portable Capture, you can get help info from your local agent. Quit Portable Capture Choose Quit Portable Capture so you can exit the software. www.feltest.com... - Page 62 Designed for the paper industry! OPERATOR Handling of Paper Machine Clothing (PMC) during a SAFETY machine stop can be a hard job. The Feltest Capto makes it safer; safer for the operators, safer for the fabrics and felts. EASY HANDLING...
- Page 63 Feltest Originals TENSIOMASTER The best-known tension gauge in the paper industry. BETTER Correct tension equals CONTROL improved runnability, decreased costs and improved productivity. PREVENT WRINKLES SAFE, QUICK RELIABLE Feltest Originals CALIPER PROFILER Edge caliper profiles on the running machine! IMPROVE...
- Page 64 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. Manufactured in China for Feltest Equipment BV P.O. Box 205 6960 AE Eerbeek The Netherlands...
