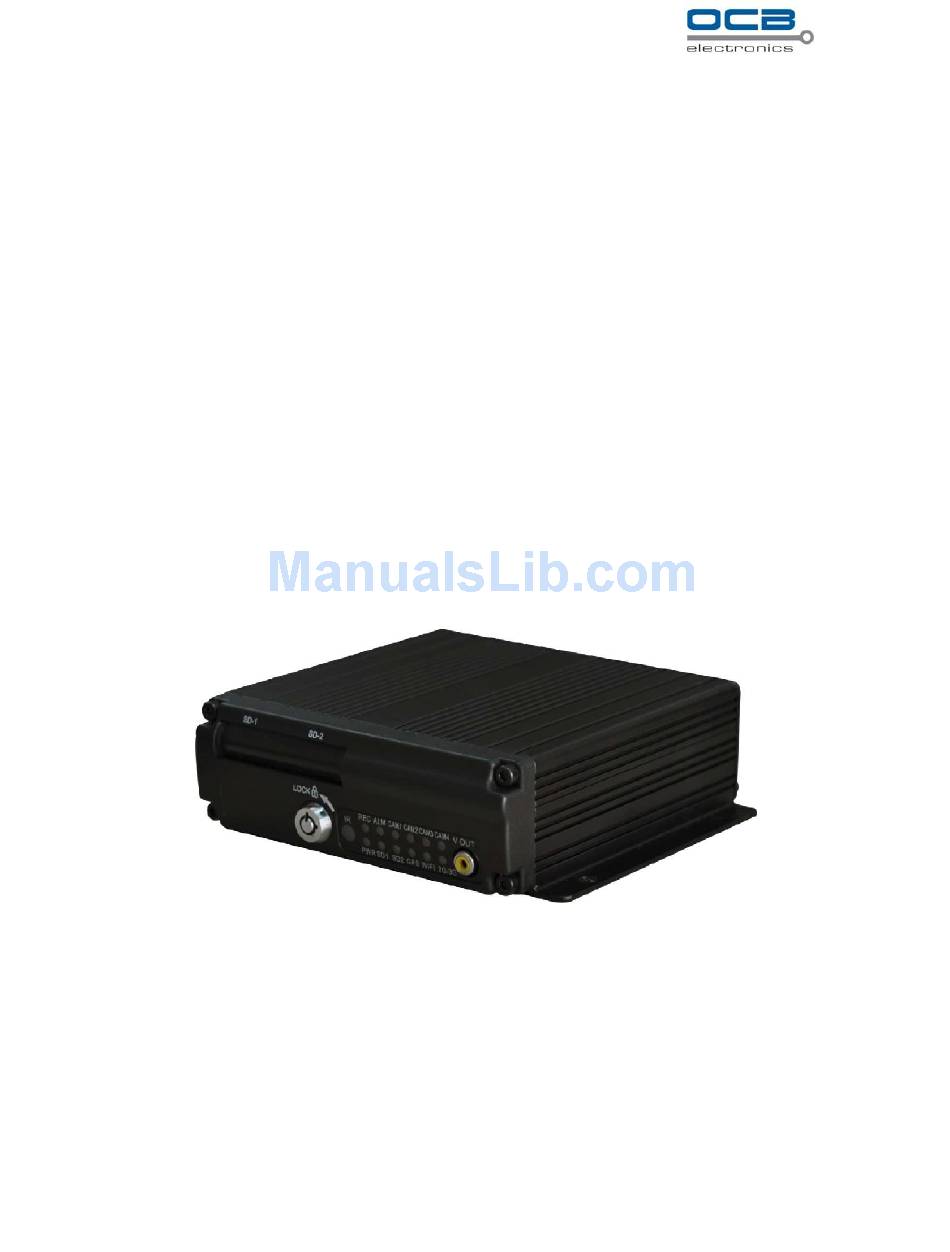

  • Page 1 Mobile DVR MANUAL Dual SD cards OCB-1000CW...

  • Page 2: Table Of Contents

    Contents FEATURESOFPRODUCT………………………………………………………………….3 Product Applications…………………………………………………………………………6 APPEARANCE OF PRODUCT……………………………………………………………..7 Deviceuserguide……………………………………………………………………………14 4.1. Remote controlfunction………………………………………………………………14 4.2. Menu Structure……………………………………………………………………….17 4.3. Login Menu…………………………………………………………………………..18 4.4. Main Menu……………………………………………………………………………18 4.5. SYSTEM SETUP…………………………………………………………………….19 4.6. RECORDING SETUP………………………………………………………………. 22 4.7. VEHICLE INFO………………………………………………………………………24 4.8. MANAGEMENTTOOLS…………………………………………………………….26 4.9. PLAYBACKMENU…………………………………………………………………..28 4.10. Shortcutsetup………………………………………………………………………….29 4.11. Module management………………………………………………………………….29 4.12. SYSTEM INFO………………………………………………………………………31...

  • Page 3: Featuresofproduct

    1. Features of Product The MDVR (Automotive) is a cost-effective, functional and scalable device designed for video surveillance and remote monitoring of your mobile assets. It uses a high-speed processor, an embedded Linux platform and combines the most advanced IT processes such as H.264 Video Compression/Decompression, networking and GPS positioning technology.
  • Page 4 Audio Bitrate 4Kbytes/s Support Dual SD card storage, 32GB for Storage each. 6 alarm input, No alarm below 4V, high level Alarm input alarm above 4V. Alarm Alarm output 2 alarm output, high level 12V output. Serial Interface Support 1-RS232 interface Communication Serial Interface Support 2-RS485 interface...
  • Page 5 Video input 75Ω 75Ω for each video input impedance impedance Input 2Vp-p CVBS analog signal, reveal device input Video output Volt 2Vp-p need 75Ω impedance to fit 0—4V Low level alarm I/O interface High level alarm Above 4V 1.32GB for each card. SD-card interface 2 SD cards 2.SD-card for storage, support recording and system...

  • Page 6: Product Applications

    2. Product Applications...

  • Page 7: Appearance Of Product

    3. Appearance of Product Device Appearance MDVR Device Appearance Device drawing Dimension & Install Holes...
  • Page 8 Device Dimension & Install Holes Front & Back Panel led & Plug-in module. 1.2 Front & Back Panel led & Plug-in module Front Panel definition as below: Front & Back Panel led & Plug-in module. Interface Description...
  • Page 9 VIDEO-OUT VIDEO-OUT Video Simulation output SD1 card recording led, light on as SD1 exist. SD1 card recording led, light on as SD2 exist. Recording led light on as recording GPS signal led light on as GPS module exist. POWER Led, Light on as power normal ALM LED, light on as device abnormal Light on as CAM1/CAM2/CAM3/CAM4 CAM1/CAM2/CAM3/CAM4...
  • Page 10 Back Panel interface definition as followed: Pic 8 Back Panel interface definition Interface Items Description WIFI interface WIFI Wireless LAN antenna interface GPS interface GPS antenna interface 2G/3G interface 2G/3G 2G/3G antenna interface Power input DC8-36V Power input interface interface System adjust info interface Extended interface EXTENTION...
  • Page 11 NOTES 1 Please verify battery voltage before connecting. Voltage accepted is between 12V-36V. A higher voltage will damage the device. 2 After connecting the cables, ensure that power cables are insulated to prevent short circuiting and burning out the battery. 3 The Yellow cable must be connected to the vehicle ignition cable, otherwise the device will not be able to execute the delayed shutdown and the final moment of the video will be lost.
  • Page 12 Alarm input and output The device has 6 alarm input and 2 alarm output interfaces. Various state of alarm level can be detected while the vehicle is in motion. Action`s such as braking, steering horn etc. Below is a diagram that shows when the braking vane Is depressed, the MDVR would be able to detect the high level, otherwise, just detect the low level.
  • Page 13 Device Installation Guide nspecting the Accessories After unpacking, please check the device for damage or deformation. If there are, please do not install the device and get in touch with the supplier. In the product box there is a packing list. Please cross check this list with the device and its accompanying accessories.

  • Page 14: Deviceuserguide

    4. Device user guide Remote control function 4.1.
  • Page 15 There is no control button on MDVR panel, need remote control to fit operating. Key-press & function as below: a) Digit keys zone 0 9 key Under setting Use for select digit. During playback and preview 1 2 3 4 is for the switch of the channels key adjust digit when plus or deduct.
  • Page 16 PAUSE / STEP When playback recording, press STEP, a time play a step, press PAUSE, it stop. Press play key, then normally played. GOTO When play back, press it can jump to designated time and play. FRAME Press FRAME key, then FRAME play. PLAY key, when PAUSE, it will show still image PLAY...

  • Page 17: Menu Structure

    Menu Structure 4.2.

  • Page 18: Login Menu

    Login Menu 4.3. Note After connect the cable, press LOGIN key enter login, as below: Device No. Users set the NO. for each device, it will show when login on the right. Password User psw / Admin psw, PWD:111111. user psw can only select, When using user PSW enter, can only find, can not login.

  • Page 19: System Setup

    2 When check box is filled denotes select certain function, unfilled denotes not select certain function. 3 Digit input can follow digit key on the remote control input directly or using soft keyboard, the letter must be input by soft keyboard, press RETURN back to submenu. SYSTEM SETUP 4.5.
  • Page 20 Note 1 Date type: press ENTER for switch Y-M-D/ D-M-N. 2 "DATE": system date, press ENTER , and then press to setup, press ENTER again to confirm. "TIME": Same as date setup. 3. "OPR TIMEOUT", "DEV NUM": Press CANCEL and then Press the digit keys to setup them.
  • Page 21 Press ENTER on "Power mode" ‘’Power off delay’’ setting. 4 ’’Delay time setting’’ press CANCEL then press digit key Note Time range:3—120min Note: 1 ’’IP ADDR NETMASK,GATEWAY” setting: Press CANCEL then press digit key to switch. 2 ’’MAC ADDR Setting’’ Press ENTER, to soft keyboard. Press direction key, then ENTER the related add.

  • Page 22: Recording Setup

    2 ”USER PSW’’ “ADMIN PSW”: Press CANCEL—Digit key—Save—RETURN RECORDING SETUP 4.6. Recording setting NORMAL, CHANNEL, TIME LIST, SUB-STREAM Note:1 SYSTEM: Press ENTER select PAL NTSC 2 REC MODE: Press ENTER select Auto/ Alarm/Timed. 3 PACKET TIME: Press ENTER select 15/30/45/60 4 OVER WRITTEN: Press ENTER select ON/OFF 5 ALM PRE(S): Press CANCEL, then press digit key (time range 0S-- 60S).
  • Page 23 9 REC VEHICLE INFO: Press ON/OFF. Note Press Direction key set up the Channel, select CH1 Enable, then press ENTER-ON/OFF, Press right key select resolution ratio, then press ENTER select D1/HD1/CIF The same settings for FRM 01----30 optional , QUAL 1---8 level, 1level is the best , AUDIO, PREVIEW as Res.

  • Page 24: Vehicle Info

    Note 1 Bit rate setting:16/24/32/40/48/56/64/72/80/96/128/160/200/256/384 optional. 2 Frame setting 01/02/03/04/05/07/10/13/15/20/23/25 optional VEHICLE INFO 4.7. Vehicle info Sensor, Speed, Accelerate, Temperature...
  • Page 25 Note 1 Press ENTER, then press CANCEL can modify the Name, such as setting icon is on the F-DOOR Enable, pls press ENTER select ON/OFF, Press right select PW LEVEL, press ENTER, select HIGH/LOW level. 2 The same setting with R-DOOR BRAKE LEFT RIGHT Enable PW LEVEL RECORD ALM as F-DOOR Note 1 SPD SOURDE: GPS/VEHICLE Press ENTER to switch 2 SPD ADJUST: Press CANCEL then press digit key P/S: Press CANCEL...

  • Page 26: Managementtools

    press CANCE, then press digit key set up Threshold, press right key, then press ENTER set up the Record ON/OFF. 5 High speed ALM Enable: the same setting as low speed ALM Enable. Note 1 X setting: Press Direction key, making the setting on the X enable , then press ENTER—select ON/OFF;...
  • Page 27 Note Press ENTER select SD1/SD2, then press right key, press ENTER select format or not. Warning Format will lost all the data in the device. For sure, press FORMAT. Or else, press CANCEL. Note Press down key for Reset settings then press ENTER system remind message For sure to reset, press ENTER.

  • Page 28: Playbackmenu

    Note System upgrade including: file system, application, Press ENTER Note Press direction key select START TIME, END TIME, then press digit key setting. PLAYBACK MENU 4.9.

  • Page 29: Shortcutsetup

    Note 1 REC TYPE:ALL/ALARM ALM REC Press ENTER 2 CHANNEL: SD1/SD2, Press ENTER 3 DATE START TIME, END TIME, Press left/right key, then press digit key. Shortcut setup 4.10. Module management 4.11. Out setting Management: WLAN and WIFI setting.
  • Page 30 Note: 1 Press ENTER key, then ON/OFF for the wireless. 2 Press DOWN key then press ENTER select EVDO/WCDMA 3 APN/CENTER NUM /USER NAME / PASSWORD ENTER—CANCEL—Direction key—ENTER—RETURN Note 1 WIFI and ENCRYPT setting: ON/OFF Press ENTER 2 AUTH MODE select WPA/WPA-PSK/OPEN/SHARE, press ENTER 3 ENCRYPT TYPE setting: select TKIP/AES Press ENTER 4.

  • Page 31: System Info

    SYSTEM INFO 4.12. Note Press ENTER switch previous or Exit.
