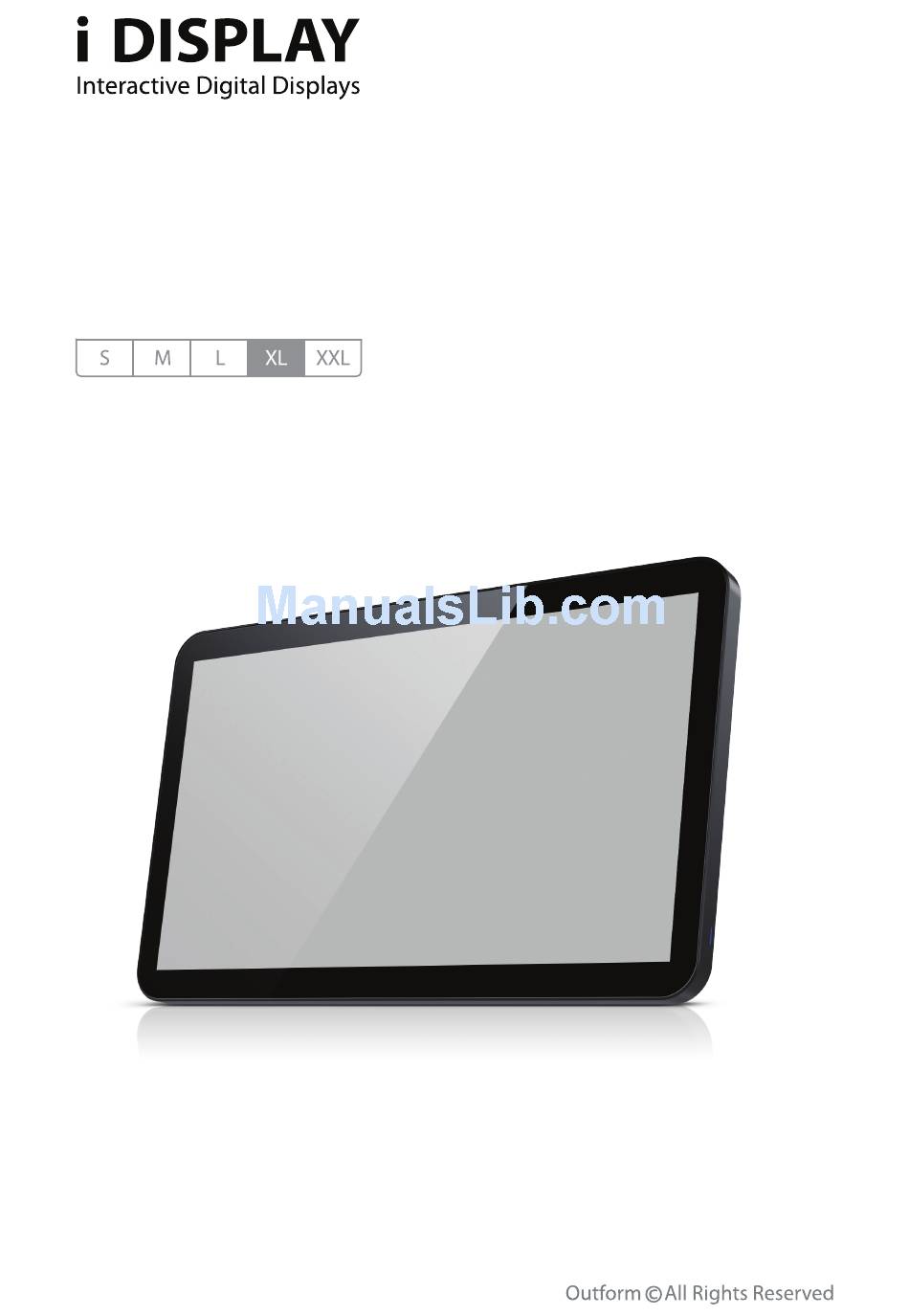

- Page 1 Retail Tablet User Manual...
- Page 3 About This Guide Thank you for purchasing an i DISPLAY product. We recommend reading this user guide carefully in order to achieve optimal pleasure and performance and to maximize the service life of this product. This guide describes how to setup the Retail Tablet. This guide is intended for retail personnel, sales people and anyone who wants to set up the Retail Tablet in a retail environment.
-
Page 5: Table Of Contents
Index Safety and Warnings Introducing the Retail Tablet XL Getting Started Playing Content Main Android OS Screen (Home Screen) Retail Tablet Accessories... -
Page 6: Safety And Warnings
Safety and Warnings NOTE This mark is applied to indicate that the equipment conforms to European safety and electro-magnetic compatibility standards. WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. -
Page 7: Introducing The Retail Tablet Xl
Introducing the Retail Tablet XL This chapter introduces the Retail Tablet and its components. What is the Retail Tablet? The Retail Tablet is an Android-based (Android OS 2.3), interactive digital display that is specifically designed to be used by the retail market. The Retail Tablet is a robust, yet slim line unit that features a multi-touch screen, front camera and embedded Wi-Fi and 3G (optional). - Page 8 Introducing the Retail Tablet XL...
- Page 9 Description Multi-Touch Screen with embedded Wi-Fi and 3G (optional) Power Indicator Bracket Screws for Attaching Multiple VESA Options Home Button (Back) USB Port Micro SD port for playing content USB Port PB-Molex connector for Connect Box. A Connect box has up to 12 buttons (push or touch) and one motion sensor.
-
Page 10: Getting Started
You may refer to the Logging Out of the Retail Tablet Autoplay Application section on page 11 for instructions on logging out of the i DISPLAY Autoplay application in order to access a standard Android OS screen To turn on the Retail Tablet: Connect one side of the power supply to the tablet’s DC In socket located on its... - Page 11 Logging Out of the Retail Tablet Autoplay Application The Retail Tablet is preconfigured to automatically start its Autoplay application when it is turned on. The following describes how to log out of the i DISPLAY Autoplay application in order to go to a standard Android OS screen.
- Page 12 A standard Android Home screen is then displayed, as shown below: By default, the Retail Tablet is password protected in order to ensure that only authorized retail personnel can modify and configure it, as described below. You have the option to disable/enable the requirement to enter a password using the Enable/Disable Password.
-
Page 14: Playing Content
Playing Content This chapter describes the various options for displaying videos, pictures and applications on the Retail Tablet. What Does the Tablet Play? The Retail Tablet runs standard Android applications (apk) using Android OS 2.3. Video Formats: The Retail Tablet plays the following video formats: •... - Page 15 order: car-choice-banner.jpg • car-choice-banner.mpeg • top-of-range.mpeg • then the tablet will first display the car-choice-banner.jpg image for three seconds, and then play the discount-car.mpeg video and then play the top-of-range.mpeg video. The tablet will then repeatedly play this sequence in a loop. Connect Box –...
- Page 16 The Retail Tablet can be used to automatically play the content of a specific file in the Root directory of the tablet when a barcode reader is connected. Copy a file onto the Retail Tablet with the same exact name as the barcode. The tablet will then automatically play the content of that file when a product with that barcode is read.
- Page 17 NOTE Do not turn off the Retail Tablet or remove the USB drive while it is copying. We recommend removing the USB disk after its content has been successfully copied. Loading Content into Other Folders You can use the standard Android Explorer to copy folders/files to the tablet. For example, into the Folders 1 through 12, the MS folder or a file with the same name as a barcode.
-
Page 18: Main Android Os Screen (Home Screen)
Settings: Tap to configure Retail Tablet settings, such as Wi-Fi, Mobile and so on. i Display: Tap to return to autoplaying the content of Folder 0 in a loop. Explorer: Tap to open a standard file explorer window which you can use to transfer files to/from the Retail Tablet. - Page 19 Display Brightness We recommend setting the Retail Tablet screen to its maximum brightness, as follows. Either: Use the Brightness button on the back of the Retail Tablet – OR – Use the Settings --> Display --> Brightness option, which can be accessed from the Android OS screen.
-
Page 20: Retail Tablet Accessories
Retail Tablet Accessories This chapter describes the mounting attachments and other accessories that can be connected to the Retail Tablet. Printer The Retail Tablet supports standard Android OS 2.3 printer drivers. This enables the connection of a printer that can be used by the applications (apks) that you load, such as coupon printer. - Page 21 Mounting Options The following are some of the mounting options available from i-DISPLAY. Fixed Shelf or Table Bracket Rotating Shelf or Table Bracket Counter Display Retail Tablet Accessories...
- Page 22 Floor Display Refer to www.i-display.com to download the latest product specification sheet Retail Tablet Accessories...
- Page 24 For further information or support, please contact: support@i-display.com...
