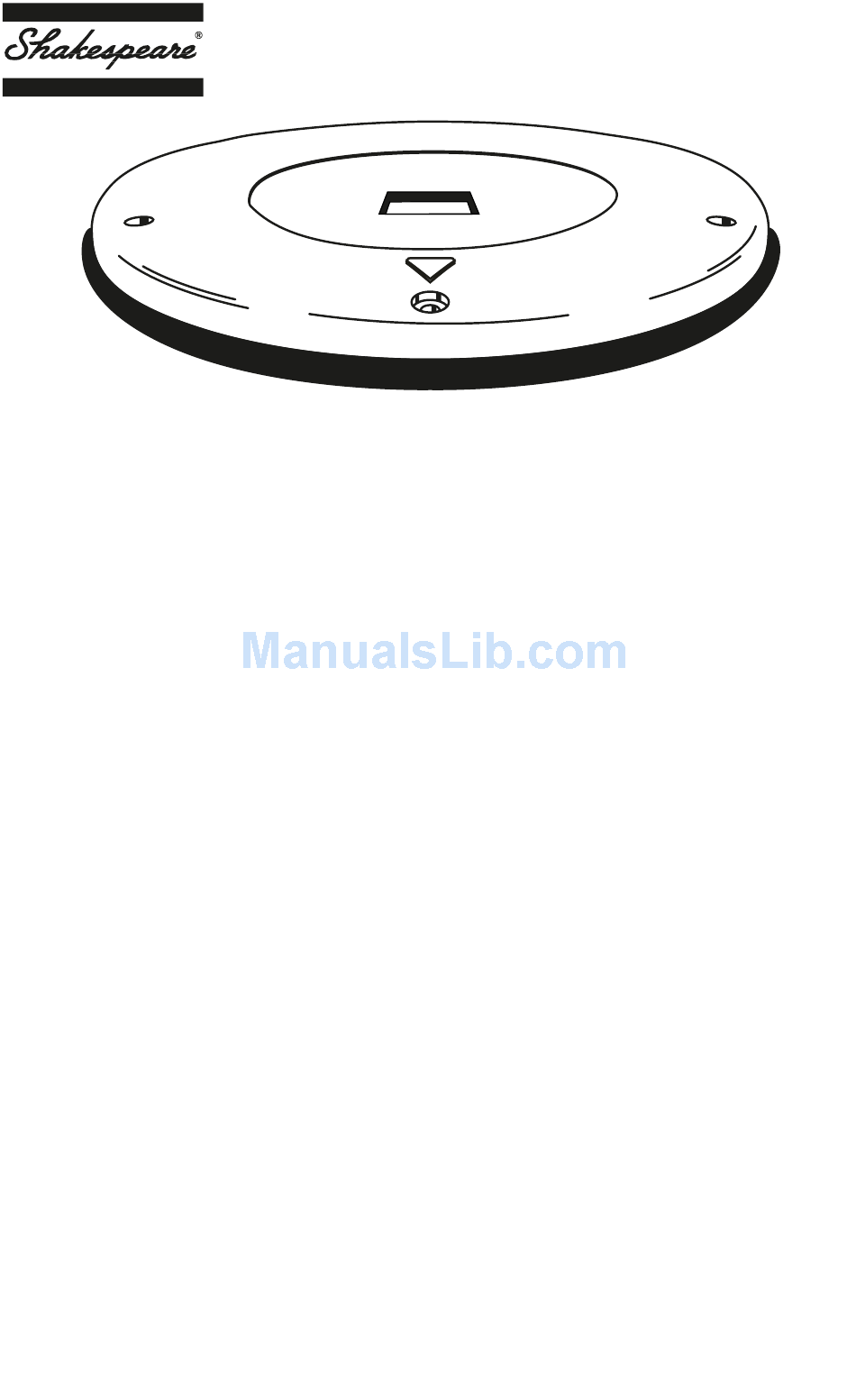

Shakespeare Electronic Style SM-30 User Manual

Surface mount kit

Thank you for choosing a Shakespeare product. Shakespeare works hard to build

reliability and durability into all of its products for maximum customer

satisfaction. Customer comments are welcome. Before installing, please study

the diagram and check parts supplied against those listed.

IMPORTANT: Please read all instructions before installing.

The Style SM-30 is a surface mounting kit to simplify mounting a Shakespeare

Style Galaxy

SRA-30 Satellite Radio Antenna (sold separately) on RV roofs, boat

radar arches or other surfaces where it is difficult or impossible to reach

underneath to attach nuts and bolts. The mounting kit provides a convenient way

to route the antenna's coax cabling with or without passing the cable through the

mounting surface.

Supplied parts: (1) mounting base

Tools required: Screwdriver. Drill and drill bits (9/16", 7/64"), or other tools may

also be needed.

1 Shakespeare Galaxy

Lockwasher and hex nut supplied with SRA-30

(1) mounting gasket

(5) Self-tapping mounting screws with rubber gaskets.

SRA-30 Satellite Radio Antenna (sold separately)

Style SM-30 Surface Mount Kit
