Shakespeare Electronic Style 4188-S Installation Instructions

Thank you for purchasing a Shakespeare antenna product.
Customer comments are welcome. Before installing, please study the
diagram and check parts supplied against those listed.
IMPORTANT! Please read all instructions before installing.
The Styles 4188-S and 4188-SL Rail Mounts are four-way, ratchet
action rail mounts with handle. They are made of stainless steel,
and mount easily on vertical, horizontal, or slanted rails. Their dual
swivel action permits easy lowering of the antenna to clear overhead
obstructions. The Style 4188-S accommodates 7/8" and 1" rails. Style
4188-SL is for 1", 1¼" or 1½" rails. Each mount has a 9/32" hole for
cable feed-through and standard 1"-14 threads.
Tools required: Allen wrench

Installation Instructions

1. Choose an antenna mounting location that is as high as possible,
as free as possible from obstructions, and as far as possible from
other antennas or strong sources of RF. Be sure the rail to which
you are mounting is sturdy, and capable of supporting the strain
of your antenna. You can attach the mount to a vertical, slanted,
or horizontal rail. Unlevel or non-perpendicular mounting can
be accommodated through the bottom swivel. For convenience,
orient the mount so that the handle action will control the up/down
position of the antenna.
2. Remove the two bolts which hold the bottom grip in place. Align
the two parts of the mount on the rail end using the bolts supplied.
3. The lower ratchet mechanism of the mount is controlled by a large
screw, which is accessible when the bottom mounting plate is
removed. To rotate the antenna around the bottom ratchet, remove
the two bolts (and washers) and use an Allen wrench to loosen
the mechanism for adjustment. The handle tightens only the top
ratchet.
4. Assemble the antenna to the Rail Mount, being careful not to
damage the antenna's cabling, if any.
To raise or lower the antenna, loosen the handle by lifting it away
from the mount's base, move the ratchet to the desired position, and
tighten the handle.
U.S. Operations: 6111 Shakespeare Rd. · Columbia, SC 29223 · 803-227-1590 · Fax: 803-419-3099 · www.shakespeare-marine.com
U.K. Operations: Enterprise Way, Fleetwood, Lancashire, FY7 8RY, England · +44 (0) 1253 858787 · Fax: +44 (0) 1253-859595 · www.vtronix-antennas.com
©2001, 2005 Shakespeare Co. · Form I-4188-S-4188-SL J: rev. 04/25/2010
Shakespeare Electronic Products Group
Styles 4188-S and 4188-SL

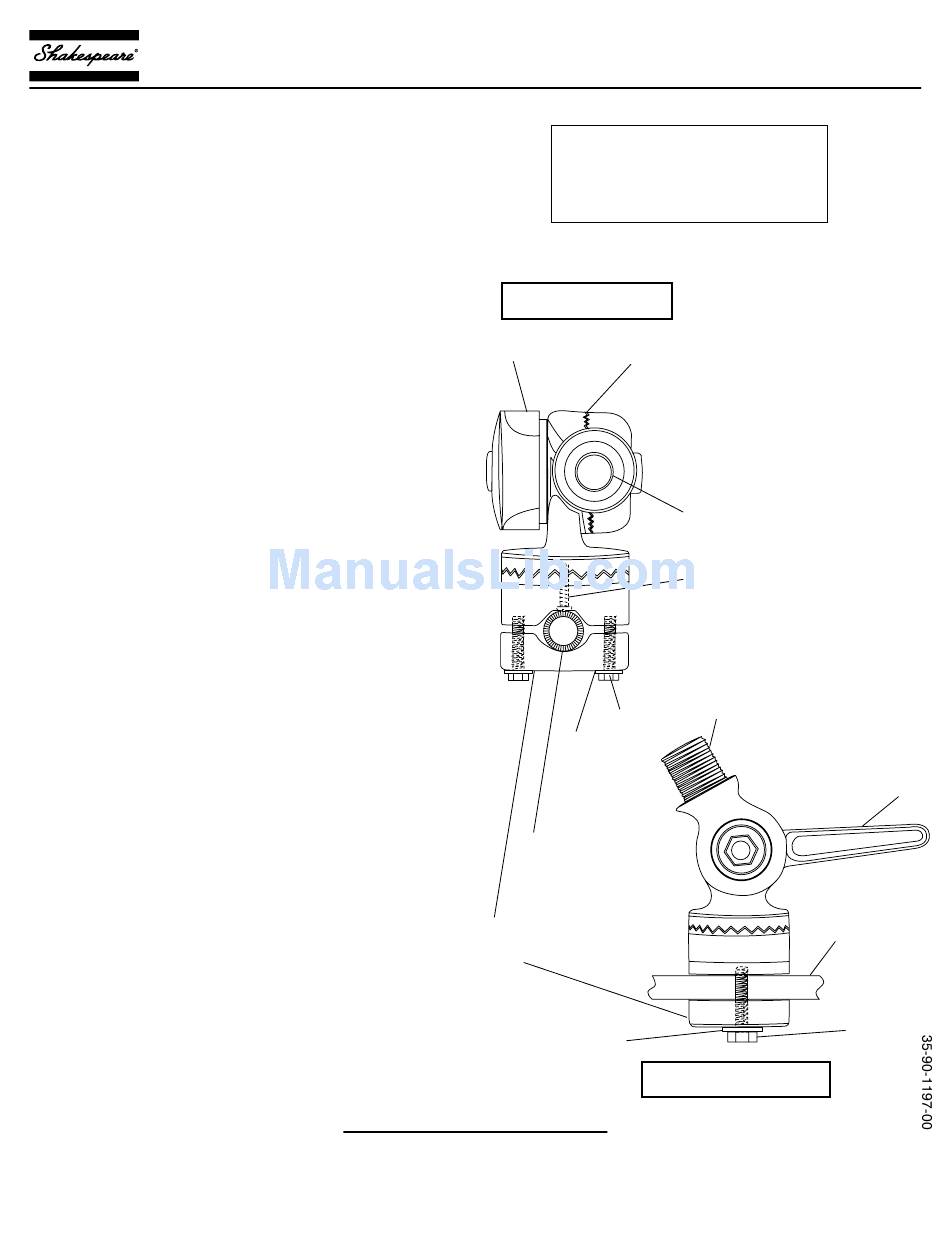

Supplied Parts
