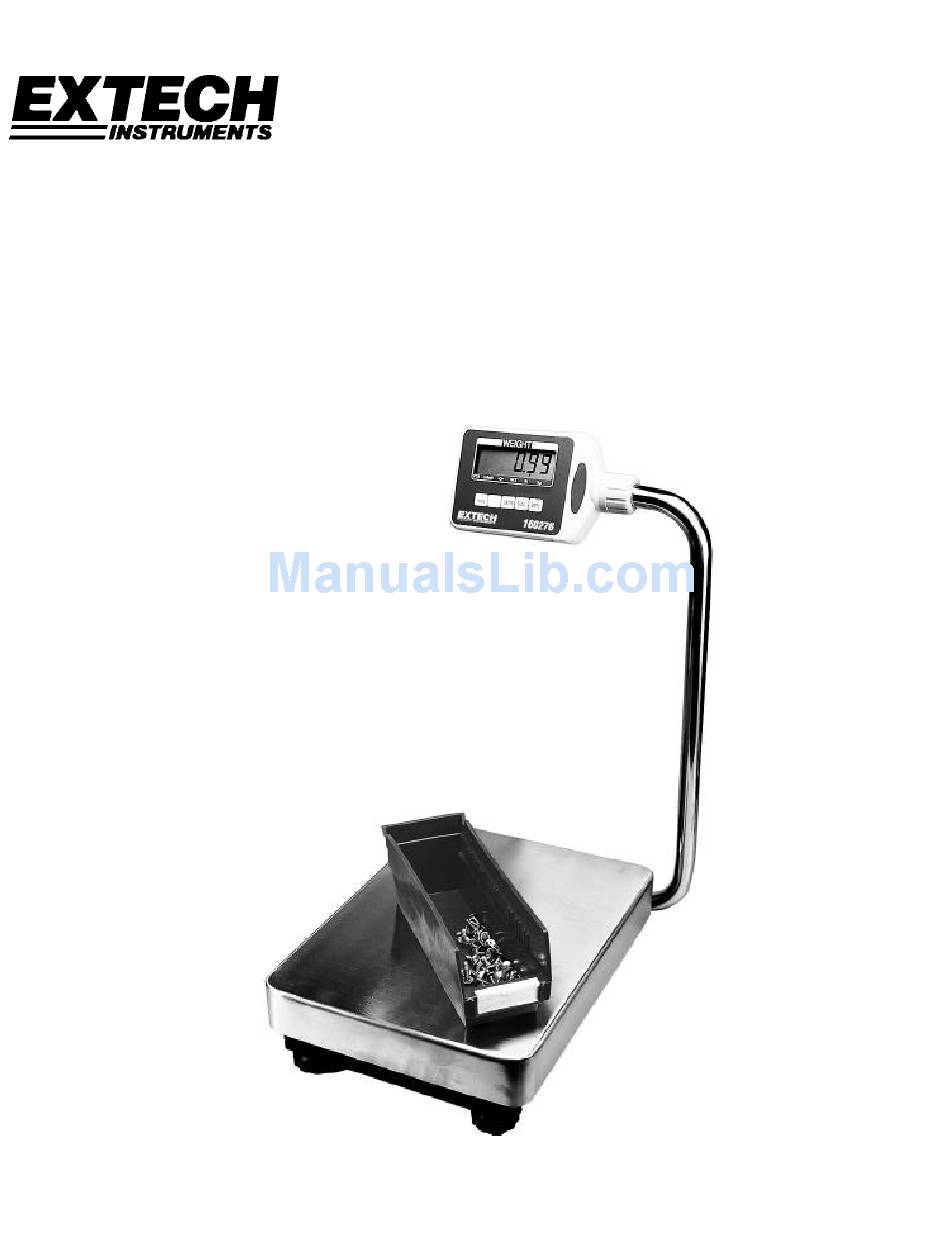

- Page 1 User’s Manual High Capacity Bench-top Counting Scale Model 160276...
-
Page 2: Warranty
WARRANTY EXTECH INSTRUMENTS CORPORATION warrants the basic instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies on sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 for authorization. -
Page 3: Specifications
Introduction Congratulations on your purchase of Extech’s 160276 High Capacity Bench-top Counting Scale. This scale accurately weighs components and parts up to 66lbs / 30kgs. Sample Counting and Tare functions are standard. The Scale is battery operated and the internal battery is rechargeable using the supplied 117AC adapter/recharger. -
Page 4: Scale Description
Scale Description 1. Scale platform 2. Adjustable scale legs 3. Programming keypad 4. LCD display 5. Display locking nut 6. Display arm 7. Allen screws for display arm adjustment 8. AC adapter/recharger input (rear of display) Preparation 1. Place the scale on a firm, stable tabletop before use. Level the scale by adjusting the scale legs. 2. -
Page 5: Operating Instructions
Operating Instructions Explanation of LCD Displays GROSS WEIGHT Total weight on the scale platform displayed in lbs. or kgs. NET WEIGHT Net weight is displayed when the Tare function is used QUANTITY LCD indicates the number of pieces on the Scale platform. Explanation of LCD Down-Arrow indicators Appears when the Scale is zeroed. - Page 6 Tare Operation Tare allows you to weigh samples with the samples still in a container. The container weight becomes the “tare” weight and is subtracted from each reading so that only the product sample weight is displayed. 1. Place the container on the platform. 2.
-
Page 7: Maintenance
Maintenance Battery Recharging When the low battery down-arrow indicator appears above the word LoBatt, connect the AC Adapter/Recharger to the Scale (behind the LCD display). Then plug into a 117VAC 50/60Hz outlet to begin charging. When the battery is fully charged, the down-arrow indicator above the word LOBATT disappears. - Page 8 Notes...
