Summary of Contents for HDigit FM / Internet Radio
-

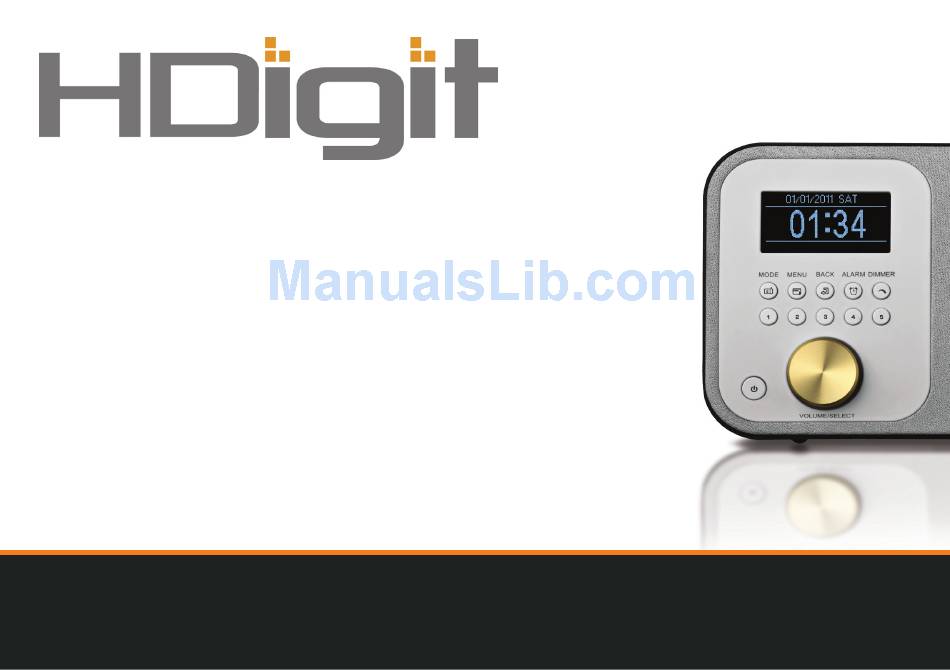

Page 1: Instruction Manual
English Instruction Manual FM / Internet Radio with Audio Media Streaming and AUX IN... -
Page 2: Safety Information
English IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of electrical shock, fire, etc: 1. Read these instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. The lightning flash with arrowhead symbol within an 5. Do not use this apparatus near water. equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 Orbiter English 9. Do not defeat the safety purpose of the polarized or grounding - type plug. a polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 4: Table Of Contents
English Contents Safety Information Configuration Network Settings Package Content Setting Clock Setting Alarm Internet Radio Quick start Guide Language Front Controls Overview Dimmer Back Controls Overview Sleep Timer Connecting to Network Buffer Shift to Wired Network Weather Choosing a Station DLNA Setup Searching and Adding Radio Stations Set Equaliser... -
Page 5: Package Content
Orbiter English Package Contents Main Unit Instruction Manual Adapter... -
Page 6: Internet Radio Quick Start Guide
English Internet Radio Quick start Guide What you need before you can use your Internet radio Thanks for your purchase! We feel sure that it will provide you with years of enjoyment and reliable service. LAN Setting: • Make sure the Internet facility is ready and the network setting is available for LAN (ADSL or Cable Modems are highly recommended). •... -
Page 7: Front Controls Overview
Orbiter English Front Controls Overview Press to turn on/off Radio When alarm sounds, press to turn alarm off MODE Press to shift to another mode. MENU Press for Main menu and other options. FM mode: when frequency is displayed, press and hold to enter “TURN TO TURN”... -
Page 8: Back Controls Overview
English Back Controls Overview Power Cord socket: For power adapter connection AUX IN socket: Connects to the external audio device Headphone socket: A 3.5mm Headphone Socket used for either headphones or an earpiece LAN socket: Inserting a plug will automatically mute the internal loudspeaker R/L audio socket: Unique design for LAN cable... -
Page 9: Connecting To Network
Orbiter English Connecting to Network Step 1 - Power up Radio Firstly, connect your Internet Radio adapter and ensure the Power LED lights up. In use, the Radio can be → switched on or off by pressing . Step 2 – Access to Network In some cases, it may find more than one network. -
Page 10: Shift To Wired Network
English b. If you find the wrong character has being input, press BACK to return to that character. c. After the input is done, when the cursor points to , press the Scroll knob to try accessing the Internet. It should now successfully connect to your network. Note: a. - Page 11 Orbiter English • If your radio fails to access the network, please do the following: a. Check your Router, see if it is working normally or not. b. Check your LAN cable, make sure it hasn’t been damaged, c. Make sure the port of the cable inserted into the LAN socket is firmly connected. Step 2 –...
-
Page 12: Choosing A Station
English Choosing a Station After your radio is connected to the network, you are ready to select a station. 1. When the cursor is pointing to < Internet Radio >, press the Scroll knob to confirm. → 2. Rotate the Scroll knob to <Radio station/Music>, ress to confirm. -
Page 13: Local Stations
Orbiter English Local stations Note: make sure your radio is already connected to the network. → → 1. Press MENU ‘Internet Radio’ ‘Local Radio’ , press the SCROLL knob to confirm. Note: ‘Local Radio’ can be changed according to your current location, for instance, it can be local US, or local UK, etc. Simply, it’s a very easy way for you to find your local programs. -
Page 14: Station Updates
English Station Updates Occasionally, your radio will show you that it is receiving an updated station list. It does it automatically and periodically, ensuring your radio always has the latest station directory on-board. Setting Station Preset as My Favorite Note: My Favorite is unique designed for storing your favorite Internet programsLocation, Australia, Canada, United Kingdom and USA. -
Page 15: My Mediau
Orbiter English My mediaU My mediaU enables synchronization of your radio program with the web, before executing this order, you need to follow the 4 steps below: 1. Visit www.mediayou.net, click ‘join now’ to create a new account. Note: please save your registered ‘E-mail address’ and ‘Password’ . 2. -
Page 16: Music Player Mode
English Music Player Mode Setting up a Music Server P In order for your radio play music files from a computer, the computer must be set up to share files or media. P UPnP media sharing allows devices like this radio to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre. -
Page 17: Fm Mode
Orbiter English PLAY SHARED MEDIA 1. Switch your radio on and press MODE repeatedly until <UPnP> is displayed, or alternatively, → → Press MENU < Media Center > < UPnP>, press the Scroll knob to confirm. 2. Rotate the Scroll knob to your favour UPnP option, press to confirm, and then step by step to the program you like. FM Mode General Operation 1. -
Page 18: Aux Mode
English Station Preset Note: your radio can also provide you with 5 preset stations. To store the current station: While playing your desired FM program, press and hold one of the PRESET 1-5 for 2 sec., until the preset number shows up in front of frequency. -
Page 19: Configuration
Orbiter English Configuration Network Settings Note: this setting allows you: → a. Wired Network Configuration Enable (access to wired network) /Disable → → b. Wireless Network IP Properties Enable (access to wireless network Router) /Disable c. Manual Configuration: Wired/Wireless. → d. -
Page 20: Setting Clock
English Setting Clock 1. Press MENU, and then rotate the Scroll knob to <Configuration>, press to confirm. 2. Rotate the Scroll knob to <Date &Time>, press to confirm. Note: before you set Date and time, you also can do the following items first if you like. →... - Page 21 Orbiter English • Repeat: Everyday: Everyday ( Sunday to Monday ) or Once • Time: 00:00 • Sound: Melody, Beep, Internet or FM. If you intend to set Internet or FM program as alarm sound, please ensure that corresponding Internet or FM stations preset are done. 6.
-
Page 22: Language
English Language → → 1. Press MENU <Configuration> <Language>, press the Scroll knob to confirm. 2. Rotate the Scroll knob to your selected language option, press to confirm. Dimmer → → 1. Press DIMMER, or alternatively, press MENU <Configuration> <Dimmer>, press the Scroll knob to confirm. -
Page 23: Buffer
English Orbiter Buffer → → 1. Press MENU < Configuration > < Buffer >, press the Scroll knob to confirm. 2. Rotate the Scroll knob to your preferred one, press to confirm, it is done! Weather → → 1. Press MENU <... -
Page 24: Dlna Setup
English DNLA Set Up Note: this order isn’t necessary unless you wish to rename your iRadio. → → 1. Press MENU < Configuration > < DLNA Setup >, press the Scroll knob to confirm. 2. Now your radio will ask you Rename (iRadio), press the Scroll knob to confirm, and follow your radio’s instructions to set it. Set Equaliser Note: Several preset EQ modes are available: Normal, Flat, Jazz Rock, Movie, Classical, Pop and News. -
Page 25: Changing Volume
Orbiter English Changing Volume When your radio goes into a program, turn the SCROLL knob to adjust volume, if the volume picture is not displayed, please ensure that no system settings or main menu settings are being processed. General Operations Browse Weather Information 1. -
Page 26: Troubleshooting
English Troubleshooting If you experience any trouble with your wireless Internet Radio, then you may find it useful to visit the help section on our webpage: www.mediayou.net If you have trouble connecting the Radio to your wireless network, these steps may help to resolve the problem: 1. -
Page 27: Specification
Orbiter English Specification Specifications: WiFi Internet Radio with Audio Media Streaming and AUX IN Power Supply: AC Power Input: 100-230VAC, 50-60Hz Please use our provided adapter Frequency Ranges: FM: 87.5-108MHz Rated Output Power: 7 Wrms LCD Display: High resolution display Speaker: 4 ohm Headphone Jack... - Page 28 Instruction Manual FM / Internet Radio with Audio Media Streaming and AUX IN...
