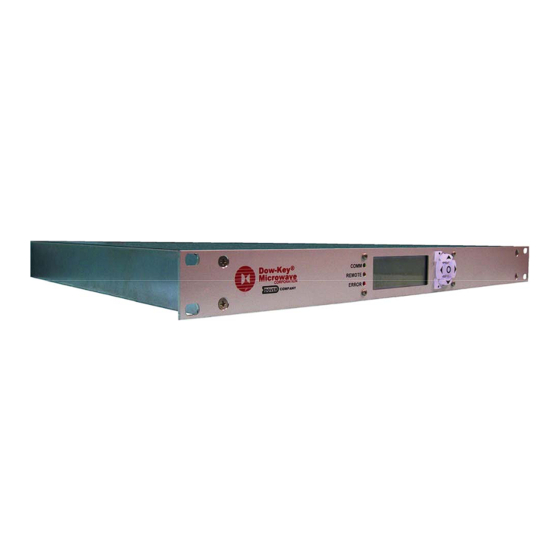

- Page 1 “There Is No Substitute for Experience” DOW-KEY MICROWAVE 1U MS, MP, CB Matrix Series MS-1U18S-4/6-ENET CAN BUS RF SWITCH MATRIX Operator’s Manual Rev 1 THE RF/MICROWAVE SWITCHING TECHNOLOGY SOLUTION COMPANY...
- Page 2 Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved. Printed in the U.S.A. Dow-Key is a registered trademark of Dow-Key Microwave Corp. Document Number: 49101-237 Revision 1 4822 McGrath Street, Ventura, CA 93003 Tel: (805) 650-0260 Fax: (805) 650-1734 Visit at www.dowkey.com...
- Page 3 WARRANTY Dow-Key Microwave Corporation warrants this product to be free from defects in material and workmanship for a period of 1 year from date of shipment. This warranty does not apply to defects resulting from product tampering or modification without Dow- Key’s express written consent.
- Page 4 Manual Revision History The revision history shown below lists all revisions and addendums created for this manual. The revision level increases numerically as the manual undergoes subsequent updates. Addendums are released between revisions and contain important change information that the user should incorporate immediately into the manual.
-
Page 5: Table Of Contents
Table of Contents 1 General Information ...................... 1 Introduction ......................1 MS Matrices ....................... 2 MP Matrices ....................... 3 CB Matrices ......................4 Technical Specifications ..................5 Safety Precaution ....................6 ... - Page 6 6.4.3 *RST ......................34 System Commands ..................34 6.5.1 SYST:ERR? ....................34 6.5.2 SYST:IPADDRESS? ................. 38 6.5.3 SYST:IPADDRESS xxx.yyy.zzz.aaa ............38 6.5.4 SYST:TCPPORT? ..................39 6.5.5 SYST:TCPPORT x ..................39 ...
-
Page 7: General Information
General Information Introduction The Dow-Key Microwave 1U MS, MP, CB Switch Matrix series are electromechanical RF matrices. They come equipped with an Ethernet port which allows the user to easily access the matrix from anywhere in the world via TCP/IP on 100BaseT networks. Other interfaces included are an RS-232 port, an USB (used as virtual serial port) and a CAN Bus port. -
Page 8: Ms Matrices
Out 3 Out 4 Example of an MS series matrix with four independent SP4T switches. Part Numbering Examples: MS-1U18S-4/X-ENET Is a Multi Switch matrix with following characteristics: 1U, 18 GHz, SMA, 4 transfer switches, ENET MS-2U26S-4/6T-ENET Is a Multi Switch matrix with following characteristics:... -
Page 9: Mp Matrices
General Information 1.3 MP Matrices MP-Series stands for Multiplexer. It is a matrix with one input connecting to many outputs (only one at the time) or, since the RF switches are bi-directional, many inputs connected to one output (only one at the time). The switches are populated either on the rear panel or inside the matrix chassis. -
Page 10: Cb Matrices
General Information 1.4 CB Matrices CB-Series stands for Crossbar. It is a matrix with several inputs connecting to several outputs. Only one input can be connected to one output at any given time. The switches are populated inside the matrix chassis and are interconnected so that any input can connect to any output and vice versa. -
Page 11: Technical Specifications
General Information 1.5 Technical Specifications Refer to appendix A... -
Page 12: Safety Precaution
• Power Cord, Part Number 40203-005 Maintenance The matrix requires no periodic maintenance. Should any problems arise, contact Dow-Key Microwave immediately for necessary repairs. These systems are not field repairable. Repacking for shipment Should it become necessary to return the matrices for repair, carefully pack the unit in its original packing carton or the equivalent, and follow these instructions: •... -
Page 13: System Layout
System Layout Front Panel Layout Figure 2-1 shows the 1U Model general layout, which includes: • 2 handles • Three LED, LCD and keypad Figure 2-1, 1U Front Panel Layout... -
Page 14: Rear Panel Layout
System Layout Rear Panel Layout Figure 2-2 shows an example of a 1U model rear panel general layout. All models have common parts which include: • Power Entry Module with built in Fuse • Chassis Ground Post • 9-Pin D-Sub Female RS232 Connector •... -
Page 15: Top View Layout
System Layout System Layout Top View Layout Figure 2-3 shows the top view layout of all models. Figure 2-3, Top View of 1U Models... -
Page 16: Rf Configuration
System Layout RF configuration Refer to appendix B. -
Page 17: Connections
Connections Power Connection 3.1.1 Line Voltage The matrix operates from a line voltage in the range of 110V to 240V at a frequency of 50 or 60Hz. Line voltage selection is automatic. CAUTION: Operating the unit on an incorrect line voltage may cause damage, possibly voiding the warranty. -
Page 18: Ground Connection
Connections Insert small bladed screwdriver to release the fuse. Figure 3-1, Power Entry Module Line Fuse Rating Manufacturer Manufacturer Part No. Voltage 110-240V 1A, slow blow, 250Vac, ¼” x 1-1/4” Bel Fuse Inc. 3SB 1-R Table 3-1, AC Line Fuse Information Ground Connection The rear panel GND ground screw (refer figure 2-2) should be connected to safety earth ground using #18 AWG or larger wire. -
Page 19: Can Bus Connection
Table 3-2, RS232 Female Connector Pin Functions CAN Bus Connection This connection allows the matrix controller to be easily interfaced to another Dow-Key Microwave Switch Extension Matrix, using a one-to-one (straight through) cable. However, the Matrix being interfaced must not have any internal, intelligent controller;... -
Page 20: Ethernet Connection
Connections Ethernet Connection The matrix comes equipped with an Ethernet port (RJ45 connector) which allows the user to easily access the matrix from anywhere in the world via TCP/IP on 100BaseT networks. See Section 4 and Section 6 for descriptions regarding how to connect to, configure, and operate the matrix over this 100BaseT Ethernet connection. -
Page 21: Configuring The Matrix For Operation
Configuring the Matrix for Operation Matrix Configuration The ‘brain’ inside Dow-Key Matrices, referred to as the “Matrix Controller”, has been designed to be as general as possible in regards to how many switches of what positions it may control. Therefore, the matrix must first be informed as to the set of switches it is able to control before it can operate successfully, and this information must be updated as switches are added and deleted to the matrix or connected to the CAN bus port on the rear of the matrix (see section... - Page 22 Configuring the Matrix Adding and Deleting Switches The following rules apply when adding a switch to the Matrix Configuration (the desired ID to add is referred to as the “target ID”): The desired switch to ADD must be connected to the matrix before ‐...
-
Page 23: Configuring The Ethernet Connection
Configuring the Matrix Example procedure: Adding a switch to the Configuration usually starts by finding the ID of the physical switch to add. Select Main Menu>System Settings>Find Switch ID and follow the instructions in Section 5.2.3 Find Switch ID. TAKE NOTE OF THE INFORMATION REGARDING SWITCH FIRMWARE REVISION IN STEP If the switch’s ID is the one desired to add (0 or N), the switch may be left connected and the BACK key may be pressed to return to the Main Menu. -
Page 24: Connection To An Ethernet
Configuring the Matrix Connection to an Ethernet The use of a standard “Straight Through” Ethernet cable is required to connect the matrices to an Ethernet LAN hub. Connection to a single computer requires the use of “Crossover” Ethernet cable. -
Page 25: Testing Ethernet Communication
Configuring the Matrix Testing Ethernet Communication The matrix’s ability to communicate should be tested once it has been configured and connected to an Ethernet network. Connection thru a network: Assuming the matrix’s default IP address setting has not been changed from obtaining the IP address dynamically, take note of its IP address during the boot-up process (or se section 5.2.4 to read its IP address). - Page 26 The matrix’s Ethernet interface was designed to operate with common network utilities and drivers. If the Matrix fails to communicate, contact your network administrator for additional assistance. If your network administrator is unable to locate the problem, please contact Dow-Key Microwave Corporation at 1- 805-650-2327.
-
Page 27: Manual (Local) Operation
Manual (LOCAL) Operation The Keypad / LCD Interface Power On: Position the rocker switch on the rear panel of the Matrix to the on position (Figure 2-2) to turn on the matrix. ! Note: The booting sequence will last about 15 seconds in which the LCD will appear blank. - Page 28 Manual (LOCAL) Operation UP and DOWN serve as “scroll up”, “scroll down”, “increment”, or “decrement”. Many data fields’ values are modified by UP and DOWN, and many of those allow the pressing and holding of the UP and DOWN keys to cause an acceleration of the incrementing or decrementing.
-
Page 29: Main Menu
Manual (LOCAL) Operation Main Menu 5.2.1 Switching Operations Switch Operations Menu Set Switch Positions View the currently set position and change the position of a switch who’s ID has been configured to the matrix. Use the arrows to change switch and position numbers. Refer to Appendix B to set the RF switches in the correct desired positions. - Page 30 Manual (LOCAL) Operation Recall Positions Recall from non-volatile memory the state of the positions of all switch ID’s configured to the matrix, saved as 1 through 30, and set the positions of those switches. Clear Positions Cause all switches configured to the matrix to assume their default position.
-
Page 31: Error Operations
Manual (LOCAL) Operation 5.2.2 Error Operations View the contents of the Error Log (see Section 6.5.1). Each entry is displayed with the oldest being first (First In First Out), showing the Error Record Number (its place in the Error Log), an associated Error Code, an associated Error Data, and a text explanation of the Error. -
Page 32: System Settings
Manual (LOCAL) Operation 5.2.3 System Settings System Settings Menu ! Important Note: The matrix controller is designed to offer the maximum expandability and flexibility possible and therefore has features common to other Dow-Key matrix models. The here described ‘Add’, ‘Delete’ and ‘Find Switch ID’ features are some of those that, although available and fully functioning, should only be used if needed and appropriate. - Page 33 Manual (LOCAL) Operation 4. NOTE: this operation “puts the matrix’s switches to sleep” thereby rendering the matrix inoperable during the process. ENTER or CLEAR or rebooting returns the matrix to normal. 5. NOTE: proper performance of Find Switch ID relies on the behavior of Dow-Key Switch firmware revision 4 and above –...
-
Page 34: Ethernet Options
Manual (LOCAL) Operation 5.2.4 Ethernet Options Actual changes to the Ethernet variables referred to below will not take effect nor be shown on the front panel until the matrix has been powered down and back up. See Sections 4 and 6 for more information regarding use of Ethernet to control the matrix. -
Page 35: Lcd Options
Manual (LOCAL) Operation 5.2.5 LCD Options View and adjust the brightness and contrast of the LCD. Changes made here are persistent over power down and up. 5.2.6 Set RS232 Baud Rate View and select the Serial Port’s Baud rate from a set of preselected values from 1200 to 115,200 b/s (see Section 3.3). -
Page 36: Remote Operation
Remote Operation Introduction to SCPI SCPI is a command structure that is based on the IEEE-488.2 specification which Dow-key has adapted to work with Ethernet, RS-232 and USB controls. The matrix has internal software loaded that uses SCPI command structure. SCPI is the abbreviation of Standard Commands for Programmable Instruments. -
Page 37: Command Separators And Conventions
Remote Operation 6.3 Command Separators and conventions • A colon (:) is used to separate a command keyword from a lower level keyword. • A blank space is used to separate a parameter from a command keyword. • A comma (,) is used if a command requires more than one parameter. •... -
Page 38: Common Commands
Remote Operation Common Commands The following contains the common commands of SCPI that the Ethernet controller is compatible with. The possible error codes assume that the correct syntax is used and, in case of a multiple command string the string is not too long. If these conditions are not met, any given command can generate these error codes: 3, 4, 30 6.4.1 *IDN? -
Page 39: Opc
Remote Operation 6.4.2 *OPC? Syntax *OPC? Description This query returns an ASCII character “1” when all pending operations have been finished. Result ASCII character “1”. Possible error codes None Example 1 *OPC? Result “1” Example 2 :SWIT1 4; SWIT2 4; *OPC? Result “0”... -
Page 40: Rst
Remote Operation 6.4.3 *RST Syntax *RST Description This command performs a device reset. This will set the instrument so that all switches are in the default state. For SPnT switches the default state is: all RF ports are open. For a transfer switch the default state is: position 1 is closed. Possible error codes 11, 12, 13 Timing... - Page 41 Remote Operation Example “SYST:ERR?” Result was “1, INVALID CHARACTER”, check for more errors. Description: This error is no longer supported. The error code is maintained and reserved for legacy purposes only. “SYST:ERR?” Result was “2, OUTPUT BUFFER OVERFLOW”, check for more errors. Description: This error is no longer supported.
- Page 42 Remote Operation SYST:ERR?” Result was “10, SWITCH DID NOT RESPOND”, check for more errors. Description: One of the switches did not respond to a position query. E.g. CAN bus communication failure or damaged switch. SYST:ERR?” Result was “11, SWITCH’S RESPONSE INVALID”, check for more errors. Description: A switch responded but with the wrong response code.
- Page 43 Remote Operation SYST:ERR?” Result was “30, COMMAND UNRECOGNIZED”, check for more errors. Description: This error code is generated when the commanded string does not contain any valid keyword (e.g. Route, System, *IDN?, *RST, ….) at all. SYST:ERR?” Result was “36, ID IS OUT OF RANGE”, check for more errors. Description: A non existing switch ID has been commanded.
-
Page 44: Syst:ipaddress
Remote Operation 6.5.2 SYST:IPADDRESS? Syntax SYSTem:IPADDRESS? Description Returns the matrix IP address. Result xxx.yyy.zzz.aaa Possible error codes None 6.5.3 SYST:IPADDRESS xxx.yyy.zzz.aaa Syntax SYSTem:IPADDRESS xxx.yyy.zzz.aaa Description Sets system IP address to xxx.yyy.zzz.aaa. Possible error codes Factory default value 200.169.200.180 Power on behavior Keeps last value *RST effect None... -
Page 45: Syst:tcpport
Remote Operation 6.5.4 SYST:TCPPORT? Syntax SYSTem:TCPPORT? Description Returns the matrix TCP Port number. Result Possible error codes None 6.5.5 SYST:TCPPORT x Syntax SYSTem:TCPPORT x Description Sets the matrix TCP Port number to x. Possible error codes Factory default value Power on behavior Keeps last value *RST effect None... -
Page 46: Syst:gateway
Remote Operation 6.5.6 SYST:GATEWAY? Syntax SYSTem:GATEWAY? Description Returns the matrix gateway address. Result xxx.yyy.zzz.aaa Possible error codes None... -
Page 47: Syst:gateway Xxx.yyy.zzz.aaa
Remote Operation 6.5.7 SYST:GATEWAY xxx.yyy.zzz.aaa Syntax SYSTem:GATEWAY xxx.yyy.zzz.aaa Description Sets matrix gateway address to xxx.yyy.zzz.aaa Possible error codes Factory default value 200.169.0.0 Power on behavior Keeps last value *RST effect None Timing In order for the new Gateway address to take effect the matrix needs to be power cycled. -
Page 48: Syst:mask Xxx.yyy.zzz.aaa
Remote Operation 6.5.9 SYST:MASK xxx.yyy.zzz.aaa Syntax SYSTem:MASK xxx.yyy.zzz.aaa Description Sets the matrix subnet mask address to xxx.yyy.zzz.aaa. Possible error codes Factory default value 255.255.255.0 Power on behavior Keeps last value *RST effect None Timing In order for the new Mask address to take effect the matrix needs to be power cycled. -
Page 49: Syst:serialnumber
Remote Operation 6.5.11 SYST:SERIALNUMBER? Syntax SYSTem:SERIALNUMBER? Description Returns the matrix serial number. Result Possible error codes None 6.5.12 SYST:TIMEOUT? Syntax SYSTem:TIMEOUT? Description The Timeout is used to automatically close the TCP/IP socket after a certain amount of seconds of inactivity on the port. Returns the Time out setting for the TCP/IP connection (n is in seconds). -
Page 50: Syst:timeout X
Remote Operation 6.5.13 SYST:TIMEOUT x Syntax SYSTem:TIMEOUT x Description The Timeout is used to automatically close the TCP/IP socket after a certain amount of seconds of inactivity on the port. Sets the Time out setting for the TCP/IP connection (n is in seconds). x = 0 means no Time out is set. -
Page 51: Syst:status
Remote Operation 6.5.14 SYST:STATUS? Syntax SYSTem:STATUS? Description This command will return all Switch positions, Local/Remote mode, Power supply status, High temperature alarm status, Fan stall alarm and Errors list separated by a semicolon. Note 1: Power supply status, High temperature alarm status and Fan stall alarm are only returned if enabled. -
Page 52: Syst:screensaver
Remote Operation 6.5.15 SYST:SCREENSAVER? Syntax SYSTem:SCREENSAVER? Description This command will return the screen saver time settings n (n is in minutes). Possible values for n are 0, 2, 3, 4, 5, …… Note that 1 is not a valid value. 0 = Screen saver is disabled Possible error codes Factory default value... -
Page 53: Switch [Module] Command Set
Remote Operation Switch [Module] Command Set The following contains the switch [module] commands of SCPI that the Ethernet control is compatible with. 6.6.1 :SWITch<id>[:VALue] <number> Syntax [ROUTe]:SWITch<id>[:VALue] <number> Description This command is used to control the position of the switches. The switch specified by the numeric suffix <id>... -
Page 54: Setting Switch X To Position N
Remote Operation 6.6.2 Setting switch x to position n x = switch [module] address. n = position to set and must be within the switches parameter. (Example: SP10T valid positions are 0 thru 10 only). Examples: • ROUTE:SWITCHx n • ROUT:SWITCHx n •... -
Page 55: Requesting Switch X Current Position
Remote Operation 6.6.3 Requesting Switch x current position x = switch address. Examples: • ROUTE:SWITCHx? • ROUT:SWITx? • :SWITx? Result: Returns the current position of switch x. Possible error codes 10, 11, 12, 13 Timing The timing to execute a command depends on the length of the command (in case of concatenated commands). -
Page 56: Dhcp Command Set
Remote Operation DHCP Command Set The following contains the DHCP (Dynamic Host Configuration Protocol) commands of SCPI that the Ethernet control is compatible with. 6.7.1 SET:DHCP ON or SET:DHCP OFF Syntax SET:DHCP ON I OFF Description Turns DHCP mode ON or OFF Possible error codes Factory default value Power on behavior... - Page 57 Remote Operation This page intentionally left blank...
- Page 58 Action Returns string in ’Model Name’ in the configuration file. As a minimum will have model name. *IDN? MS-1U18S-4/6-ENET Could also have: Vendor, model, serial number, firmware revision (The response shown in this table is just an example). *OPC? 1 or 0 Gives 1 if previous operation was completed and gives 0 if previous operation is still not complete.
- Page 59 Remote Operation Note: 1. Commands are NOT case sensitive. 2. Every command and response on the Ethernet and serial port should have “\r\n” Carriage return (0x0D) and Line Feed (0x0A) at the end. 3. Multiple commands with same header can be given in a single command line. e.g.
-
Page 60: Web Page Server (Http)
Ethernet port. With the matrix properly connected to an Ethernet (see Section 4), type the matrix’s current IP address into a browser’s Address Bar. The following page should appear: The Operator may select ‘Matrix Control’, ‘Matrix Configuration’, or ‘Matrix Status’; ‘Factory Configuration’ is reserved for the sole use by Dow-Key Microwave. -
Page 61: Matrix Control
Web Page Server Matrix Control Clicking on ‘Matrix control’ will show the below page. Remote mode commands may be typed into the Command text box and then clicking on the ‘Send’ button. See section 6 for the remote command list and its syntax. If the command implies that the matrix responds (for instance when querying the matrix) the matrix’s response will be shown next to the ‘Answer:’... -
Page 62: Matrix Configuration
Web Page Server Matrix Configuration Clicking on ‘Matrix configuration’ will show the below page. ! Important Note: The matrix controller is designed to offer the maximum expandability and flexibility possible and therefore has features common to other Dow-Key matrix models. The here described ‘Add a Switch’... -
Page 63: Matrix Status
Web Page Server Matrix Status Clicking on ‘Matrix status’ will show the below page. This page displays the current status of alarm sources (power supplies, fans, temperatures). If the matrix does not have a redundant power supply, fans with stall sensors and temperature sensors, than this page will not display any of this information. -
Page 64: Technical Specifications
Appendix A Technical Specifications Model: MS-1U18S-4/6-ENET Configuration: Four SP6T switches mounted on the rear panel RF Connectors: SMA (on rear panel) Frequency range: DC to 18 GHz Return loss (VSWR) Insertion loss Isolation RF Power: Frequency (GHz): DC ‐ 3 3 ‐ 8 8 ‐ 12.4 12.4 ‐ 18 ... -
Page 65: Rf Configuration
Appendix B RF Configuration Model: MS-1U18S-4/6-ENET Four normally open SP6T switches (Dow-Key part number: 565-5208-3-ROHS) mounted on the rear panel. The switches are not interconnected RF wise as shown below. Note that all switches are bi-directional. Hence each RF port can be considered an...
