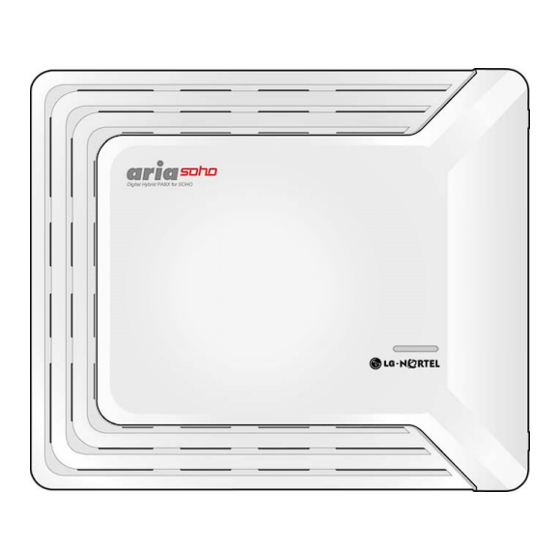

ARIA SOHO
Feature Description and
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aria Soho and is the answer not in the manual?

Questions and answers

Related Manuals for LG-Nortel Aria Soho

Summary of Contents for LG-Nortel Aria Soho

  • Page 1 ARIA SOHO Feature Description and Operation Manual...

  • Page 2: Copyright Information

    Copyright© 2006 LG-Nortel Co. Ltd. All Rights Reserved This material is copyrighted by LG-Nortel Co. Ltd. (LGN). Any unauthorized reproductions, use or disclosure of this material, or any part thereof, is strictly prohibited and is a violation of Copyright Laws. LGN reserves the right to make changes in specifications at any time without notice.
  • Page 3 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Revision History ISSUE DATE CONTENTS OF CHANGES REMARK ISSUE 0.2 2006.06 DRAFT Update...

  • Page 4: Table Of Contents

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Table of Contents 1.1 Manual Usage........................1 2.1 Incoming Call Pickup ......................2 2.1.1 Ring Assignment ........................2 2.1.2 Preferred Line Answer (PLA) ....................4 2.1.3 Direct Inward System Access (DISA) ..................4 2.1.4 Customer Call Routing (CCR) with VMIB .................
  • Page 5 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.26 Automatic Fax Transfer......................65 2.4.27 Extend CO-to-CO Connection ....................66 2.4.28 Forced Hands-Free Mode..................... 66 2.4.29 Hot Desk..........................67 2.4.30 Analogue CLI Display......................68 2.4.31 Call Log ..........................69 2.4.32 In Room Indication ........................
  • Page 6 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.3 Attendant Forward....................... 116 2.13.4 Attendant Intrusion ......................117 2.13.5 Attendant Override ......................118 2.13.6 Attendant Recall ........................119 2.13.7 Change LCD Date/Time Display..................119 2.13.8 Day/Night Service........................ 120 2.13.9 Disable Outgoing Access....................

  • Page 7: Manual Usage

    Feature Description and Operation Manual June, 2006 Thjs programming manual is designed to provide general system features and Admin Programming using a DKTU and PC for the ARIA SOHO System. This manual contains the fol lowing sections. 1.1 Manual Usage Section 2 Feature Description This section is a functional listing of features with the description and operation of each.

  • Page 8: Incoming Call Pickup

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.1 Incoming Call Pickup 2.1.1 Ring Assignment Description A pre-assigned destination receives incoming calls through the CO line. The destination (refer to Figure 2.1.1) can be a Station (Ex. 1), Hunt Group (ex. 2), or VMIB Announcement (Ex. 3). If a destination station is busy, the incoming call returns a muted ring signal, so the Station user can pick up the incoming CO call as needed.
  • Page 9 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Ex. 2 When there’s an incoming CO call through CO lines 1-8 during Night mode, the Hunt Group starts to ring. The ringing Station is decided by the Hunt Group type (refer to Ref. A).

  • Page 10: Preferred Line Answer (Pla)

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.1.2 Preferred Line Answer (PLA) Description If PLA service is enabled and there are several incoming CO calls (transferred, recalled, queued, or Normal Incoming call) at the same time, the first answered call can be chosen by setting the PLA priority.

  • Page 11: Customer Call Routing (Ccr) With Vmib

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 If the DISA Authorization Code is enabled, the Authorization Code should be entered to access outgoing CO Lines. If the Authorization Code is matched with the Authorization code of the Station, the User may access the CO Line depending on STA COS and CO COS.
  • Page 12 System Numbering Plan. If a caller dials one digit then pauses, the ARIA SOHO System will compare the digit with the CCR table. If a matching digit is found on the CCR Table, and the bin number is the same as the VMIB Announcement, the call will be routed to the programmed destination.

  • Page 13: Co Line Name

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.1.5 CO Line Name Description This feature allows the capability to name each CO Line. Stations with an LCD interface screen, including the Attendant Station will display the programmed CO Line Name in place of the default LINE XXX display.
  • Page 14 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Reference A. Night Answer Code: 2.1.6 B. Ring Mode: 2.13.8 C. Internal ,External ,All-Call, and Meet-Me Page: 2.8.1 D. Loud Bell (LBC): 2.10.3 Admin Programming Universal Night Answer (PGM 141 – FLEX8)

  • Page 15: Outgoing Call Access

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.2 Outgoing Call Access 2.2.1 Basic Access Description Each Station is allowed or denied access on particular CO Lines or CO Groups. Station Users may use Flexible buttons which are assigned as a {CO} or {CO Group} button, including the {POOL} and {LOOP} buttons.
  • Page 16 Code (PGM 107 – FLEX12). B. Refer to ARIA SOHO Hardware Description and Installation Manual, Access CO Individual CO Code (PGM 107 – FLEX8). C. Refer to ARIA SOHO Hardware Description and Installation Manual, Access CO Group Code (PGM 107 – FLEX7). Admin Programming CO Line Choice (PGM 160 –...

  • Page 17: Call Time Restriction

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.2.2 Call Time Restriction Description The Call Time Restriction feature is used to restrict outgoing CO call time. In Station programming, the User can set the Call Cut-Off Timer, whereas the call will be disconnected automatically when the timer expires. The called and called parties will hear a warning tone 15 seconds before the call is disconnected.

  • Page 18: Co Step Call - Analog Only

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Reference D. Message Wait Enable: 2.4.15 Admin Programming CO Line Queuing (PGM 112 – FLEX5) 2.2.4 CO Step Call – Analog Only Description When an analog Station receives a busy tone after accessing a CO Line, the User can dial a CO Line number which has the same first digits as the called busy CO Line without dialing the full number.

  • Page 19: Hot Line & Warm Line

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.2.6 Hot Line & Warm Line Description A Station User can instantly make an outgoing call by lifting the handset or pressing the [ICM] button, if the User has previously stored the destination.

  • Page 20: Least Call Routing

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.2.7 Least Call Routing Description LCR is a System programmable feature that automatically selects the least expensive available route when an outgoing CO call is made. This programming eliminates the necessity for the User to dial the access code of the least expensive carrier.
  • Page 21 User can access it with the carrier access code 082 and the long distance access code without 0. ARIA SOHO System Administrator wants to use this cheaper carrier for all long distance calls (i.e., dial 0314502628, 082314504628).
  • Page 22 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Ex. 3 Password for specific dial number—The International access code is 001, System Administrator allows International calls by only those Users who know the System password. ADMIN 220...

  • Page 23: Memory Dialing

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 - ACNR (if the call is LCR applied when activating ACNR) - Any leading digit string at the LDT Table can be a sub-string of another leading digit string such as 012 and 0123.

  • Page 24: Acnr Tone Cadence

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition A DKTU that doesn’t have a [REDIAL] button should be programmed with a [REDIAL] flexible button to use ACNR. When a predefined CO Line is busy in ACNR mode, an available CO Line in the same group will be secured.
  • Page 25 The last dialed number directory allows duplicate phone numbers to be stored. If the Last Number Redial is used while the Auto-redial is activated, Auto-redial is cancelled. Reference E. Refer to ARIA SOHO Hardware Description and Installation Manual, SLT Last Speed dial Code (PGM 106 – FLEX12) 2.2.8.3 Save Number Redialing Description Any dialed number can be saved temporarily and used at any time.
  • Page 26 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.2.8.4 Station Speed Dialing Description A DKTU User can store up to 100 frequently used Station numbers to Station Speed Bin (000-099). Station numbers consisting of up to 24 digits including pauses, Flash commands, pulse-to-tone switchover, and no-display characters (pause is automatically inserted after a flash).
  • Page 27 Reference A. Co Dial Tone Detect (Admin 160 – FLEX6) B. Refer to ARIA SOHO Hardware Description and Installation Manual, Speed Dial Program Code (Admin 106 – FLEX15) C. Refer to ARIA SOHO Hardware Description and Installation Manual, Speed Dial Access Code (Admin 106 –...
  • Page 28 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.2.8.5 System Speed Dialing Description System Speed dial bins are programmed by the System Attendant (Figure 2.2.8.5). These numbers are available for easy access by all Stations allowed in the System. The maximum System Speed Dial capacity is 500 in the ARIA SOHO.
  • Page 29 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 SYSTEM COS COS 1 NO RESTRICTION TO DIAL. COS 2 Monitored by Exception Table A COS 3 Monitored by Exception Table B COS 4 Monitored by Exception Table A & B...

  • Page 30: Private Line

    System Speed Dial numbers are protected when the System is powered OFF. Reference A. CO Dial Tone Detect (Admin 160 – FLEX6) B. Refer to ARIA SOHO Hardware Description and Installation Manual, Speed Dial Access Code (Admin 106 – FLEX18) Admin Programming Speed Dial Access (PGM 112 –...

  • Page 31: Rerouting

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.3 Rerouting 2.3.1 Call Forward Description A Station User can forward calls to any Station, Station Group, or VMIB in the system by activating feature codes. There are several types of Call Forwarding: Unconditional, Busy, No answer, Busy/No Answer, Unconditional Station Off-Net Call Forward with Telephone Number, No Answer Station Off-Net Call Forward with Telephone Number, Incoming CO Off-Net Call Forward, and Follow Me Call Forward.
  • Page 32 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.3.1.1 Call Forward, Unconditional Description All incoming calls to a User Station will be immediately forwarded to another Station, Hunt Group or VMIB. Operation To activate Unconditional Call Forward, perform the following Steps: Lift the handset or press the [MON] button.
  • Page 33 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Operation To activate Call Forward when there is no answer, perform the following Steps: Lift the handset or press the [MON] button. Press the [DND/FOR] button. Dial the Call Forward code 3.
  • Page 34 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Operation To activate unconditional Off-Net Call Forward, perform the following Steps: Lift the handset or press the [MON] button. Press the [DND/FOR] button. Dial the Call Forward code 5.
  • Page 35 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To activate no answer Off-Net Call Forward, perform the following Steps: Lift the handset or press the [MON] button. Press the [DND/FOR] button. Dial the Call Forward code 9.
  • Page 36 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Operation To activate Follow-Me Call Forward from any Station, perform the following Steps: Lift the handset or press the [MON] button. Press the [DND/FOR] button. Dial the Call Forward code 0.
  • Page 37 Dial pulse SLT cannot be forwarded to VMIB. Reference A. Refer to ARIA SOHO Hardware Description and Installation Manual, Call forward Code (Admin 106 – FLEX14) B. Refer to ARIA SOHO Hardware Description and Installation Manual, DND/FWD Cancel Code (Admin 106 –...

  • Page 38: Call Transfer

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.3.2 Call Transfer Description An intercom call or CO Call can be transferred to another Station or CO Line during a conversation. There are 2 kinds of call transfer: Screened, and Unscreened Transfer, as detailed in the following Table:...
  • Page 39 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Admin Programming Transfer Recall Timer (PGM 180 – FLEX7) I-Hold Recall Timer (PGM 180 – FLEX5) Attendant Recall Timer (PGM 180 – FLEX1) Open Loop Detect Timer (PGM 142 – FLEX13) Unsupervised Conference Timer (PGM 182 –...

  • Page 40: Holding And Parking

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To make a screened transfer from a SLT, perform the following Steps: Press and release the hook-switch, the intercom dial tone should be heard. The CO Line should be placed on exclusive hold, and the Transfer Recall timer will be activated.
  • Page 41 If a call is placed on I-Hold while dialing on a CO Line exists, the dialing will not be transmitted. Reference A. Hold Preference: 2.3.3.2 B. Refer to ARIA SOHO Hardware Description and Installation Manual, System Hold Code (PGM 106 – FLEX20). C. Refer to ARIA SOHO Hardware Description and Installation Manual, Held Individual CO Line Code (PGM 107 –...
  • Page 42 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.3.3.2 Hold Preference Description Preferred Hold type is set by Admin Programming. When a User presses the [HOLD] button, the preferred type of hold is activated. If the User presses the [HOLD] button twice, the other type is activated (toggle).

  • Page 43: Pick-Up

    Attendant will receive a recall ring. If the Attendant does not answer in the Attendant Recall timer duration, the CO Line call will be disconnected and the line will be returned to an idle state. Reference A. Refer to ARIA SOHO Hardware Description and Installation Manual, Call Park Location (PGM 107 – FLEX5). Admin Programming Call Park Recall Timer ((PGM 180 –...
  • Page 44 A Station can answer an intercom call placed to an ICM box using Directed Call Pick-up. Reference A. Intercom Tenancy Group (PGM 120) Admin Programming Refer to ARIA SOHO Hardware Description and Installation Manual, Direct Call Pick-up Code (PGM 107 – FLEX6). PLA Priority Setting – Pick-up Priority (PGM 173) 2.3.4.2 Group Call Pick-up Description A Station can pick-up a call ringing at another Station in the same pick-up group.
  • Page 45 Intercom tenancy Group (refer to Ref. C). Reference A. Pick-up Attribute: 2.3.4 B. Refer to ARIA SOHO Hardware Description and Installation Manual, Group Call Pick-up Code (PGM 107 – FLEX2). C. Intercom Tenancy Group: 2.4.14 Admin Programming Pick-up Attribute (PGM 190 –...

  • Page 46: Call Handling

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4 Call Handling 2.4.1 Absent Text Message 2.4.1.1 Custom Message Description Each Station can select from ten (11-20) available custom messages to display on the DKTU LCD. These messages are programmed by the System Attendant (refer to Ref.
  • Page 47 Press the [TRANS/PGM] button. Dial 052. Press the [HOLD/SAVE] button. Reference D. Attendant Service: 2.13 Admin Programming ARIA SOHO Hardware Description and Installation Manual Refer to , Numbering Plan (PGM 106) 2.4.1.2 Pre-Selected Message Description A User can choose from pre-selected messages (1-10) to be shown on the calling party LCD. Detailed information is entered by each User (ex., time, date or station number).

  • Page 48: Alarm

    Reference A. Call Forward: 2.3.1 Admin Programming Refer to ARIA SOHO Hardware Description and Installation Manual, Numbering Plan (PGM 106). 2.4.2 Alarm Description The system can be programmed to recognize the status of an external contact from a relay (open or closed).

  • Page 49: Automatic Privacy

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition An external contact should be connected to the alarm input. The alarm contacts should be dry (no voltage/current source connected). SLT phones cannot receive alarm signals.

  • Page 50: Background Music (Bgm)

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.4 Background Music (BGM) Description A User can listen to Background Music (BGM) through the speaker while the handset while the handset is on-hook and the line is in an idle state. Music from the source is heard over the Station Speaker and will be automatically shut-off when a call or paging announcement is received, or when the Station is off-hook.

  • Page 51: Camp-On

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.5 Camp-On Description A User attempting to call a busy Station can give a signal to the busy Station (Camp-On) that a call is waiting. The busy Station is notified of the call waiting by a Camp-On tone and the [HOLD/SAVE] button LED will flash. An SLT User can notify a busy Station of an outside CO call or internal call waiting (Camp-On).

  • Page 52: Change Ring Type

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Reference A. Refer to the ARIA SOHO Hardware Description and Installation Manual, System Hold Code (PGM 106 – FLEX20) B. Conference: 2.7 C. Paging: 2.8 D. DND: 2.4.8 E.

  • Page 53: Dialing Security

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.7 Dialing Security Description The dialed phone number may not be displayed on the LCD of the called Station when calling with a speed dial number (refer to Ref. A).

  • Page 54: One-Time Do Not Disturb (Dnd)

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 When a Station assigned to preset call forward is in DND mode, incoming calls will be received at the next station by ring assignment (refer to Ref. B).

  • Page 55: Flexible Buttons

    A Station that isn’t permitted to access CO Lines cannot initiate a Flash. During a Flash, the LED of the applicable CO Line will flash. Admin Programming Refer to ARIA SOHO Hardware Description and installation Manual, flash Command to CO Line Code (PGM 106 – FLEX11) Flash Type (PGM 141 – FLEX7) CO Flash timer (PGM 142 –...
  • Page 56 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Operation The Flexible Buttons are programmable individually at each key set , and are used by pressing the applicable FLEX button. To assign a Flexible Button, perform the following: Press the [TRANS/PGM] button.

  • Page 57: Headset

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.12 Headset Description An industry standard Headset can be connected to a Station instead of a Handset. The Station can be programmed for Headset operation in place of the Speakerphone mode of operation.

  • Page 58: Intercom Signal Mode

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.13 Intercom Signal Mode Description Users can control the method by which they receive intercom calls and signals. Stations equipped with a Speakerphone can select one of the available 3 signaling modes: HF—Hands Free.

  • Page 59: Intercom Tenancy Group

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.14 Intercom Tenancy Group Description A Station can be assigned to one of the Intercom Tenancy Groups. Each Intercom Tenancy Group can be operated independently and Stations in the Group can be assigned an individual CO Group to use. A maximum of 5 Intercom Tenancy Groups can be assigned.

  • Page 60: Message Wait/Call Back

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.15 Message Wait/Call Back Description Message Wait and Call Back are described as: Message Wait—A Station User can notify another Station User that he wishes to talk to the User;...

  • Page 61: Music On Hold (Moh)

    Station. In this case, the error tone will not be provided at the attempting Station. Reference A. Refer to ARIA SOHO Hardware Description and Installation Manual, Message Wait/Call Back Enable code (PGM 106 – FLEX13, FLEX14) B. Intercom Signal Mode: 2.4.13 C.
  • Page 62 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition Only 1 MOH channel is supported. SLT ports connected with MOHU can provide MOH channels. Reference A. Hold: 2.3.3.1 Admin Programming CO Line MOH (PGM 142 – FLEX6) MOH Type 2 (PGM 171 –...

  • Page 63: Mute

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.17 Mute Description During a conversation, pressing the [MUTE] button will disable the Handset Microphone or the Speakerphone for privacy while continuing to listen to the other party on the phone through the Handset or Speaker. Pressing the [MUTE] button again will reactivate the Microphone.

  • Page 64: On-Hook Dialing

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.19 On-Hook Dialing Description A Station can make a call without lifting the Handset by using the Speakerphone or Monitor mode. If this feature does not operate, verify if the Speakerphone is enabled or disabled. On-hook dialing is not available on all keysets.
  • Page 65 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Q – 11 A - 21 D - 31 Z – 12 B - 22 E - 32 . – 13 C - 23 F - 33 1 –...

  • Page 66: Station Programming

    On an SLT or DKTU where there is no LCD screen, only the Station Name can be entered. The Speed Dial without name will not be listed in Dial By Name. Reference A. Refer to ARIA SOHO Hardware Description and Installation Manual, Programming mode Enter Code (PGM 106 – FLEX20) 2.4.21 Station Programming Description The System supports multiple hierarchical menus based on Station programming.
  • Page 67 Press a button in the Main Menu mode to activate the flexible button programming mode. Admin Programming B. Refer to ARIA SOHO Hardware Description and Installation Manual, Station Programming (Section 4 – Quick Reference Admin Programming Tables) C. Refer to ARIA SOHO Hardware Description and Installation Manual, Attendant Programming (Section 4...

  • Page 68: Station Relocation

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.22 Station Relocation Description The Station Relocation feature allows a User to unplug their Station and move it to another location on the System. Dialing a code followed by the old Station number brings all the Station attributes including Station number, button mapping, Speed Dial, and Class of Service (refer to Ref.

  • Page 69: Station Serial Call

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.23 Station Serial Call Description Using DSS flexible buttons, Users can place consecutive intercom calls without returning the line to an idle state (no need to hang-up) between calls.

  • Page 70: Wake-Up

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.25 Wake-Up Description Each Attendant or Station User can set an alarm as a Wake-Up call or reminder tone. This feature can be programmed to activate only once, or to repeat daily. If the User goes off-hook during the alarm, a special dial tone will be heard.

  • Page 71: Automatic Fax Transfer

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition If a Wake-Up alarm is registered at a Station, a * symbol is displayed in front of the present time on the LCD. If VMIB is installed, the voice message for the Wake-Up time is heard 3 times and then MOH is heard.

  • Page 72: Extend Co-To-Co Connection

    After the unsupervised conference timer expired, the call will be dropped by the ARIA SOHO System. This feature is enabled to extend unsupervised conference timer for as long as the caller wants. If this feature is activated, the DTMF receiver device is assigned to caller-side CO Lines.

  • Page 73: Hot Desk

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition If the DKTU is changed to Hands-Free mode, the connection tone will be provided and the voice path is connected. If the called party DKTU is set to linked-pair Station, the answer mode of the called party will no be changed.

  • Page 74: Analogue Cli Display

    When the system reset happens, all login agents are automatically logged out. Admin Programming Dummy Station ON/OFF (PGM 112/B TN23) Refer to ARIA SOHO Hardware Description and Installation Manual, Number of Agents (PGM 250 – FLEX1) Refer to ARIA SOHO Hardware Description and Installation Manual, Assign Station Number of Agents (PGM 250 –...

  • Page 75: Call Log

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Admin Programming CID Attributes (PGM 147) 2.4.31 Call Log Description The Call Log feature enables the LDP 7000-series User to view a log of the last (15-50) incoming and outgoing calls.

  • Page 76: In Room Indication

    When the Call Log List number is programmed, the All Call Log database will be initialized. Maximum Call Log List per System is 500 for ARIA SOHO. The System assigns the Call Log list from the first available port in order.

  • Page 77: Chime Bell

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition If the Supervisor station is not in an idle state, the In-Room Indication button will not work. If a Station presses the In-Room Indication button at a station other than the Supervisor, an error tone will be presented.

  • Page 78: Emergency Intrusion

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.4.34 Emergency Intrusion If the Supervisor Station received the busy signal on a call to another station, the Supervisor can dial the Emergency Intrusion code and immediately be connected to the Station.

  • Page 79: Barge In

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Admin Programming Emergency Supervisor (PGM 112 – FLEX24) 2.4.36 Barge In Description Barge-In allows an authorized User to intrude on an existing call (internal or outside); a conference call is established.

  • Page 80: Call Barring

    While entering an Account Code, the current call is put on MUTE mode. The User may enter the Account Code before a call conversation is established. Admin Programming Refer to ARIA SOHO Hardware Description and Installation Manual, SMDR Account Enter Code (PGM 106).

  • Page 81: Authorization Code

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.5.2 Authorization Code Description If a Station is programmed for Authorization Code use, the User must enter the Authorization Code before accessing a CO Line. An Authorization Code can be used for SMDR (DISA Account Code).

  • Page 82: Automatic Call Release

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Admin Programming Authorization Code Table (PGM 227) DISA Authorization Code (PGM 141) CO Line Group Account (PGM 141) Loop LCR Account Code (PGM 111) 5 Digit Authorization Code (PGM 161) 2.5.3 Automatic Call Release...
  • Page 83 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 CLASS OF SERVICE CO LINE OF SERVICE Unrestricted Unrestricted Unrestricted Canned Unrestricted Restricted Table A Table A Table B Canned Unrestricted Restricted Table B Unrestricted Unrestricted Canned...
  • Page 84 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 CO COS COS 1 There is no restriction to dial; monitored by Station COS. COS 2 Monitored by Exception Table A & Station COS. COS 3 Monitored by Exception Table B & Station COS.

  • Page 85: System Speed Zone

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 General Conditions If an incoming Co Call Toll Check is set, the COS rule is applied when the Station dials digits after answering incoming CO calls. Admin Programming Station COS (PGM 116) CO Line COS (PGM 141 –...
  • Page 86 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To program Walking COS on a flexible button, perform the following: Press the [TRANS/PGM] button. Press the flexible button to be programmed. Press the [TRANS/PGM] button. Dial 23.

  • Page 87: Hunt Group

    2.6 Hunt Group Description Stations can be grouped so incoming calls may be routed to an idle Station in the Group. The ARIA SOHO System will support up to 10 Hunt Groups and 26 Stations in a Hunt Group. Several VMIB Announcements may be provided to each Hunt Group. If a call is not answered when the first Announcement timer expires, the second announcement will be provided if the call continues to wait.
  • Page 88 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition A Station in the DND/Call Forward state will no receive Group calls. Transferred calls to a Hunt Group are not recalled. When a call is received in a Hunt Group, the call will be in the ring process before receiving the VMIB announcement for the duration of the Hunt Group Announcement timer.

  • Page 89: Terminal Group

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.6.1 Terminal Group Description Calls to a Station in the Group or a pilot number will go to the first Station in the Group. If unanswered or unavailable, the call proceeds to the next listed Station in the Group.

  • Page 90: Ring Group

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 FIGURE 2.6.3 CIRCULAR GROUP Hunt Group Call LINE 2 STA111 (2nd) STA112 Hunt Group Call STA110 (1st) STA113 LINE 1 STA115 STA114 2.6.3 Ring Group Description All the Stations in the Group simultaneously receive call ringing to the Hunt Group until one of the Stations answers the call.

  • Page 91: Voice Mail Group

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.6.4 Voice Mail Group Description The Voice Mail (VM) Group is assigned for voice mail and only SLTs can be assigned as members. When calling a VM Group, the System will search for an idle member in the calling VM Group with the Terminal type or Circular type.

  • Page 92: Automatic Call Distribution (Acd)

    NOTE—A UCD Group can not be designated as an alternative loop destination. Condition The ARIA SOHO System supports VMIB announcements for hunt Groups. When a call is received at the secondary VMIB announcement, the caller can be connected to another Station by the entered number with CCR Service (PGM 228).
  • Page 93 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To assign an ACD flexible button, perform the following: Press the [TRANS/PGM] button. Press the flexible button to be assigned. Press the [TRANS/PGM] button. Dial 8* and enter the ACD Group number.

  • Page 94: Conference

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.7 Conference Description A Station User (Supervisor) can make a call with intercom Stations and CO Lines. The Supervisor uses the [CONF] button to invite a Station User or CO Line User one-by-one. Connected users can speak and hear with each other at the same time.

  • Page 95: Conference - Slt (Broker Call)

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To initiate a Multi-Line Conference, perform the following Steps: During an existing call, press the [CONF] button; the call will be put on Hold and the intercom dial tone will be heard.

  • Page 96: Paging Conference

    Paging Warning Tone (PGM 161 – FLEX4) Paging Access (PGM 111 – FLEX8) Conference Page Zone (PGM 119) Refer to ARIA SOHO Hardware Description and Installation Manual, SLT Conference Page Join Code (PGM 109 – FLEX5) 2.7.3 Conference Room Description This feature allows internal Users or CO Line callers (including transferred callers) to join a conference without being invited by the Conference Supervisor.
  • Page 97 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To deactivate a Conference Room (DISA call), perform the following: Press the [TRANS/PGM] button. Dial 44 + the Conference Room number (1-9). Press the [HOLD/SAVE] button. To join a Conference Room (internal call), perform the following: Dial the activated Conference Room number (571-579).

  • Page 98: Paging Feature

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.8 Paging Feature 2.8.1 Internal, External, All-Call, and Meet-Me Page Description Stations can individually be allowed or denied access to make pages; this applies to all Internal and External Page Zones.

  • Page 99: Pre-Recorded Message

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To respond to a Meet-Me Page, perform the following: Lift the Handset, or press the [MON] button. Dial 544 (Meet-Me Page code) Press the [HOLD/SAVE] button. The call with the Paging party will be established and the zone will return to idle.

  • Page 100: Sos Paging

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Press the [MON] button when finished recording; the confirmation tone should be heard. Press the [SPEED] button while the recorded message is playing to delete the message; the confirmation tone should be heard.

  • Page 101: Linked Stations

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.9 Linked Stations 2.9.1 Executive/Secretary Description Stations in the System can be assigned as Executive and Secretary Pairs. When an Executive Station is busy or in DND mode (refer to Ref. A), intercom calls and transfer calls are automatically routed to the designated Secretary.

  • Page 102: Linked-Pair Station

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 If an Executive forwards a call to a non-secretary Station, the call to the Executive Station will be routed to the assigned Station (refer to Ref. D).
  • Page 103 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 FIGURE 2.9.2A LINKED-PAIR (IDLE STATUS) Busy state LINE STA 110 Call to STA 110 -> Busy Tone STA 110 When the linked stations are busy. FIGURE 2.9.2B LINKED PAIR (BUSY STATUS)

  • Page 104: External Device Control

    2.10 External Device Control 2.10.1 Door Open Description In the ARIA SOHO System, DPU must be installed to operate the Door Open feature. Up to 4 relays can be used (one DPU has two relays to be used for Door Phone). Operation To register a Door Open command, perform the following Steps: Dial the Door Open code (refer to values), or press the programmed {DOOR OPEN} button.

  • Page 105: Door Phone

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.10.2 Door Phone Description A convenient Intercom box (LDP-DPB) can be connected to the System for receiving Page announcements, Intercom calls, and signaling assigned Stations on the System. Any combination of DKTUs or Intercom boxes can be arranged in the System.

  • Page 106: Loud Bell (Lbc)

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition The intercom box cannot attend a conference (refer to Ref. B). The CO call is not received at the Intercom box. An Intercom box can be a member of a Page Zone group (refer to Ref. C).

  • Page 107: Voice Service

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.11 Voice Service 2.11.1 Recording system VMIB Announcement Description The Attendant Station can record voice announcements as System Greetings and prompts. System greetings should be recorded before use. Users can modify prompts (ex., date and time stamping) stored in user’s language and contained in VMIB by default Prompts provide assistance to Users for understanding when voice messages are received.
  • Page 108 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To rewind the current message, perform the following Steps: Press the [REWIND] soft button, the message should rewind according to the VM MSG Rewind timer (LDP-7024D). SYSTEM PROMPT MESSAGES (FIXED)

  • Page 109: Remote Control

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 When a call is transferred to the Attendant, the “Transfer to Attendant” prompt will be provided to the caller and the ring-back tone will be heard after the announcement.
  • Page 110 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To listen to received messages, perform the following: Dial 1 in the main menu of VMIB Remote Control mode. The recorded time & date of messages should be heard.

  • Page 111: Two-Way Recording

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.11.3 Two-Way Recording 2.11.3.1 Two-Way Recording Using SMDI Description Allows a Station to record a conversation in the mailbox by pressing the {RECORD} button while the Station is talking with a CO party.
  • Page 112 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Admin Programming Two Way Recording (PGM 112 – FLEX10) 2.11.3.2 Two Recording Using VMIB Description Allows a Station to record a conversation in the mailbox by pressing the {RECORD} button while the Station is talking with a CO party.

  • Page 113: Recording User Vmib Announcement

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Condition While the recording feature is enabled, the {RECORD} button will flash at 240ipm and if it is disabled, the {RECORD} button will be extinguished. Not available on SLT.
  • Page 114 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 To deactivate Call Forward from a Station, perform the following: Press the [DND/FOR] button. To leave a Voice Message Wait at a Station, perform the following Steps: The caller will hear the User greeting and the “Record your message”...

  • Page 115: Vmib Announcement For Auto Attendant

    Issue 0.2 Feature Description and Operation Manual June, 2006 Reference A. Refer to ARIA SOHO Hardware Description and Installation Manual, Message Wait/Callback Return code (PGM 106 – FLEX17) Admin Programming VMIB Message Type (PGM 111 – FLEX17) VMIB Access (PGM 113 – FLEX2) VMIB Message Retrieve Password (PGM 113 –...

  • Page 116: Vmib Message Transfer

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.11.6 VMIB Message Transfer Description Messages received at a Station may be transferred to another Station. Operation To transfer a message to another Station, perform the following Steps: While hearing a message, dial the Station number to be transferred to.

  • Page 117: Station Message Detail Recording (Smdr)

    Authorization codes may be entered and recorded. The Figure 2.12.1 describes that the ARIA SOHO System, PC, and the Attendant Station are all elements of SMDR. The ARIA SOHO System connects with the Attendant through DKTU port and with the PC through the RS-232C.

  • Page 118: Lost Call Print-Out

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 - 5-digit Station call originator field (terminating for incoming). - 3-digit used CO line field. - 8-digit call duration field (HH:MM:SS). - 8-digit year, month, day field (YY/MM/DD).
  • Page 119 ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 0006 100 001 00:00:04 06/05/99 16:04 H100 RING 00:02 DID call is disconnected while STA 100 is being held it. 0007 102 001 00:00:07 06/05/99 17:04 H100 RING 00:02 DID call is disconnected while it is being transferred from STA 100 to STA 102.

  • Page 120: Attendant Service

    System or Intercom Tenancy groups (LCD date/time format, etc.). There are 2 types of Attendants in the ARIA SOHO System: Main Attendant—Up to 5 Stations can be defined as Main Attendants that control the whole System;...

  • Page 121: Assign Attendant

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.1 Assign Attendant Description By default, the first Station (i.e., Station 100) is assigned as the System Attendant, and other Attendants are not automatically assigned unless programmed (PGM 164). Intercom Tenancy group Attendants can be assigned using Admin Programming (PGM 120 –...

  • Page 122: Attendant Forward

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 Admin Programming Main Attendant Assignment (PGM 164) MOH Type (PGM 171 – FLEX2) Intercom Tenancy Group Attendant Assignment (PGM 120 – FLEX1) Attendant Call Queuing RBT/MOH (PGM 160 – FLEX1) 2.13.3 Attendant Forward...

  • Page 123: Attendant Intrusion

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.4 Attendant Intrusion Description In the event of an emergency, the Attendant can intrude on a conversation in progress between a Station and a CO Line party. Figure 2.13.4 illustrates Attendant Intrusion:...

  • Page 124: Attendant Override

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.5 Attendant Override Description When this feature is Enabled, the Attendant can temporarily override a DND state on any Station; calls can be transferred to the Station regardless of the DND mode. Figure 2.13.5 describes Attendant Override.

  • Page 125: Attendant Recall

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.6 Attendant Recall Description If the recalled CO call is unanswered b the destination Station, the CO call will be redirected to the Attendant (refer to Ref. A, B). The Attendant will receive the Recall ring for a time equal to the Attendant Recall timer (PGM 180 –...

  • Page 126: Day/Night Service

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.8 Day/Night Service Description When a CO call is received in the System, the destination of the CO call can be changed according to the time. There are 5 ring modes: Day, Night, Weekend, On-Demand, and Automatic ring mode. The Destination of a CO call can be set differently for each ring mode;...

  • Page 127: Disable Outgoing Access

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 On-Demand mode is not available in the Automatic ring mode. The Attendants of Intercom Tenancy groups can change the ring mode as well as Main Attendants. Intercom Tenancy group attendants only effect the Intercom Tenancy group they belong to.

  • Page 128: Icm Box Music Selection

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.10 ICM Box Music Selection Description The Attendant can select the music channel source to provide the Intercom box. Operation To select the music source from the Attendant Station, perform the following Steps: Press the [TRANS/PGM] button.

  • Page 129: Dss/Dls Consoles

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.13.12 DSS/DLS Consoles Description Attendants and other DKTU s may be equipped with DSS/DLS consoles which provide additional buttons for more convenient operation. The consoles are arranged as flexible mapped units. The DSS/DLS consoles are assigned with programming as one of the 3 maps.

  • Page 130: Traffic Analysis

    ARIA SOHO Version 1 Issue 0.2 Feature Description and Operation Manual June, 2006 2.14 Traffic Analysis Description The System can monitor and print various System activities at the request of the Main Attendant (refer to Ref. A). The information can be used to: Monitor and evaluate System performance.

  • Page 131: Attendant Reports

    2.14.1 Attendant Reports Description The ARIA SOHO System supports the following report to analyze the Attendant resource: Attendant Traffic report – The measurement time type can be one of Today’s peak time, Yesterday’s peak time, Last hour, Yesterday’s total and Today’s total. It provides the following information fields.

  • Page 132: Call Reports

    2.14.2 Call Reports Description The ARIA SOHO System supports the following report to analyze the call status of the System. Call Summary report – Monitor the day’s traffic and generate the report to show call status of the last hour, today’s peak time, yesterday’s peak time, yesterday’s total and today’s total.

  • Page 133: Co Reports

    2.14.3 CO Reports Description The ARIA SOHO System supports the following report to analyze the traffic on CO line groups. CO Traffic Summary report – Analysis of Co group traffic status by showing applicable statistics. The measurement time type can be one of Today’s peak time, Yesterday’s peak time, Last hour, Yesterday’s total and Today’s total.

  • Page 134: Hardware (H/W) Unit Usage Reports

    2.14.4 Hardware (H/W) Unit Usage Reports Description The ARIA SOHO System supports the following report to analyze the usage of the Hardware (H/W) unit resources of the System such as the Tone Receiver, and VMIB. H/W Usage Summary report – Analysis of whether the System has enough H/W unit resources such as the DTMF receiver, VMIB and CPTU by showing the statistics.

  • Page 135: Software Upgrade

    MBU software is upgraded. PSTN Modem (Serial) RS-232C FIGURE 2.15 AVAILABLE CONNECTIONS FOR SOFTWARE UPGRADE The figure 2.15.1 describes that there are 4 types of the connection of ARIA SOHO system and PC for ARIA SOHO MBU software - SERIAL/USB/LAN/MODEM.

  • Page 136: Usb

    Connect the USB cable to the PC USB port. Run LDK PC Upgrade program. Select the ARIA SOHO system to be upgraded and press ‘OK’ button. Click on the OK button. Set the port type to “USB Connection”. And press the ‘Select’ button.
  • Page 137 In the ‘Next’ window, press ‘Start’ button. You can see the ARIA SOHO MBU software upgrade process. When the ROM file sending is finished in the PC, ARIA SOHO will erase the previous ROM data and start to fill ARIA SOHO ROM area with the received ROM file.

  • Page 138: Lan

    Feature Description and Operation Manual June, 2006 2.15.2 LAN Description The ARIA SOHO MBU software can be upgraded through LAN interface by LDK upgrade program in remote PC. Operation To upgrade the LAN software, perform the following Steps: Connect the LAN cable to the PC LAN-card.
  • Page 139 Feature Description and Operation Manual June, 2006 Enter the ARIA SOHO IP address, path of the binary file and the password for upgrade. And press the ‘Next’ button. In the ‘Next’ window, press ‘Start’ button. You can see the ARIA SOHO MBU software upgrade process.

  • Page 140: Serial (Com Port)

    June, 2006 2.15.3 Serial (COM Port) Description The ARIA SOHO MPB software can be upgraded through the RS-232C interface using the ARIA SOHO upgrade program from a remote PC connected to the System. Operation To upgrade using the Serial (COM Port), perform the following Steps: Connect the RS-232C cable between the ARIA SOHO System and the PC.
  • Page 141 When the ARIA SOHO MPB software upgrade is disconnected before completing, the whole process must be redone from the beginning. If the ROM files on the PC are invalid, the ARIA SOHO MPB software upgrade will not be started. The Serial port should be connected to COM port 2 in the MPB.

  • Page 142: Modem

    Select the ARIA SOHO System to be upgraded. Click on the OK button. Select the port type Modem Connection. Click on the Select button. Enter the ARIA SOHO Dial number, Admin Password, and select the path of the binary file.
  • Page 143 When the ARIA SOHO MPB software upgrade is disconnected before completing, the whole process must be redone from the beginning. If the ROM files on the PC are invalid, the ARIA SOHO MPB software upgrade will not be started. Admin Programming...
  • Page 144 ARIA SOHO ADMIN Programming Manual...
  • Page 145 Copyright© 2006 LG-Nortel Co. Ltd. All Rights Reserved This material is copyrighted by LG-Nortel Co. Ltd. (LGN). Any unauthorized reproductions, use or disclosure of this material, or any part thereof, is strictly prohibited and is a violation of Copyright Laws. LGN reserves the right to make changes in specifications at any time without notice.

  • Page 146: Revision History

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 Revision History ISSUE DATE CONTENTS OF CHANGES REMARK ISSUE 0.3 2006.06 DRAFT Release...
  • Page 147 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 Table of Contents INTRODUCTION .................... 1 1.1 Manual Usage........................1 ADMIN PROGRAMMING PREPARATION............ 2 2.1 Entering Programming Mode..................3 2.1.1 Permanent Update Procedure ....................3 2.1.2 Resetting the System....................... 4 2.2 Pre-Programming ......................
  • Page 148 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.11 Modem Assignment (PGM 170)................... 41 3.3.12 Music Assignment (PGM 171) ..................... 41 3.3.13 PBX Access code (PGM 172)....................43 3.3.14 PLA Priority Setting (PGM 173) ................... 43 3.3.15 RS-232C Port Setting (PGM 174)..................44 3.3.16 Print Port Selection (PGM 175)....................

  • Page 149: Introduction

    ADMIN Programming Manual June, 2006 This Programming Manual is designed to provide general system information related to ADMIN Programming, using a DKTU and PC for the ARIA SOHO. This manual contains the following sections. 1.1 Manual Usage Section 2 Admin Programming Preparation A brief overview to ensure the System is appropriately prepared for Admin Programming.

  • Page 150: Admin Programming Preparation

    The LDK System can be programmed to meet each customer’s individual need. Elements of Basic Admin Pre- programming should have been covered in the ARIA SOHO Hardware Description and Installation Manual. Please refer to that manual to ensure the System is prepared for Admin Programming covered in this manual.

  • Page 151: Entering Programming Mode

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 2.1 Entering Programming Mode To enter programming mode, perform the following Steps: 1. Lift Handset 1. Press the [MON] button on the ADMIN Station; the ICM dial tone should be heard.

  • Page 152: Resetting The System

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 2.1.2 Resetting the System To reset the System, perform the following Steps: 1. Enter the [PGM] number 2. Enter 450 3. Press the [FLEX] button 4. Enter 15 5. Press the [HOLD/SAVE] button.

  • Page 153: Pre-Programming

    Issue 0.3 ADMIN Programming Manual June, 2006 2.2 Pre-Programming Pre-programming for the following should have been done immediately following Installation of the ARIA SOHO System (refer to the Hardware Description and Installation Manual): • Location PGM – Nation Code •...

  • Page 154: Station (Pgm110-131)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1 Station (PGM110-131) In Station Programming, the values of each Station can be customized using program numbers. When programming using Station Ranges, all Stations within that range will have the same programmed values.

  • Page 155: Station Attributes I (Pgm 111)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 ITEM DEFAULT REMARK Button 11: Call Park 03 Button 12: Station Group 3 Buttons 13 to 48 Station Ports 100-135 DSS/DLS Map2 Station Ports 136-151 DSS/DLS Map3 Blank 3.1.2 Station Attributes I (PGM 111) In this program mode, the following items can be customized: 1.
  • Page 156 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM111 DESCRIPTION PROCEDURE COMMENTS Ring Type If this value is not O (OFF), the + FLEX9 + 1 (Ring Type) VALUES— selected ring type is heard at + [HOLD/SAVE]...

  • Page 157: Station Attributes Ii (Pgm 112)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.3 Station Attributes II (PGM 112) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 112 3. Enter the appropriate Station number or Station Range 4.
  • Page 158 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM112 DESCRIPTION PROCEDURE COMMENTS Speed Dial Access If this value is set to ON, the + FLEX9 + 0 (OFF) + VALUES— Station User can use the [HOLD/SAVE] 0 = OFF System Speed dial call feature.
  • Page 159 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM112 DESCRIPTION PROCEDURE COMMENTS Forced Station Account If this value is set to ON, a + FLEX20 + 1 (ON) + VALUES— Code password is needed to access [HOLD/SAVE] 0 = OFF an outgoing CO line.

  • Page 160: Station Attributes Iii (Pgm113)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.4 Station Attributes III (PGM113) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 113 3. Enter the appropriate Station Number or Station Range 4.
  • Page 161 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM113 DESCRIPTION PROCEDURE COMMENTS button. VMIB MSG Retrieve If this value is set to ON, the + FLEX8 + 1 (ON) + VALUES— Password Station User must enter a...

  • Page 162: Station Attribute Iv (Pgm 114)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.5 Station Attribute IV (PGM 114) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 114 3. Enter the appropriate Station Number or Station Range 4.

  • Page 163: Flexible Button Assignment (Pgm 115)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.6 Flexible Button Assignment (PGM 115) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 115 3. Enter the appropriate Station Number or Station Range 4.

  • Page 164: Station Cos (Pgm 116)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.7 Station COS (PGM 116) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 116 3. Enter the appropriate Station Number or Station Range 4.

  • Page 165: Co Line Group Access (Pgm 117)

    PROCEDURE COMMENTS PGM 118—Internal Each Station is assigned to an + FLEX1-FLEX5 VALUES – Page Zone internal page zone. ARIA SOHO (ZONE01-ZONE05) + Default = ZONE01 supports 10 internal paging [HOLD/SAVE] zones. PGM 119—Conference Each Station can be assigned to + FLEX1-FLEX5 VALUES –...

  • Page 166: Intercom Tenancy Group (Pgm 120)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.10 Intercom Tenancy Group (PGM 120) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 120 3. Enter the appropriate Group Number 4.

  • Page 167: Idle Line Selection (Pgm 122)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.12 Idle Line Selection (PGM 122) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 122 3. Enter the appropriate Station Number 4.

  • Page 168: Copy Dss Button (Pgm 125)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.14 Copy DSS Button (PGM 125) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 125 3. Enter the appropriate Station Number 4.

  • Page 169: Display Station Number (Pgm 130-131)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.1.16 Display Station Number (PGM 130-131) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial PGM Number (130 or 131) 3.

  • Page 170: Co Line (Pgm 140-146)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.2 CO Line (PGM 140-146) CO Line features are covered in PGM s 140 to 144. When programming, if the programmer enters data correctly, the LCD and LED s show he entered data, and is stored in the temporary buffer area.

  • Page 171: Co Line Attributes I (Pgm 141)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.2.2 CO Line Attributes I (PGM 141) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 141 3. Enter the appropriate CO Line Range 4.

  • Page 172: Co Line Attributes Ii (Pgm 142)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 140 DESCRIPTION PROCEDURE COMMENTS Universal Night Answer If this value is set to ON, UNA is + FLEX8 + 1 (ON) + VALUES – (UNA) applied to the active CO Line.
  • Page 173 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 KEYSET MAP . – 13 A – 21 D – 31 Q – 11 B – 22 E – 32 Z – 12 C – 23 F – 33 1 –...
  • Page 174 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 142 DESCRIPTION PROCEDURE COMMENTS CO Line MOH Designates MOH on the CO + FLEX6 + 02 (External VALUES – Line (refer to VALUES) Music) + [HOLD/SAVE] 0 = Not Assigned...

  • Page 175: Co Ring Assignment (Pgm 144)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.2.4 CO Ring Assignment (PGM 144) When the CO Service Type (ADMIN 140) is set to Normal, the CO incoming calls are routed to the proper destination according to this assignment. The destination can be a Station, Hunt Group, or VMIB announcement.

  • Page 176: Co Line Assignment Display (Pgm 145)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.2.5 CO Line Assignment Display (PGM 145) In this program mode, the following items can be customized: 5. Press the [TRANS PGM] button 6. Dial 145 7. Enter the appropriate CO Line Range 8.

  • Page 177: Co To Cid Attributes (Pgm 147)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.2.6 CO to CID Attributes (PGM 147) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 147 3. Enter the appropriate CO Line Range 4.

  • Page 178: System Data (Pgm 160 - 185)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3 System Data (PGM 160 - 185) 3.3.1 System Attributes I (PGM 160) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2.
  • Page 179 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 160 DESCRIPTION PROCEDURE COMMENTS External Night Ring If this value is set to ON, when + FLEX7 + 0 (ON) + VALUES – an incoming CO call is received...

  • Page 180: System Attributes Ii (Pgm 161)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 160 DESCRIPTION PROCEDURE COMMENTS CO to CO Transfer CPT If this value is set to CPT + FLEX16 + 1 (CPT VALUES – Detection detection, a CO-to-CO transfer...
  • Page 181 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 161 DESCRIPTION PROCEDURE COMMENTS Auto Privacy If this value is set to ON, a call + FLEX5 + 0 (OFF) + VALUES – is protected from override [HOLD/SAVE]...
  • Page 182 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 161 DESCRIPTION PROCEDURE COMMENTS Auto FAX Transfer CO If Auto FAX CO line is + FLEX17 + CO Line programmed, the System Number (Range=01-12) + answers and detects the FAX [HOLD/SAVE] calling tone (1100Hz, 0.5sec...

  • Page 183: Admin Password (Pgm 162)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.3 ADMIN Password (PGM 162) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 162 3. Follow the specific Procedure as listed in the Table.

  • Page 184: Attendant Assignment (Pgm 164)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.5 Attendant Assignment (PGM 164) A maximum of 5 Attendants can be assigned including the Main Attendant and System Attendant. In this program mode, the following items can be customized: 1.

  • Page 185: Co-To-Co Cos (Pgm 166)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.7 CO-to-CO COS (PGM 166) When an external user of a DID/DISA/TIE line tries to access another CO Line in the System, CO-to-CO COS is applied. The attributes of CO-to-CO COS is the same as Station COS.
  • Page 186 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 167 DESCRIPTION PROCEDURE COMMENTS VMIB Prompt Usage If this value is set to ON, and + FLEX3 + VALUE + VALUES – VMIB is available, the proper [HOLD/SAVE]...

  • Page 187: External Control Contact (Pgm 168)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 167 DESCRIPTION PROCEDURE COMMENTS Reroute Error When a DISA caller is rerouted + FLEX6 + FLEX1 VALUES – Destination by the No Answer Forward / (Range=refer to FLEX1 = Tone...

  • Page 188: Lcd Time/Date/Language Display Mode (Pgm 169)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.10 LCD Time/Date/Language Display Mode (PGM 169) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 169 3. Follow the specific Procedure as listed in the Table.

  • Page 189: Modem Assignment (Pgm 170)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.11 Modem Assignment (PGM 170) Modem service is available only when a MODU is installed on the MPB. In this program mode the following items can be customized: 1. Press the [TRANS PGM] button 2.
  • Page 190 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 171 DESCRIPTION PROCEDURE COMMENTS Assign SLT MOH To assign SLT MOH, set the + FLEX4 + FLEX1 (refer VALUES – value and match the SLT to VALUES)+ SLT Station FLEX1 = SLT MOH 1 Station number for the SLT port.

  • Page 191: Pbx Access Code (Pgm 172)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.13 PBX Access code (PGM 172) In this program mode the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 172 3. Follow the specific Procedure as listed in the Table.

  • Page 192: Rs-232C Port Setting (Pgm 174)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.15 RS-232C Port Setting (PGM 174) In this program mode the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 174 3. Follow the specific Procedure as listed in the Table.

  • Page 193: Print Port Selection (Pgm 175)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.16 Print Port Selection (PGM 175) The following Table gives an overview of Printer Port selections. PRINT PORT SELECTION OVERVIEW FLEX ITEM RANGE DEFAULT REMARK Off-line 01-11 COM1 01: COM1...
  • Page 194 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 175 DESCRIPTION PROCEDURE COMMENTS Call Information Call information data can be + FLEX5 + VALUE printed through this port. (Range=1-11) + [HOLD/SAVE] Info/On-line SMDR On-line SMDR data can be + FLEX6 + VALUE printed through this port.

  • Page 195: Pulse Dial Ratio (Pgm 176)

    3. Follow the specific Procedure as listed in the Table. PGM 176 DESCRIPTION PROCEDURE COMMENTS Pulse Dial Ratio In ARIA SOHO, pulse dial + FLEX1 + 0 (Refer to VALUES – speed ratio is set only for 10 VALUES) + 0 = 10 PPS 60/40% PPS.
  • Page 196 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 177 DESCRIPTION PROCEDURE COMMENTS Print Incoming Call If value is set to ON, all + FLEX5 + 1 (ON) + VALUES – incoming calls can be printed. [HOLD/SAVE]...
  • Page 197 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 177 DESCRIPTION PROCEDURE COMMENTS SMDR Cost Per Unit The metering pulse is used to + FLEX10 + 001000 Pulse measure call cost per unit which (Range=6 digits) +...

  • Page 198: System Time/Date Setting (Pgm 178)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.3.19 System Time/Date Setting (PGM 178) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 178 3. Follow the specific Procedure as listed in the Table.

  • Page 199: System Timers (Pgm 180-182)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.4 System Timers (PGM 180-182) 3.4.1 System Timers I (PGM 180) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 180 3.
  • Page 200 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 180 DESCRIPTION PROCEDURE COMMENTS ACNR Retry ACNR is executed up to the value + FLEX11 + VALUE (2 Counter designated. After the timer expires, the digits, Range=01-30) + ACNR service is cancelled.

  • Page 201: System Timers Ii (Pgm 181)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.4.2 System Timers II (PGM 181) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 181 3. Follow the specific Procedure as listed in the Table.
  • Page 202 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 181 DESCRIPTION PROCEDURE COMMENTS Pause Timer Used for Speed Dial or LNR; the + FLEX11 + Seconds (1 LDK System sends the dialed digits, Range=1-9) + digits to the outgoing CO line, [HOLD/SAVE] after the designated time.

  • Page 203: System Timers Ii (Pgm 182)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.4.3 System Timers II (PGM 182) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2. Dial 182 3. Follow the specific Procedure as listed in the Table.

  • Page 204: In Room Indication (Pgm 183)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.4.4 IN ROOM INDICATION (PGM 183) A supervisor press In-Room Indication button and [HOLD/SAVE] button at idle state. Then each LED of In-Room Indication buttons of every members turned ON.

  • Page 205: Station Group (Pgm 190 - 191)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.5 Station Group (PGM 190 – 191) 3.5.1 Station Group Assignment (PGM 190) In this program mode, the following items can be customized: 1. Press the [TRANS PGM] button 2.

  • Page 206: Station Group Attributes (Pgm 191)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.5.2 Station Group Attributes (PGM 191) If the Hunt Group type is selected at Admin PGM 190, then the attributes of each Hunt Group can be programmed. In this program mode, the following items can be customized: 5.
  • Page 207 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 191 DESCRIPTION PROCEDURE COMMENTS Overflow Destination Calls to a Station in the group + FLEX7 + Destination VALUES – will continue to route until Type (refer to VALUES,...
  • Page 208 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 191 DESCRIPTION PROCEDURE COMMENTS Music Source If a music source is assigned, + FLEX13 + Music VALUES – the caller will be able to hear Source (refer to VALUES)

  • Page 209: Ucd Group Attribute

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.5.3 UCD Group Attribute If the Hunt Group Type is set as UCD, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 191 3. Enter the appropriate Hunt Group Number.
  • Page 210 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 191 DESCRIPTION PROCEDURE COMMENTS Overflow Destination Calls to a Station in the group + FLEX7 + Destination VALUES – will continue to route until Type (refer to VALUES,...
  • Page 211 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 191 DESCRIPTION PROCEDURE COMMENTS Supervisor Timer If no members are on duty or all + FLEX14 + Seconds members are busy, incoming (Range=000-999) + CO calls will be queued. The...

  • Page 212: Ring Group Attributes

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.5.4 Ring Group Attributes If the Hunt Group type selected is RING, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 191 3. Enter the appropriate Hunt Group Number.
  • Page 213 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 191 DESCRIPTION PROCEDURE COMMENTS Overflow Destination Calls to a Station in the group + FLEX7 + Destination VALUES – will continue to route until Type (refer to VALUES,...

  • Page 214: Vm Group Attribute

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.5.5 VM Group Attribute If the Hunt Group type selected is VM Group, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 191 3. Enter the appropriate Hunt Group Number.

  • Page 215: Pick-Up Group Attribute

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 SMDI PORT FLEX ITEM RANGE DEFAULT REMARK Off-line SMDR/ Statistics Print 01-12 COM1 01: COM1 02: Not Supported Admin Port 01-12 COM1 03: COM2-MODU Traffic 01-12 COM1 04: TELNET 1...

  • Page 216: Smdr Local Code (Pgm 204)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.6 SMDR Local Code (PGM 204) In this program mode, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 204 3. Follow the specific Procedure as listed in the Table.

  • Page 217: Lcr (Pgm 220 - 223)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.7 LCR (PGM 220 - 223) 3.7.1 LCR Attributes (PGM 220) In this program mode, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 220 3.

  • Page 218: Leading Digit Table (Pgm 221)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 220 DESCRIPTION PROCEDURE COMMENTS Time Zone of Day Zone2 Each time of day Zone2 can use FLEX3 + FLEX2 + HH- VALUES – different LCR settings; each HH (4 digits) +...
  • Page 219 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 4. Follow the specific Procedure as listed in the Table. PGM 221 DESCRIPTION PROCEDURE COMMENTS LCR Type Used to select the LCR type. + FLEX1 + VALUE2 (LCR VALUES –...

  • Page 220: Digit Modification Table (Pgm222)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.7.3 Digit Modification Table (PGM222) Digit Modification Table (DMT) is used to convert the dialed digits and secure the outgoing CO line. In the LDK System, maximum of 100 DMT entries can be programmed. In this program mode, the following items can be customized: 1.

  • Page 221: Lcr Table Initialization (Pgm 223)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.7.4 LCR Table Initialization (PGM 223) In this program mode, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 223 3. Follow the specific Procedure as listed in the Table below.
  • Page 222 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 223 DESCRIPTION PROCEDURE COMMENTS Alternative DMT Index Changes all Alternative DMT + FLEX5 + VALUE (6 VALUES – Index values of DMT entry to digits, Range=00-99) + FLEX1 = Day Zone1 the new value.

  • Page 223: Toll Table (Pgm 224 - 226)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.8 Toll Table (PGM 224 – 226) Toll tables are used for accessing certain toll free calls as well as not allowing certain calls for Stations assigned to a particular Station COS.
  • Page 224 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 224 DESCRIPTION PROCEDURE COMMENTS Allow Table B Used to check whether the + FLEX3 + VALUE (refer digits dialed by a COS3 and to Allow Table, COS4 Station match with the Range=01-30) + Allow allowed toll pass digits.

  • Page 225: Canned Toll Tables (Pgm 225)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 ALLOW/DENY TABLE RULE ENTRY CONDITIONS & RESULTS ALLOW DENY ALLOW TABLE DENY TABLE Not Exist Not Exist No Restriction No Restriction Exist Not Exist Found-allowed Not Found-denied Not Exist...

  • Page 226: Emergency Service Call (Pgm 226)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.8.3 Emergency Service Call (PGM 226) The Emergency Code Table is used for Emergency Call Service. All Stations, regardless of COS, can dial the emergency codes in this table. In this program mode, the following items can be customized: 1.

  • Page 227: Tables (Pgm 227 - 236)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.9 Tables (PGM 227 – 236) 3.9.1 Authorization Code Table (PGM 227) The authorization code table entries consist of each Station password and extra account codes. The table entry from 001 to the maximum capacity of Station numbers are saved along with the password of each Station.

  • Page 228: Custom Call Routing (Pgm 228)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.9.2 Custom Call Routing (PGM 228) The caller can select the destination according to the options outlined in the VMIB announcement. In the LDK system, maximum 70 VMIB announcements can be used, and 10 different destination types can be selected (refer to Procedure table).

  • Page 229: Executive/Secretary Table (Pgm 229)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 PGM 228 DESCRIPTION PROCEDURE COMMENTS Internal Page The call ring will page to the + 06 + Internal Page designated internal page zones. Number (Range=1-10) + [HOLD/SAVE] External Page...

  • Page 230: System Speed Zone (Pgm 232)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.9.4 System Speed Zone (PGM 232) In this program mode, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 232 3. Enter the appropriate Speed Zone number (Range=01-10) 4.

  • Page 231: Weekly Time Table (Pgm 233)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.9.5 Weekly Time Table (PGM 233) The Weekly time Table can manage ring mode changes automatically. For example the office work starts at 9:00AM and finishes at 5:00PM during week days; weekends start at 5:00PM on Fridays, lasting through Sunday,...

  • Page 232: Voice Mail Dialing Table (Pgm 234)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.9.6 Voice Mail Dialing Table (PGM 234) In this program mode, the following items can be customized: 1. Press the [TRANS/PGM] button 2. Dial 234 3. Follow the specific Procedure as listed in the Table below.

  • Page 233: Other Tables

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.10 Other Tables 3.10.1 Nation Specific (PGM 400 – 423) FLEX ITEM RANGE DEFAULT REMARK DTIB RX Gain DTIB/DKT 00-63 DTIB/SLT 00-63 DTIB/RESERV 00-63 DTIB/RESERV 00-63 DTIB/ACO 00-63 DTIB/RESERV...
  • Page 234 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 FLEX ITEM RANGE DEFAULT REMARK VMIB/SLT 00-63 VMIB/RESERV 00-63 VMIB/RESERV 00-63 VMIB/ACO 00-63 VMIB/RESERV 00-63 VMIB/RESERV VMIB/RESERV VMIB/RESERV DTMF RC Gain DTMF/SLT 00-63 DTMF/RESERV 00-63 DTMF/ACO 00-63 DTMF/RESERV 00-63...
  • Page 235 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 FLEX ITEM RANGE DEFAULT REMARK DTIB 00-63 System Tone Frequency Dial Tone 4 digits 0400, 0425 Ring-Back Tone 4 digits 0400, 0425 Busy Tone 4 digits 0400, 0000 Error Tone...

  • Page 236: Initialization (Pgm 450)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.10.2 Initialization (PGM 450) FLEX ITEM RANGE DEFAULT REMARK Initialization Flexible Numbering PGM105, Plan Initialization PGM106, PGM107 Station Database PGM110, Initialization PGM111, PGM112, PFM113, PGM114, PGM116, PGM117, PGM118, PGM119,...

  • Page 237: Print Port Database (Pgm 451)

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual June, 2006 3.10.3 Print Port Database (PGM 451) FLEX ITEM RANGE DEFAULT REMARK Print Port Data Flexible Numbering Plan Print Station Database STN_R Print CO Line CO_R Database Print System Feature...
  • Page 238 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 DMIN ROGRAMMING ABLES Numbering Plan The following numbering plan can be changed by Admin Programming 104-107 depending on the user’s needs. To enter user programming mode, press the [TRANS/PGM] button on the keyset or dial 563 on a SLT.
  • Page 239 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FUNCTION CODE ITEM REMARK Door Open Door Open Door Open Door Open VM Message Waiting Enable VM Message Waiting Disable The following numbering plan is fixed, so it can not be changed by Admin Programming.
  • Page 240 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FUNCTION CODE ITEM REMARK HOTDESK Login Relocation OUT Relocation IN Register Bluetooth Bluetooth Usage ATTENDANT PROGRAMMING FUNCTION CODE ITEM REMARK 0111 Print SMDR (Station Base) System Attendant 0112...
  • Page 241 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FUNCTION CODE ITEM REMARK External Page music -1 Attendant Assignment/Cancel Prepaid Call LCD Display Language FLEXIBLE BUTTON PROGRAMMING CODES FUNCTION CODE ITEM REMARK Differential Ring Station COS Down...
  • Page 242 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 Admin Programming Index MAIN MENU ITEM PRE-PROGRAMMED DATABASE Location Program Board Assignment Logical Slot Assignment Flexible Number Plan A Flexible Number Plan B IP Setting Flexible Number Plan C...
  • Page 243 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 MAIN MENU ITEM RS-232C Port Setting Print Port Selection Pulse Dial Ratio SMDR Attributes System Date/Time Setting Linked Station Pairs Table SYSTEM BASE PROGRAM System Timers I System Timers II...

  • Page 244: Default Values

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 Default Values LOCATION PROGRAM FLEX ITEM DEFAULT REMARK Nation Code Max. 4 Digits Customer Site Name Max. 24 Digits BOARD SLOT ASSIGNMENT FLEX ITEM RANGE DEFAULT REMARK Slot Assignment...
  • Page 245 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 Flexible Numbering Plan FLEX FIELD NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER REMARK SET 1 SET 2 SET 3 SET 4 SET 5 SET 6 SET 7...
  • Page 246 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX FIELD NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER REMARK SET 1 SET 2 SET 3 SET 4 SET 5 SET 6 SET 7 SET 8 UCD DND...
  • Page 247 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 IP Settings FLEX ITEM RANGE DEFAULT REMARK IP Name Max. 15 Digits Server IP Address 12 Digits 192.168.1.1 Skip: # CLI IP Address 12 Digits Gateway Address 12 Digits...
  • Page 248 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK Error Tone for TAD ON/OFF Provides busy tone to TAD when caller hangs up. SLT Flash Drop ON/OFF Drop calls by pressing [FLASH] button or hook flash.
  • Page 249 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK Block Back Call for SLT ON/OFF Blocks SLT recall. I-Time Reset ON/OFF Incoming Call Restriction STA Account ON/OFF Must use an Account Code to access CO Lines.
  • Page 250 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 ISDN Station Attributes FLEX ITEM RANGE DEFAULT REMARK CLIP LCD Display ON/OFF Determines if CLI is displayed at the Station. COLP LCD Display ON/OFF Determines if calling party CLI is displayed at the Station.
  • Page 251 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK ICM Preset Call Calls will be forwarded to designated Forward Station on No Answer. Idle Line Selection Hot and Warm Line Destination 1: FLEX Button 01-44 Program one-touch feature access.
  • Page 252 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK CO Line Name Assign Max. 12 Characters Metering Unit 00-06 Unit used to recognize Pulse from CO Line. Line Drop Using DPT ON/OFF Incoming calls checked by CPT, and dropped if dial tone is detected.

  • Page 253: System Base Program

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK Russia CID CIRAN 001-300 Determines the length of time before Timer the call is dropped in Russian CID mode. Russia CID Digit 04-10...
  • Page 254 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK CO-to-CO Transfer ON/OFF Determines if CPT will be used to detect tones on CO-to-CO Transfer. ACD Info Print ON/OFF Determines if ACD info is available for printing.
  • Page 255 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK DSS Indication ENABLE/ DISABLE Determines if LED indication will be DISABLE blocked for incoming calls. NOTE—does not apply to DID/DISA Calls. UK Billing Mode ON/OFF Determines if UK billing Mode is used.
  • Page 256 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK VMIB Prompt Usage FLEX1- FLEX1 Determines if VMIB Announcement is FLEX5 played prior to call being routed. Busy Prompt Usage ON/OFF Determines if Busy Announcement is played before call is routed to Busy Destination.

  • Page 257: Smdr Attributes

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK CO Ring Back Tone 0 (Not Determines if the external DID ring Assigned) back tone will be used. Internal MOH Type 0-12 Determines the MOH type.
  • Page 258 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK SMDR Recording Type LD/ ALL LD = Only outgoing Long Distance CALL (Admin 177-FLEX4 or FLEX14) calls are recorded. ALL = All outgoing calls are recorded.
  • Page 259 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 System Timer Programming FLEX ITEM RANGE DEFAULT REMARK Attendant Recall Timer 00-60 (2 01 Min. Determines when call will be Digits) disconnected on Attendant No Answer. Call Park Recall Timer 000-600 (3 120 Sec.
  • Page 260 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK CO Ring-ON Timer 1-9 (1 2 (100ms) Determines the amount of time needed Digit) to detect incoming CO calls to the System. CO Warning Tone 060-900 (3 180 Sec.

  • Page 261: Station Group

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK CO Line CPT Detect 0-20 5 (sec) Determines the time delay used to Timer check status after a CO Line is connected; to activate, CO-CO Transfer CPT Detect (PGM 160 –...
  • Page 262 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 Station Group Program FLEX ITEM RANGE DEFAULT REMARK Circular Group/ Terminal Group VMIB Announce 1 000-999 (3 015 Sec. VMIB Announcement played on No Timer Digits) Answer (Admin PGM191-FLEX3).
  • Page 263 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK VMIB Announce 2 00-70 (2 Digits) 00 (Not VMIB Announcement played when 2 Location Assigned) timer expires. VMIB Announce 2 000-999 (3 000 Sec.

  • Page 264: Smdr Local Code Table

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK VMIB Announce 2 ON/OFF Determines if VMIB Announce 2 Repeat Repeat E/D is available. Overflow Destination STA#/ HUNT#/ Call will continue to be routed based on...
  • Page 265 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 LCR TABLE ASSIGNMENT FLEX ITEM RANGE DEFAULT REMARK LCR Access Mode M00/ M01/ Determines LCR access mode. M02/ M11/ (Disable) M12/ M13 Set the Day of Week 1234567...

  • Page 266: Lcr Table Initialization

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK Added Digit Max. 25 Determines value of digit stream to add Digits on user dialed digits. Add Position (Admin PGM222-FLEX4) Removal Position 1-12 Determines position of digit stream to remove on user dialed digits.
  • Page 267 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 OTHER TABLES FLEX ITEM RANGE DEFAULT REMARK Authorization Code 001-200 (3- Contains Station passwords and extra account Table 11 digits) Assigned codes. CO Line Groups can be marked to deny access unless appropriate authorization code entry.
  • Page 268 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK DTIB/MUSIC2 00-63 DTIB/RESERV SLIB RX Gain SLIB/DKT 00-63 SLIB/SLT 00-63 SLIB/RESERV 00-63 SLIB/RESERV 00-63 SLIB/ACO 00-63 SLIB/RESERV 00-63 SLIB/RESERV SLIB/VMIB 00-63 SLIB/DTMF 00-63...
  • Page 269 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK EXT PAGE/ACO 00-63 EXT PAGE/RESERV EXT PAGE/RESERV EXT PAGE/VMIB 00-63 EXT PAGE/MUSIC1 00-63 EXT PAGE/RESERV EXT PAGE/RESERV CPT Gain 00-63 CPT/ACO 00-63 CPT/RESERV...
  • Page 270 ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 FLEX ITEM RANGE DEFAULT REMARK Ring Back Tone (RBT) 000-255 ON: 050/ 20Msec Base OFF: 100 Busy tone ON: 020/ OFF: 025 Error Tone ON: 012/ OFF: 012...

  • Page 271: Nation Specific

    ARIA SOHO Version 1 Issue 0.3 ADMIN Programming Manual Appendix June, 2006 Print Port Database FLEX ITEM RANGE DEFAULT REMARK Print Port Database Flexible Numbering Plan Print Station Database Print STN_R CO Line Database Print CO_R System Feature Database Print...

Table of Contents

Save PDF
