Summary of Contents for System Q CCT286
- Page 1 9 Channel Colour Multiplexer System Q Order No: CCT286 Instruction manual System Q Ltd. The Green, Hasland, Chesterfield, S41 0LJ...

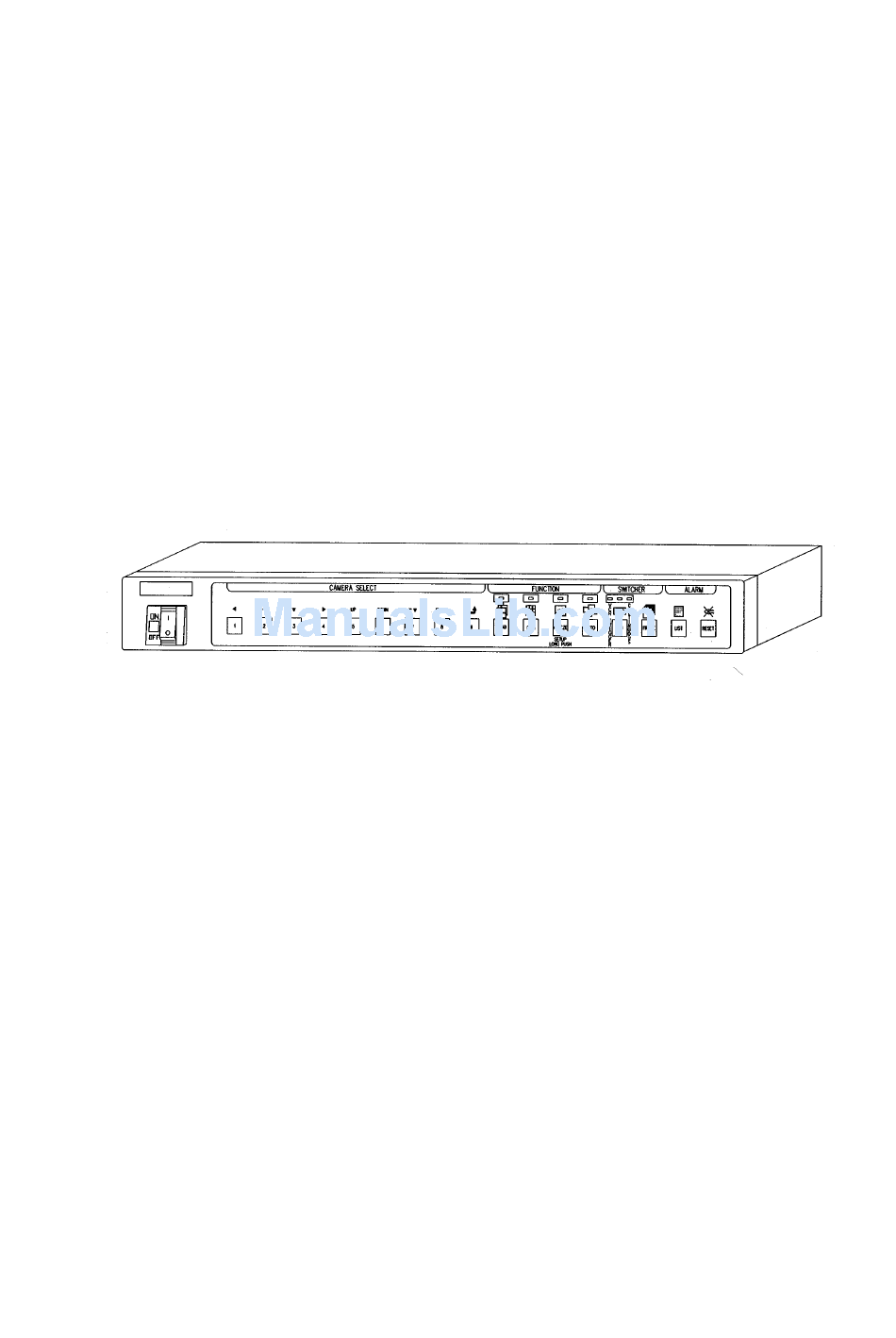

- Page 2 Front and Rear Layout of the Multiplexer CCT286 CCT286d2 Front view of the multiplexer The on/off switch is on the far left hand side The camera select switches are shown marked 1-9 The function switches for Quad, Freeze, Playback, Auto etc are on the right hand side...
- Page 3 (These are standard relay contacts Common, N/O and N/C). The connector labelled 15 is the mains fuse holder. The connector labelled 16 is the mains input connector, this is an IEC connector (kettle lead type) System Q Ltd. The Green, Hasland, Chesterfield, S41 0LJ...
-
Page 4: The Setup Menus
Press and hold the FREEZE key for 3 seconds to enter the setup screens. Press the 7 key to scroll through the setup screens until the VCR & ALARM menu appears. To exit from menus press key 9. The options are as follows: System Q Ltd. The Green, Hasland, Chesterfield, S41 0LJ... - Page 5 S-VHS if using the S-VHS connections) VCR OUTPUT: TIMELAPS or CONTINUOUS (Set to Continuous if the adapter link cable isn’t used. This cable is available as a separate item for System Q Hitachi TLR) REC MODE: TLV.NORMAL (Time-lapse recording without alarm triggers)
-
Page 6: Alarm Contacts
In menu 2 set the VCR OUTPUT to CONTINUOUS. When using the multiplexer with a System Q supplied Hitachi TLR and adapter cable set the VCR OUTPUT in menu 2 to TIMELAPSE. Set REC MODE to TLV-NORMAL if no alarms are used. - Page 7 VCR is recording. Middle LED = Constant red light when Play Back is selected Continuous = Indicates that the unit is set for TIMELAPSE on menu 2 (constant red light) System Q Ltd. The Green, Hasland, Chesterfield, S41 0LJ...
-
Page 8: Troubleshooting
(pin 15) if using N.O. settings. If N.C. contacts are used then the contacts will be held at ground until an alarm trigger. System Q Ltd. The Green, Hasland, Chesterfield, S41 0LJ... - Page 9 03 SEC CH4: CH5: 03 SEC CH5: CH6: 03 SEC CH6: CH7: CH7: CH8: CH8: CH9: CH9: Menu Screen 5 CH1: CAMERA 1.1 0123456789ABCDEFGHIJKLMNOP QRSTUVWXYZabcdefghijklmnopqrst uvwqyz !%&()*,-./:<=>?# e x I t System Q Ltd. The Green, Hasland, Chesterfield, S41 0LJ...
