Summary of Contents for NPC Network Phone Camera

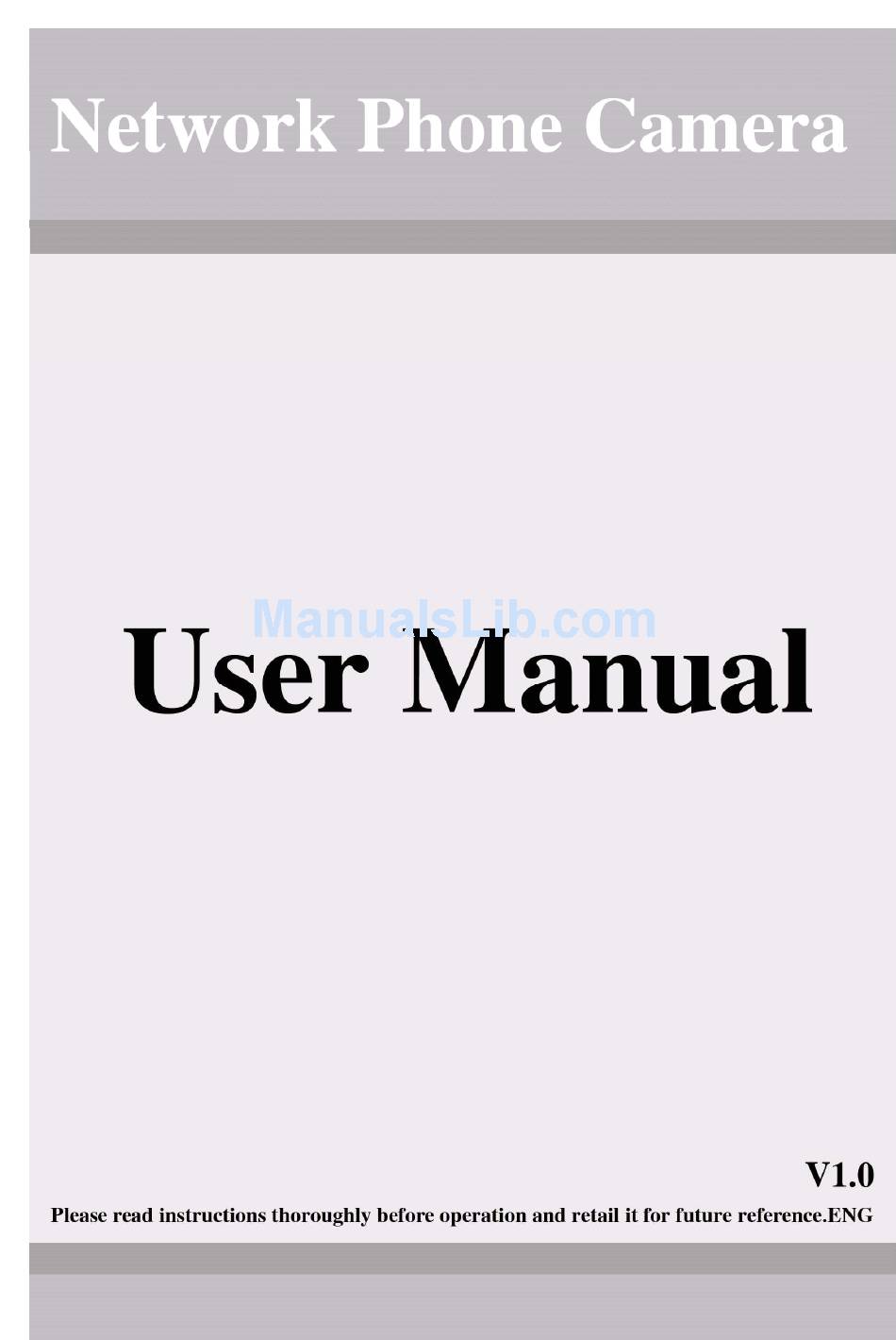

  • Page 1 第 1 页...
  • Page 2 Do not disassemble, repair or replace the parts of the NPC by yourself Using environment: Please place and use the NPC between 0℃ and 40 ℃.Avoid direct sunlight or stay away from heat. Do not install the NPC in damp environment.

  • Page 3: Table Of Contents

    Network Phone Camera User Manual Contents Contents ...................................3 1 Product Introduction............................4 1.1 Product overview ............................4 1.2 Main fuctions ..............................4 2 Open-package check and cable connection....................5 2.1 Open-package check .............................5 2.2 The front panel and rear panel ........................5 2.3 Button function of the front and front panel ....................6 2.4 The rear panel..............................8...

  • Page 4: Product Introduction

    1.2 Main functions Video call It can realize the video call not only between two NPC, but also among smart phone, tablet computer and NPC. Record function After inserting U disk or Micro SD to NPC, it can realize simultaneous storage and recording of audio and video, and different recording mode such as manual recording, alarm recording, timing recording can be selected.

  • Page 5: Open-Package Check And Cable Connection

    2.1 Open package check First, please check whether there is any visible damage to the package appearance. The protective material used for the package of the NPC can sustain most accidental clashes during the transportation. Then, please open the box and get rid of the plastic protective coating. Check whether there is any visible damage to the NPC appearance.

  • Page 6: Button Function Of The Front And Front Panel

    Network Phone Camera User Manual 2.3 The front and rear panel key function Pilot lamp: From left to right are ： (Network, Defense, Recording, Alarm)
  • Page 7 Network Phone Camera User Manual The front button operation function Button Mark Function name 0 0 0 0 - - - - 9 9 9 9 Input the number key during user input state Number button Short press to decrease the volume during video call or playing state */.键...

  • Page 8: The Rear Panel

    Network Phone Camera User Manual menu/confirm Enter main menu 2.4 The rear panel ,1Network interface ,2WIFI ant interface ,3Learning code indicator ,4Learning ○ ○ ○ ○ button ,5Power switch ,6Power interface ,7USB interface ,83C smart card ○ ○ ○ ○...

  • Page 9: Basic Operation

    Insert the U disk or Micro SD card Please make sure the NPC is not in recording state before inserting the U disk or Micro SD card, otherwise information will loss or storage equipment will be damaged.
  • Page 10 Network Phone Camera User Manual Picture 3.1 Login interface Icons meaning under standby state: USB detection icon Micro SD detection icon 1 1 1 1 2 2 2 2 Motion detection icon 3C smart card detection icon 3 3 3 3...

  • Page 11: Main Menu

    Network Phone Camera User Manual 4 Main menu Press button , the system main menu is shown as below. You can operate and set each function in this menu. Picture 4.1 Main menu interface 4.1 Main menu navigation Main menu...

  • Page 12: General Setup

    Network Phone Camera User Manual 4.2 General setup Picture 4.2 General setup interface Set the basic parameters of the system, please click [main menu]> [general] to enter the general setup interface. Set the system date and time. 【 【 【 【 Time setup】 】 】 】...

  • Page 13: Playback

    Network Phone Camera User Manual Picture 4.3 System setup interface Restore system to factory setting. 【 【 【 【 Restore factory】 】 】 】 You can update and maintain the system when there is system software need to be 【 【 【 【 System update】 】 】 】...
  • Page 14 Network Phone Camera User Manual Picture 4.4 Video retrieval Enter the video playback interface, you can search system video file of the day 【 【 【 【 Fast retrieval】 】 】 】 after press search button directly. If there is no video, it will show “no video file found”.

  • Page 15: Network Setup

    Network Phone Camera User Manual Picture 4.6 Video retrieval During play state, press left-right buttons to finish fast forward and rewind operation 【 【 【 【 Play】 】 】 】 and press up-down buttons to switch different video files. Press the button to stop playing.

  • Page 16: Alarm Setup

    Network Phone Camera User Manual Set system IP address, you can automatically or manually set the IP address. 【 【 【 【 IP】 】 】 】 Through automatically set the IP address, system will automatic access to IP by DHCP;...
  • Page 17 Network Phone Camera User Manual Picture 4.9 Alarm setup When there is alarm or alarm linkage of capture images, you can send specific 【 【 【 【 Send e-mail】 】 】 】 alarm information or capture images to given e-mail address Picture 4.10 Email alarm...

  • Page 18: Record Setup

    Network Phone Camera User Manual 4.7 Recording setup Set different record modes, you can click [main menu]> [record] to enter the record setup interface. You can set three record modes: manual, alarm and timed. The record LED indicator will blink during record state.

  • Page 19: Remote Access & Video Calls

    A can make remote monitor to device B. Using cell phone or tablet computer to make remote monitor to the NPC Boot up the application after normally installing Gviews client software to cell phone or tablet...

  • Page 20: Video Call

    NPC after enter correct digital passwords; If the remote monitor fails, please check whether the network of mobile device is normal.
  • Page 21 3C ID as required, click video call button to make video call with the NPC; If the video call fails, please check whether the network of mobile device is normal.

  • Page 22: The Wireless Learning Code

    6.1 Wireless detector learn code to match the NPC In order to trigger the alarm, all the wireless detectors must learn code to match the NPC. The specific operation as follows: First press device learning button, when the red lamp of two-color...
  • Page 23 2.The power of switch power supply is low. 3.Frontal video signal is not stable 4.Bad heat radiator or too much dust or bad running circumstance of the NPC. 5.The hardware of the NPC is damaged. System can not detect USB or Micro SD card Possible reasons are as follows: 1.The USB or Micro SD card line is not in good connection...
  • Page 24 Network Phone Camera User Manual 1.It is not an active tone arm. 2.It is not an active sound box. 3.The audio lines are damaged. 4.The hardware of the NPC is damaged. The time is wrong. Possible reasons are as follows: 1.Setting is wrong.

  • Page 25: Maintenance

    Network Phone Camera User Manual 7.2 Maintenance Please use the NPC in dry environment so that the NPC can work long-term and stably. The damp dust in the circuit board will cause short-circuit which will interferes the NPC normal running or damages the NPC.
