Display Dim - ATC C D A 2 User's Operating Manual

C D P l a y e r

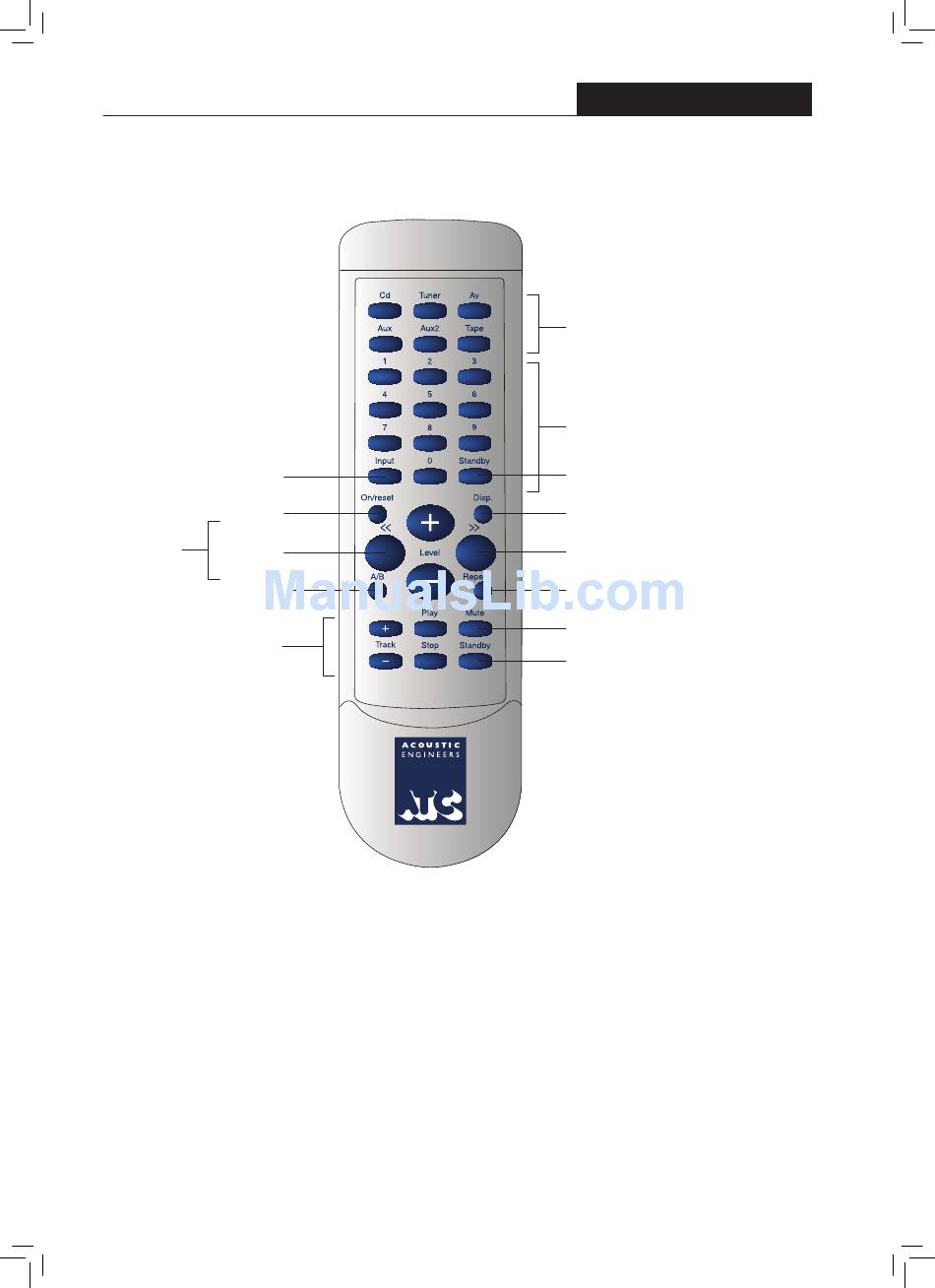

Diagram 4 - ATC R2 Remote Control
Step Input Selection Button *
On/Reset Button *
Volume Up and
Fast Reverse
Down Buttons
Repeat track
segment A - B *
CD player
Command Buttons
* Further Information below
Step Input selection: Each press of the Input button will select the next Input.
The Input selected will be displayed in the Display window
On/Reset: This button is for use on other ATC equipment.
Repeat track segment A – B: The first press of the button marks the start of
the track segment to be repeated. The Display will show A -.
A second press of the button marks the finish of the track segment to be repeated.
The Display will show A – B, and the track will be replayed continuously from A to
B, unless Stop is pressed.
A third press of the button will cancel A – B repeat.
Standby: The Standby button will place the complete unit in Standby. Standby is
indicated by a Red LED illuminating above the Front panel Standby button.

Display Dim:

Pressing the Dim button will sequentially step between three
Display brightness's, Full, Low and Display off.
CDA2
Input Selection buttons
Track number Selection buttons
Standby Button *
Display Dim. Button *
Fast Forward
Repeat Track *
Mute Button *
CD player Standby Button *
The first press of the button will
Repeat track:
repeat the entire disc. RPT A will be shown in the
Display.
The second press of the button will repeat the
particular track selected. RPT B will be shown in
the Display.
A further press of the button will cancel Repeat
functions.
Mute: Pressing the Mute button will mute the
output from the unit but not the headphones. The
Mute LED above the Mute button will illuminate.
CD player Standby: When the CD player
Standby button is pressed, only the CD player will
be placed in standby. Standby is shown in the
Display window if CD input is selected, all other
inputs function and display as normal.
3
