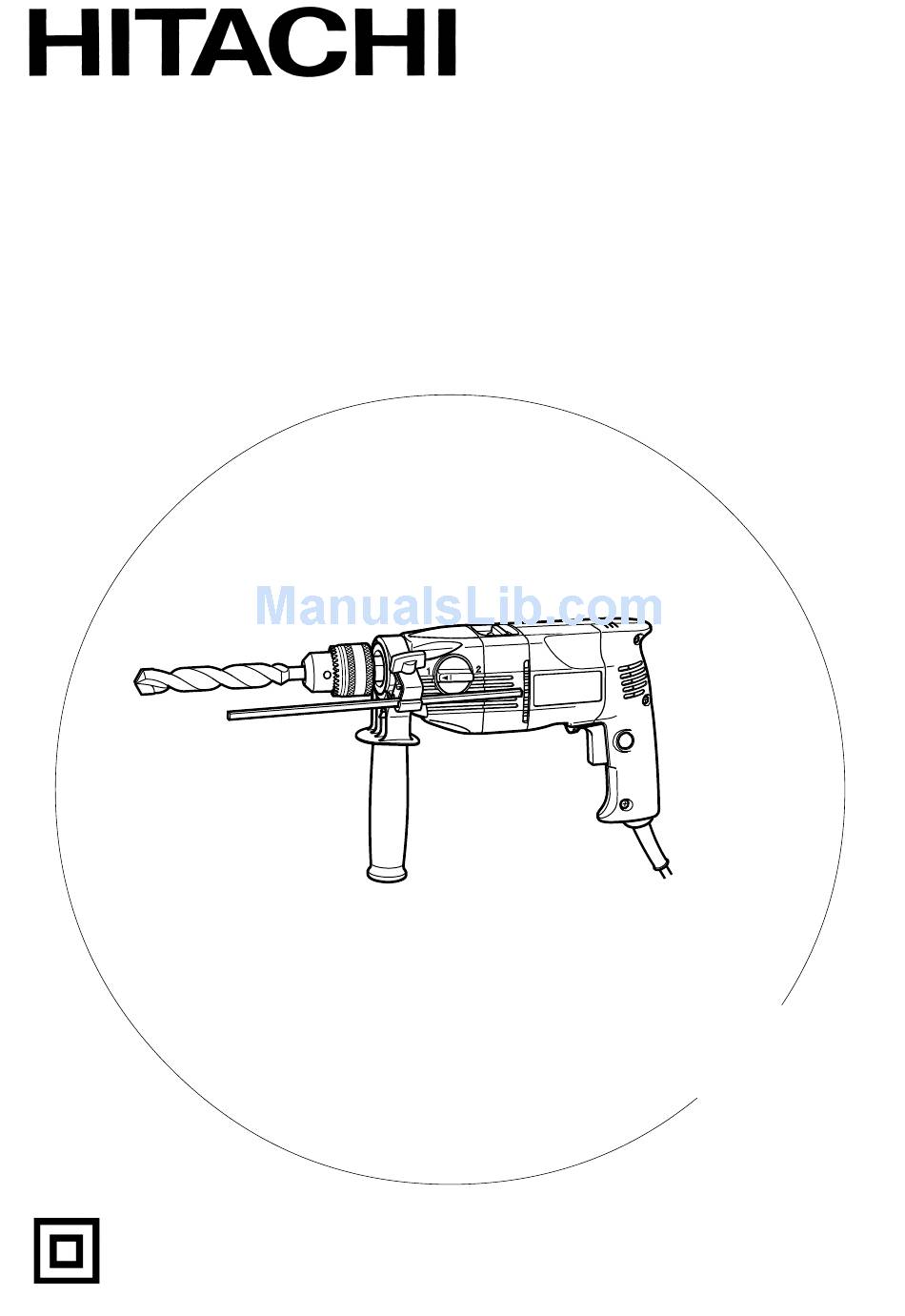

IMPACT DRILL
MODEL DV 20VB • DV 20T2
HANDLING INSTRUCTIONS
Note:
Before using this Electric Power Tool, carefully read through these
HANDLING INSTRUCTIONS to ensure efficient, safe operation. It is
recommended that these INSTRUCTIONS be kept readily available as
an important reference when using this power tool.

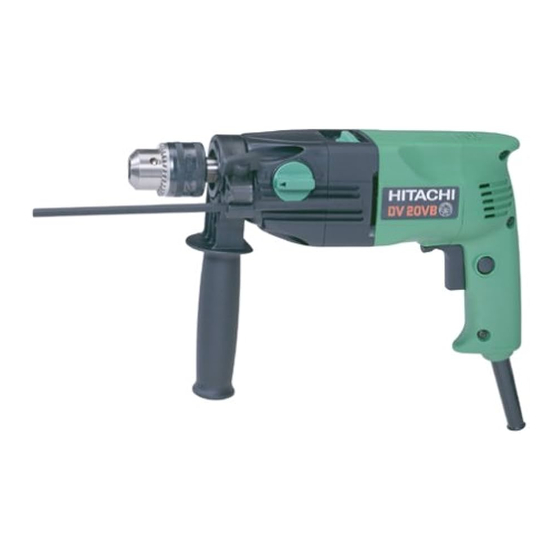

DV 20VB
Advertisement
Table of Contents
Related Manuals for Hitachi DV 20VB
Summary of Contents for Hitachi DV 20VB
-
Page 1: Handling Instructions
IMPACT DRILL MODEL DV 20VB • DV 20T2 HANDLING INSTRUCTIONS DV 20VB Note: Before using this Electric Power Tool, carefully read through these HANDLING INSTRUCTIONS to ensure efficient, safe operation. It is recommended that these INSTRUCTIONS be kept readily available as... -
Page 2: General Operational Precautions
16. Remove adjusting keys and wrenches. Form the GENERAL OPERATIONAL PRECAUTIONS habit of checking to see that keys and adjusting wrenches are removed from the tool before turn- WARNING! When using electric tools, basic safety pre- ing it on. cautions should always be followed to reduce the risk of 17. -
Page 3: Specifications
SPECIFICATIONS Model DV20VB DV20T2 Voltage (by areas)* (230V, 240V) Power input 750W* Reversible Speed change No load speed 0–850/min 0–2600/min 1100/min 2600/min Steel 13 mm 8 mm 13 mm 8 mm Capacity Concrete 20 mm 13 mm 20 mm 13 mm Wood 40 mm 25 mm... - Page 4 6. Confirm the direction of bit rotation (Fig. 6) The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the reversing switch lever. The L-side of the lever is pushed to turn the bit counterclockwise. (for DV20VB only) CAUTION Always use the impact drill with clockwise rotation, Sleeve...
-
Page 5: Maintenance And Inspection
In this case, switch ON and operate the machine CAUTION for few seconds. In continuous operation, conduct no-load operation The spindle shaft will then be pushed forward, for five seconds after completing a drilling job. and the change lever can be moved smoothly. (3) When a thick drill bit is used Your arm is subjected to larger reaction force when Change lever... - Page 6 DO NOT attempt to disassemble any parts other than those necessary to effect replacement of the carbon brushes. NOTE Due to HITACHI’s continuing program of research and development, the specifications herein are subject to change without prior notice.
- Page 8 Code No. C99088211 Printed in Ireland...
