Summary of Contents for Scansonic R5

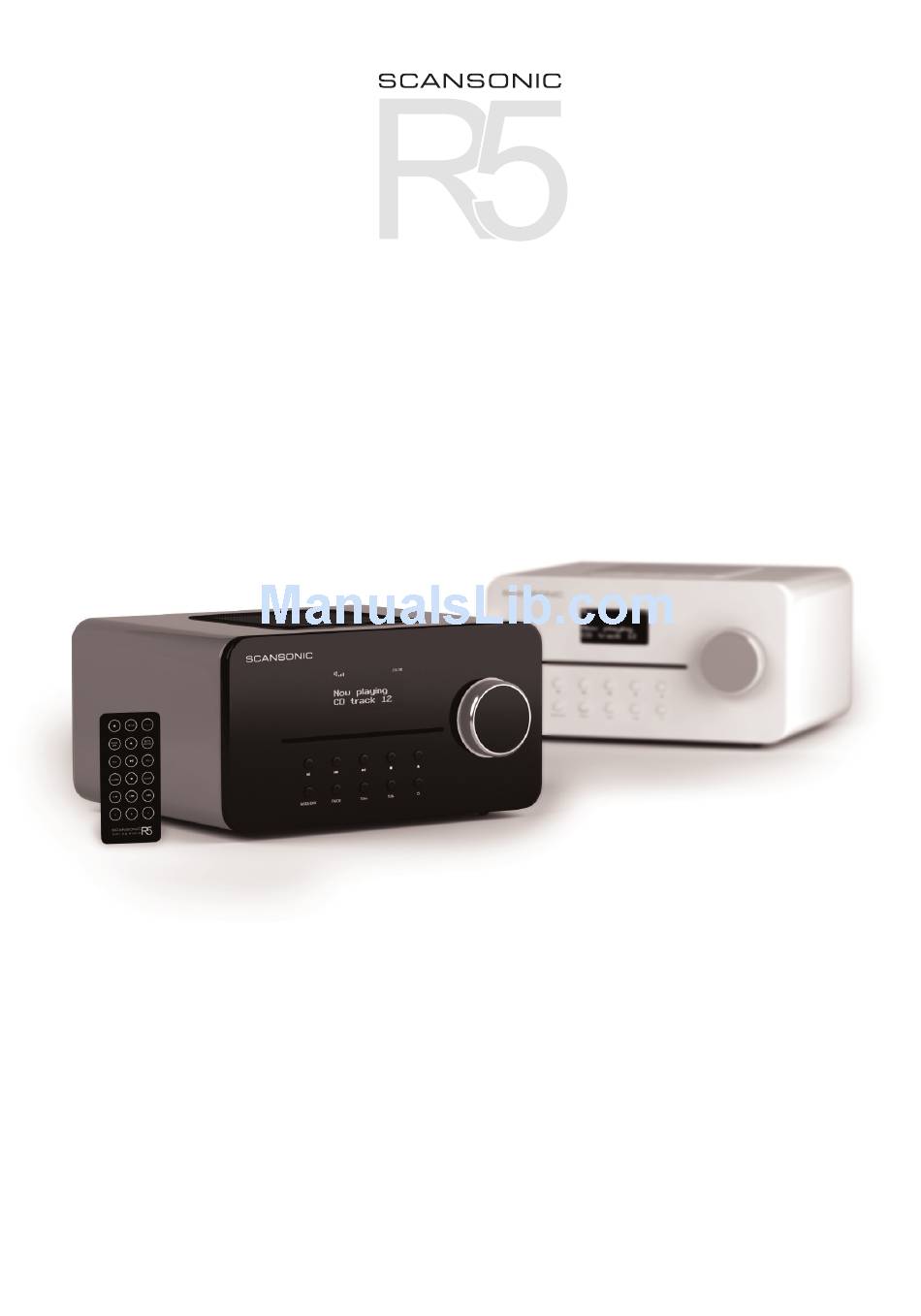

- Page 1 User manUal...
-
Page 2: Table Of Contents
C on te n t s COnTenTs InFOrmaTIOn FrOnT Panel OVerVIeW rear Panel OVerVIeW OPeraTIng r5 alarm seTTIngs sleeP TImer seTTIngs PreseTs FaVOr aUx mODe, COnneCT yOUr IPOD sPeCIFICaTIOns... -
Page 3: Information
Unplug the radio before cleaning it. Disclaimer Despite our best efforts we cannot guarantee that the technical data indicated are correct, complete and updated. We, scansonic, reserve the right to make technical changes without notice. - Page 4 F ro n t p a n el mode / Dimmer Press briefly to activate DIm function, Press and hold to enter mODe selection. Favor Press for selecting presets. Tun+ Press briefly to increase the frequency tuning step, hold to scan for next station. Tun- Press briefly to decrease the frequency tuning step, hold to scan for previous station.
- Page 5 Ir window For receiving signal from remote control. Volume / menu knob rotate clockwise to increase volume and counterclockwise to decrease the volume. Press and hold to enter setup menu, and press briefly to confirm selection. eject Push to eject cd from radio. stop Press to stop in cd mode.
- Page 6 r ea r p a n e l 19 20 Key lock Kensington lock to prevent from theft. am antenna jack For receiving am transmission. aUx In Connect a stereo or mono audio source ( like iPod, mP3-player, TV or CD-player ) to this stereo input. Use 3,5mm jack to connect devices to the radio.
- Page 7 Battery pack real time clock backup. 12v DC Use this input to the scansonic r5 DC power supply. Porttube Bass reflex porttube for better sound quality. Fm antenna The radio comes with a telescope antenna. To improve Fm reception, adjust the antenna for best reception.
-
Page 8: Operating R5
Op e r a t i n g r5 Standby mode Press power button to power on and off Mode Use the selection knob to choose between Fm, am, CD and aUx. Push selection knob to enter the desired mode. -
Page 9: Sleep Timer Settings
Snooze To enter snooze mode press snooze on top of the radio and the radio will snooze for 5 min and the alarm will sound again. Press snooze when radio is playing to mute. Alarm off Press alarm or power button to shut off the alarm s le e p t i m e r s etti ngs Press the sleep button on the top of the radio or on the remote control to enter sleep settings Use the selection knob to choose and push to select... -
Page 10: Specifications
sp e c i f i c a t i on s slot-in CD player Band Output power 7 watts rms loudspeaker 3” full range antenna Fm telescopic, removeable Power DC 12volts Inputs DC 12 volts (for net adapter) aUx in – for iPod, iPhone etc Outputs line out –... - Page 12 en j oy w w w.s c a n s o ni c . dk...
