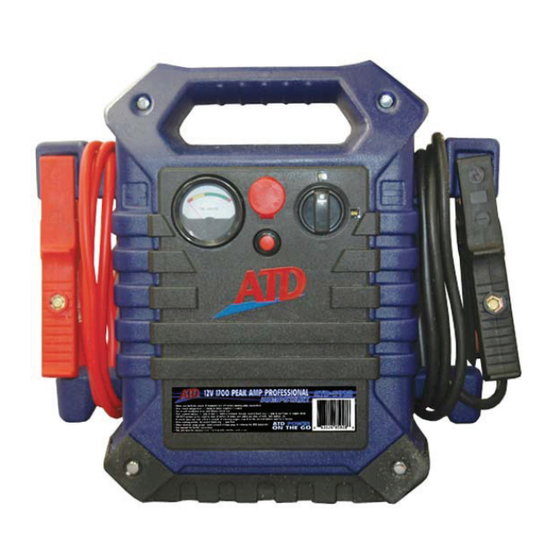

ATD Tools 5928 Owner's Manual

Rechargeable 12 volt 22 amp/hour jump start
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

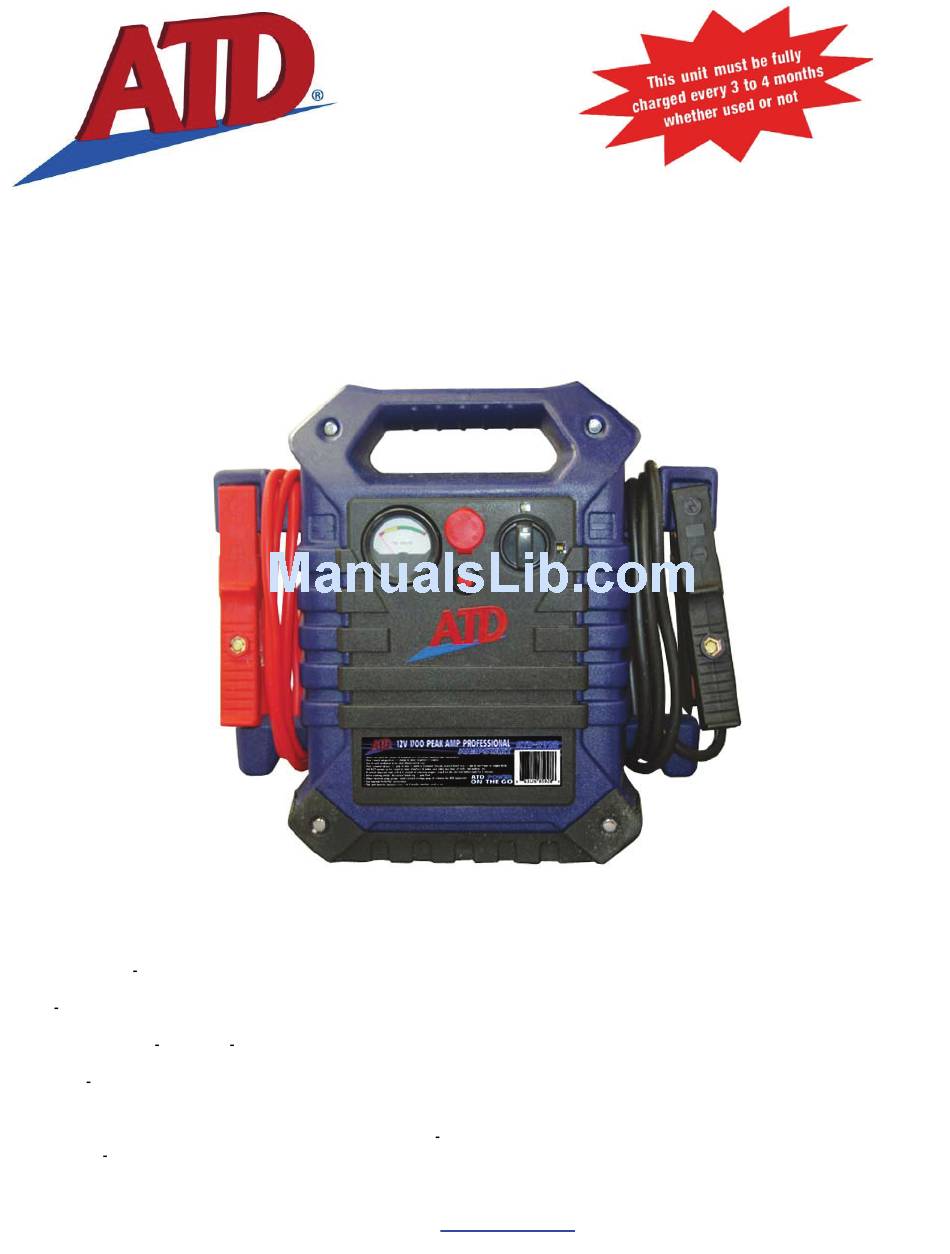

ATD-5928
RECHARGEABLE 12 VOLT 22 AMP/HOUR JUMP START
OWNERS MANUAL
• 1700 peak amps/700 cranking amps of starting power.
• Starts cars, trucks, RV's and boats without the need of another vehicle or ac power cords.
• 12V DC socket with overload protection provides power for any 12V appliance.
• Provides up to 50 hours of DC power when used with 12V DC appliances.
• Allows 12V DC appliances to be used in remote sites and/or in emergencies when commercial power is not available.
• Solid state, automatic operation and circuit protection.
• Requires no maintenance for optimum operation.
• Sealed, maintenance free, heavy duty battery is safe to use and transport.
• Can be stored in any position without risking acid leakage.
• 74" heavy duty 4 gauge copper cables can carry more amperage than similar units.
• Easy to read color coded battery meter.
• DC power cord allows recharging from 12V DC socket.
• External 120V AC/12V DC charging adapter with an automatic cut off to prevent overcharging.
• Molded high impact case is tough and durable.
Made in China to ATD Specifications
Visit us at
www.atdtools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5928 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATD Tools 5928

Summary of Contents for ATD Tools 5928

  • Page 1 • DC power cord allows recharging from 12V DC socket. • External 120V AC/12V DC charging adapter with an automatic cut off to prevent overcharging. • Molded high impact case is tough and durable. Made in China to ATD Specifications Visit us at www.atdtools.com...

  • Page 2: California Prop 65 Warning

    California Prop 65 WARNING: Batteries contain lead and other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Wash hands after handling. General Safety Warnings: WARNING: The instructions and warnings contained in this manual should be read and understood before using or operating this tool.

  • Page 3: Electrical Safety Warnings

    Lead Acid Battery Safety Warnings: WARNING: WORKING AROUND LEAD ACID BATTERIES MAY BE DANGEROUS. Lead acid batteries release explosive gases during normal operation, charging and jump starting. All lead acid batteries (car, truck and boat) produce hydrogen gas which may violently explode in the presence of fire or sparks.
  • Page 4 If the work area is not equipped with a permanently installed Ground Fault Circuit Interrupter outlet (GFCI), use a plug in GFCI between the charging cord and the power receptacle. ATD 5928 Specific Warnings: WARNING: Lead acid batteries generate hydrogen gas during normal operation. More gas is generated when the battery is charging.
  • Page 5 INTRODUCTION Your power pack unit is designed as a compact, durable and portable jump start system for 12 volt DC vehicles and boats. This self contained system will start most vehicles and boats without the need for a host vehicle or 120V AC power supply.
  • Page 6 120V AC CHARGING: Plug the 120V AC/12V DC charging adapter into a wall outlet and into the receptacle on your new power pack unit. Charge this device for at least 4 hours or l the meter shows a full (14- to 15-V DC) charge when the red push button switch is depressed.

  • Page 7: Operation

    OPERATION To use your power pack unit as a 12V DC power source: up the cover of the 12V DC receptacle on the side of your jump pack. 2. Insert the 12V DC plug from the appliance into the 12V DC receptacle. Note: on/o switch can be in the ”...

  • Page 8: Jump Starting

    JUMP STARTING: For optimum performance, when using your power pack unit to jump start a vehicle or boat, please read and Follow these step by step instructions: 1. Switch the engine of the vehicle or boat to be jump started to “off”. 2.

  • Page 9: Specifications

    SPECIFICATIONS ITEM # ..…....ATD-5928 VOLTAGE ......12V DC BOOST POWER .
  • Page 10 ATD-5928 ITEM# ORDERING PART# DESCRIPTION ITEM# ORDERING PART# DESCRIPTION PRT5928-01 FIXING BOARD, ON/OFF SWITCH PRT5928-11 CASE PRT5928-02 TEST SWITCH ATD5904 BATTERY, 12V/22AH PRT5928-03 KNOB, ON/OFF SWITCH PRT5928-13 BACK COVER PRT5928-04 COVER, CIGARETTE PRT5928-14 SCREW PRT5928-05 VOLTMETER PRT5928-10 CLAMP, RED & BLACK WITH 4GA CABLE...

This manual is also suitable for:

Atd-5928
