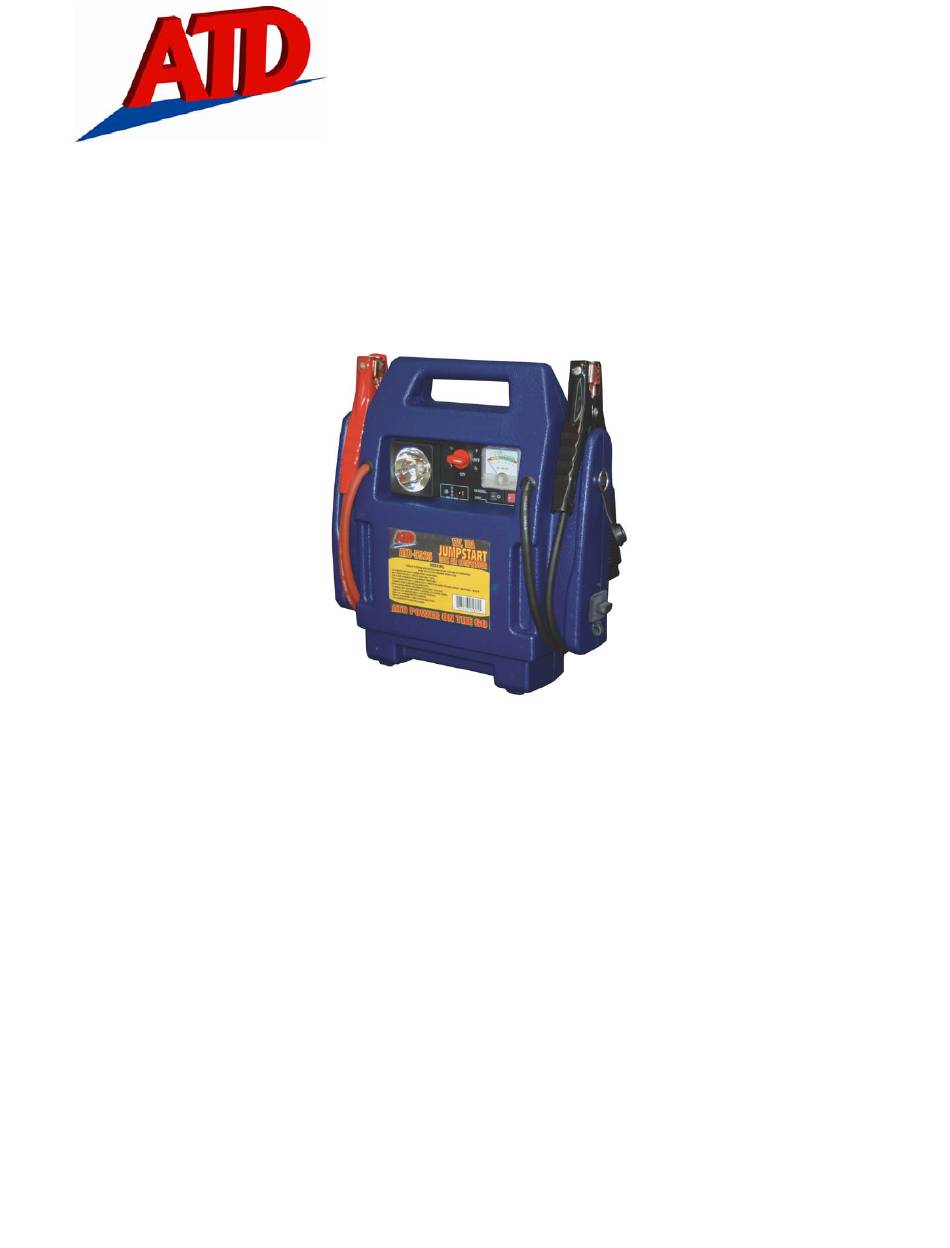

ATD-5925
RECHARGEABLE 12 VOLT 18 AMP/HOUR JUMP START
WITH BUILT-IN 260 PSI AIR COMPRESSOR
OWNERS MANUAL
• 900 PEAK AMPS/400 CRANKING AMPS OF STARTING POWER.
• STARTS CARS, TRUCKS, RV's AND BOATS WITHOUT THE NEED OF ANOTHER VEHICLE OR AC POWER CORDS.
• 12V DC SOCKET WITH OVERLOAD PROTECTION PROVIDES POWER FOR ANY 12V APPLIANCE.
• PROVIDES UP TO 50-HOURS OF DC POWER WHEN USED WITH 12V DC APPLIANCES.
• ALLOWS 12V DC APPLIANCES TO BE USED IN REMOTE SITES AND/OR IN EMERGENCIES WHEN COMMERCIAL POWER IS NOT AVAILABLE.
• SOLID-STATE, AUTOMATIC OPERATION AND CIRCUIT PROTECTION.
• REQUIRES NO MAINTENANCE FOR OPTIMUM OPERATION.
• SEALED, MAINTENANCE-FREE, HEAVY-DUTY BATTERY IS SAFE TO USE AND TRANSPORT.
• CAN BE STORED IN ANY POSITION WITHOUT RISKING ACID LEAKAGE.
• 43" HEAVY-DUTY 4 GAUGE COPPER CABLES CAN CARRY MORE AMPERAGE THAN SIMILAR UNITS.
• EASY TO READ COLOR CODED BATTERY METER.
• BUILT-IN CONVERTER ALLOWS RECHARGING FROM ANY 120V AC SOURCE.
• DC POWER CORD ALLOWS RECHARGING FROM 12V DC SOCKET.
• MOLDED HIGH-IMPACT CASE IS TOUGH AND DURABLE.
• BUILT-IN LIGHT FOR ROADSIDE VEHICLE REPAIRS OR EMERGENCY SITUATIONS AWAY FROM COMMERCIAL POWER.
• BUILT-IN 120V AC RECHARGING CIRCUITRY WITH AN AUTOMATIC CUT-OFF TO PREVENT OVERCHARGING.
• 260 PSI AIR COMPRESSOR WITH 3 AIR NOZZLE ATTACHMENTS FOR FILLING OF TIRES, RAFTS, BALLS, ETC.
Made in China
To ATD Specifications
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools ATD-5925
Summary of Contents for ATD Tools ATD-5925
- Page 1 ATD-5925 RECHARGEABLE 12 VOLT 18 AMP/HOUR JUMP START WITH BUILT-IN 260 PSI AIR COMPRESSOR OWNERS MANUAL • 900 PEAK AMPS/400 CRANKING AMPS OF STARTING POWER. • STARTS CARS, TRUCKS, RV’s AND BOATS WITHOUT THE NEED OF ANOTHER VEHICLE OR AC POWER CORDS.
- Page 2 INTRODUCTION YOUR POWER PACK UNIT IS DESIGNED AS A COMPACT, DURABLE AND PORTABLE JUMP START SYSTEM FOR 12 VOLT DC VEHICLES AND BOATS. THIS SELF-CONTAINED SYSTEM WILL START MOST VEHICLES AND BOATS WITHOUT THE NEED FOR A HOST VEHICLE OR 120V AC POWER SUPPLY.
- Page 3 WARNINGS • ALWAYS WEAR EYE PROTECTION WHEN WORKING ON OR AROUND LEAD-ACID BATTERIES. IF SPLASHED WITH BATTERY ACID: IMMEDIATELY FLUSH AFFECTED AREA SUCH AS FACE AND PARTICULARLY THE EYES WITH CLEAN WATER. CONTINUE FLUSHING FACE AND EYES UNTIL MEDICAL HELP ARRIVES. •...
- Page 4 120V AC CHARGING : PLUG THE 120V AC POWER CORD INTO AN OUTLET AND INTO THE RECEPTACLE ON YOUR NEW POWER PACK UNIT. CHARGE THIS DEVICE FOR AT LEAST 4 HOURS OR UNTIL THE METER SHOWS A FULL (14- TO 15-V DC) CHARGE WHEN THE RED ROCKER SWITCH IS DEPRESSED. THE RECHARGING CONVERTER CIRCUIT IN YOUR POWER PACK UNIT HAS AN AUTOMATIC CUT-OFF CIRCUIT SO THE INTERNAL BATTERY CANNOT BE OVERCHARGED.
- Page 5 TABLE III. WILL GIVE YOU AN IDEA OF WHAT OPERATION TIME YOU CAN EXPECT WHEN STARTING FROM A FULLY CHARGED SYSTEM. TABLE III. POWER PACK UNIT AS A 12V DC POWER SOURCE ESTIMATED ESTIMATED POWER USAGE CONSUMPTION TIME (IN APPLIANCE TYPE (IN WATTS) HOURS) FLUORESCENT LIGHTS, CELL PHONES 4 30 RADIOS, FANS, DEPTH FINDERS 9 21 CAMCORDERS, VCR'S, SPOTLIGHTS 15 ...
- Page 6 SPECIFICATIONS ITEM # ..…....ATD-5925 VOLTAGE ......12V DC BOOST POWER .
