Spherical “vr” head
Hide thumbs

Advertisement

F
CENTER
AH
FC/FS
FC
SC
S
CENTER
V
SD
13
14
ADDITIONAL PLATES
13

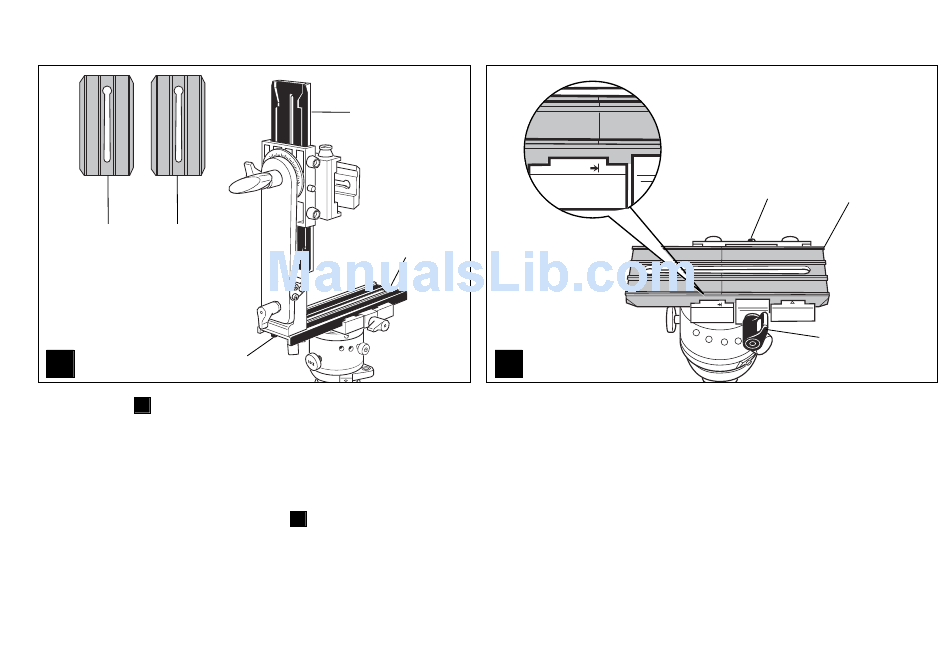

If you have a very compact camera we suggest you to use the short plates "SC" (fig. 13) and "FC" (supplied with the head) instead of the two long plates "F" and "S" in order to reduce space and
weight of the system.
To replace the plate "S" unscrew screw "SD" (fig. 13)
To replace the plate "F", please refer to fig. 6 and unscrew screw "O"
USE OF THE KIT AS AN OBJECT PANORAMA TURNTABLE
14
The head can also be used as a turntable, useful for shooting object panoramas. For this use, loosen knob "V" and push button "AH" to slide the lower plate "S" out of the housing on the panoramic
rotation base unit. In place of the long plate and top assembly, mount one of the two shorter plates supplied as a base for your object. The plate housing has a "center" mark to help you position
your object accurately above the center of panoramic rotation.
9
