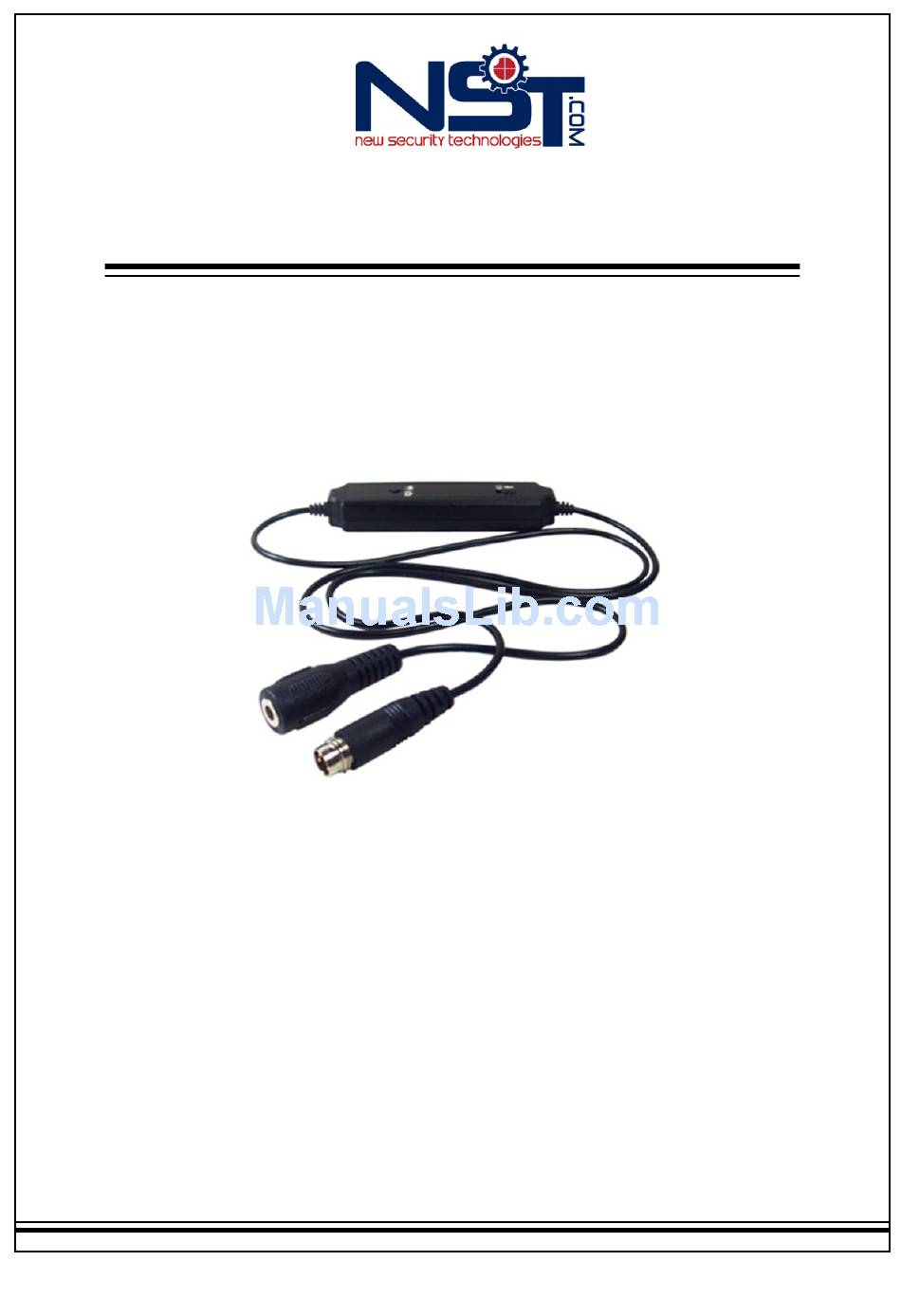

- Page 1 1-512-756-1678 MR5 USER’S MANUAL The Smallest DVR Module Of The World...
- Page 2 Accessories 14 pin mini USB Cable Cable IR Remote control AV Cable AV(optional) Cable Dimension 14.5 Unit : mm ( 0.5)
-
Page 3: Remote Control
Part Name MR5 MAIN DEVICE Power On / OFF Snapshot / REC. Camera Connect Power input DC 5V (FRONT) Power output DC 5V (SIDE) IR Remote Control to Snapshot and REC. USB and AV Output RESET (REAR) LED light REMOTE CONTROL REC.(record)/ Stop REC. -
Page 4: Rec Mode
REC. Mode 1.Powering ON/ OFF When recording the screen will display green. 2.REC. & Capture A. Power on the camera,and LED light(green and orange) B. REC. :press the button 3 SEC. and LED light on(orange) to start video REC. Stop REC. : press the button again to stop REC. -
Page 5: Connecting To Tv
Connected 1 Connecting to PC Window 2000/ XP/ Vista- No Driver Required: A. Power on the recorder first. B. Plug the USB (14 Pin MinI USB)cable to the recorder and computer properly Computer 2 Connecting to TV 1.Plug the provided TV cable into the AV port of recorder and connect TV cable to your TV.white to white (audio-out), yellow to yellow (video-out). - Page 6 For Camera For Cable 3.GND 4.Audio 4.Audio 3.GND MENU/SETUP A.MR5 connected with computer or TV B. Enter menu & setup :Remote control press button into set screen: Adjust the items used to button and then press button to enter ( Press Record or List)
-
Page 7: Specification
MENU/SETUP A.MR5 connected with computer or TV B. Enter File Menu:Remote control press button into file menu screen: Adjust the items used to button and then press button to enter REW (Rewind) INFINITE Shows recording time down JPEG TV type : NTSC or PAL...
