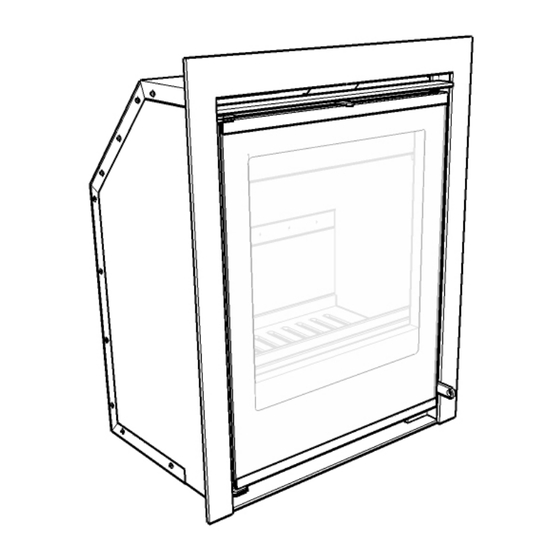

meg-4.5 Inset
Sirius 450 CONTEMPORARY
INSET
Clean Burn Stove
Registered at the UK Patent Office: No 4014952, 4014953
INSTALLATION AND OPERATING INSTRUCTIONS
LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER!
All Meg Stoves exceed the safety and performance requirements of European Standards
Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney.
Fuel
Test Standard
Test Cycle
Settings
Flue Draught Pa (ins WG)
Efficiency %
Recommended Rating kW
Mean Flue Gas Temp Rise ºK
Minimum air entry requirement
Minimum Clearance to combustibles
Weight
Flue outlet size
Read these instructions! Use only recommended fuels!
This document, when completed by the installer, constitutes part of a 'Hearth Notice' for purposes of
Building Law. It must be left with the householder and placed where it can easily be found.
INSTALLED AT LOCATION:
BY:
I definitively assert that this installation is safe, has been lit and demonstrated to the
householder, conforms with current building regulations and with these instructions
SIGNED:
TO FIND A QUALIFIED INSTALLER, FUEL SUPPLIER or CHIMNEY SWEEP, CONTACT:
UK: The Solid Fuel Association, 7 Swanwick Court, Alfreton, Derbyshire DE55 7AS Tel:0845-601-4406 www.solidfuel.co.uk
RoI: Irish Nationwide Fireplace Organisation, 162 Capel Street, Dublin 1 Tel:01-801-5959 www.fireplace.ie
The meg-4.5 / Sirius 450 stoves may be used in smoke control areas strictly in accordance with these instructions, when burning:
UK: Untreated wood logs, natural anthracite or authorised smokeless fuels (authorised under s20(6) of the Clean Air Act 1993)
RoI: Wood logs, smokeless fuels or peat briquettes, but not petroleum coke (Control of Atmospheric Pollution Regulations, 1970)
Independently tested by SGS (Notified Laboratory No:0608) in 2010.
NOx mg/m³
CO %
CxHy mg/m³
Gas flow g/sec
Smoke Emission g/hr
Manufactured by: Meg Stoves, Station Works
Hooton Road, Hooton, South Wirral CH66 7NF www.megfire.com
meg-4.5 / Sirius 450
Wood (Beech)
EN13229
1.36 over 0.83hrs
Primary 0%, 2nd 0%
12 (0.05)
81.0
4.5kW
248
2500 mm²
150mm at sides, 400mm above, when fitted in masonry
fireplace.
60kg
125mm
105
0.02
232
4.1
1.98
DATE:
1
meg Solid Fuel Stoves Manual (24) of 16/06/2010
inset versions supplement
Mineral Fuel (Anthracite)
0.9kg over 1hr
Primary 50%,
2nd 0%
12 (0.05)
81.2
294
-
0.03
-
3.7
-
Flue Draught
measured on
commissioning:
Fuel used on
commissioning
Pa
WG
