DVLab DSC945 User Manual

Dvlab hd/sd digital video switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

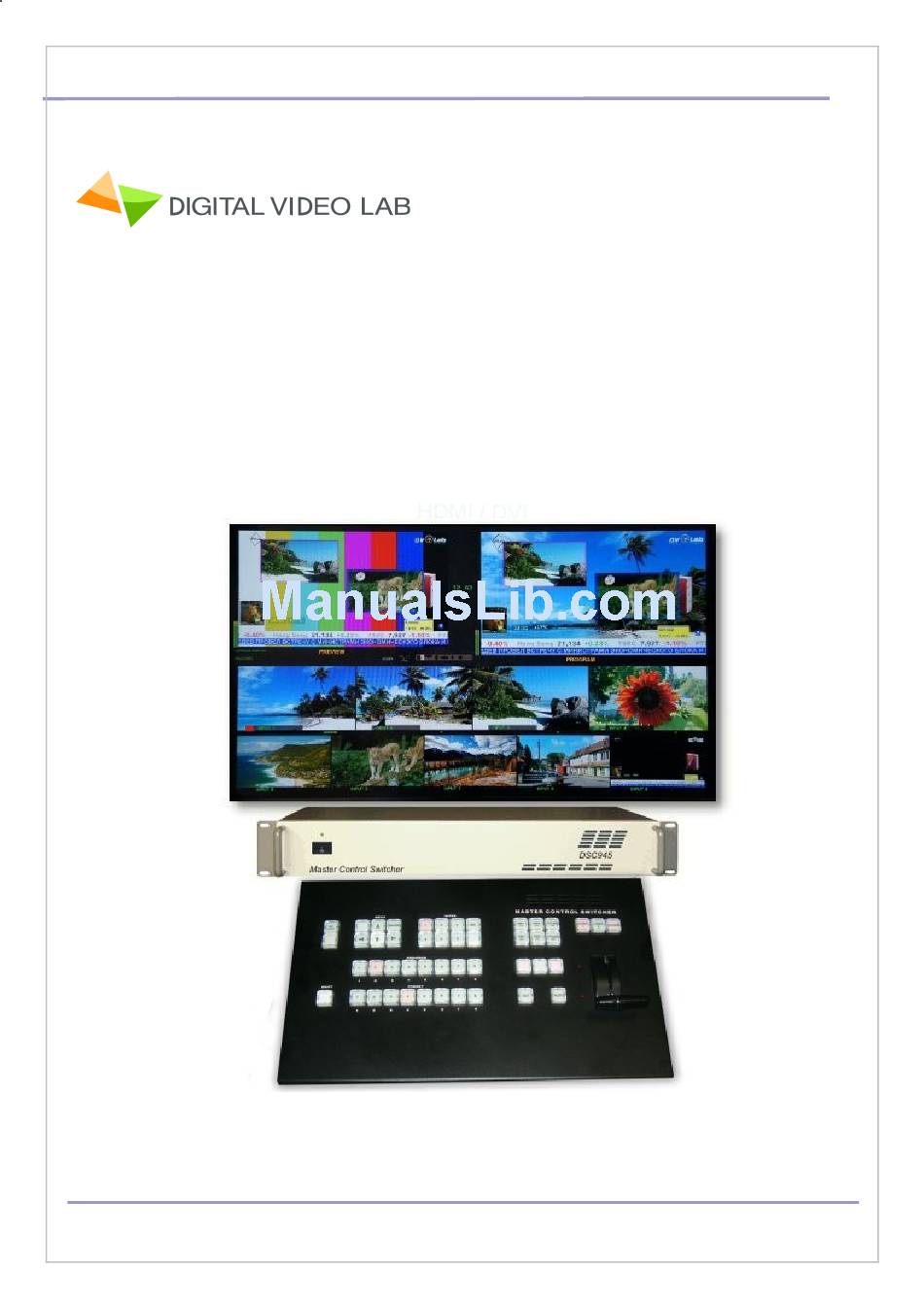

HD/SD Digital Video Switcher DSC945. User's Manual
HD/SD SDI Master Control Switcher
.
User's Manual
DVLab
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC945 and is the answer not in the manual?

Questions and answers

Related Manuals for DVLab DSC945

Summary of Contents for DVLab DSC945

  • Page 1 HD/SD Digital Video Switcher DSC945. User’s Manual HD/SD SDI Master Control Switcher User's Manual DVLab...

  • Page 2: Table Of Contents

    Main Unit - Rear Panel MULTI-VIEW Multi-screen information: DSC945 Connections Remote Control Console DB9 -DB9 cable How to connect DSC945 to the PC through Ethernet (TCP / IP) EthernetSetup.exe DSCConfig.exe DSCRemote.exe Titling Program «TitleMaster» How to update the DSC945 Firmware...

  • Page 3: Overview

    HD/SD Digital Video Switcher DSC945. User’s Manual Overview The DVLab DSC945 is 8 SD/HD SDI +1HDMI Master Control switcher. The DSC945 switcher provides an array of simple-to-use features:  Inputs and Outputs Embedded and Analog Audio.  Each audio source, including embedded and analog, can be associated with any or several video sources.

  • Page 4: Construction

    HD/SD Digital Video Switcher DSC945. User’s Manual Construction Main Unit: RAC 2U 19`: The Front Panel The Rear Panel Remote Control Console: Multi-screen: You can use any LCD HD TV set with HDMI input 1920х1080 pix. DVLab...

  • Page 5: Inputs / Outputs

    HD/SD Digital Video Switcher DSC945. User’s Manual Inputs / Outputs The mixer has 8 SDI input and 1HDMI Input, which may be the HD and SD - determined by the Inputs settings. SD signals Format can be 4:3 or 16:9.

  • Page 6: Remote Control Console

    HD/SD Digital Video Switcher DSC945. User’s Manual Remote control Console PC Control On /Off CHROMA Key Control Program to Multi-screen SHIFT OSD Menu Key Source selection Preview Wipes Effects, MIX, FREEZE Cut & AUTO Take PiP 1, PiP 2, Titles T-BAR end position LED indicators Logos &...

  • Page 7: The Shift Key

    BLACK button – Built -in BLACK Field signal generator PC Control button. Press the PC Control button for placed DSC945 into PC Control mode. All DSC945 software can working in this mode only. In this mode the Remote Control Console is blocked.

  • Page 8: On Screen Display Menu

    HD/SD Digital Video Switcher DSC945. User’s Manual On Screen Display Menu Press any arrows button and the Main Menu list is displayed on the HDMI 1 Multi-view output. Press the up, down, left, and right arrow buttons to navigate the menu options and to change values.

  • Page 9: Pip And Titles

    Titling Mode The DSC945 has two titling methods: Luma Key and Titles + a Channel selected in the OSD menu. Luma Key mode. You can use any video sources (HD/SD SDI, CVBS,HDMI, Still Pictures ) to replace the black parts of this image with the video from another source.

  • Page 10: Logo 1, Logo 2, Clock

    << LOGO 1, LOGO 2, CLOCK The DSC945 has the ability to store seven static logos and one dynamic logo. The logo files are transferred to the DSC945 from a Windows PC using the Ethernet connection and the supplied DSConfig software.

  • Page 11: Transition

    HD/SD Digital Video Switcher DSC945. User’s Manual Video Transition This performs a simple immediate switch from the current main source to the selected sub source. The selected transition wipe or dissolve is not used. AUTO TAKE This performs an automated switch from the current program source to the selected preset source.

  • Page 12: Chroma Key

    HD/SD Digital Video Switcher DSC945. User’s Manual Chroma Key DSC945 supports up to two independent Chroma Key channel simultaneously . You can use the Chroma Signals the same as any other input or internal video sources : choose it to Preset or Program and switched with Auto, Cut , or T-Bar.
  • Page 13 HD/SD Digital Video Switcher DSC945. User’s Manual There is 3 buttons for Chroma control: CHR1 CHR2 CHR AUTO: CHR1 and CHR2 Buttons enable the Chroma 1(2) and used to select the source «ACTOR» and «BACKGROUND” Using the CHR1 (2) button you can assign a selected video input to the CHROMA video layer.

  • Page 14: Main Unit - Rear Panel

    HD/SD Digital Video Switcher DSC945. User’s Manual Main Unit - Rear Panel Inputs 1-8 HD/SD-SDI;9-HDMI Grounding Terminal Inputs / Outputs Analog Audio AC 220V + Fuse. In Sync Remote Control Console (DB9F -DB9F) SD SDI Outputs 1 -4 HD/SD SDI Dip switch.
  • Page 15 HD/SD Digital Video Switcher DSC945. User’s Manual HDMI MULTIVIEW OUT HDMI outputs (1920 х 1080i x 50 Hz) which can be used to display a preset combination of inputs plus program and preset. ETHERNET RG45 Connector for Upgrade, Logos, Configuration, Time setting and Remote Control.
  • Page 16 HD/SD Digital Video Switcher DSC945. User’s Manual Grounding Terminal When connecting this unit to any other component, make sure that it is properly grounded by connecting this terminal to an appropriate point. When connecting, use the socket and be sure to use wire with a cross-sectional area of at least 1.0 mm.

  • Page 17: Multi-View

    HD/SD Digital Video Switcher DSC945. User’s Manual MULTI-VIEW DSC945 Multi-view monitoring is available across one HDMI monitors (not supplied). These HDMI outputs can be used to monitor video and audio in a number of different configurations. For each set up, embedded audio level indication is also available on all inputs as well as the Preview and Program windows.

  • Page 18: Multi-Screen Information

    HD/SD Digital Video Switcher DSC945. User’s Manual Multi-screen information: 1) Name of Channels. 2) Selected inputs (Program/preset/PIP). 3) Transition Effects 4) Audio mix type (V or X). 5) Clock 6) Menu 7) Audio Level Indicators 8) LOCKED or UNLOCKED 9). PC CONTROL or CONSOLE CONTROL.
  • Page 19 HD/SD Digital Video Switcher DSC945. User’s Manual Console Control is Button PC Control is not pressed ( no light) and connected and in working condition. Note: Variable appearance of these inscriptions indicates that the control signal is absent. DVLab...

  • Page 20: Dsc945 Connections

    HD/SD Digital Video Switcher DSC945. User’s Manual DSC945 Connections Multi screen is connected by standard HDMI Cable PC is connected by LAN cable (UTP RG45) Direct PC connection by Crossover. Connection via HUB by Direct. Remote Control Console is connected via DB 9 -DB9 cable To DSC945 (“keyboard”) 9pin F...

  • Page 21: How To Connect Dsc945 To The Pc Through Ethernet (Tcp / Ip)

    HD/SD Digital Video Switcher DSC945. User’s Manual How to connect DSC945 to the PC through Ethernet (TCP / IP) Connecting to a PC is required in the following cases:  Settings – the program "DSCConfig".  Uploading logos and Still pictures – the program "DSCConfig".

  • Page 22: Ethernetsetup.exe

    So in the our example PC IP address is 192.168.1.3 but DSC945 IP address is 192.168.31.211 In this case the IP address of the DSC945 must be 192.168.1.XX, where XX - is not involved in any of the network number, for example 192.168.1.25...

  • Page 23: Dscconfig.exe

    4. Choice IP number or set if number is known from our example (page 22) 192.168.1.25 Settings tab DSCConfig allows you to set the all DSC945 parameters. There are two tabs settings. First Common Settings - all settings except inputs setting The second - to set the inputs separately for each of the 9 inputs.
  • Page 24 HD/SD Digital Video Switcher DSC945. User’s Manual The LOAD button can used to browse for a picture stored on the computer. This picture is then loaded into the application window. The WRITE button can then be used to save the new picture into a selected frame store on the switcher.

  • Page 25: Dscremote.exe

    1. Connect an Ethernet cable between the PC and the DSC945. 2. Turn on the PC and DSC945. 3. Placed DSC945 into PC Control mode. To do this press the PC Control button on its Control Panel . 4. Launch the DSCRemote software on the PC.
  • Page 26 HD/SD Digital Video Switcher DSC945. User’s Manual The PC used must be in the same IP network as the DSC945. So the first three octets (numbers) in the PC’s IP Address must match the first three octets of the switcher’s IP address.

  • Page 27: Titling Program «Titlemaster

    HD/SD Digital Video Switcher DSC945. User’s Manual «TitleMaster». This Software allows using the HDMI input of the DSC945 Switcher as a source of a-cannel Titles. The system is designed for video and broadcast design and includes PC with installed TitleMaster software and switcher DSC945.
  • Page 28 HD/SD Digital Video Switcher DSC945. User’s Manual  1 TGA ( with alpha channel , if there is one) .  2 PNG ( with alpha channel , if there is one) .  3 JPG  4 GIF ( with transparency , if there is one) .

  • Page 29: How To Update The Dsc945 Firmware

    6. Confirm the supported devices list says DSC945 then click NEXT. 7. Select Device is connected via Ethernet then click NEXT. 8. In the next window you can POWER ON the DSC945 and it will be discovered by the Computer.

  • Page 30: Specification

    HD/SD Digital Video Switcher DSC945. User’s Manual Specification Inputs Video 9 inputs : 8 HD /SD SDI, 1HDMI 4 Analog Audio Balanced, 4 x XLR 3 pin Inputs Audio 1x HDMI for Multi-screen Outputs Video 4 BNC for HD/SD-SDI outputs...

  • Page 31: Dimensions

    HD/SD Digital Video Switcher DSC945. User’s Manual Dimensions DVLab...

  • Page 32: Warranty

    HD/SD Digital Video Switcher DSC945. User’s Manual Warranty Warranty period – 24 months from the selling date The manufacturer does not take any responsibility for defects occurred at the customer’s fault or trading company’s during careless transportation, improper storage, technical service or usage, mechanical damages, violating the operation rules.
  • Page 33 HD/SD Digital Video Switcher DSC945. User’s Manual Apps Environment Requirement ℃ ℃  Environment Temperature 5~40 (sustainable) ，0~45 (short time) ，  installing air-conditioning is recommended  Power Requiring device power, air-conditioning power and lighting power are independent to each other. Device power requires AC power 220V 50Hz. Please carefully check before running.
