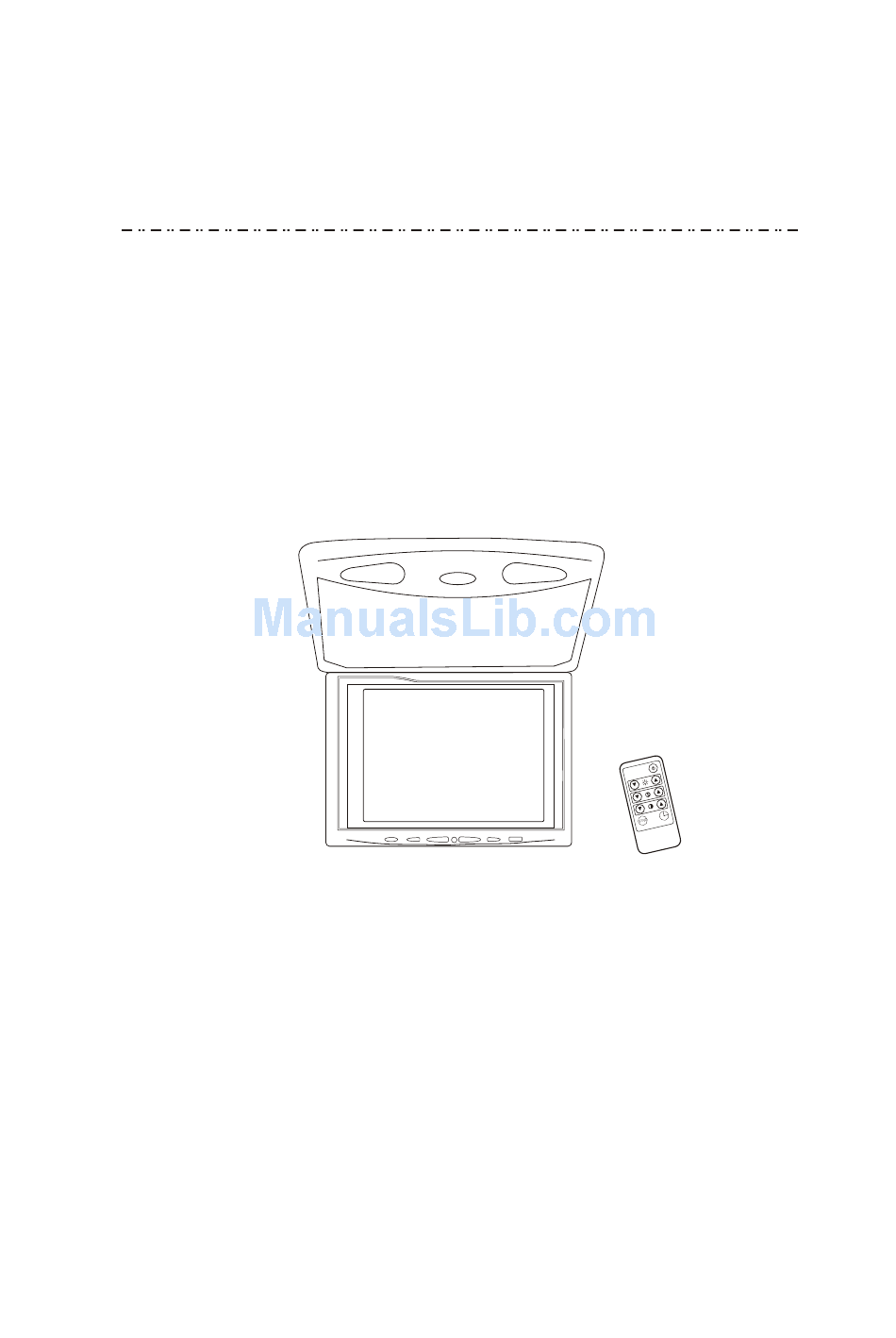

  • Page 1 INSTRUCTION MANUAL LMR1044 POWER V1/V2 MENU TIMER...
  • Page 2 Precaution: 1.To prevent short-circuiting of the electrical system and cause serious damage to the unit or the vehicle,you are advised to follow the instructions carefully. 2.Should there be requirement to replace blown fuse,do remember to disconnect all power supply and switched off the unit before replacing it with a new one.Use only correct rating fuse to avoid damage the unit.
  • Page 3 Thank you for the purchase of this roof mounting 10 inch color TFT-LCD monitor. Before operating the unit,please read this manual thoroughly and keep it for future reference. PANEL POWER V1/V2 MENU TIMER 1 2 3 4 5 6 7 1.Power: Press this button to turn on the monitor.
  • Page 4 REMOTE CONTROL 1.Power On/Off 2.Brightness + 3.Brightness - 4.Color - 5.Color + 6.Contrast - V1/V2 7.Contrast + 8.V1/V2 switch 9.Deactive time delay WIRING WHITE BLUE: GROUND RED: DOOR CONTROL LINE YELLOW: DC 12V YELLOW: V2 INPUT BLACK RED: DC 12V+ BLACK: GROUND WHITE:...
  • Page 5 Legacy,Car Audio Inc. 1600 63rd Street Brook yn,NY 11204...
