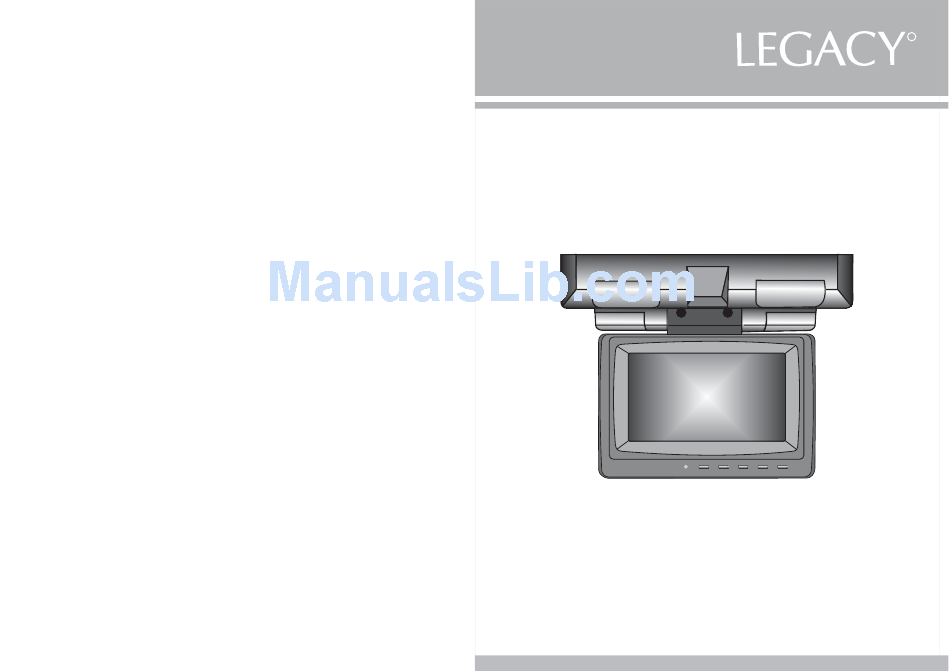

- Page 1 WWW.LEGACAYCARAUDIO.COM LSWR7200 7.2INCH FLIP DOWN TFT- LCD MONITOR POWER MENU VOL- VOL+ O W N E R S M A N U A L...
-
Page 2: Specifications
Specifications Power Requirements D C 1 2 V Power Consumption Screen Size 7 . 2 T F T- L C D Screen Format 1 6 : 9 W i d e 1 0 3 4 * 2 3 4 Resolution Pixel A/V Inputs V i d e o I n p u t 2 E A Dimensions... -
Page 3: Troubleshooting Check List
Troubleshooting check list Contents We very thank for your purchase. * Please make these simple checks before calling for assistance. Please read this user s Manual in detail and use the set properly. * If the TV is to be used in conjunction with any other equipment, read the other product s instruction manual. -
Page 4: Installation Guide
Caution Installation guide Read this page in detail in order to protect people s 1 Using self-tapping screws to attach mounting plate to health or assets. selected position. Driver never operates while driving. Driver may cause car accident by watching monitor 2 Install on to the mounting plate using 4X long screws while driving. - Page 5 Connections For Operating Monitor L A M P B U T T O N PUSH POWER MENU VOL- VOL+ E j e c t m o n i t o r s e t b y p r e s s i n g P U S H b u t t o n a n d t h e n , a d j u s t m o n i t o r s e t f o r y o u r c o m f o r t a b l e w a t c h i n g .
- Page 6 Operation Function Remote Function POWER LCD SCREEN CHROMA POWER MENU VOL- VOL+ VOL+ VOL- MENU CONTRAST POWER REMOTE CONTROL SENSOR BRIGHTNESS LCD MONITOR REMOTE CONTROL UNIT Interface switch Function Power power ON/OFF cvbs signal select Menu Pressing this key can invoke OSD menu.After Power: Power on/off then,it is an Enter key.
